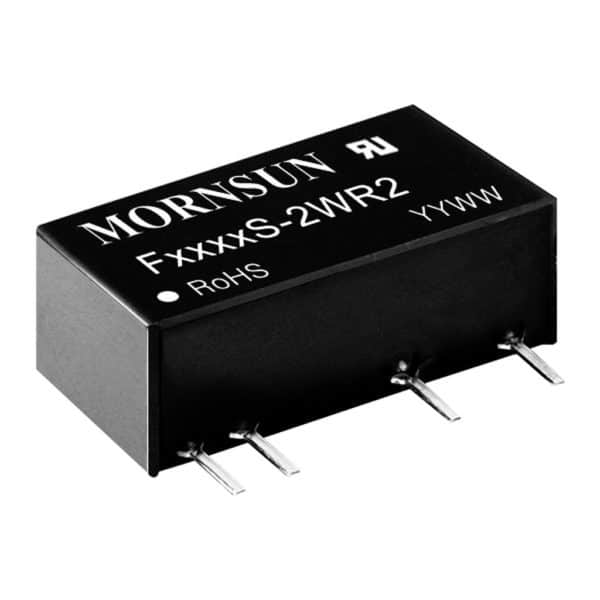

2W Isolated DC-DC Converter. Fixed Input Voltage, Unregulated Single & Dual Output – F_S-2WR2 Series

SKU: F_S-2WR2 Categories: , , Manufacturer:
Download PDF

Product specs

Weight 2.4 g
Dimensions 19.65 × 7.05 × 10.16 mm
Output

3.3V, 5V, 9V, 12V, 15V, 18V, 24V
Input Range

4.5-5.5Vdc, 10.8-13.2Vdc, 13.5-16.5Vdc, 21.6-26.4Vdc
Min-Max Tamb (°C)

-40°C, +105°C

Product Description

E_S-2WR2 & F_S-2WR2 series are designed for use in distributed power supply systems and especially suitable in applications such as pure digital circuits, low frequency analogue circuits, relay-driven circuits and data switching circuit s, where

1. The voltage of the input power supply is relatively stable with a variation of ±10% Vin or less;

2 . A high input to output isolation voltage of ≤ 3000Vdc is necessary.

3 . The requirement for a tight output regulation and low ripple & noise is not as strict.

  • Operating ambient temperature range: -40℃ ~ +105℃ 
  • High efficiency up to 86% 
  • High power density 
  • Miniature SIP package 
  • I/O isolation test voltage 3K VDC 
  • No extra components required 
  • Industry standard pin-out 
  • IEC60950, UL60950, EN60950 approved

Available Options:
