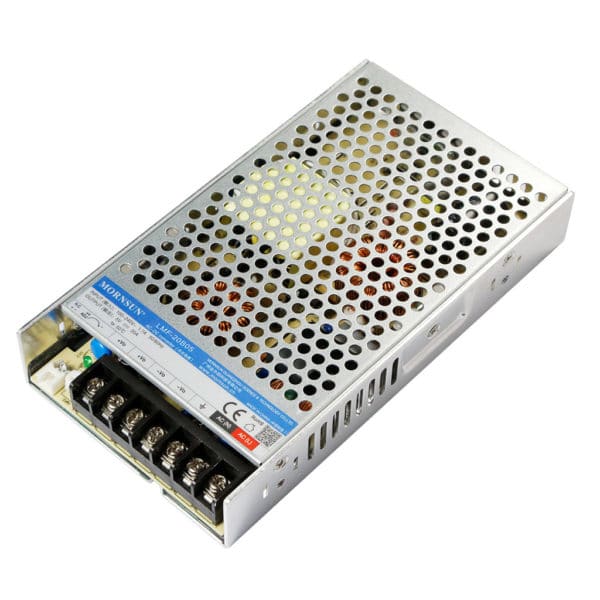

Enclosed AC/DC Switching Power Supply – LMF100-20Bxx Series

SKU: LMF100-20Bxx Categories: , , Manufacturer:
Download PDF

Product specs

Weight 530 g
Dimensions 179 × 99 × 30 mm
Input Range

85-264Vac, 120-373Vdc
Power

100W, 100.5W, 100.8W, 102W
Output

5V, 12V, 15V, 24V, 48V
Current

2.1A, 4.2A, 6.7A, 8.5A, 20A
Min-Max Tamb (°C)

-30°C, +70°C
Misc.

Built in PFC Function

Product Description

LMF100-20Bxx series is a low cost, high specification enclosed AC-DC switching power supply. It features universal AC input and also accepts a DC input voltage.  The LMF100-20Bxx series is a cost-effective, high efficiency and high reliability power supply with built in PFC function. These converters offer excellent EMC performance and meet  the requirements of IEC/EN61000-4, CISPR32/EN55032, IEC62368, UL62368, EN62368, EN60335, GB4943 standards.

Typical applications include industrial process control, LED street light control, electricity monitoring, security, telecommunications, smart home etc.

  • Universal 85 – 264V AC or 120 – 373VDC Input voltage 
  • Accepts AC or DC input (dual-use of same terminal) 
  • Operating temperature range: -30℃ to +70℃ 
  • Built-in active PFC function 
  • High I/O isolation test voltage up to 4000VAC 
  • Low ripple & noise 
  • Output short circuit, over-current, over-voltage, over-temperature protection (Built-in constant current limiting circuit） 
  • Remote ON-OFF control 
  • Safety according to IEC/EN/UL62368, EN60335, GB4943 (CE/CCC/UL pending) 
  • Over-voltage class Ⅲ (designed to meet EN61558) 
  • Withstand 300VAC surge input for 5s 
  • Emissions meets CISPR32/EN55032 CLASS B without extra component

Available Options:
