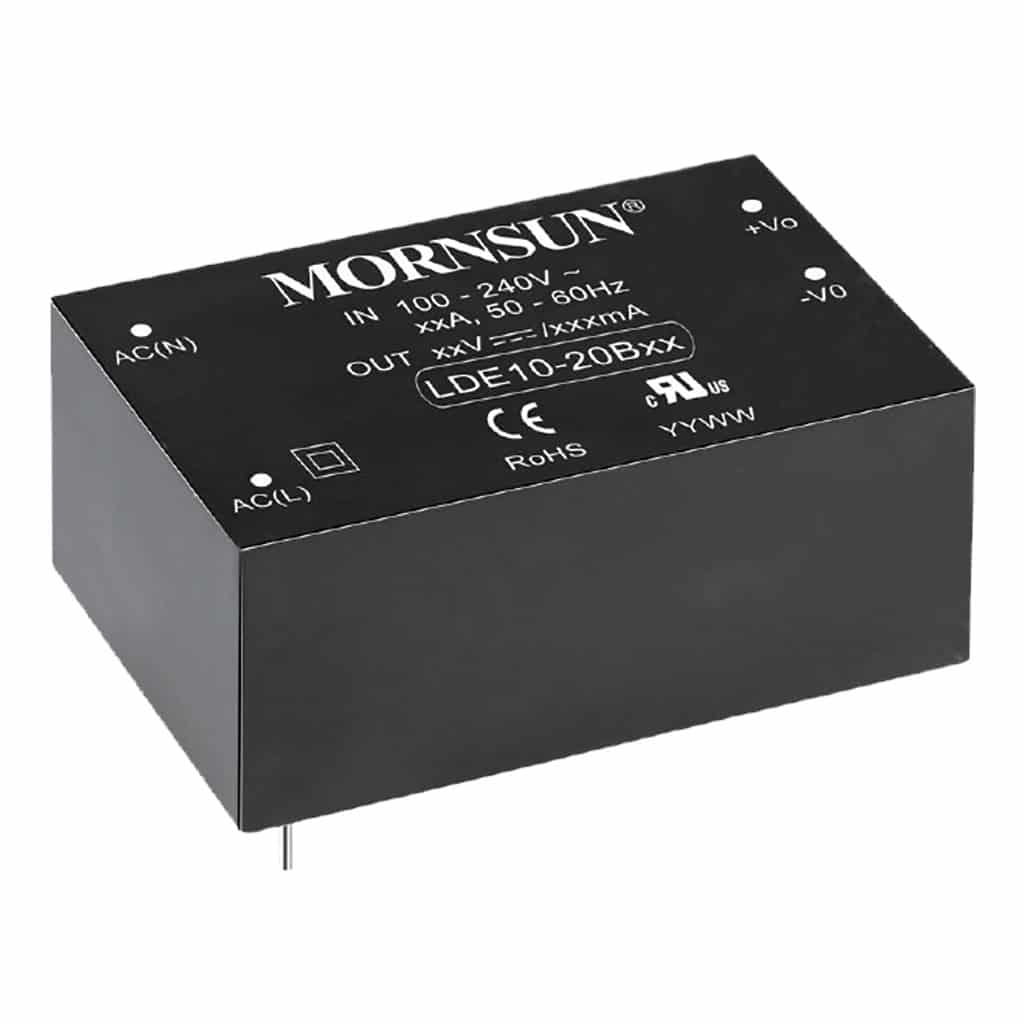

PCB Mount LDE10-20Bxx Series

SKU: LDE10-20Bxx Category: Manufacturer:

Product specs

Weight 48 g
Dimensions 53.8 × 28.8 × 19 mm
Input Range

85-264Vac, 100-370Vdc


3.3V, 5V, 9V, 12V, 15V, 24V


6.6W, 10W


450mA, 700mA, 900mA, 1.1A, 2A

Min-Max Tamb (°C)

-40°C, +70°C

Product Description

LDE10-20Bxx series is one of Mornsun’s compact size power converters. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability and double or reinforced insulation. It offers excellent EMC performance and for extremely harsh EMC environment, Mornsun recommend using the application circuit shown in the Design Reference of the datasheet. The converters meet IEC/EN61000-4, CISPR32/EN55032, UL62368, EN62368, IEC62368, IEC60335, EN60335 standards and are widely used in industrial, medical, electricity, instrumentation and telecommunication applications.

Note: * Use suffix ”A2S” for chassis and suffix ”A4S” for DIN-Rail mounting.

  • Universal 85 – 264V AC or 100-370VDC input voltage 
  • Operating ambient temperature range: -40℃ to +70℃ 
  • High I/O isolation test voltage up to 4000VAC 
  • Regulated output, low ripple & noise 
  • Output short circuit, over-current and over-voltage protection 
  • High efficiency, high reliability 
  • Plastic case meets UL94V-0 flammability 
  • EMI performance CISPR32 / EN55032 CLASS B 
  • IEC/EN/UL62368 and IEC/EN60335 safety approval

Available Options:
