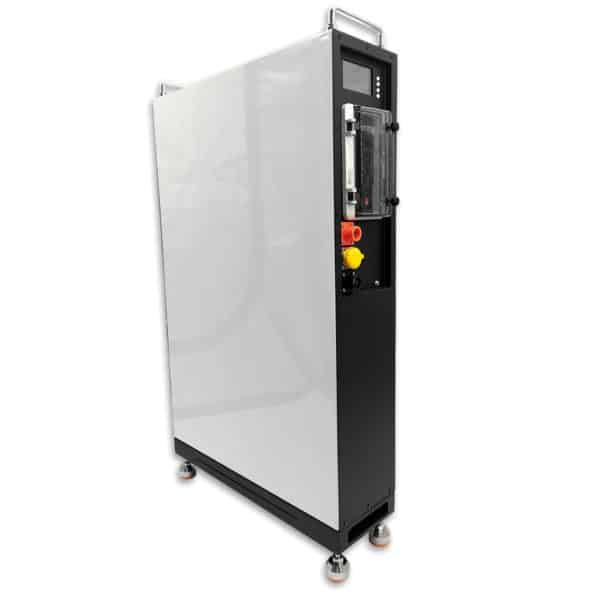

Power Wall P10A 10kW Energy Storage Battery

Categories: , Manufacturer:

Key Features:

  • 10-year warranty
  • Stackable design
  • Plug-in terminals, easy to operate
  • Long cycle life (1C charge and  discharge, 80% DOD 5000+ times)
  • High discharge current output
  • Fast charge and discharge
  • Intelligent BMS
  • Support Bluetooth (optional)



Download specification sheet
Download user manual



Battery Type

LiFePO4

Energy

5120Wh

Capacity

100AH

Rated Voltage

51.2V

Working Voltage Range

40 ~ 58.4V

Max Charge Current

100A

Max Discharge Current

100A

Standard Charge Current

50A

Standard Discharge Current

100A

DOD

100%

Max Parallel Quantity

16

Designed Life-span [1]

6000 Cycles

Operating Temperature [2]

Charge 0 ~ 60oc Discharge -10 ~ 60oc

Operation Humidity

5 ~ 95%

Nominal Operation Altitude

<3000m

IP Rating

IP65

Installation Method

Free Standing

Communication

RS485/CAN/RS232

Certification

MSDS UN38.3

Net Weight

45kg

Dimension(L*W*H)

635*400*165 mm
