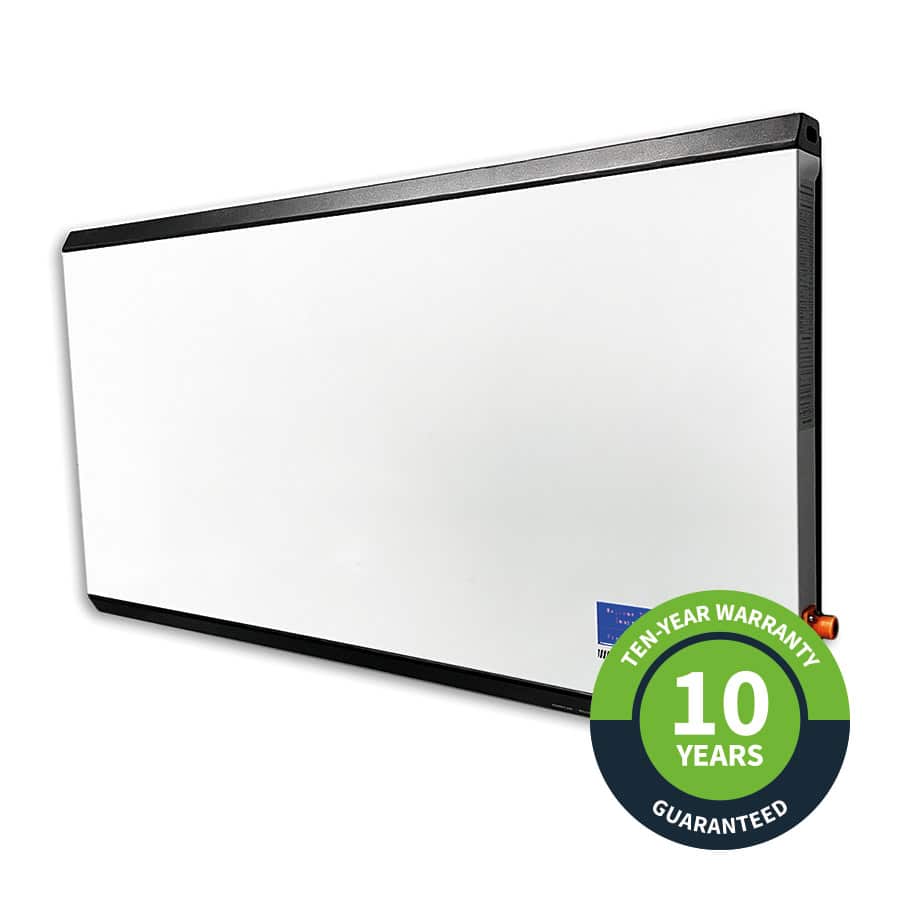

Power Wall P7A 7kW Energy Storage Battery
Key Features:
- 10-year warranty
- Ultra-thin body design
- Plug-in terminals, easy to operate
- Long cycle life (1C charge and discharge, 80% DOD 5000+ times)
- Using BYD blade cell 16S1P
- High discharge current output
- Fast charge and discharge
- Intelligent BMS Support
- Bluetooth (optional)
|
Battery Type |
LiFePO4 |
|
Energy |
6912Wh |
|
Capacity |
135AH |
|
Rated Voltage |
51.2V |
|
Working Voltage Range |
40 ~ 58.4V |
|
Max Charge Current |
100A |
|
Max Discharge Current |
100A |
|
Standard Charge Current |
50A |
|
Standard Discharge Current |
100A |
|
DOD |
100% |
|
Max Parallel Quantity |
16 |
|
Designed Life-span [1] |
6000 Cycles |
|
Operating Temperature [2] |
Charge 0 ~ 60oc Discharge -10 ~ 60oc |
|
Operation Humidity |
5 ~ 95% |
|
Nominal Operation Altitude |
<3000m |
|
IP Rating |
IP65 |
|
Installation Method |
Wall-Mount |
|
Communication |
RS485/CAN/RS232 |
|
Certification |
MSDS UN38.3 |
|
Net Weight |
46.3kg |
|
Dimension(L*W*H) |
1028*78*545mm |
