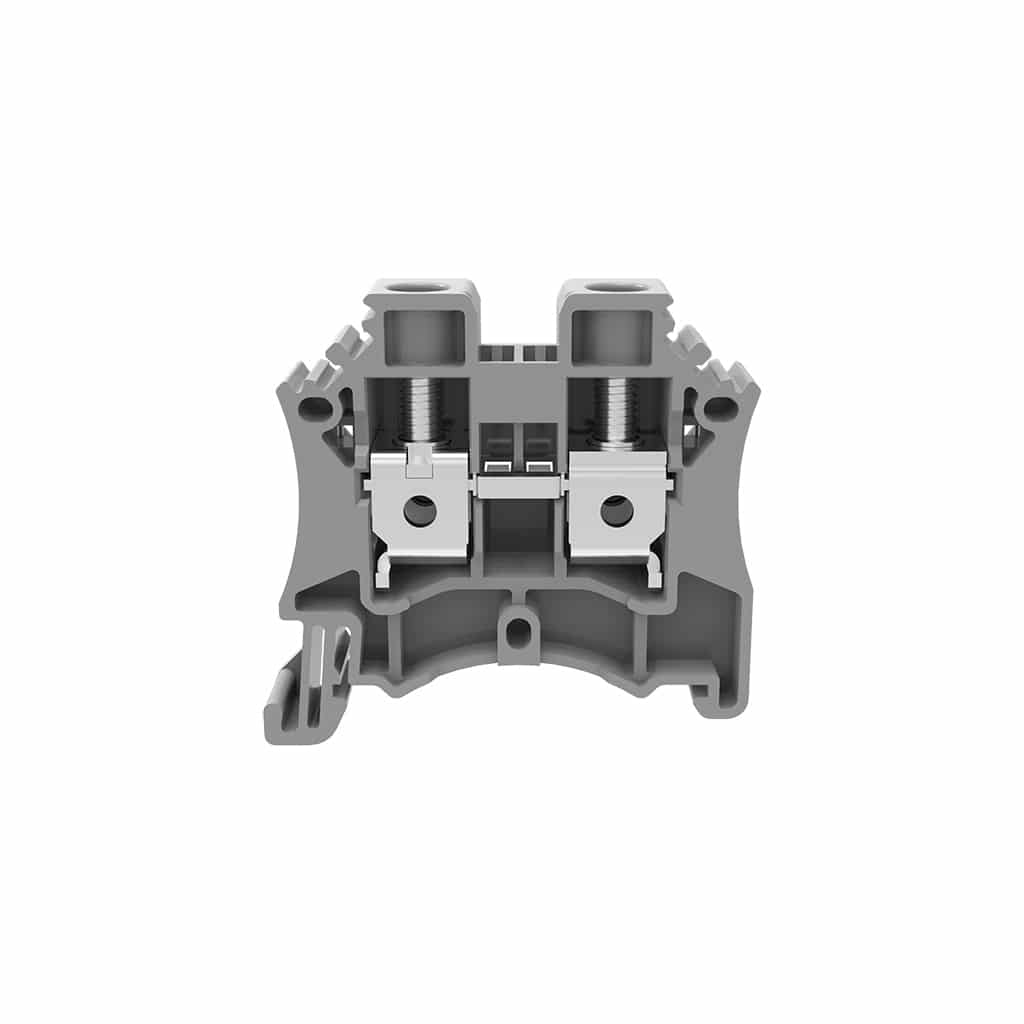

10mm2 – Screw Type – DC10 – Din-Rail Series
Product specs
| Dimensions | N/A |
|---|---|
| Description | 10 way Jumper, 10mm2 Earth Connector, 10mm2 Grey Connector, Blank Marking Tab, End Stop, Grey End Piece |
| UL Ratings | 6-20awg, 6-20awg 65a @ 600V |
| VDE/CE Ratings | 0.5-10mm2 57a @ 1000V, 0.5-10mm2 |
| Number of Positions | 2, 10 |
| Colour | Grey, Yellow/Green, Red, Blue, Black |
| Approvals | CE |
Product Description
DC10 series is a Screw Type Din-Rail connector from Degson. Product is available in multiple colours upon request. Dc10 are PA66 material offering the highest V0 flammability rating.
- Flammability Rating -V0
- Temperature – -40 + 105C
- Material PA66
- Other colours available on request
