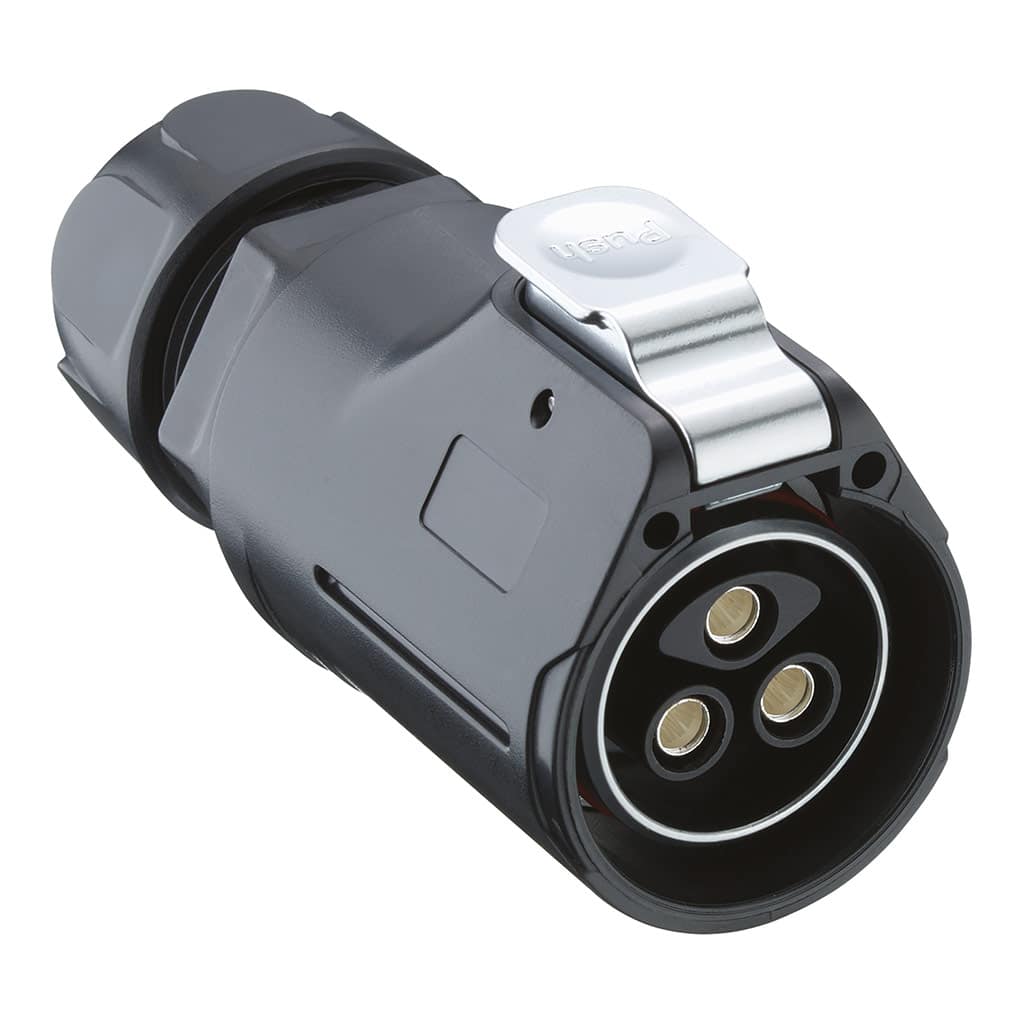

Circular Power Connector Plug, Size 28, 026528 – Series

SKU: 026528 Categories: , , Manufacturer:

Product specs

Poles

2, 3, 8

Rated Current

17A, 43A, 50A

Product Description

The 026528 Series is a Circular Power Connector with the Quicklock mechanism from Lumberg. With added Chrome plated guiding element the socket has a locking latch and is available with 2, 3, & 8 poles. The 8 pole version has solder terminals. IP67 when mated. Size 28 for signal and load currents up to 50A 2 poles, 42A  3 poles and 17A 8 poles. Gold plated contacts, rated to 500V. Cable dia 4.00 ⁓ 11.5mm. Please ask for further details.

  • Temperature range: -40 °C/+80 °C
  • Insulating body: PBT, V-0 according to UL94
  • Contact pin: CuZn, gold-plated
  • Chrome plated guiding element.
  • Housing: PBT, V-0 according to UL94 – F1 according to UL 746C, outdoor suitability (UV-light, immersion)
  • Protection class: IP67 – IP65 with Protection Cap
  • Contact resistance: ≤ 5 mΩ
  • Rated current: 50A 2 poles, 43A 3 poles, 17A 8 poles.
  • Rated voltage: 500 V
  • Rated impulse voltage: 2500 V AC
