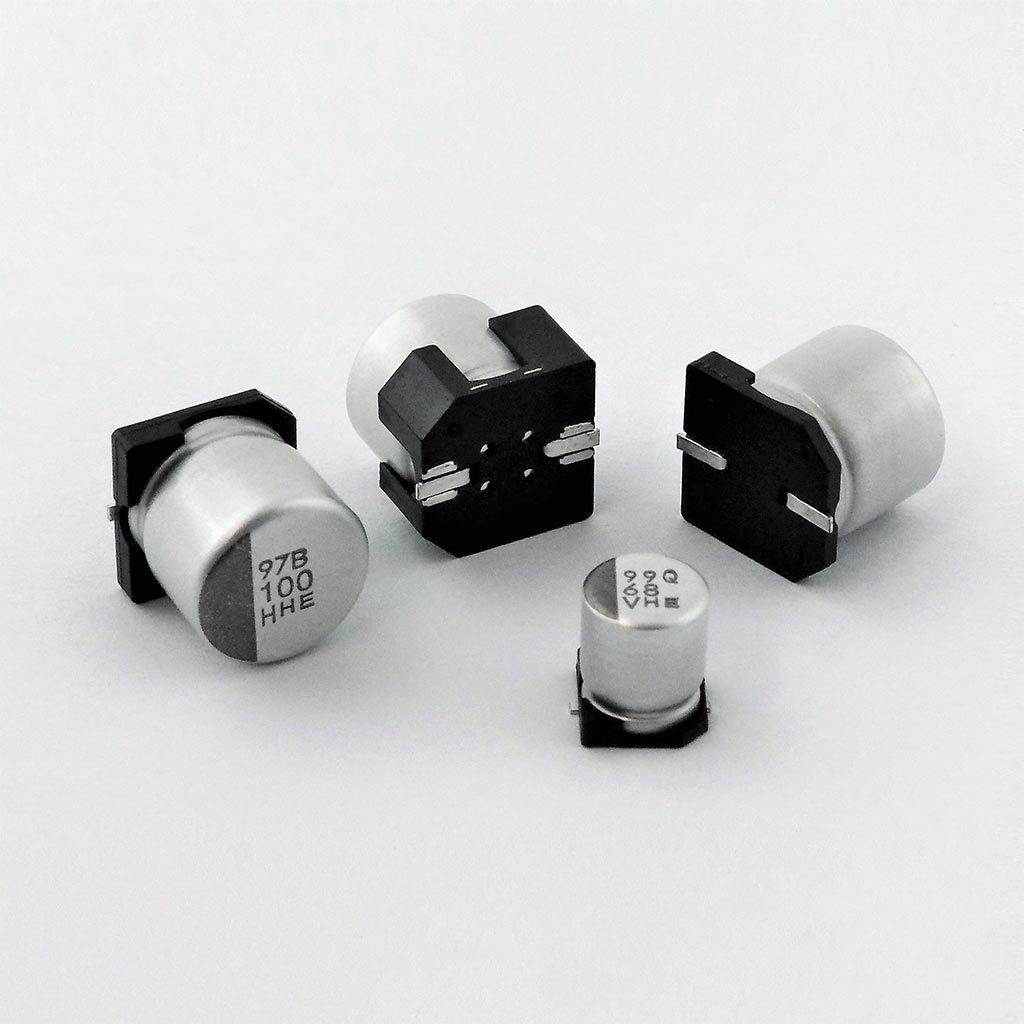

Conductive Polymer Hybrid Aluminium Electrolytic Capacitors – HXE Series
Product specs
| Voltage | 16-63Vdc |
|---|---|
| Capacitance | 22uF, 470uF |
| Min-Max Tamb (°C) | -55°C, +135°C |
Product Description
EASBY Electronics promote the wide range of SMD Polymer Hybrid Capacitors from the Nippon Chemi-Con HXE Series.
Capacitance ranging from 22uf to 470uF and Voltage from 16-63Vdc. This 2,000-4,000 Hour 135C rated series is an excellent option for all designs.
Please call the office or email sales@easby.com to discuss your requirements and projects.
- High reliability is realized by hybrid electrolyte
- Endurance with ripple current : 2,000 to 4,000 hours at 135℃
- Rated voltage range : 16 to 63Vdc, Capacitance range : 22 to 470μF
- For high temperature and high reliability applications. (Automotive equipment, Base station equipment, etc.)
- RoHS2 Compliant
- Halogen Free
- AEC-Q200 compliant
