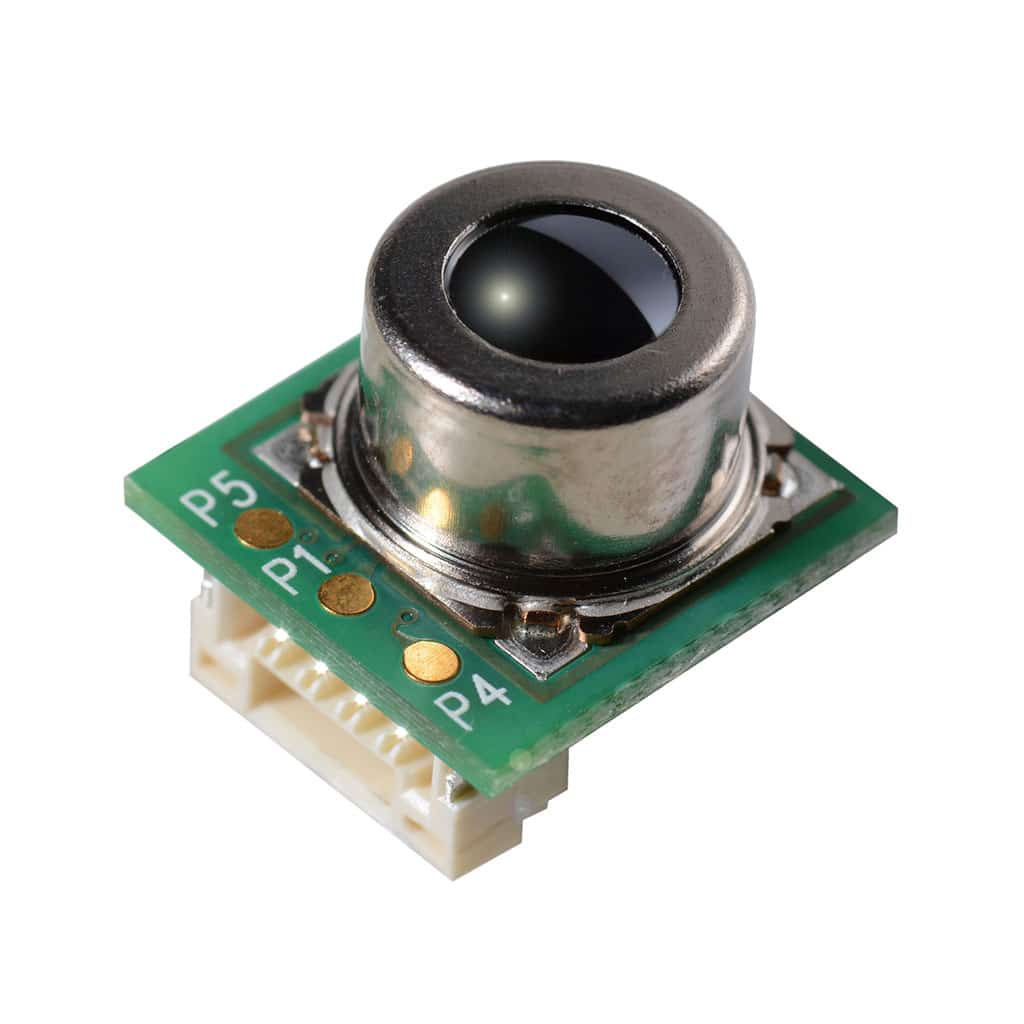

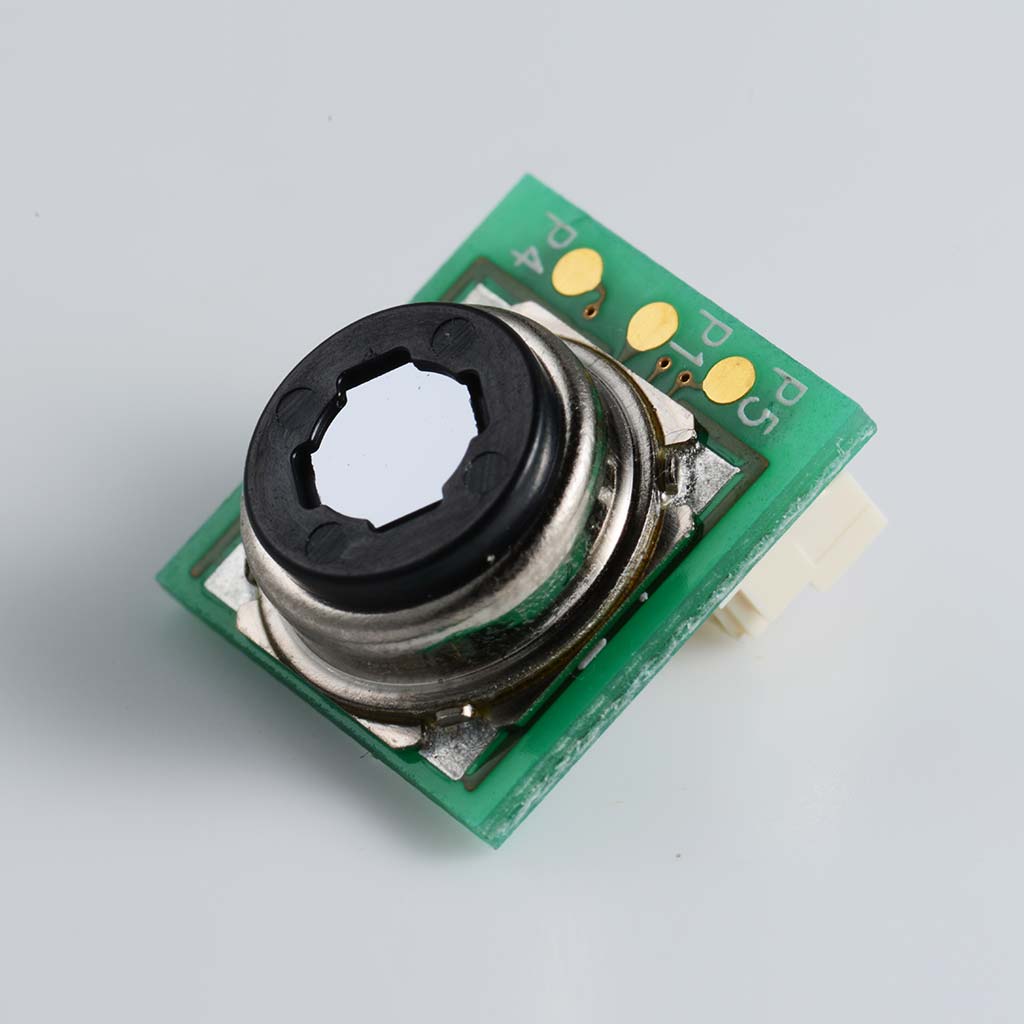

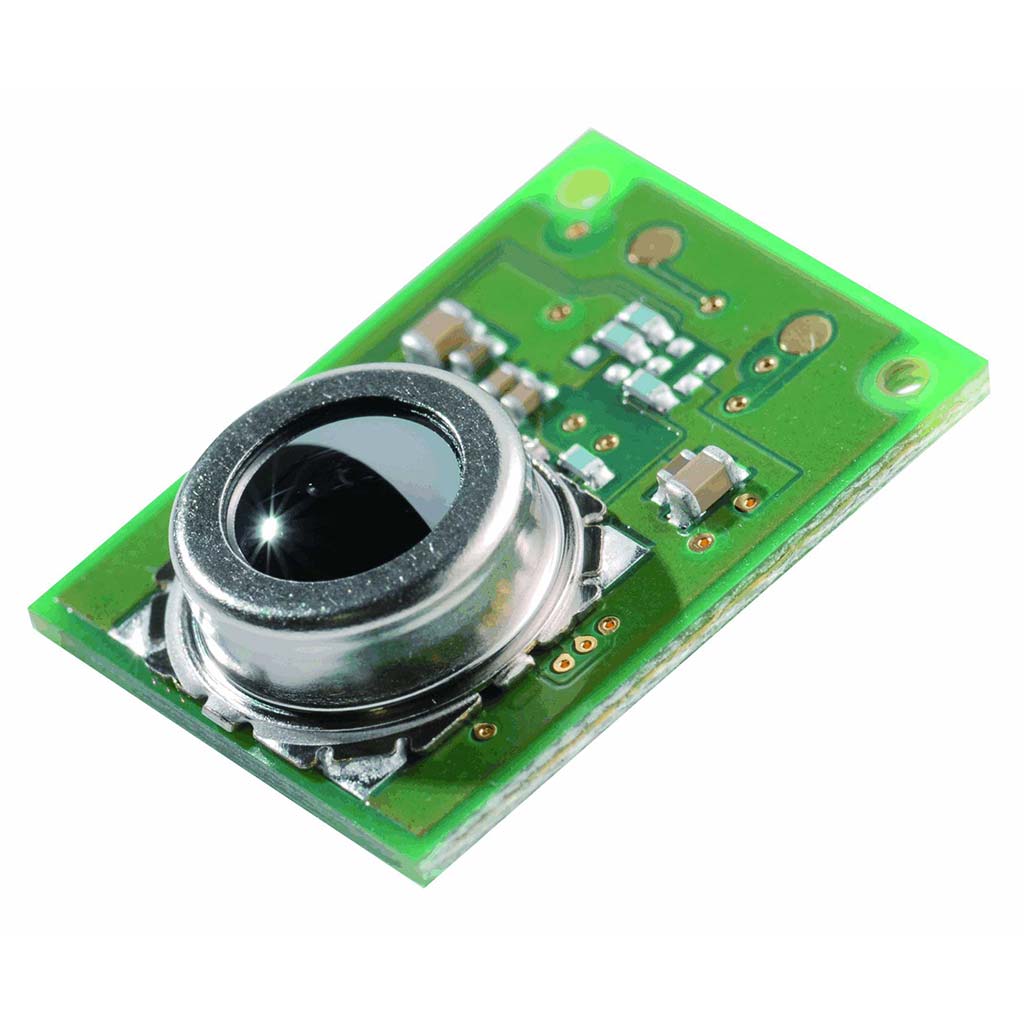

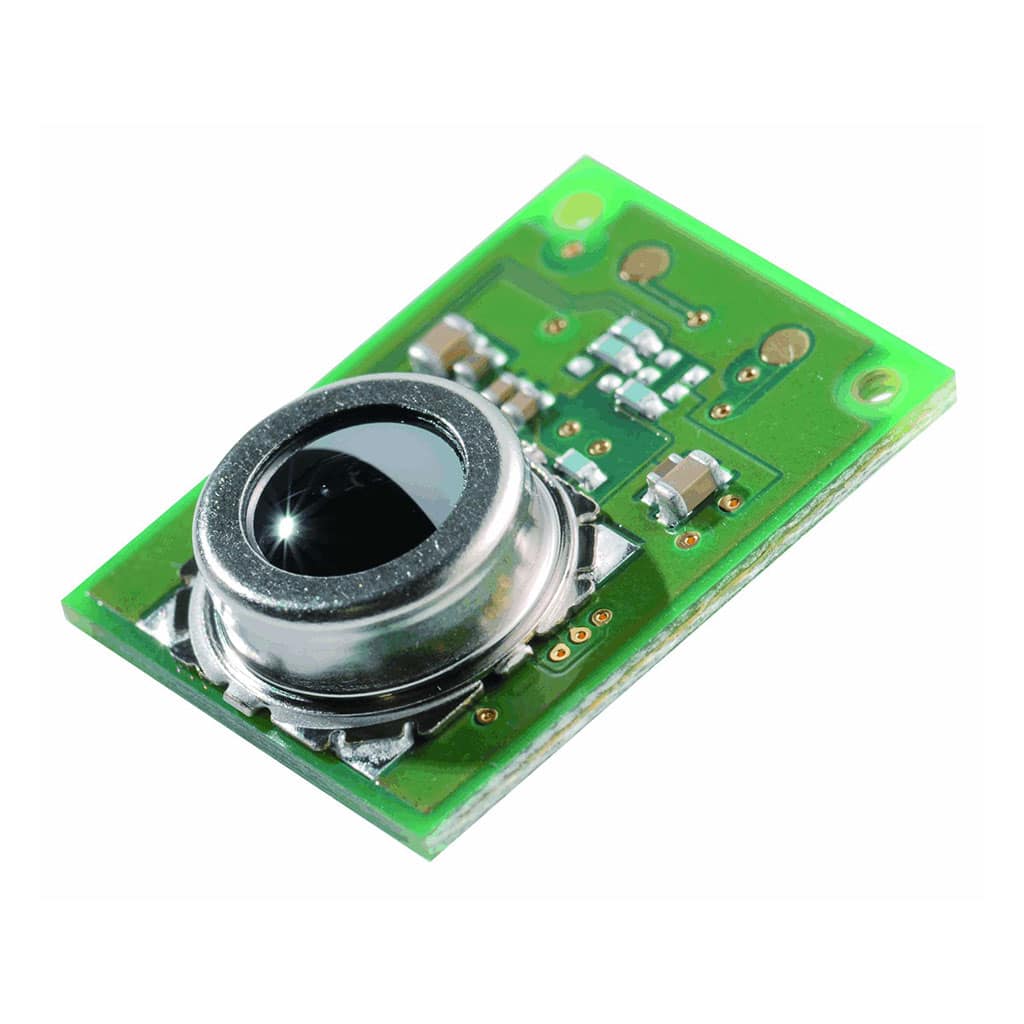

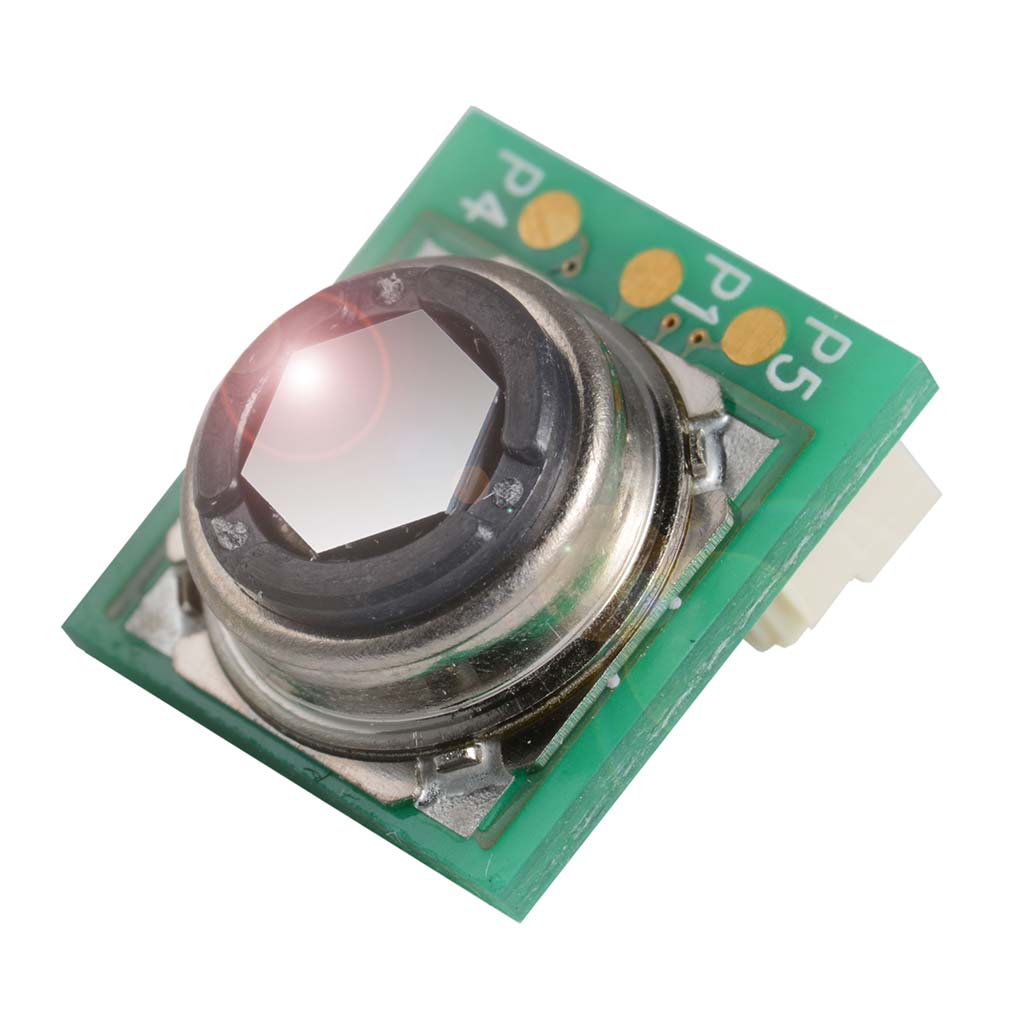

D6T MEMS Thermal Sensors

SKU: D6T Categories: , , Manufacturer:

Product specs

Number of Elements

1 (1×1), 1024 (32×32), 16 (4×4), 8 (1×8)

Viewing Angle (X)

26.5°, 44.2°, 54.5°, 58°, 90°

Viewing Angle (Y)

26.5°, 45.7°, 5.5°, 58°, 90°

Object Temp Detection Range

-40°C to +80°C, 0°C to +80°C, 0°C to +200°C, +5°C to +45°C, +5°C to +50°C, +5°C to +200°C

Ambient Temp Detect. Range

-40°C to +80°C, 0°C to +80°C, 0°C to +200°C, +5°C to +45°C

Temperature Resolution (NETD)

0.02°C, 0.03°C, 0.06°C, 0.33°C

Power Supply

4.5V to 5.5V

Current Consumption

19mA, 3.5mA, 5mA

Operating Temperature Range

0°C to +50°C, 0°C to +60°C, -10°C to +70°C, -40°C to +80°C

Operating Humidity

20% to 85%, 20% to 95%

Storage Temperature Range

-10C° to +60°C, -20°C to +80°C, -40°C to +80°C

Storage Humidity Range

85% max, 95% max

Product Description

The Omron D6T series sensors can detect the slightest change in temperature changes and can be used in a variety of applications including energy-efficient home appliances and security systems. The sensors can also be used in the application fields of HEMS (Home Energy Management System) and BEMS (Building Energy Management System).

D6T sensors let you measure temperature without the need to physically touch the object.

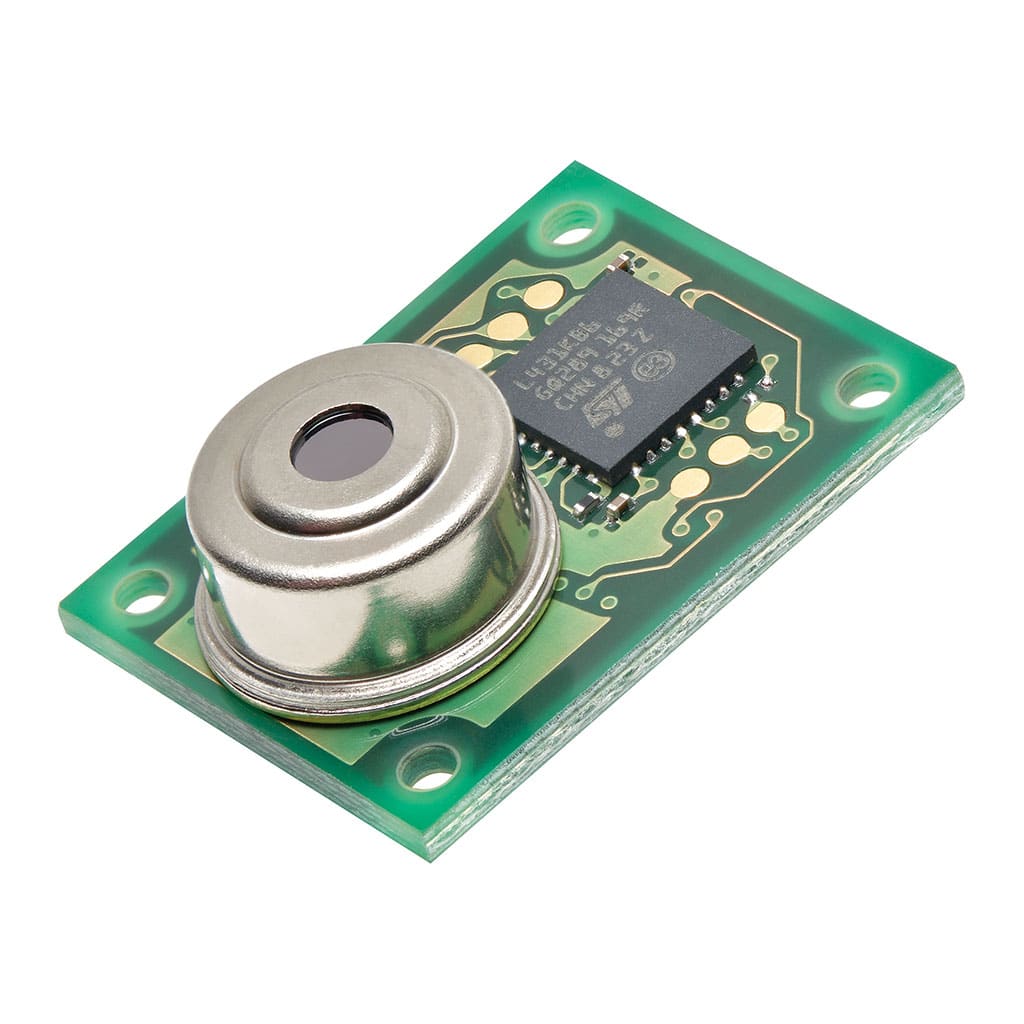

  • OMRON’s unique MEMS and ASIC technology achieve a high SNR (except for the D6T-32L-01A).
  • Superior noise immunity with a digital output.
  • High-precision area temperature detection with low cross-talk field of view characteristics
  • Space-saving design, well-suited for embedded applications
