DEPG0290 series E-Paper (128×296) 2.9″

SKU: DEPG0290 Categories: , Manufacturer:

Product specs

Weight 5.5 g
Dimensions 36.7 × 79.0 mm
Pixels

128×296
Interface

MCU, SPI

Product Description

The DEPG0290 is an Active Matrix Electrophoretic Display (AM EPD). The 2.9″ active area contains 128×296 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU & SPI interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM.

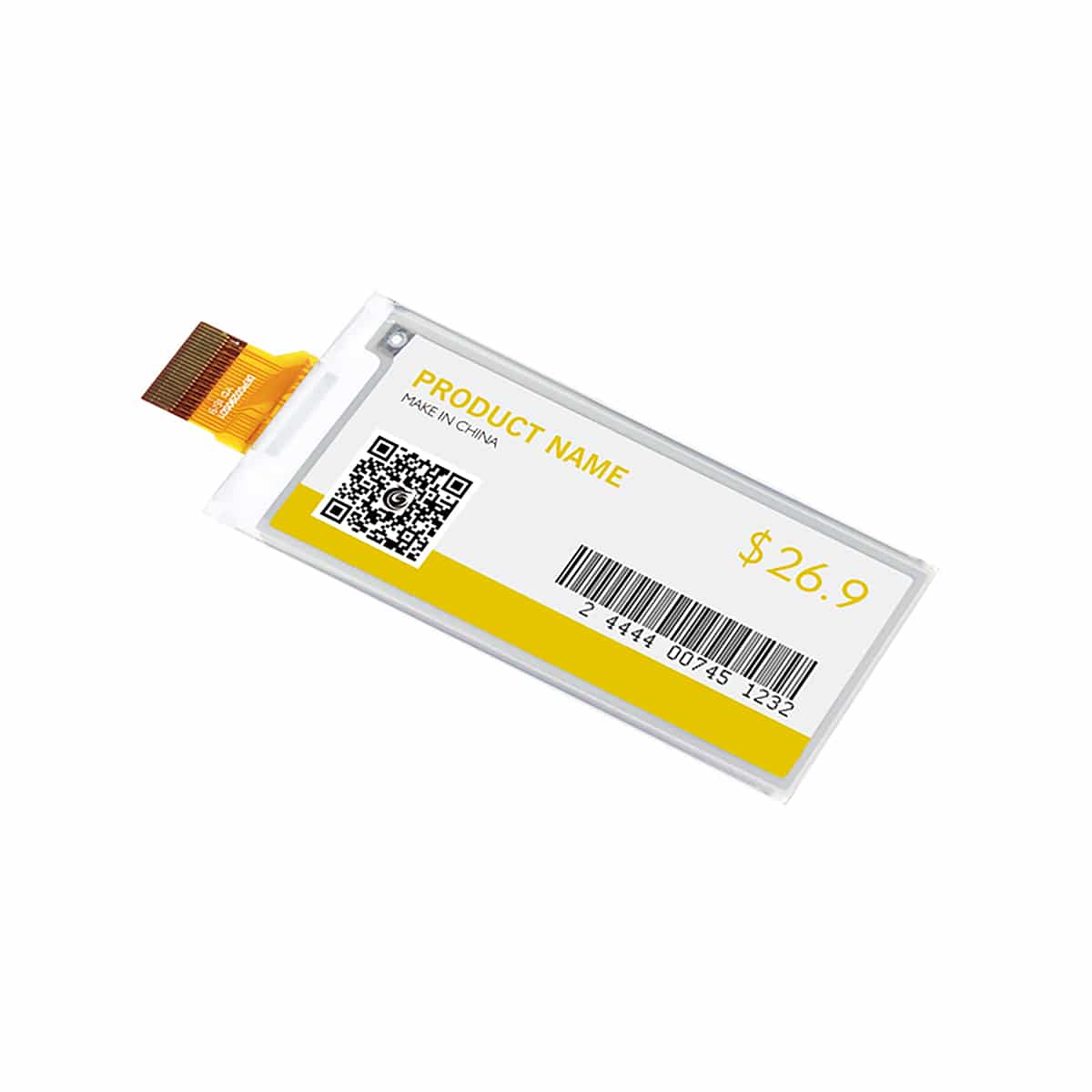

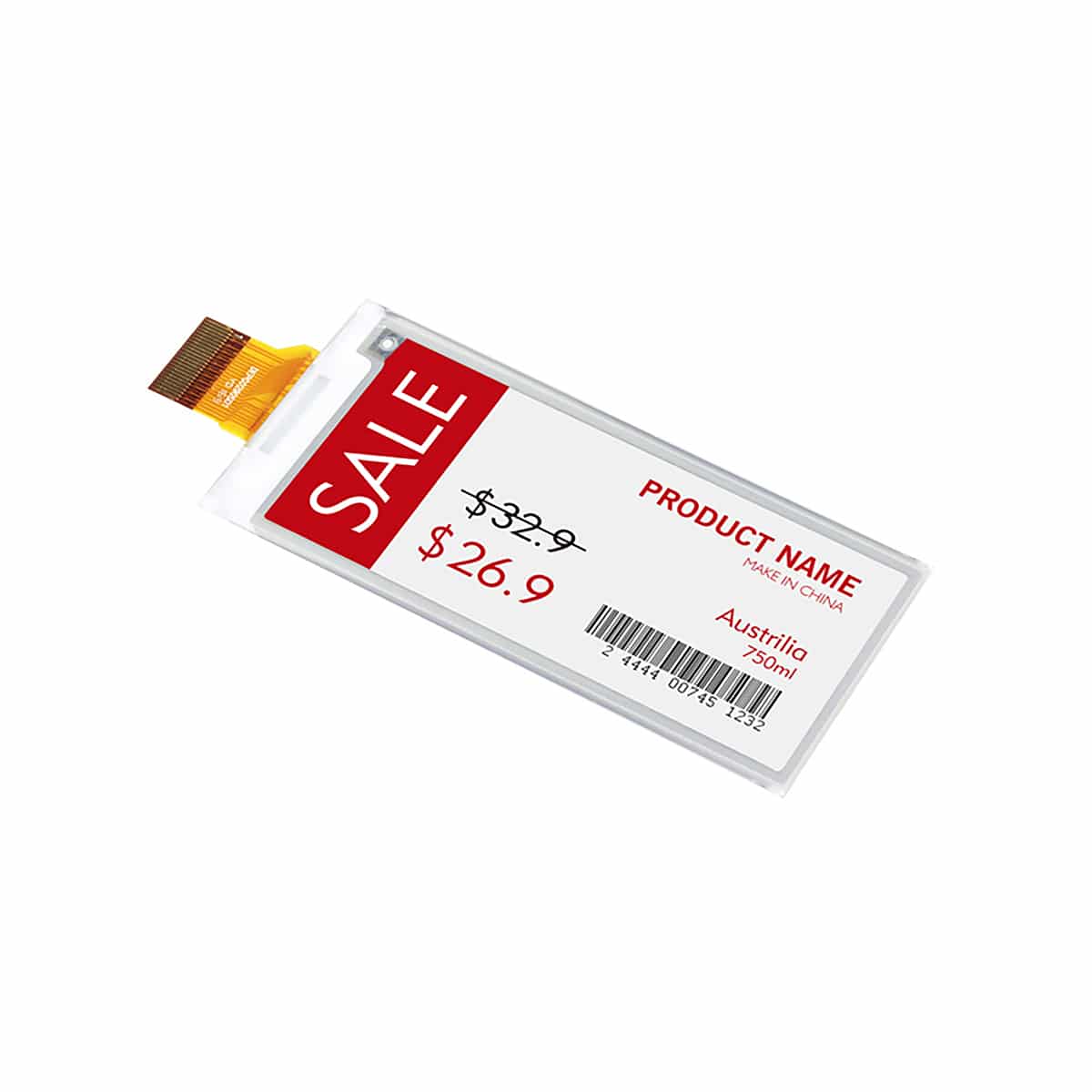

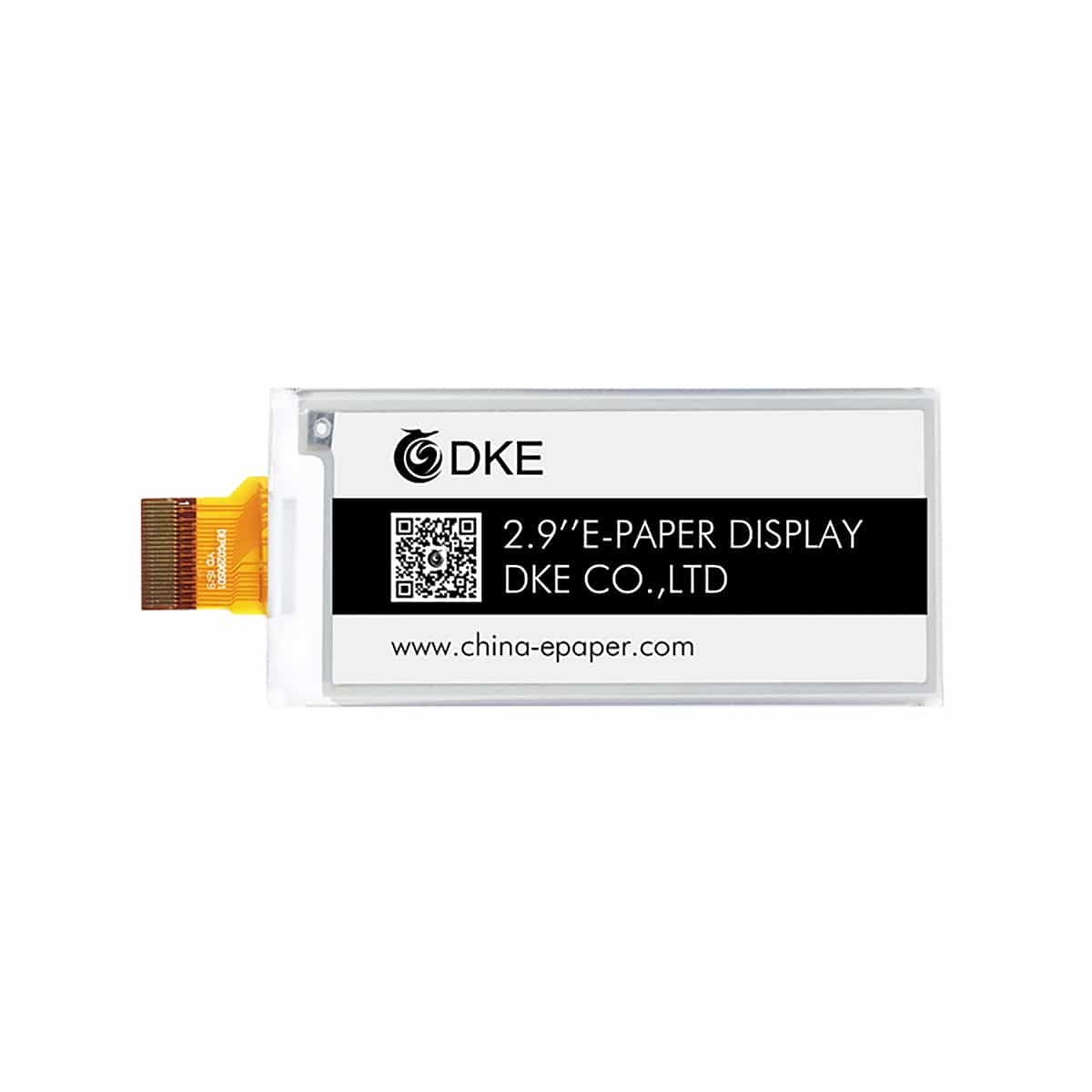

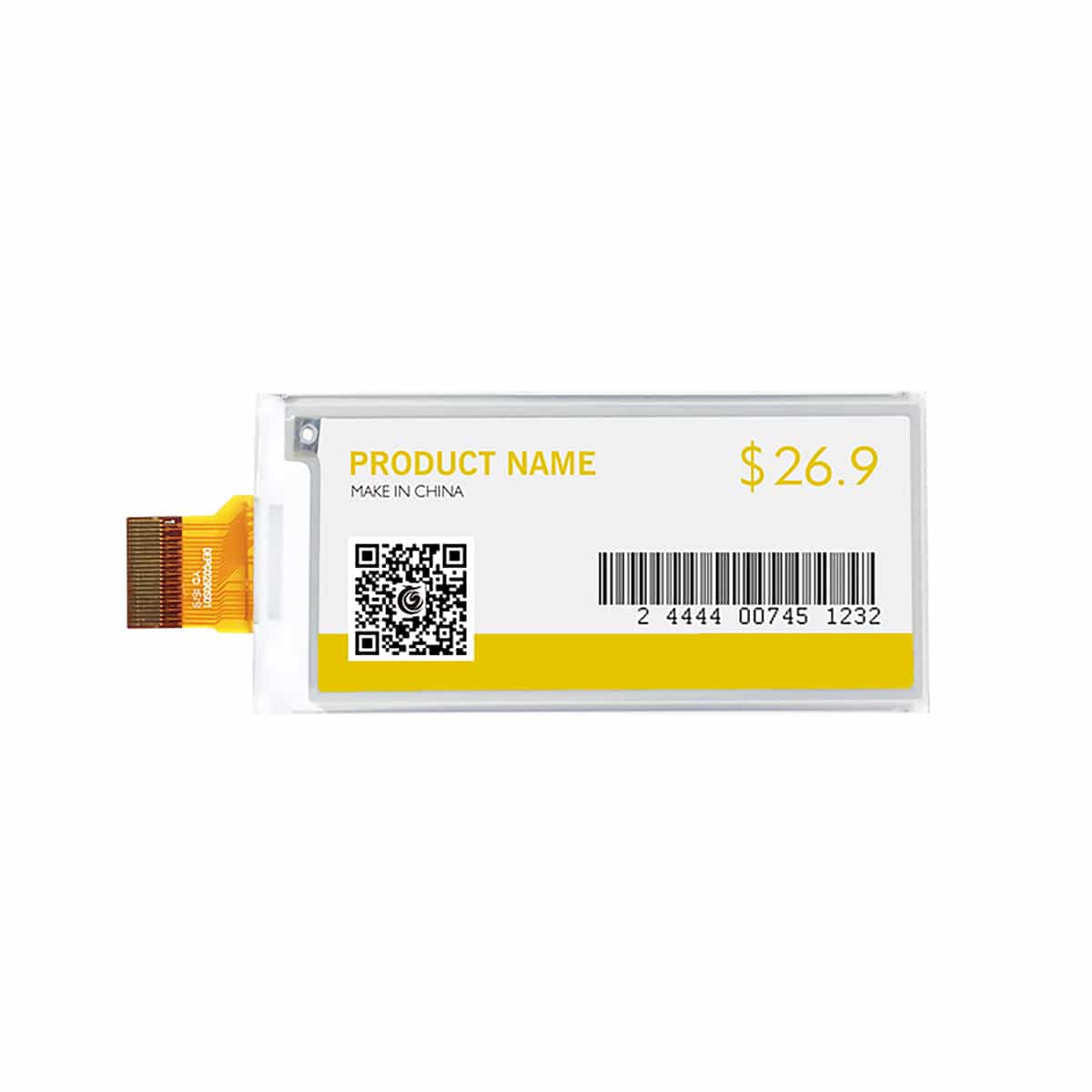

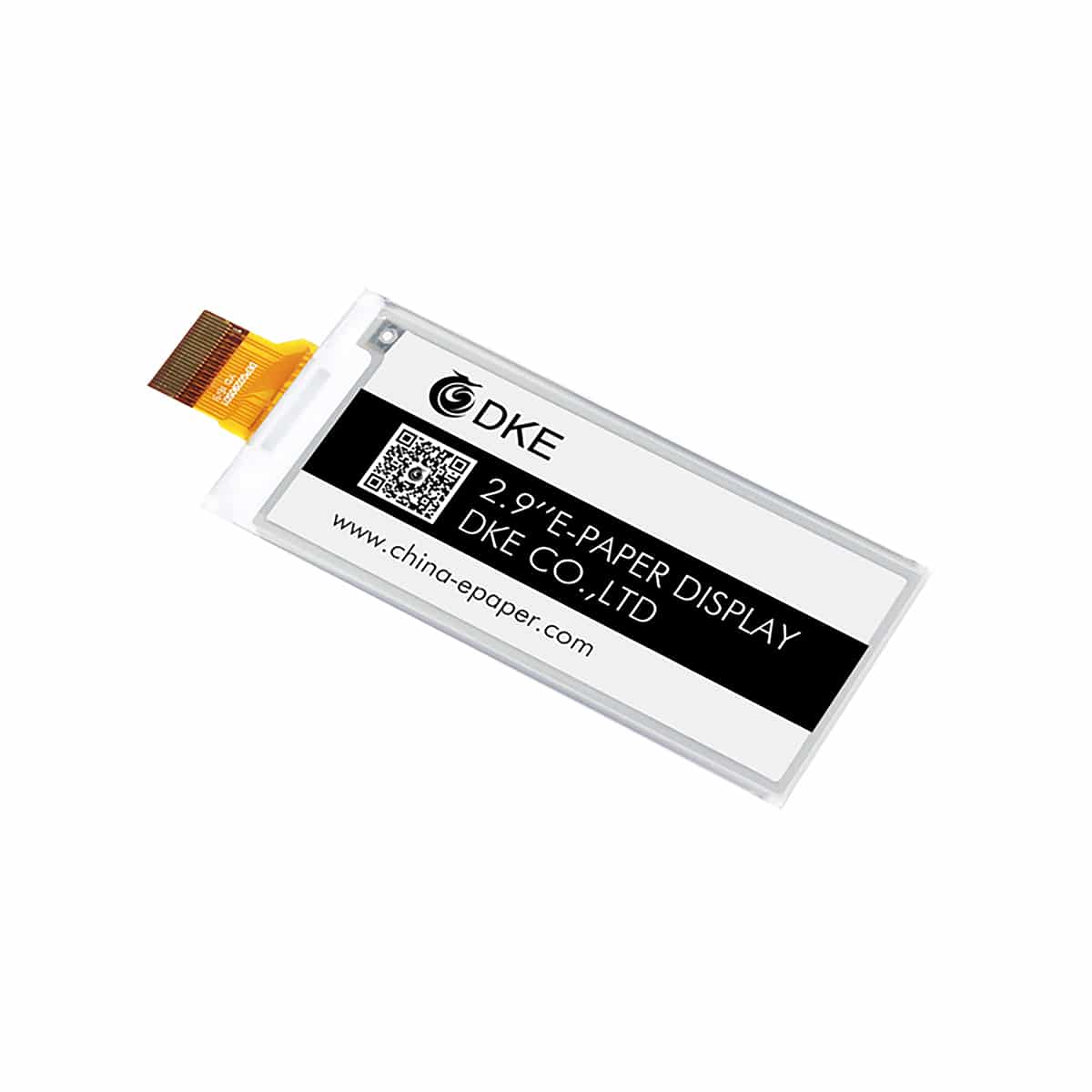

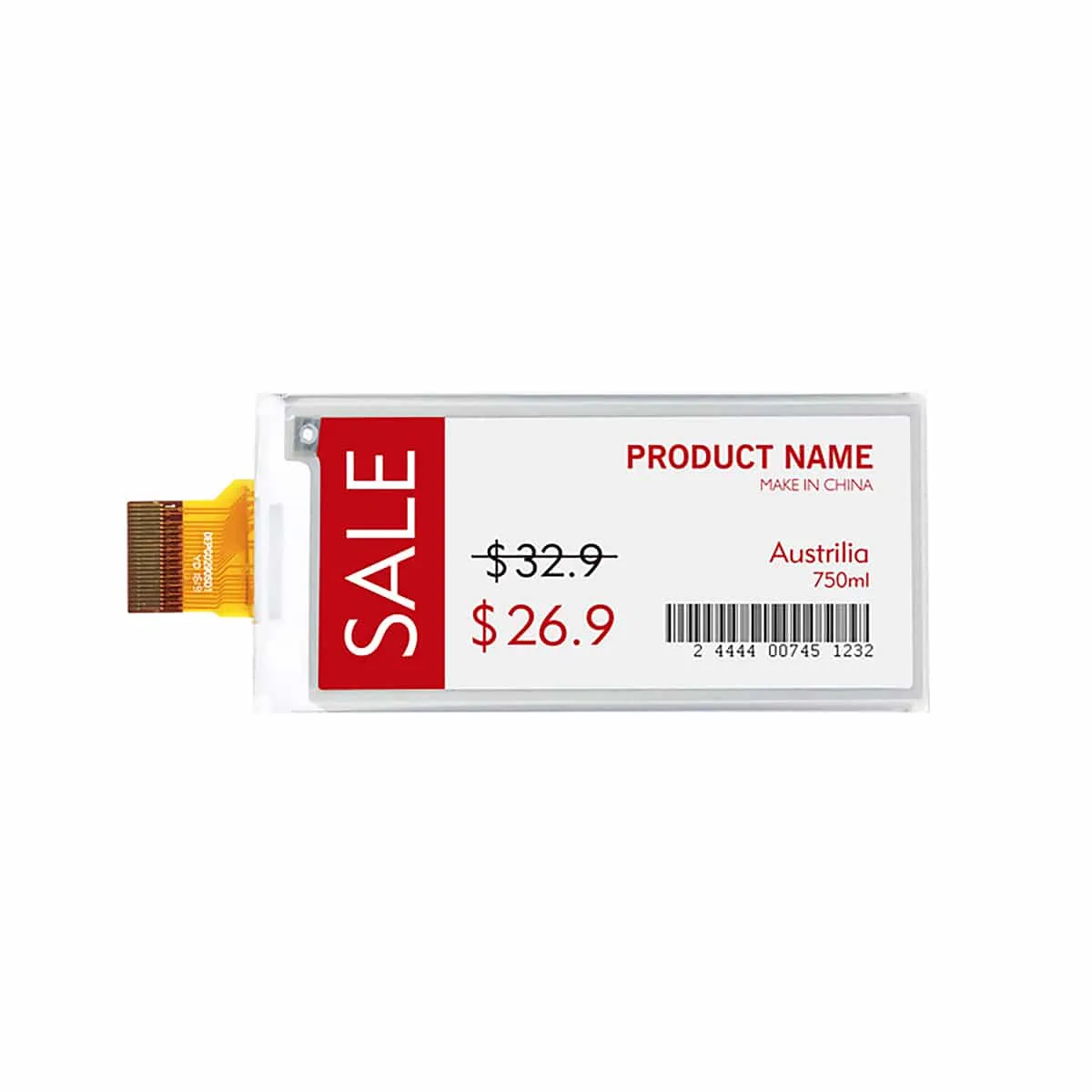

This device is available in three different options: Black & White (B/W), Black, White & Yellow (B/W/Y) and Black, White & Red (B/W/R)







  • 2.9″ E-Paper Display
  • 128×296 Resolution
  • Dimensions: 36.7mm x 79.0mm
  • Active Area: 29.06mm x 66.9mm
  • Pixel Size: 0.227mm x 0.226mm
  • 112 DPI
  • 175° Viewing Angles
  • Available as (B/W), (B/W/Y) & (B/W/R)
