DEPG0437 series E-Paper (480×176) 4.37″
Product specs
| Weight | 9.75 g |
|---|---|
| Dimensions | 46.6 × 115.86 mm |
| Pixels | 480×176 |
| Interface | MCU, SPI |
Product Description
The DEPG0437 is an Active Matrix Electrophoretic Display (AM EPD). The 4.37″ active area contains 480×176 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU & SPI interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM.

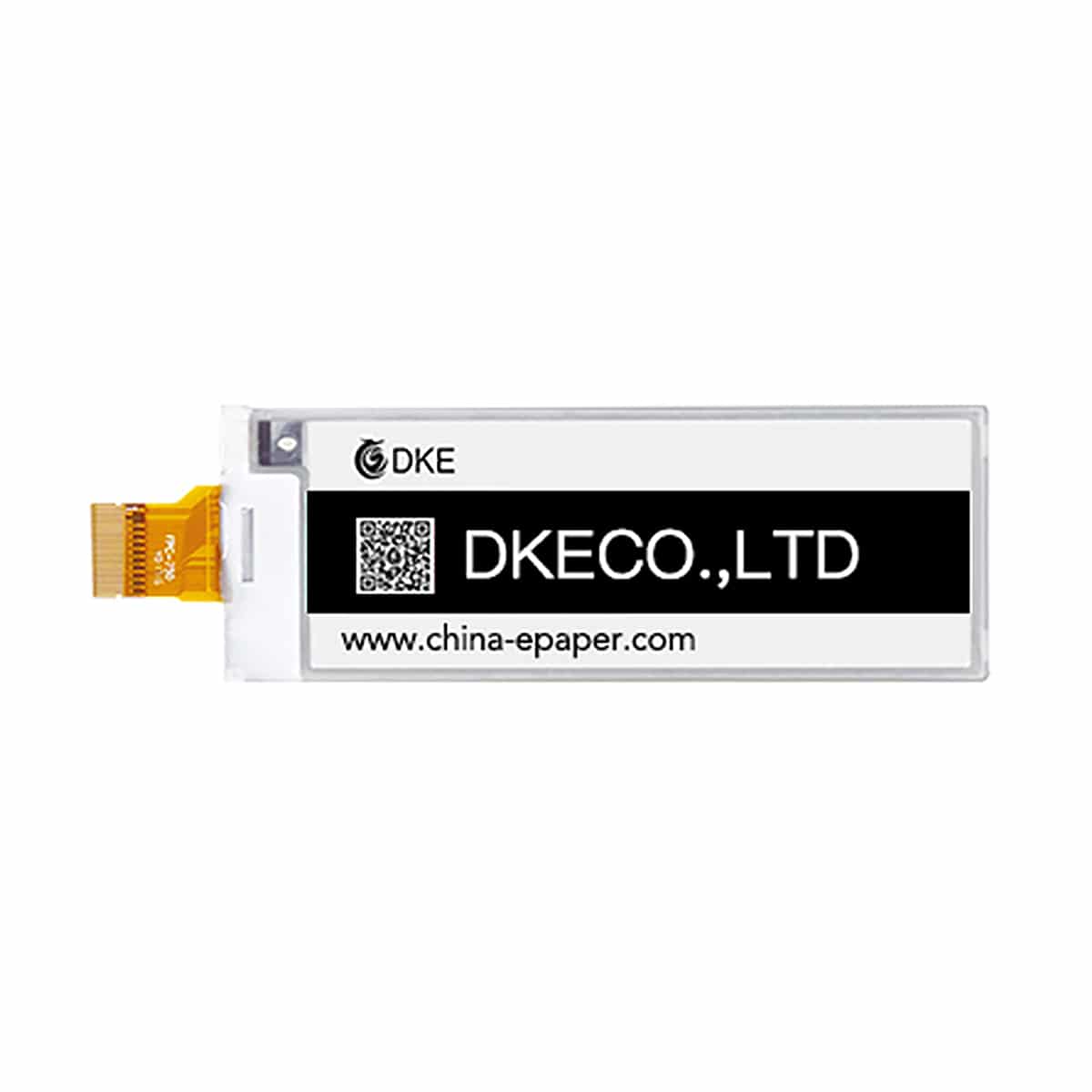

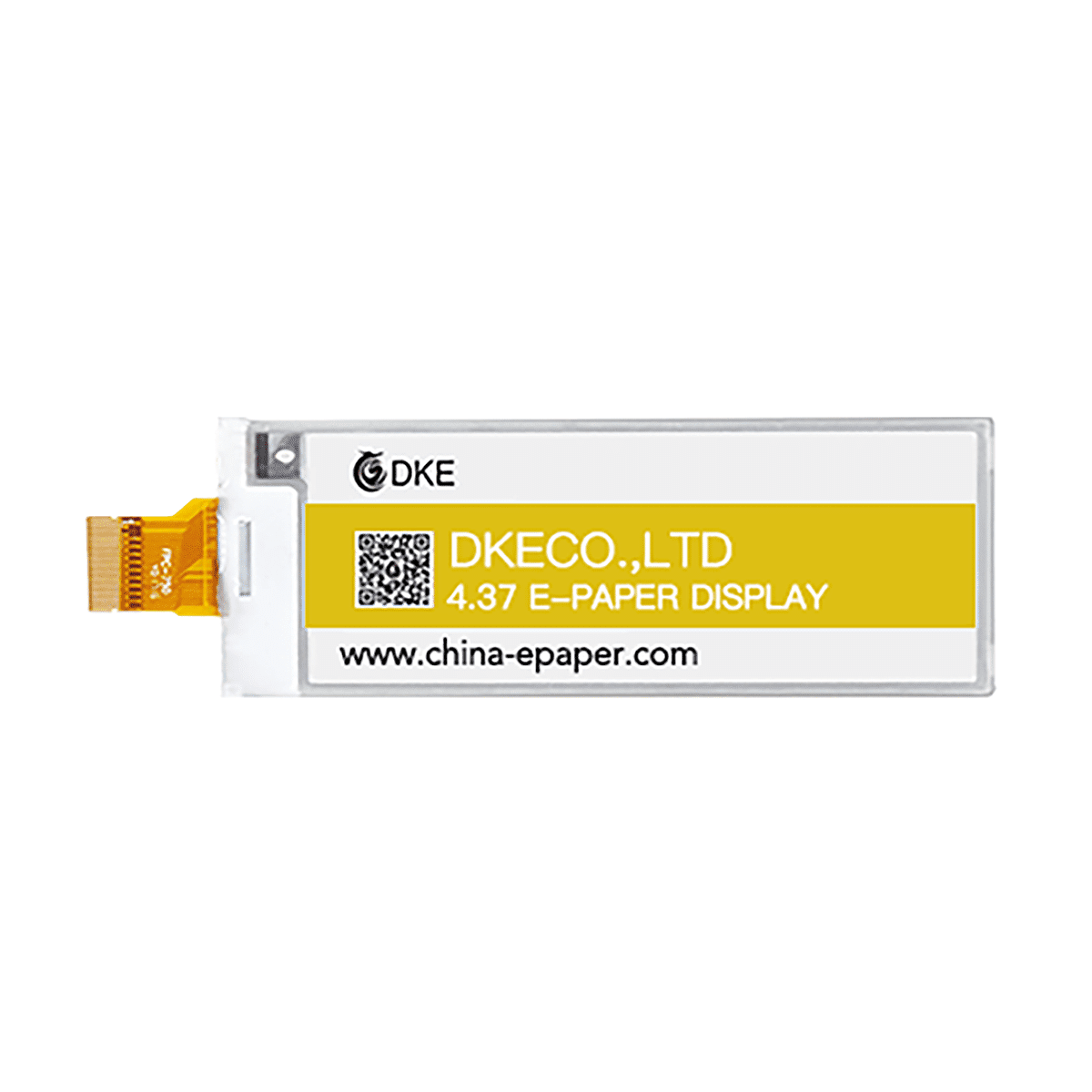

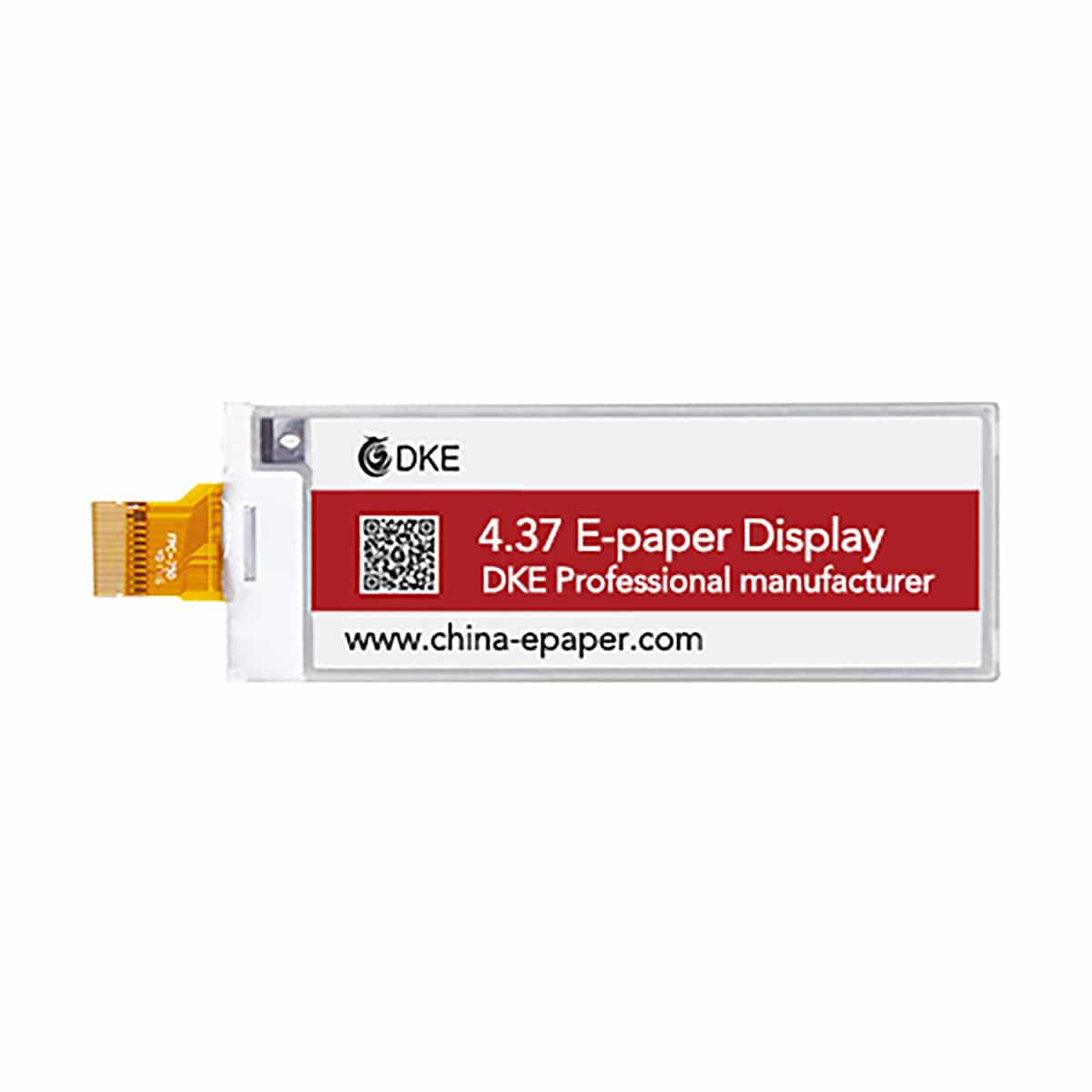

This device is available in three different options: Black & White (B/W), Black, White & Yellow (B/W/Y) and Black, White & Red (B/W/R)
- 4.37″ E-Paper Display
- 480×176 Resolution
- Dimensions: 115.86mm x 46.6mm
- Active Area: 104.16mm x 38.192mm
- Pixel Size: 0.217mm x 0.217mm
- 110 DPI
- 175° Viewing Angles
- Available as (B/W), (B/W/Y) & (B/W/R)
