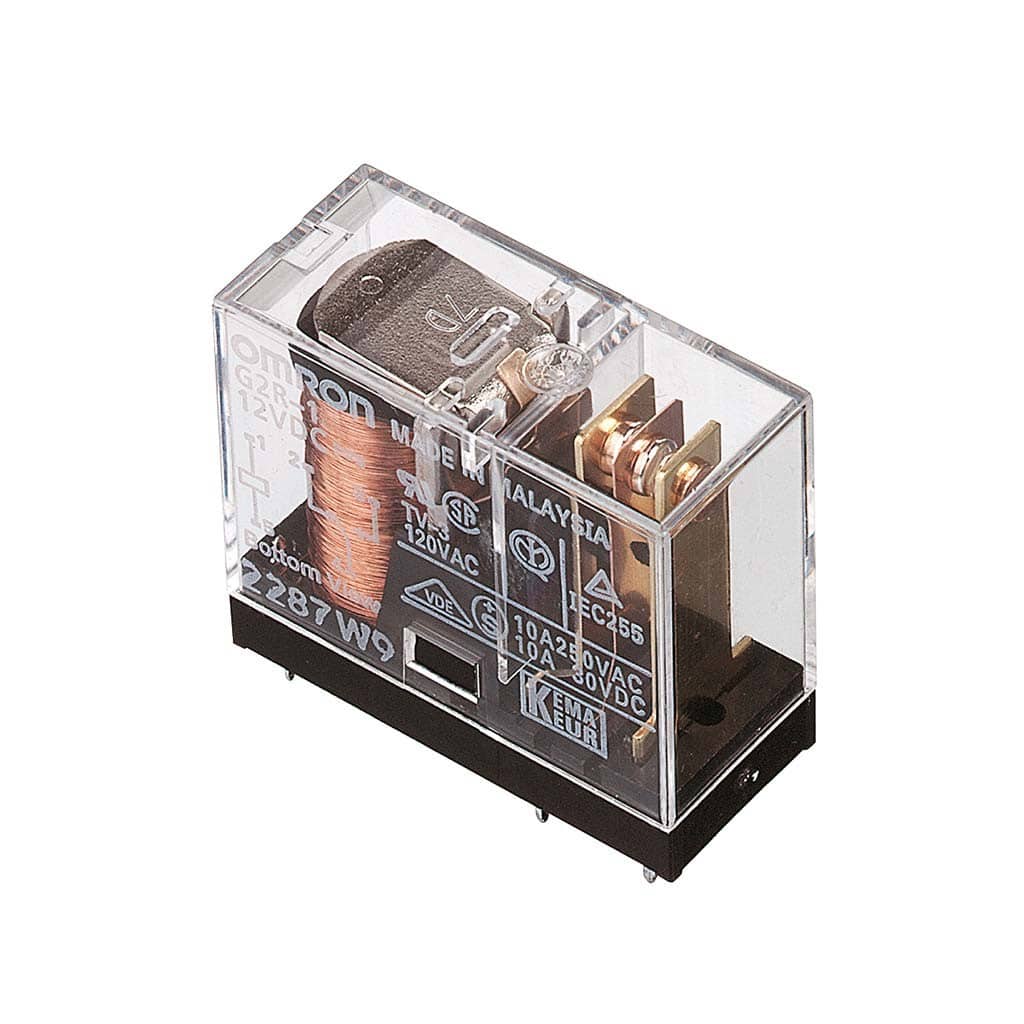

G2R – Power Relay

SKU: G2R Category: Manufacturer:

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

5Vdc, 6Vdc, 12Vac, 12Vdc, 24Vac, 24Vdc, 48Vdc, 100Vac, 100Vdc, 200Vac, 230Vac

Contact Arrangement

DPST (2NO) -2 Form A, DPDT (2CO) -2 Form C, SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C

Coil Type

Non Latching, 2 Coil Latching

Contact Rating (Amps)

4A, 5A, 10A, 16A

Sealing

Flux Proof, Fully Sealed

Contact Material

Ag Alloy

Coil Resistance (Ohm)

1100Ω, 18870Ω, 20200Ω, 260Ω, 275, 4170Ω, 4600Ω, 47Ω, 65Ω, 68Ω

Mounting

Panal, PCB

Type

Power Relay

Product Description

Easby Electronics offer the Omron G2R series with 5a, 10a & 16a contacts.  Available with DC or AC contact with flux protection of fully sealed.

  • General purpose power Relays of single-pole10 A and double-pole 5 A.
  • Safety-oriented design with dielectric strength of 5,000 V between coil
    and contacts, and surge resistance of 10,000 V.
  • AC and DC types are both available for operational coils.
