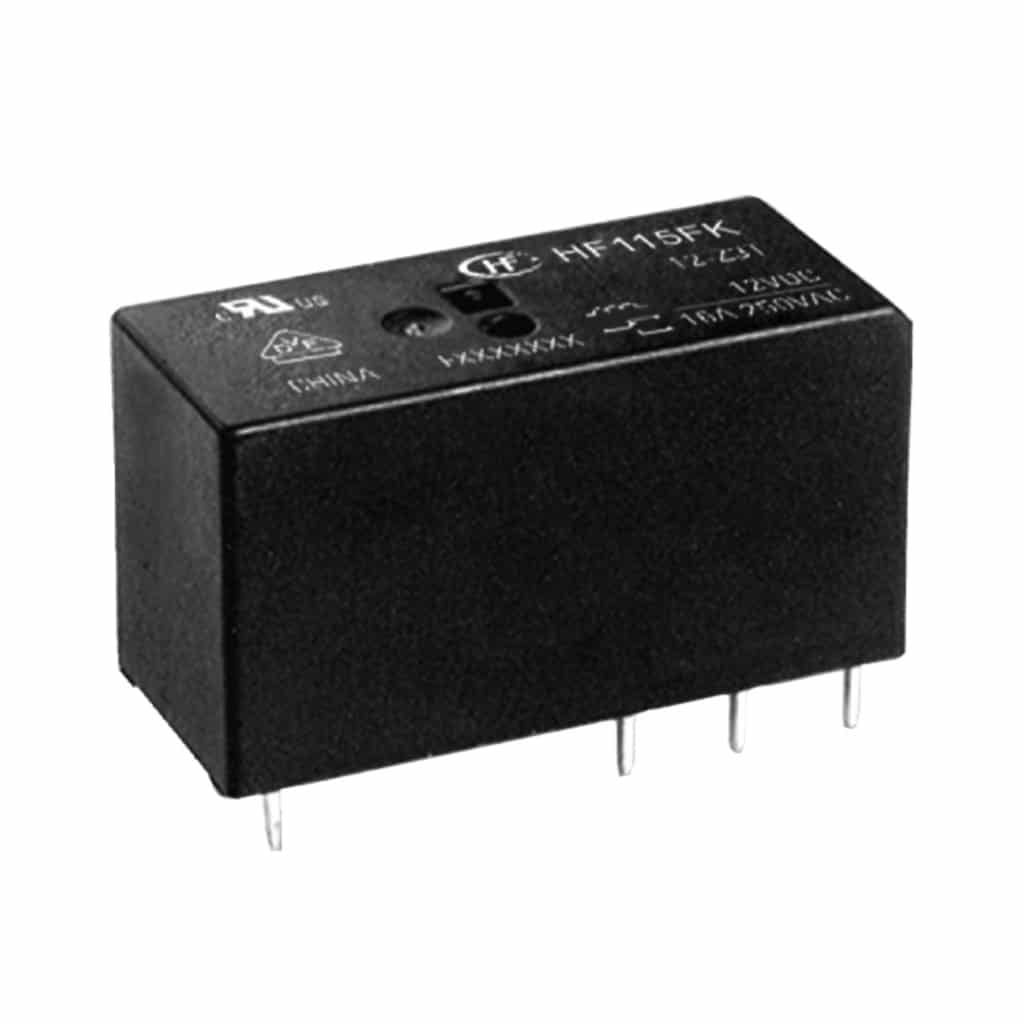

HF115FK – DC Relay
Product specs
| Dimensions | N/A |
|---|---|
| Coil Voltage | 5Vdc, 9Vdc, 12Vdc, 18Vdc, 24Vdc, 48Vdc |
| Contact Arrangement | DPST (2NO) -2 Form A, DPDT (2CO) -2 Form C, SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 8A, 12A, 16A |
| Sealing | Flux Proof, Fully Sealed |
| Contact Material | AgNi, AgSnO2 |
| Coil Resistance (Ohm) | 62Ω, 90Ω, 202Ω, 360Ω, 810Ω, 1440Ω, 5760Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description
HF115FK is one of HongFa most recent introductions covering 8a,12a & 16amp requirements but also keeping to the low 15.7mm height. Available in both 400mw & 530mw versions.
The Hf115FK-T 105C high temperature version is available upon request.
- Low height: 15.7 mm
- 16A switching capability
- 5kV dielectric strength (between coil and contacts)
- Creepage distance: 10mm
- Meeting reinforce insulation
- Product in accordance to IEC 60335-1 available
- Plastic sealed and flux proofed types available
- UL insulation system: Class F
