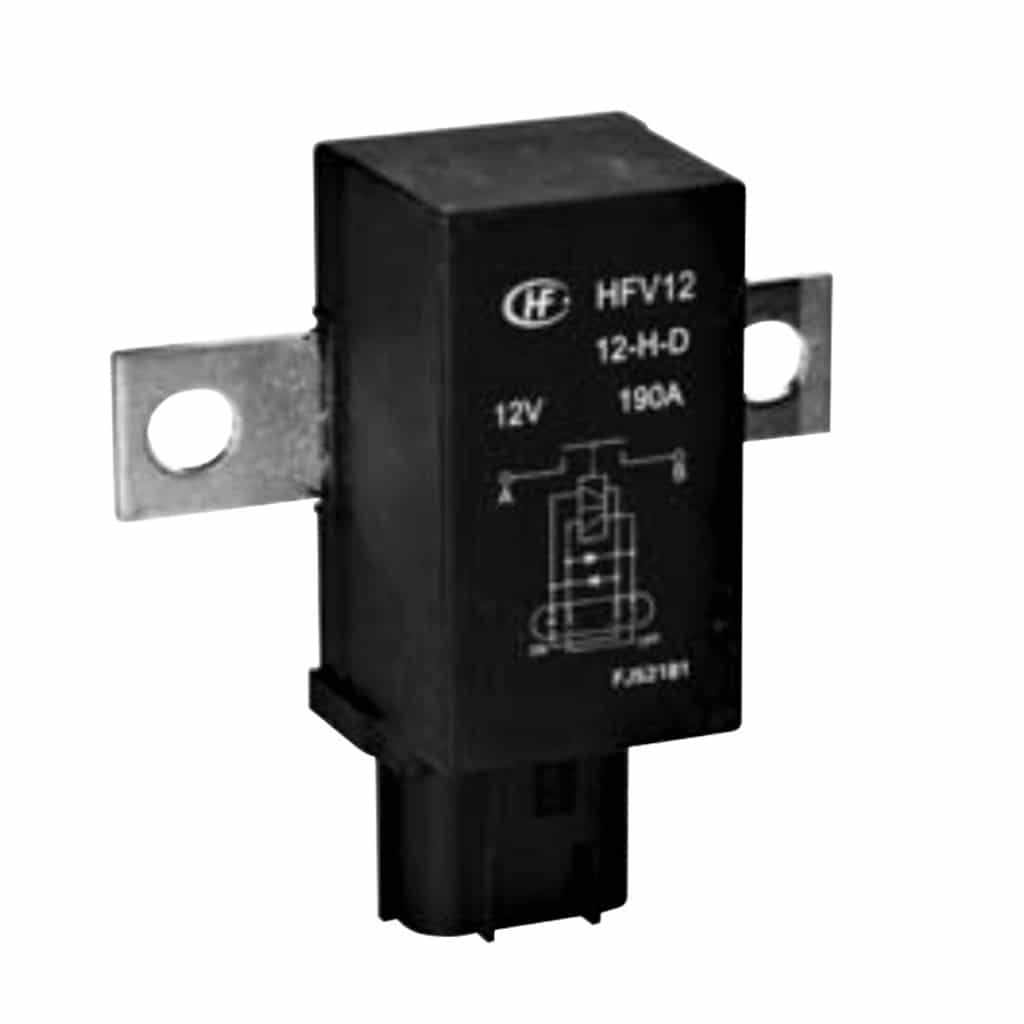

HFV12 – 180amp Battery Disconnect Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 12Vdc |
| Contact Arrangement | SPST (1NO) – Form X |
| Coil Type | 2 Coil Latching |
| Contact Rating (Amps) | 180A |
| Sealing | Fully Sealed |
| Contact Material | AgSnO2 |
| Mounting | Panal |
| Type | Automotive Relay |
Product Description
HFV12 is a 180A Battery disconnect relay used as a safety device in battery management systems. Comes fitted with a diode.
Bracket, cover and bolts available.
- Battery Disconnect Relay (Energy-management)
- 2 coils latching automotive relay
- Continuous current of 190 A at 85℃
- Load terminal connection: screw connection (M8 bolt)

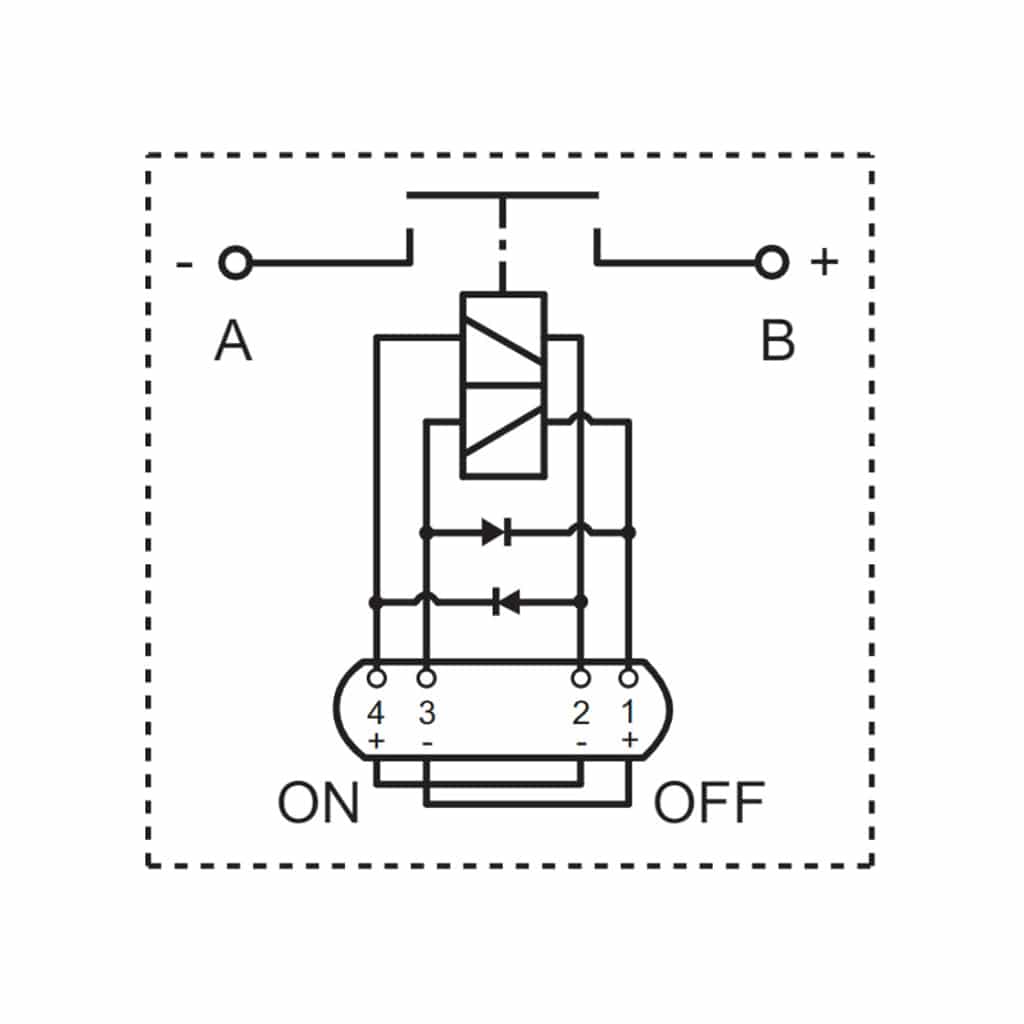

- Coil terminal connection: 4-pin connector (AMP 0.070 series)
- Weight: Approx.210g
