HT32 Series Expansion Board Plus ESK32-21001

SKU: ESK32-21001 Categories: , , Manufacturer:

Product specs

Dimension:

180mm x 126mm x 20mm

Weight:

153.9 g

Packing List:

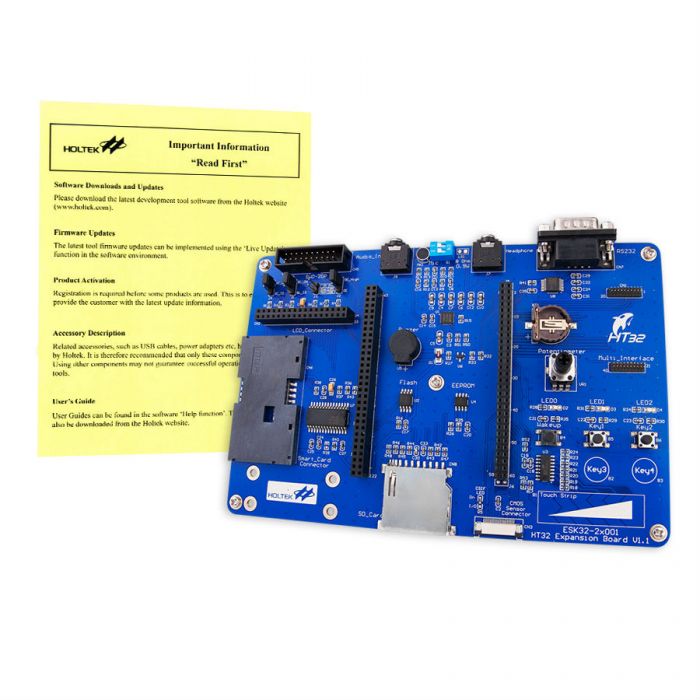

ESK32-21001 x 1, Important Information x 1

Product Description

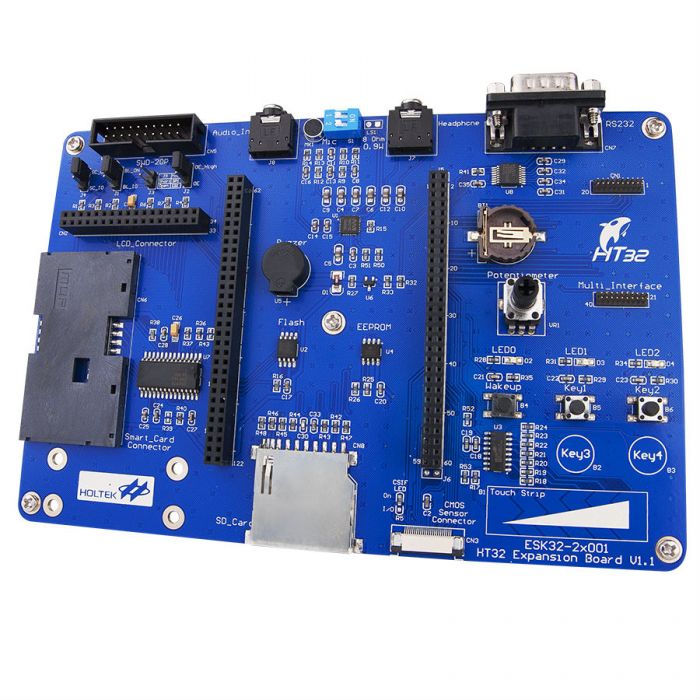

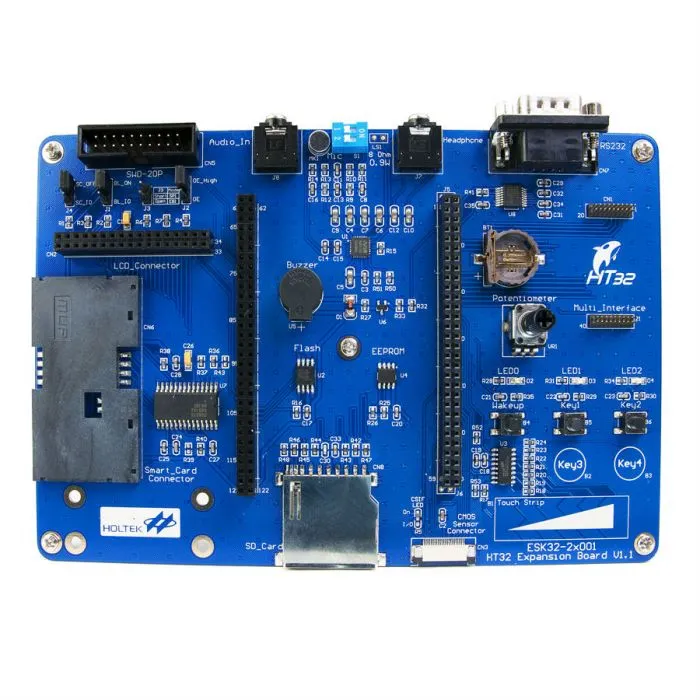

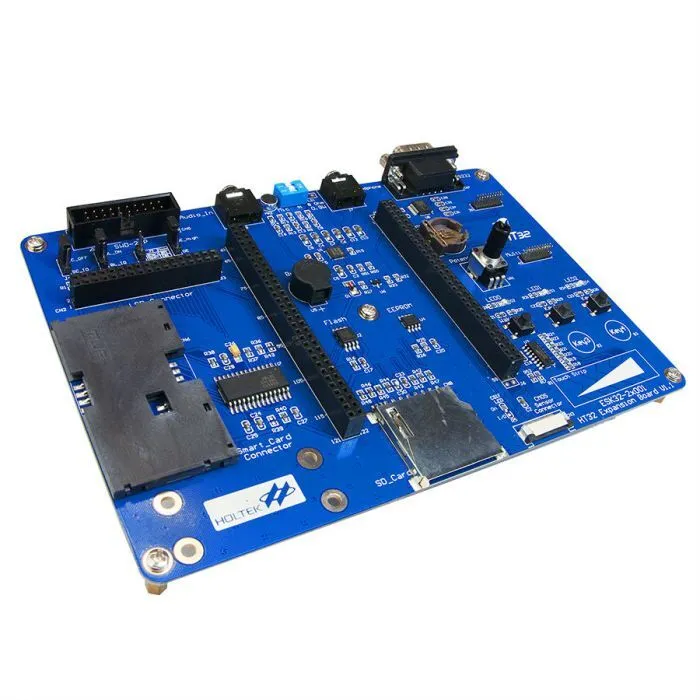

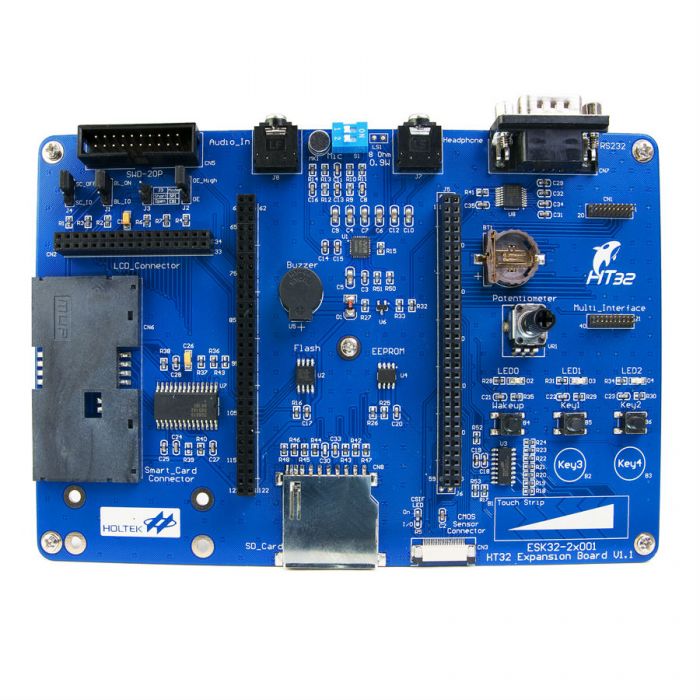

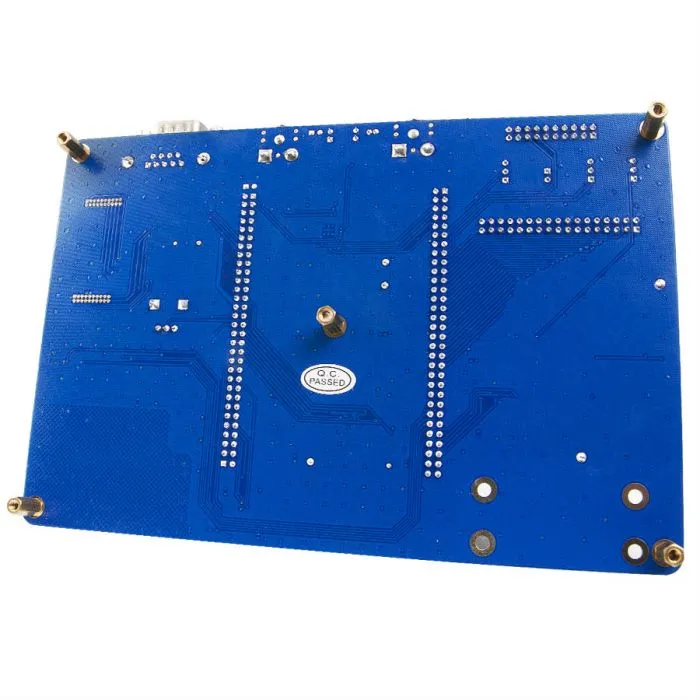

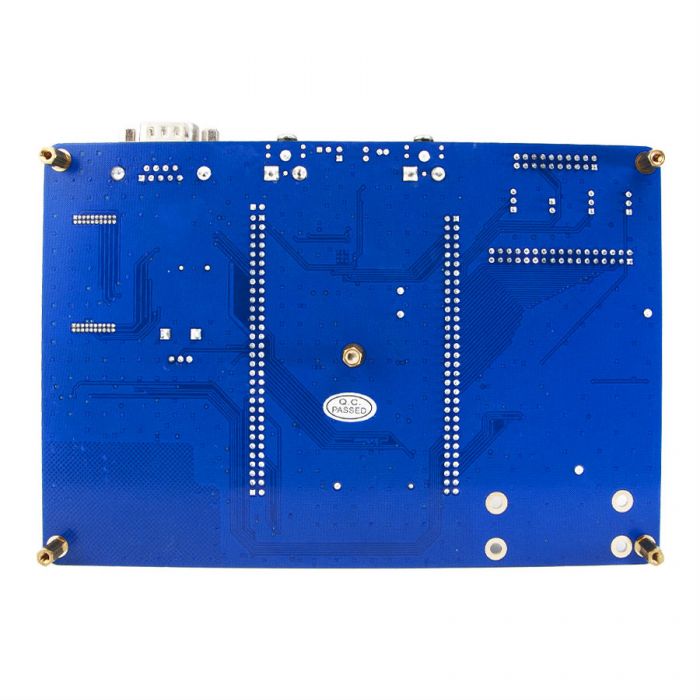

The advanced Expansion Board, ESK32-21001, is designed for the ESK32-30xxx series starter kit. The accompanying peripheral components on the board include a Buzzer, input Keys, touch Keys, RS232 socket, SD Card socket, EEPROM, Serial Flash, LEDs and Potentiometer etc. This wide range of peripheral components will allow users to quickly understand and evaluate the HT32 series functions and features.

The extension board has two models according to the presence or absence of some components on the board: the basic-model ESK32-20001 and the plus-model ESK32-21001. Only three functions are different between these two models. These are the CMOS sensor connector, smart card connector and audio in/out which are only available in the ESK32-21001.

Features:

  • RS232 connector
  • Wakeup and two key buttons
  • Touch keys
  • Three LEDs
  • I2C – compatible serial interface EEPROM
  • SPI – compatible serial interface Flash
  • SPI and EBI extension interfaces for LCD display applications
  • SD card slot – SPI mode
  • PWM output for Buzzer driving
  • Backup battery
  • SWD-20P debug Port interface
  • Multi interface including UART, I2C, SPI and GPIO functions for connecting various modules
  • Smart card connector
  • CMOS sensor connector
  • Audio input contains microphone and stereo jack
  • Audio output contains speaker connector and stereo jack
