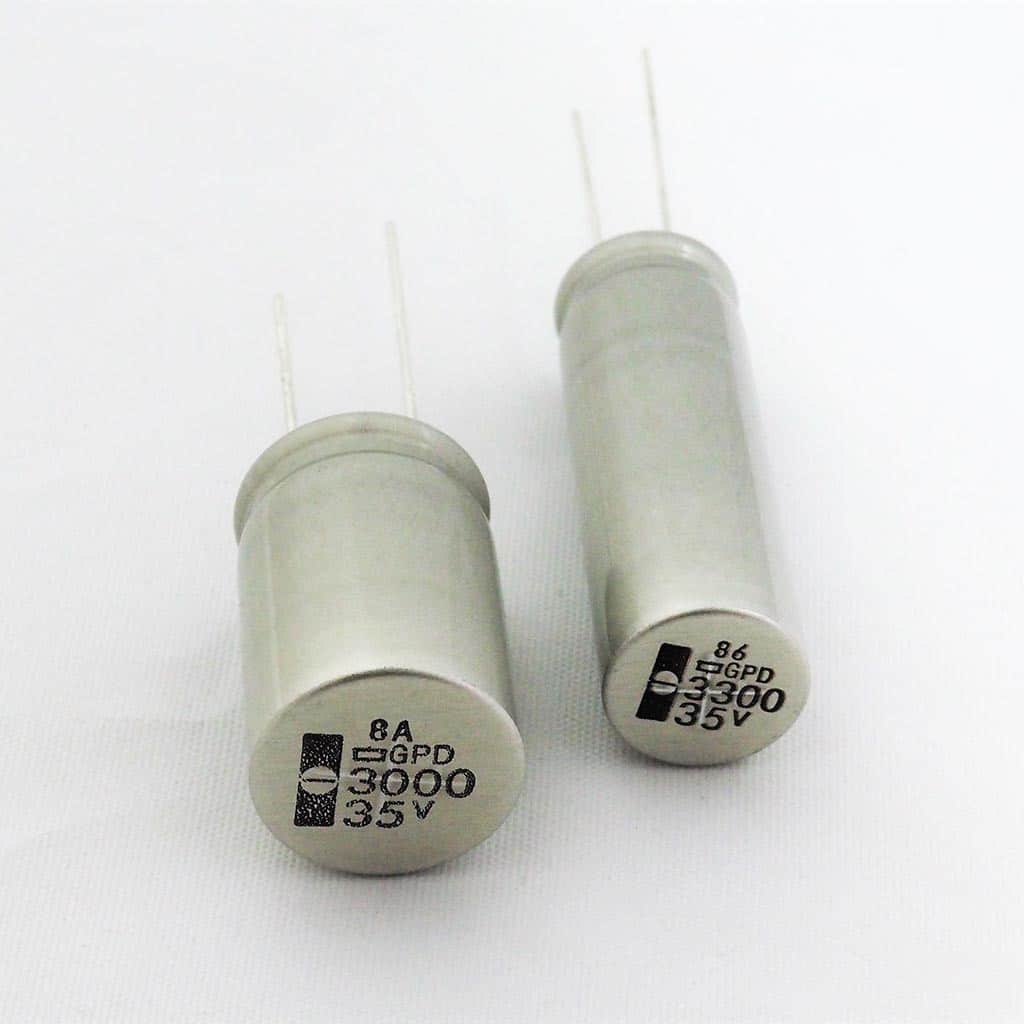

Miniature Aluminium Electrolytic Capacitors Long Life High Ripple 135℃ – GPD Series
Product specs
| Voltage | 25-100Vdc |
|---|---|
| Capacitance | 160uF, 12,000uF |
| Min-Max Tamb (°C) | -40°C, +135°C |
Product Description
EASBY Electronics promote a wide range of Electrolytic Capacitors from the Nippon Chemi-Con GPD Series.
Capacitance ranging from 160uf to 12,000uF and Voltage from 25-100Vdc. This 2,000 to 3,000 hours at 125℃ to 135℃ rated series is an excellent option for all high temperature designs.
Please call the office or email sales@easby.com to discuss your requirements and projects.
- Guaranteed short time at 150℃
- Downsized and high-ripple current version of GPA series
- For automobile modules and other high temperature applications
- Endurance with ripple current : 2,000 to 3,000 hours at 125℃ to 135℃
- Solvent resistant type (see PRECAUTIONS AND GUIDELINES)
- RoHS2 Compliant
- AEC-Q200 compliant
