Multi-function Experimental Board ESK-310

SKU: ESK-310 Categories: , , Manufacturer:

Product specs

Dimension:

200 x 100 x 24 (mm)

Weight:

121.7g

Packing List:

Evaluation Board ESK-300 x 1, Color TFT LCD displat e-Display x 1

Product Description

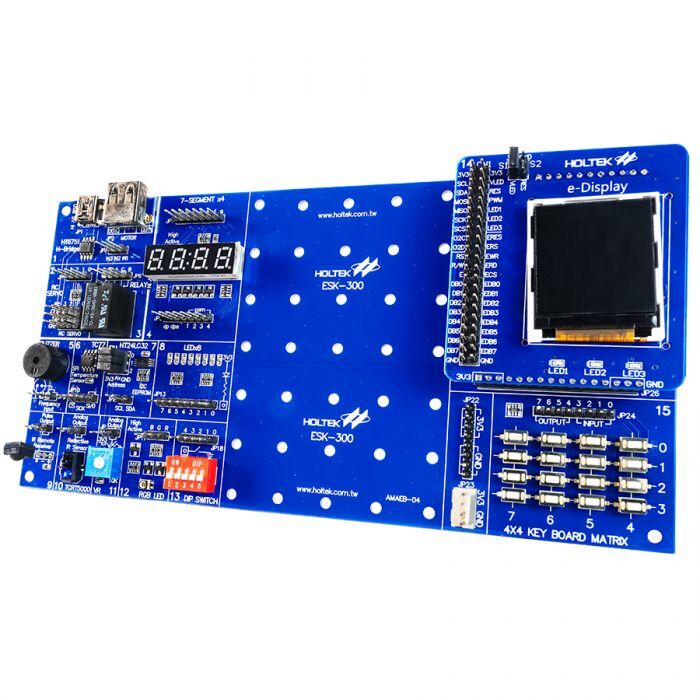

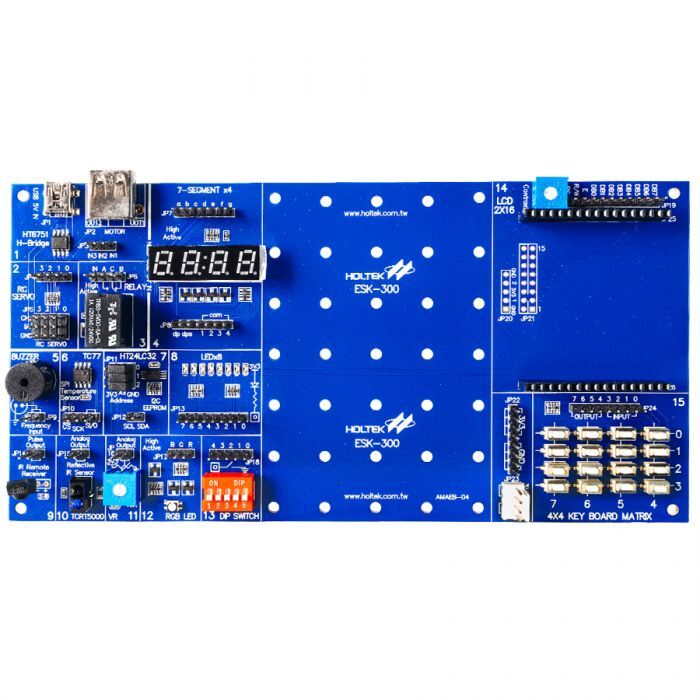

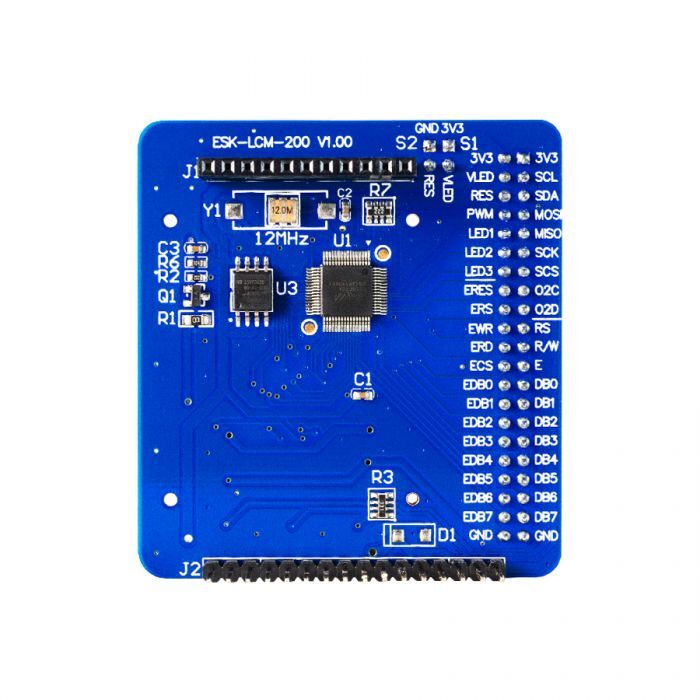

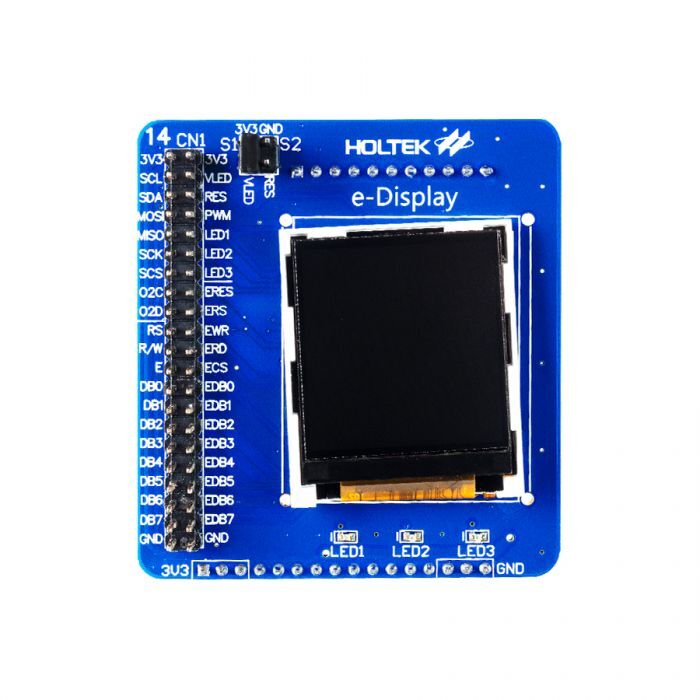

The multi-function experiment board (ESK-310) consists of an evaluation board (ESK-300) and a color TFT LCD display (e-Display). The evaluation board ESK-300 integrates 15 peripheral circuits commonly used by microcontroller beginners, which is convenient for learning and teaching. The e-Display is a 1.44”color TFT LCD display with 128×128 resolution. It supports I2C interface and 1602 interface.

It can be used with an 8-bit or 32-bit microcontroller board as an experiment kit for microcontroller courses.

Features

  • Power supply: USB power (5V) and external power supply(3.3V)
  • DC motor driving circuit use HT6751 H Bridge driving IC
  • TC77 temperature sensing IC, output temperature as a 13-bit word
  • HT24LC32 EEPROM, capacity 32K-bit.
  • TCRT5000 reflective optical sensor
