N-Channel SMD Power MOSFET TSM089N08LCR
Product specs
| Weight | 0.3 g |
|---|---|

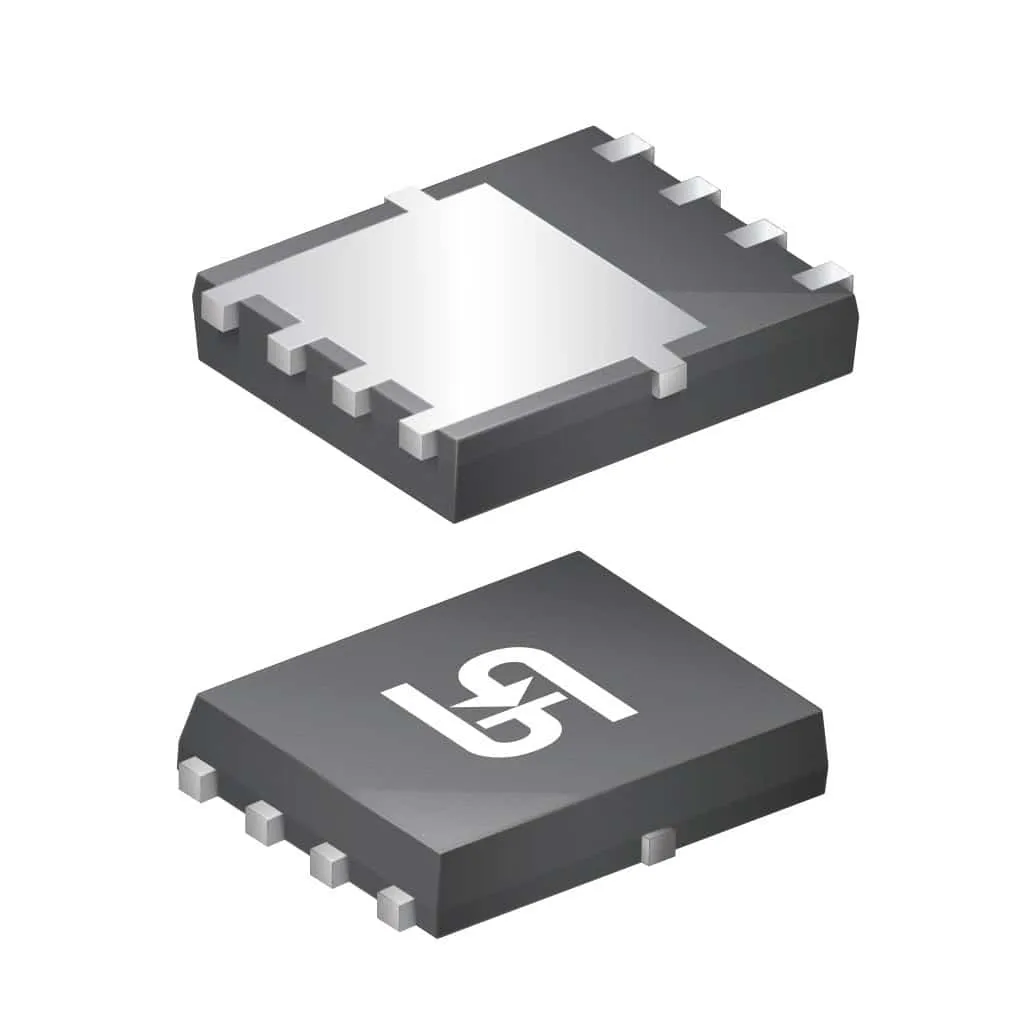

| Package | PDFN56 |
| Vds | 80V |
| Vgs ± | 20V |
| Current | 67A |
| RDS (ON) @ 10V Max. (mΩ) | 8.9mΩ |
Product Description
APPLICATIONS
BLDC Motor Control
Telecom power
Primary and Secondary Side Switch
- Low RDS(ON) to minimize conductive losses
- Logic level
- Low gate charge for fast power switching
- 100% UIS and Rg tested
- Compliant to RoHS directive 2011/65/EU and in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
