PB 10a Power Relay

SKU: PB Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

5Vdc, 6Vdc, 9Vdc, 12Vdc, 18Vdc, 24Vdc, 36Vdc, 48Vdc, 22Vdc
Contact Arrangement

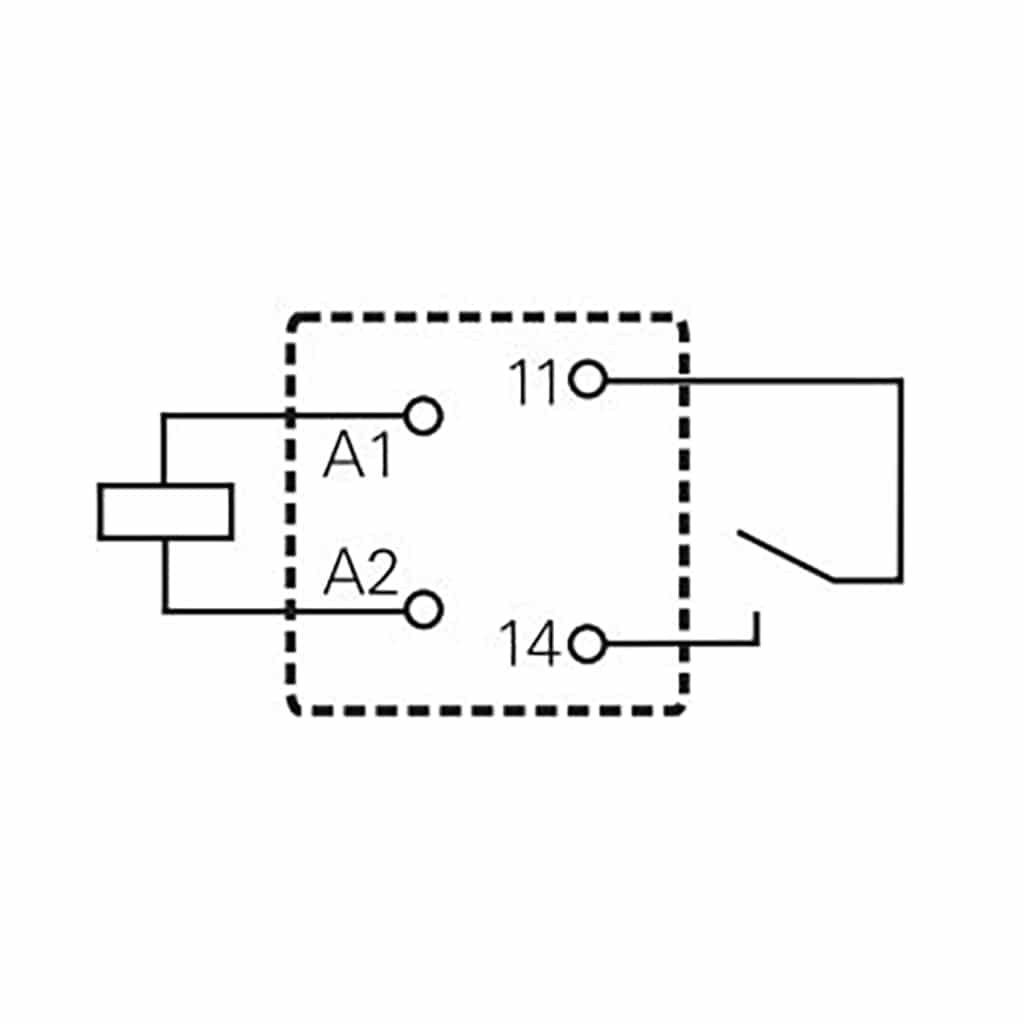

SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C
Coil Type

Non Latching
Contact Rating (Amps)

10A
Sealing

Flux Proof
Contact Material

AgNi 90/10, AgSnO2
Coil Resistance (Ohm)

1097Ω, 1344Ω, 2592Ω, 274Ω, 48Ω, 69Ω, 225Ω, 70Ω, 900Ω, 100Ω, 400Ω, 1600Ω, 6400Ω
Mounting

PCB
Type

Power Relay

Product Description

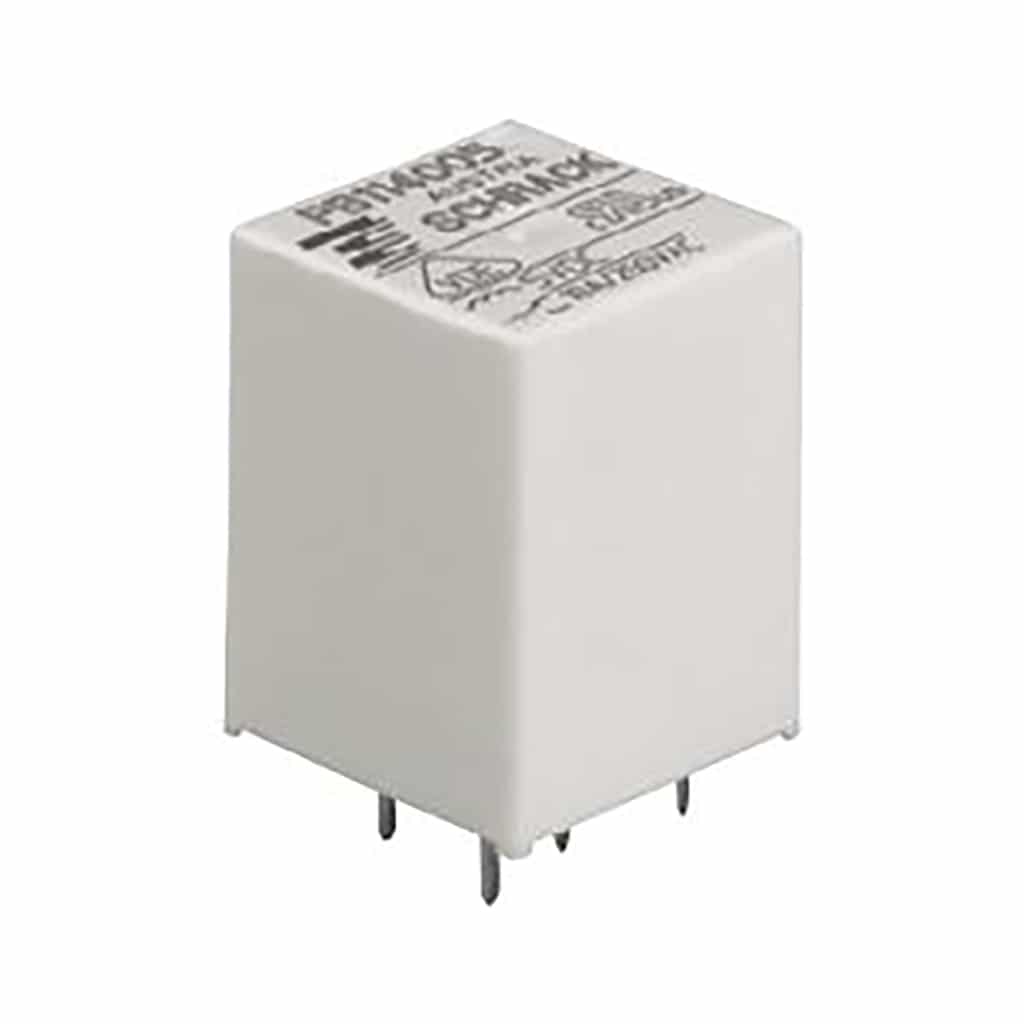

The PB relay from TE Connectivity is a 10a contact with a footprint of only 15mm x 15mm. Available in 360mw & 500mw versions.

  • 1pole 10A, 1 form C (CO) or 1 form A (NO)
  • Environmentally-friendly cadmium-free contacts
  • Class F coil system standard
  • Compact and simple design gives high process security
  • Product in accordance to IEC 60335-1
