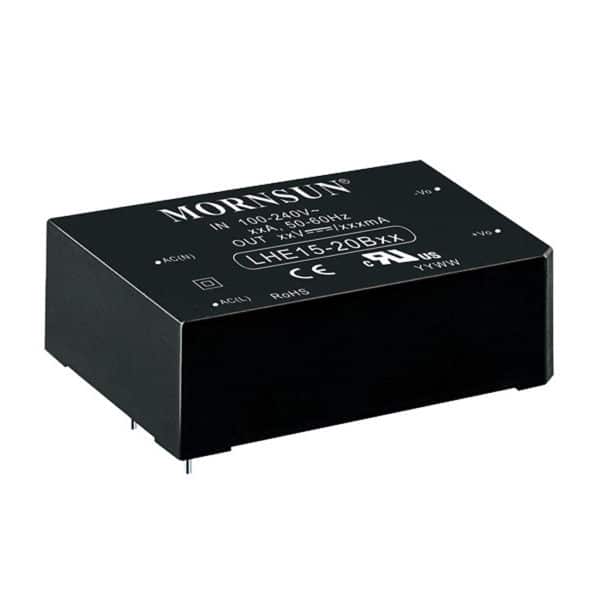

PCB Mount LHE15-20Bxx Series

SKU: LHE15-20Bxx Category: Manufacturer:

Product specs

Weight 90 g
Dimensions 62 × 45 × 22.5 mm
Input Range

85-264Vac, 100-370Vdc


3.3V, 5V, 9V, 12V, 15V, 24V


9.9W, 14W, 15W


625mA, 1A, 1.25A, 1.6A, 2.8A, 3A

Min-Max Tamb (°C)

-40°C, +70°C

Product Description

LHE15-20Bxx series is one of Mornsun’s compact size power converters. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency and high reliability. It offers good EMC performance complaint to IEC/EN61000-4 and CISPR32/EN55032 and the safety certifications to UL62368, IEC62368 and EN62368 standards. For extremely harsh EMC environment, Mornsun recommend using the application circuit shown in the Design Reference of the datasheet. The converters are widely used in industrial, instrumentation and telecommunication applications.

Note: * Use suffix ”A2S” for chassis and suffix ”A4S” for DIN-Rail mounting.

  • 85 – 264V Universal AC or wide 100 – 370VDC Input 
  • Operating ambient temperature range: -40℃ to +85℃ 
  • High I/O isolation test voltage of up to 4000VAC 
  • Regulated output, low ripple & noise 
  • Output short circuit, over-current, over-voltage protection 
  • High efficiency, high reliability 
  • Plastic case meets flammability per UL94V-0 
  • EMC performance meets CISPR32 / EN55032 CLASS B 
  • IEC/UL/EN62368 approval

Available Options:
