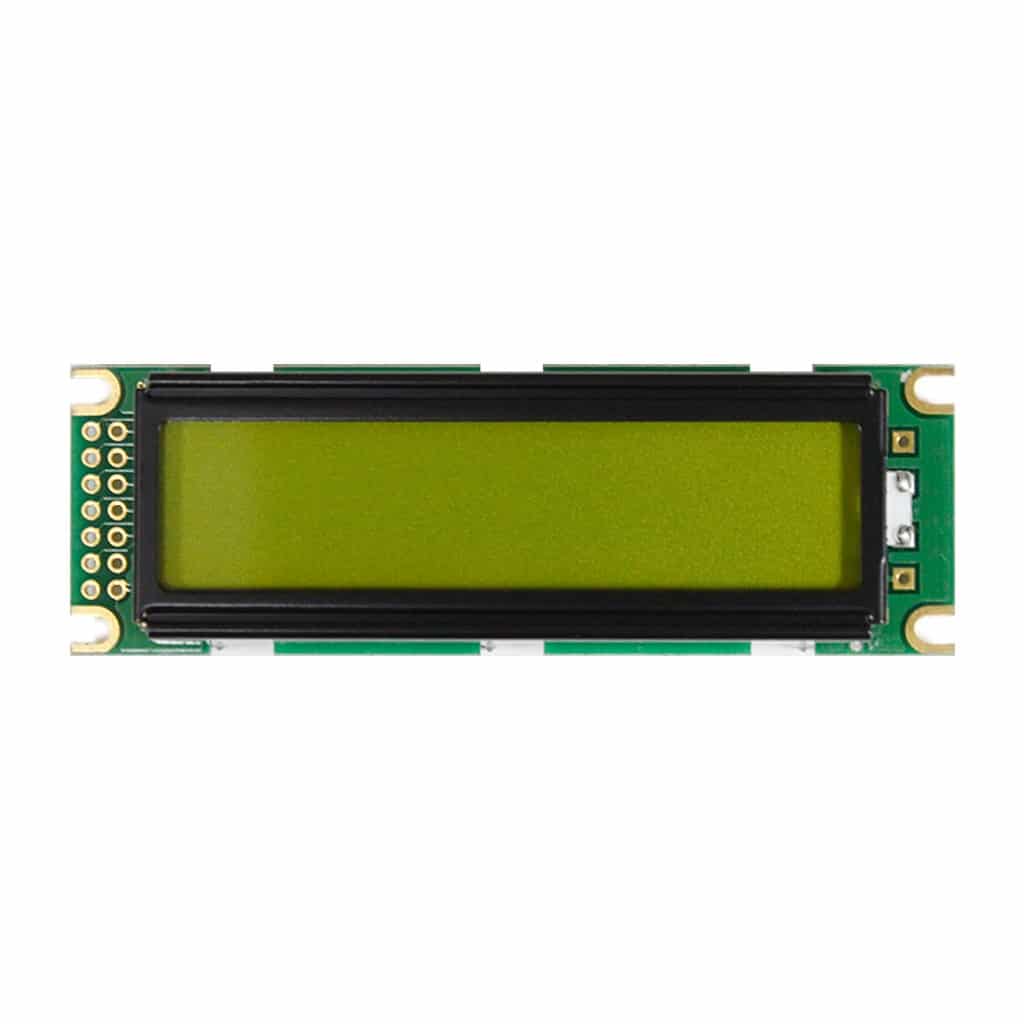

RC1601B 16×1 Character LCD (85.0mm x 28.0mm)

This product is currently out of stock and unavailable.

SKU: RC1601B Categories: , , Manufacturer:

Product specs

Weight 10 g
Dimensions 85 × 28 mm
Characters

16×1

Interface

6800, I2C, SPI

Technology

Blue-STN, FSTN, STN

Construction

COB

Font

Cyrillic, English, European

Product Description

The RC1601B series of character displays is a standard range produced by Raystar Optronics, and is a range designed for the industrial market. Available in either STN or FSTN technologies, customers can also choose if they require a reflective, transflective or transmissive polariser as well as a choice of LED backlight colour (if a backlight is required). Using the ST7066 controller, customers can also select which font type they require, from English/Japanese, English/European or English/Cyrillic

  • 16×1 Character Liquid Crystal Display
  • Dimensions: 85.0mm x 28.0mm
  • Viewing Area: 66.0mm x 16.0mm
  • Available in either STN or FSTN Technology
  • Available in Reflective or Transflective Mode, with a choice of backlight colours
  • Standard Operating Temperature of -20°C to +70°C
