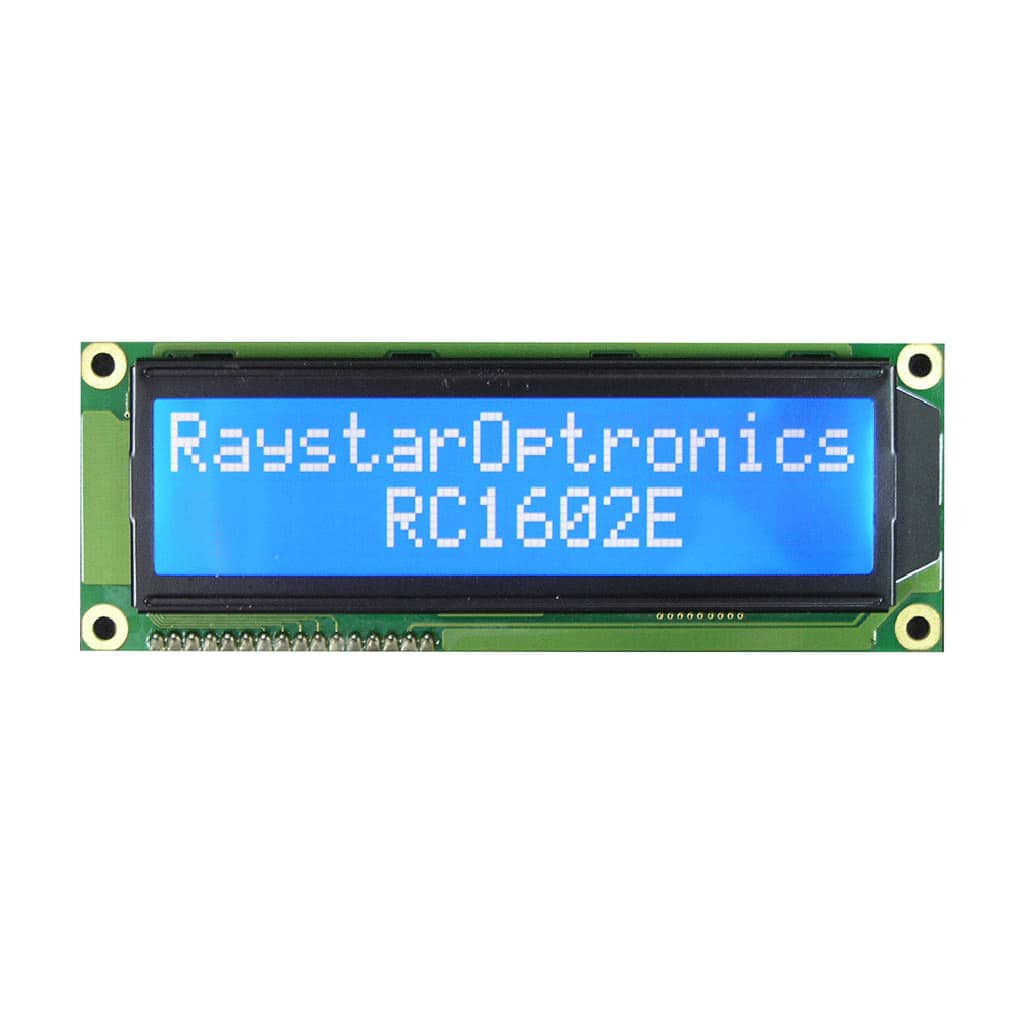

RC1602E 16×2 Character LCD (122.0mm x 44.0mm)

SKU: RC1602E Categories: , , Manufacturer:

Product specs

Weight 10 g
Dimensions 122 × 44 mm
Characters

16×2

Interface

6800, I2C, SPI

Technology

Blue-STN, FSTN, STN

Construction

COB

Font

Cyrillic, English, European

Product Description

The RC1602E series of character displays is a standard range produced by Raystar Optronics, and is a range designed for the industrial market. Available in either STN or FSTN technologies, customers can also choose if they require a reflective, transflective or transmissive polariser as well as a choice of LED backlight colour (if a backlight is required). Using the ST7066 controller, customers can also select which font type they require, from English/Japanese, English/European or English/Cyrillic

  • 16×2 Character Liquid Crystal Display
  • Dimensions: 122.0mm x 44.0mm
  • Viewing Area: 99.0mm x 24.0mm
  • Available in either STN or FSTN Technology
  • Available in Reflective or Transflective Mode, with a choice of backlight colours
  • Standard Operating Temperature of -20°C to +70°C
