REA004864A series 48×64 COG on PCB micro-OLED (0.71″)
Product specs
| Dimensions | 15.9 × 27 mm |
|---|---|
| Pixels | 48×64 |
| Interface | I2C |
| Construction | COG+PCB |
Product Description
The REA004864A series is a Chip-On-Glass on PCB OLED offering 48×64 pixels, with an active area of 10.54mm x 14.7mm within a viewable area of 13.0mm x 22.0mm, it comes with an integrated SSD1306 IC, and is available in Blue, White or Yellow.

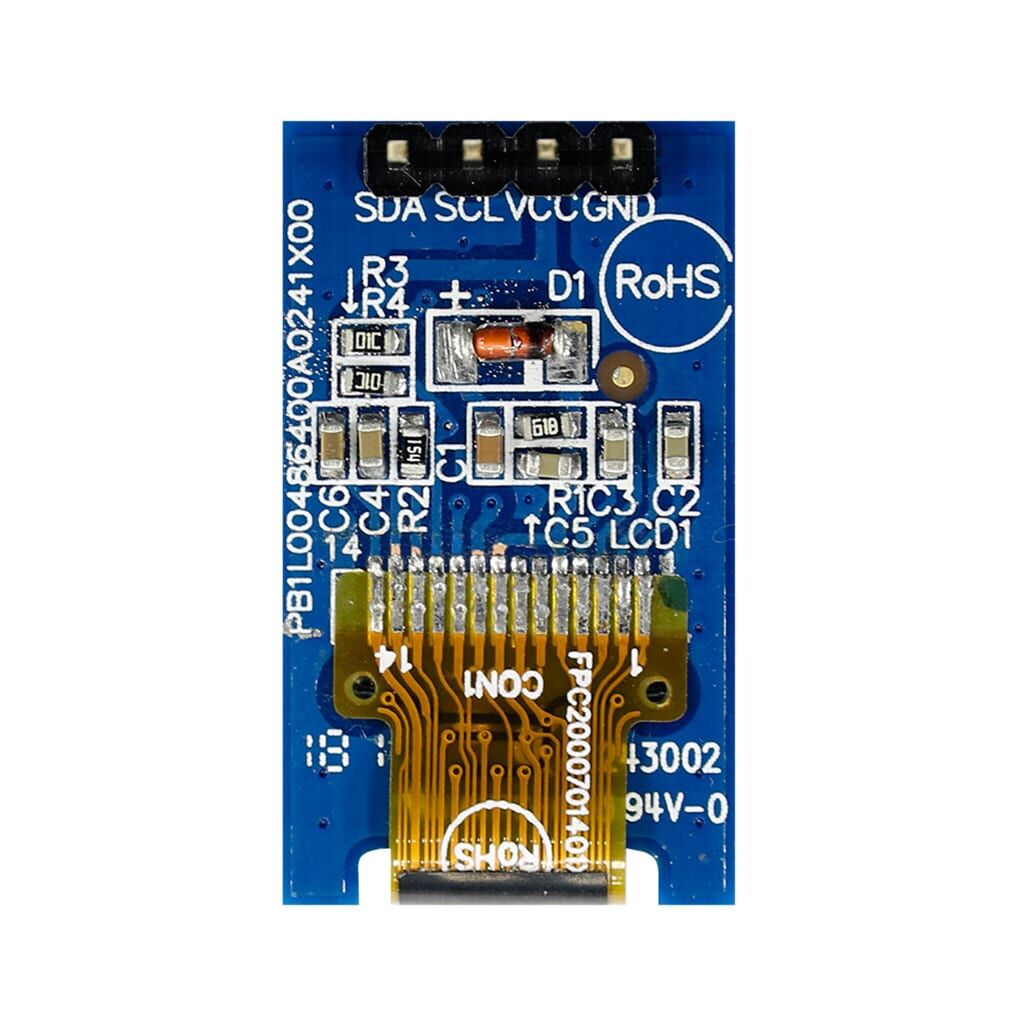

This is the standard REX004864A series, but placed on a PCB for ease of use
- 48×64 OLED
- REX004864A on PCB

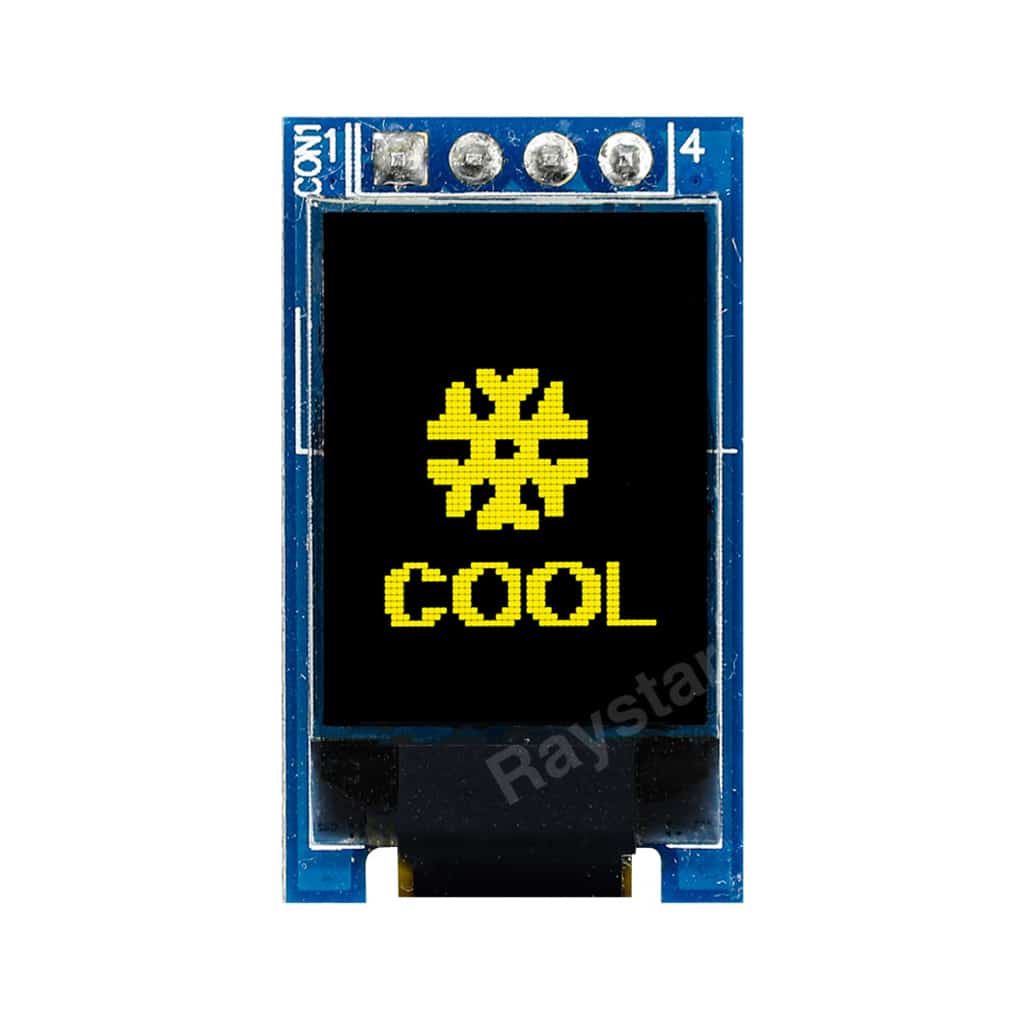

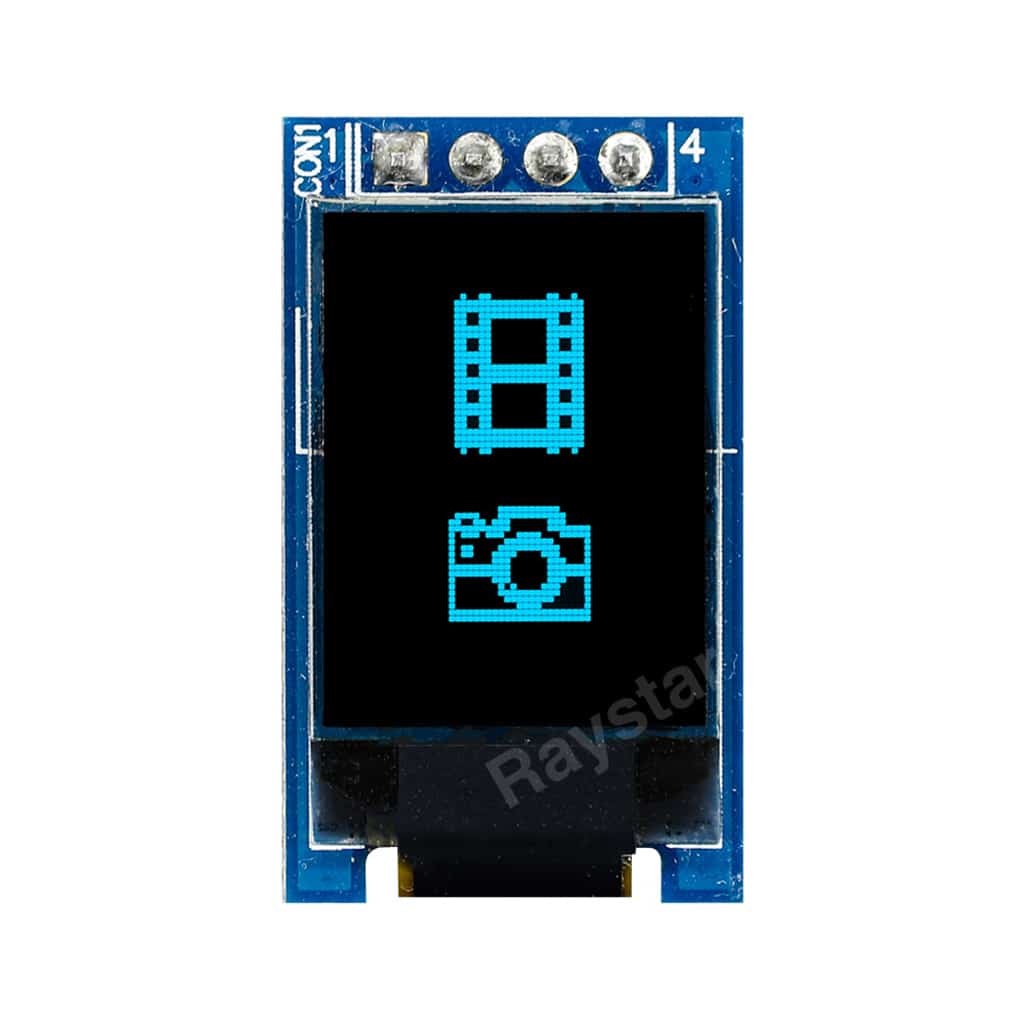

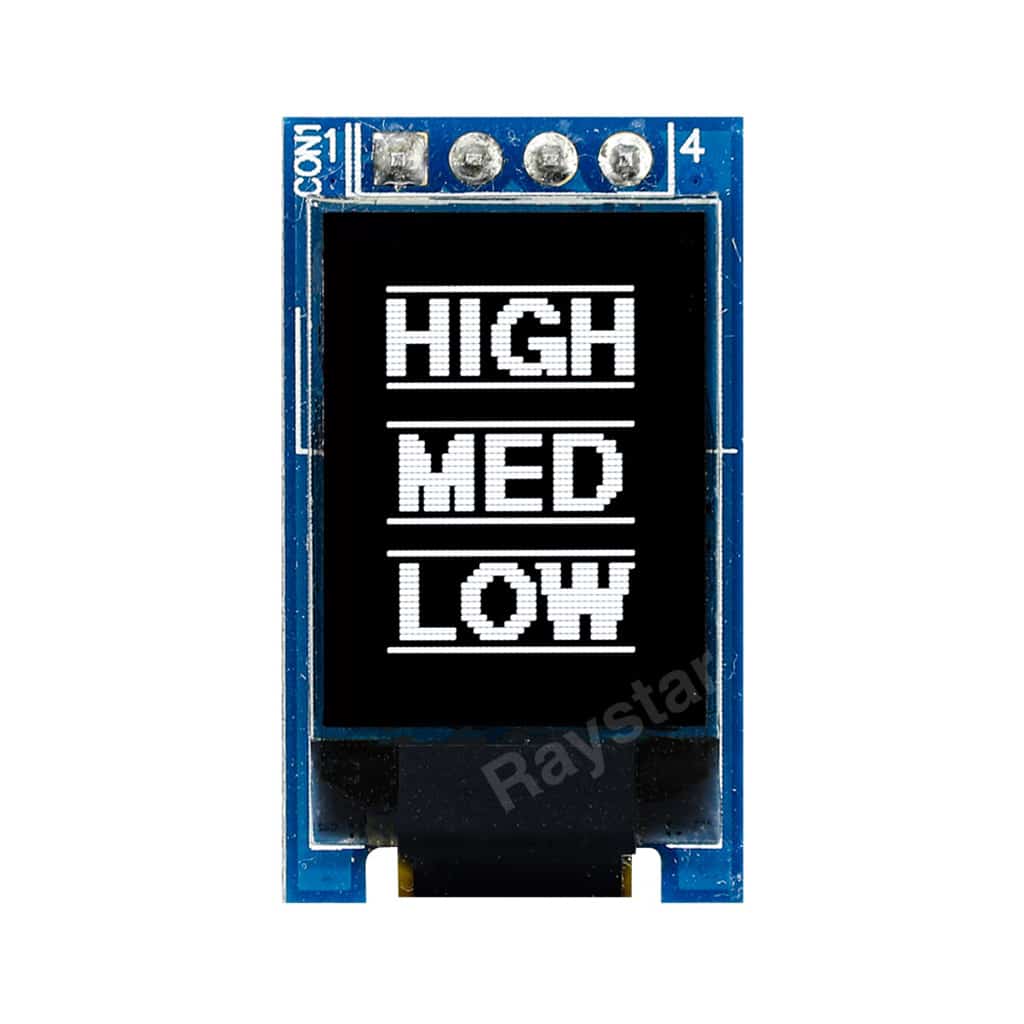

- Available in Blue, White or Yellow
- Dimensions: 15.9mm x 27.0mm
- Viewing Area: 12.14mm x 16.3mm
- SSD1306 IC on-board
- Standard Operating Temperature of -40°C to +80°C
