REA006448A series 64×48 COG on PCB micro-OLED (0.66″)
Product specs
| Dimensions | 19.9 × 23.1 mm |
|---|---|
| Pixels | 64×48 |
| Interface | I2C |
| Construction | COG+PCB |
Product Description

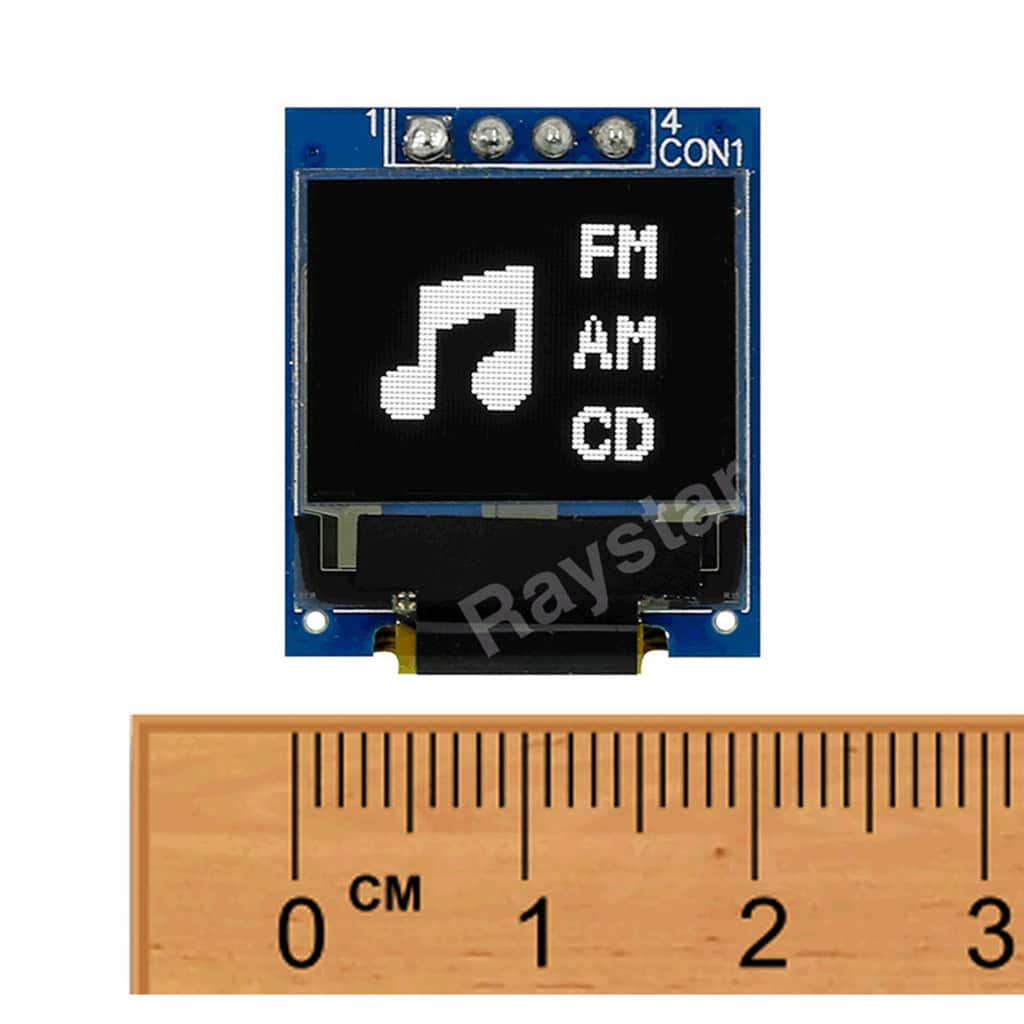

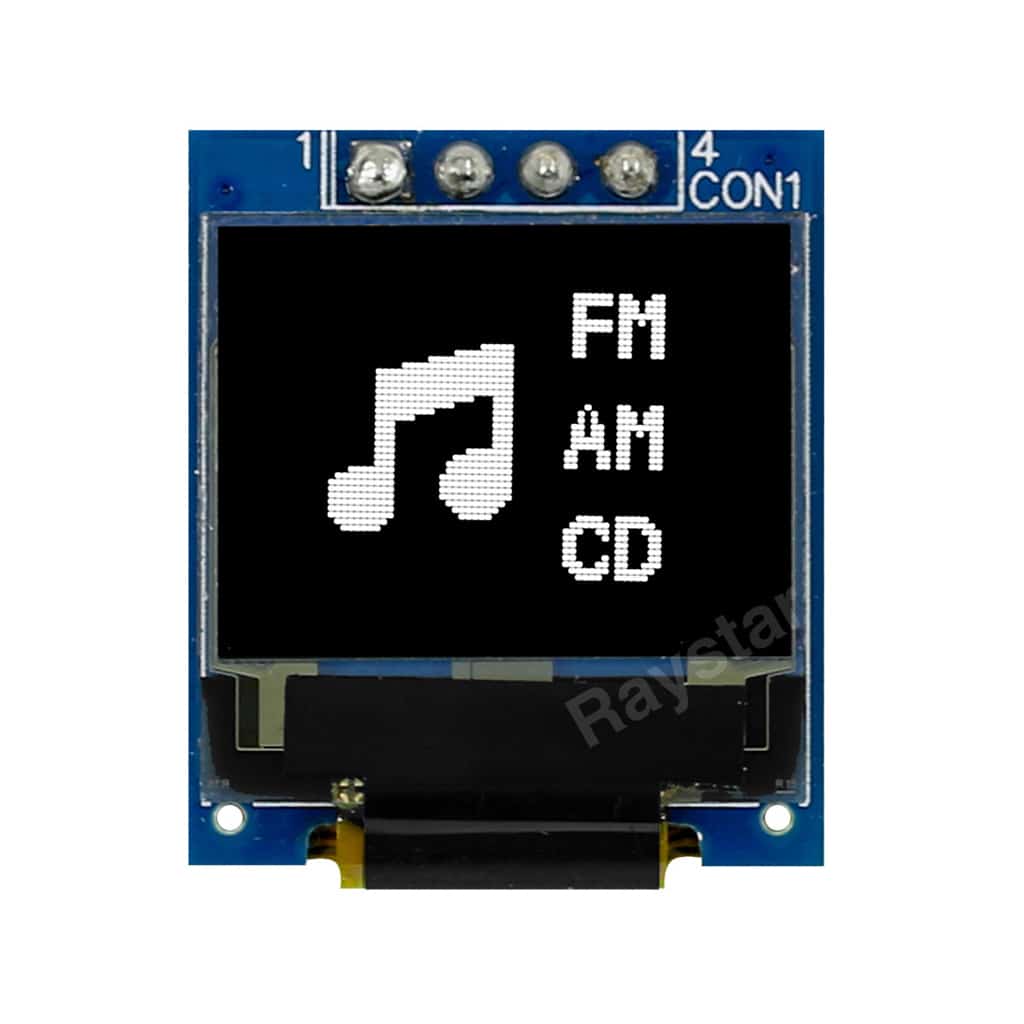

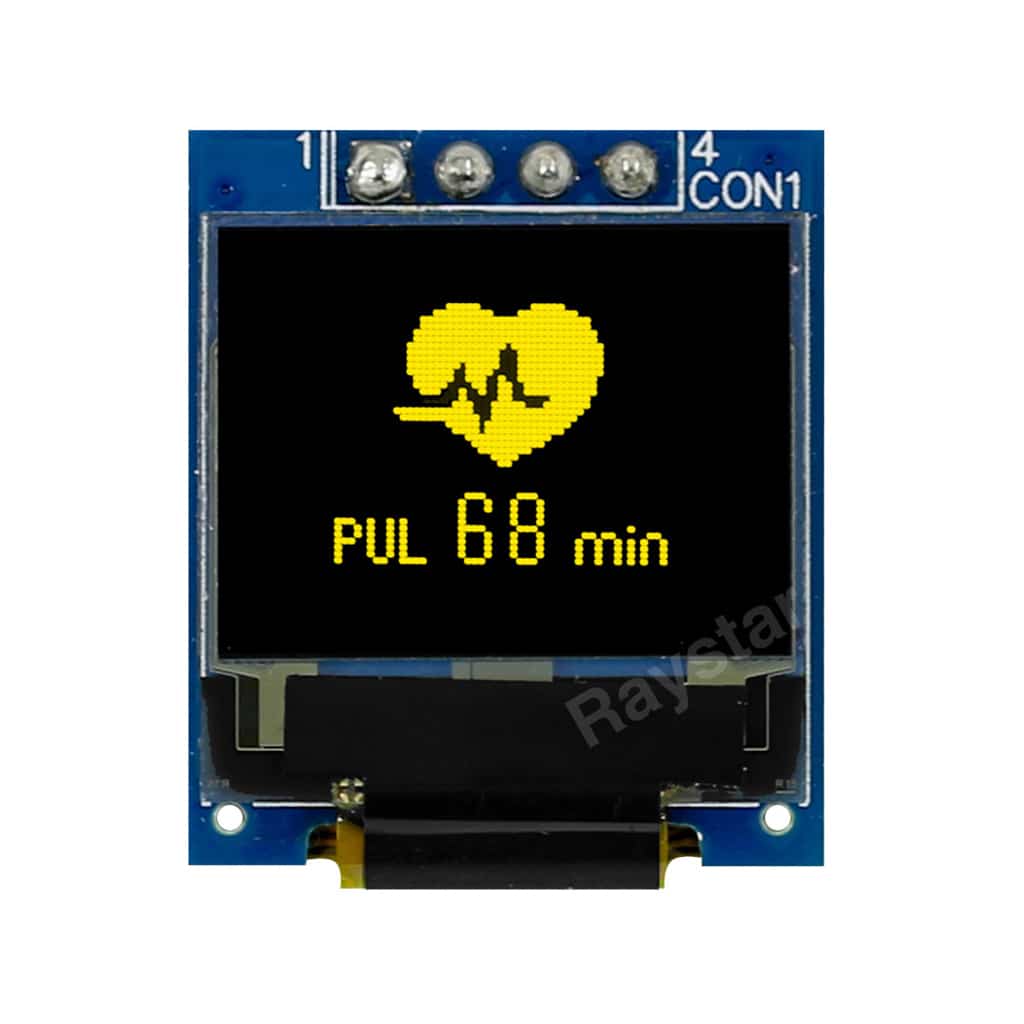

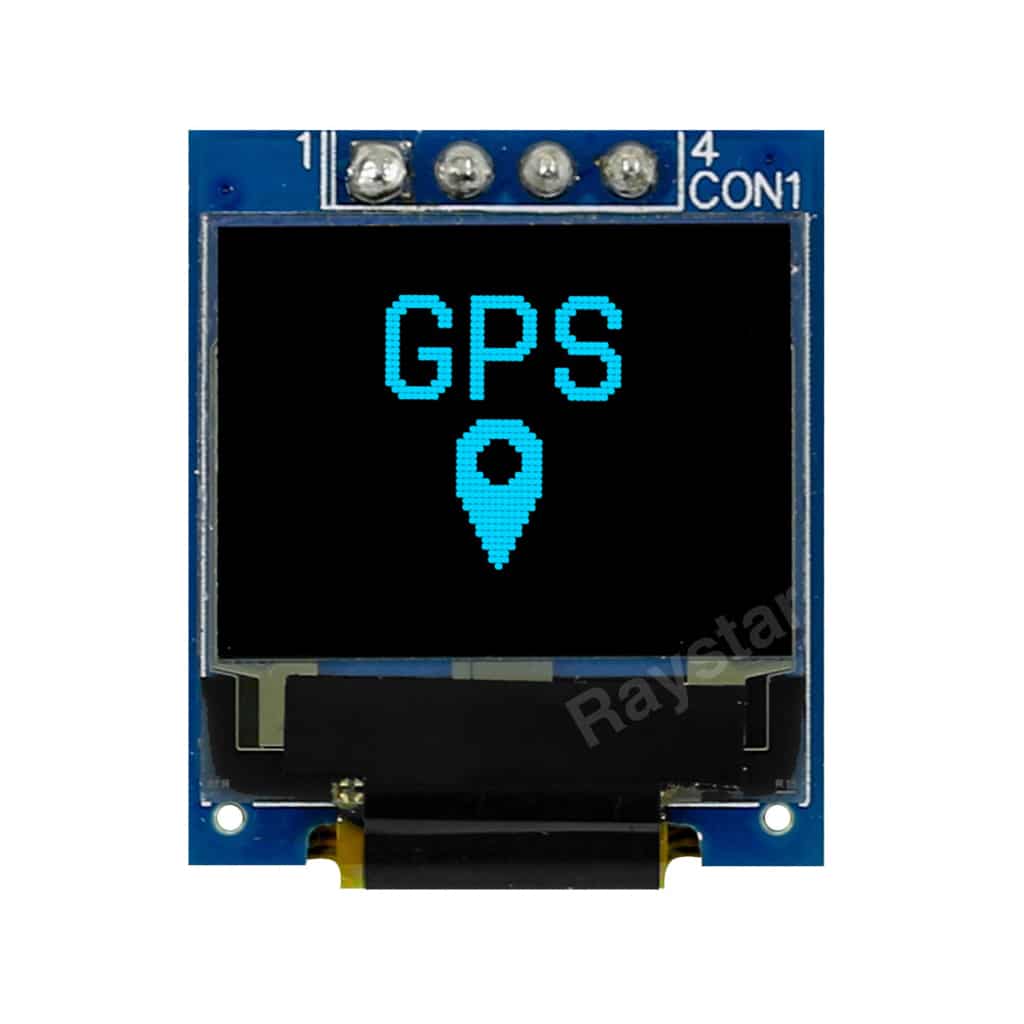

The REA006448A series is a Chip-On-Glass on PCB OLED offering 64×48 pixels, with an active area of 13.42mm x 10.06mm within a viewable area of 15.42mm x 12.06mm, it comes with an integrated SSD1306 IC, and is available in Blue, White or Yellow.
- 64×48 OLED on PCB
- Available in Blue, White or Yellow
- Dimensions: 19.9mm x 23.1mm
- Viewing Area: 15.42mm x 12.06mm
- SSD1306 IC on-board
- Standard Operating Temperature of -40°C to +80°C
