REA009664B series 96×64 COG on PCB micro-OLED (1.1″)

SKU: REA009664B Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 31.5 × 31.5 mm
Pixels

96×64
Interface

I2C, SPI
Construction

COG+PCB

Product Description

The REA009664B series is a 1.1″ Chip-On-Glass on PCB OLED offering 96×64 pixels, with an active area of 22.53mm x 15.01mm within a viewable area of 24.54mm x 17.02mm,  it comes with an integrated SSD1327 IC which supports greyscaling, and is available in White or Yellow.

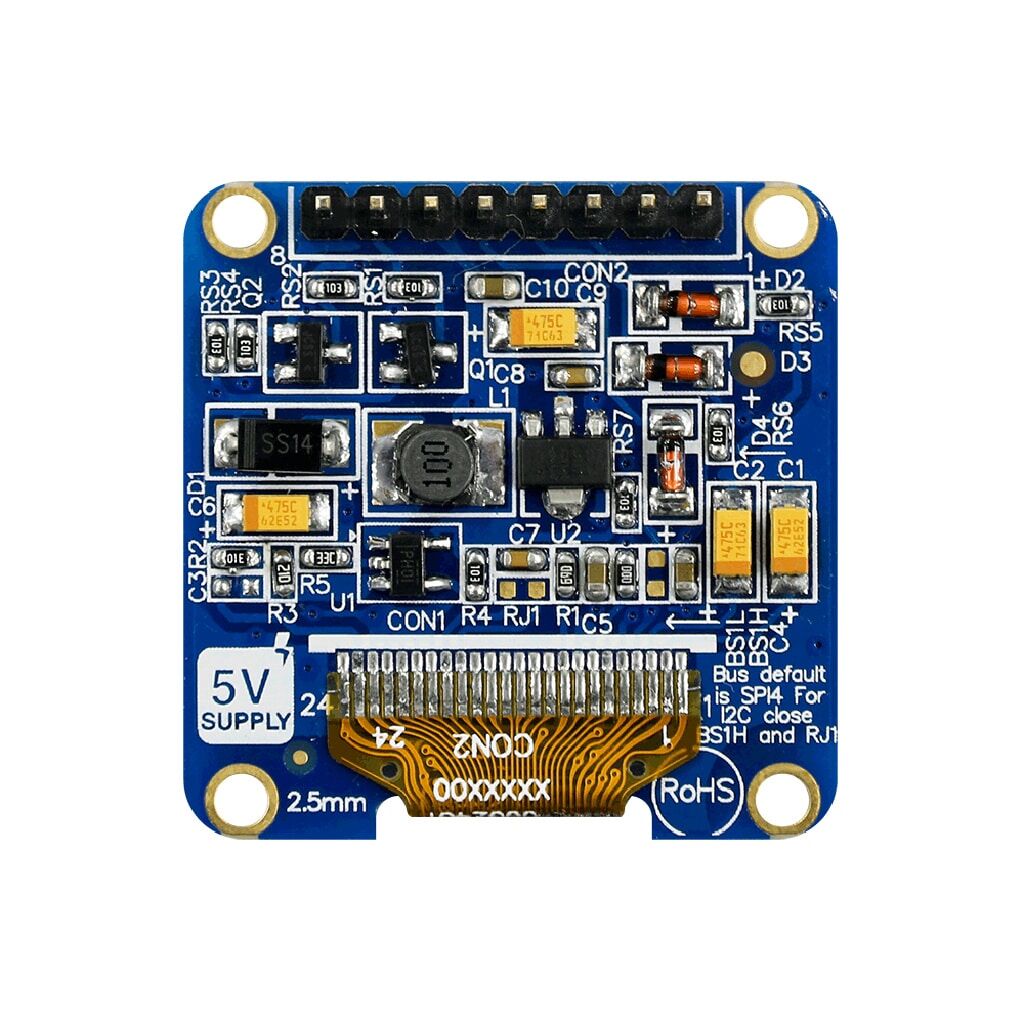

This device is the REX009664B-Hotbar device placed on a PCB for ease of use







  • 96×64 OLED on PCB

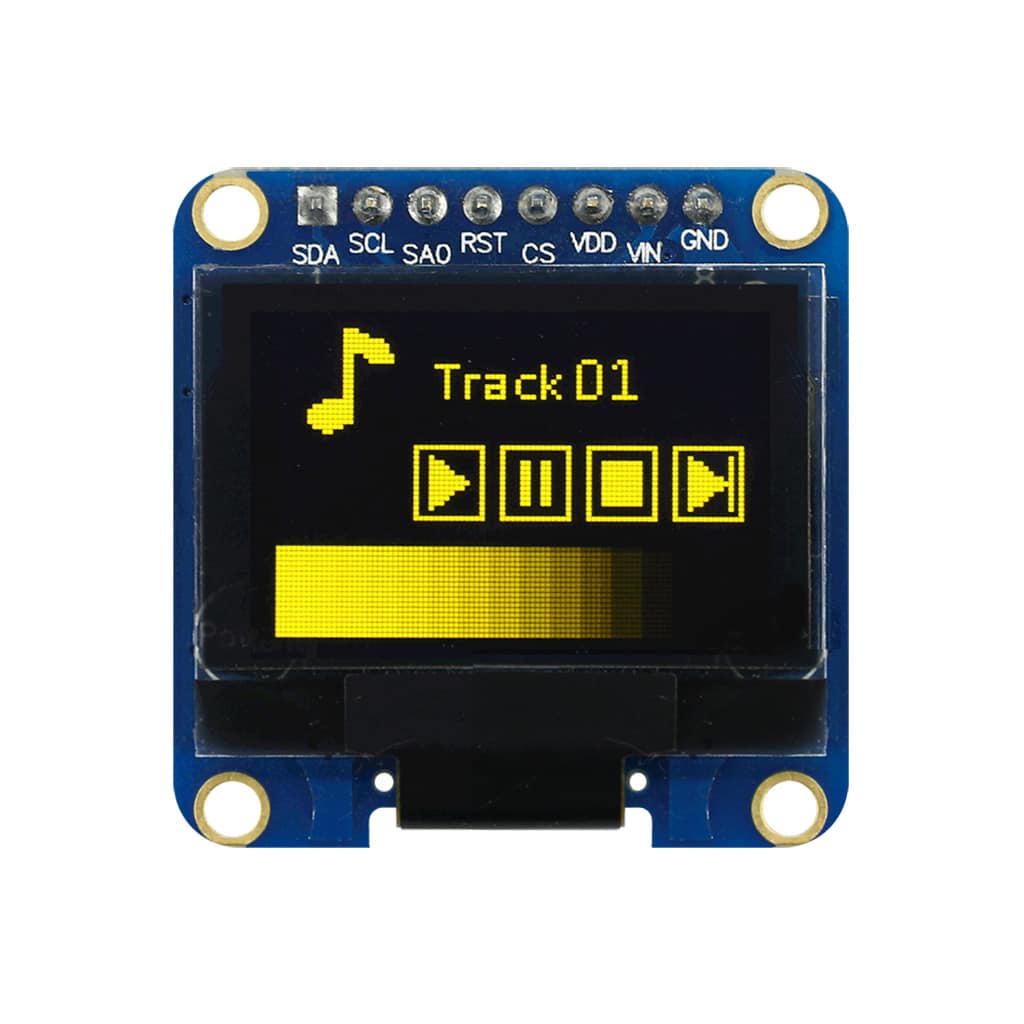

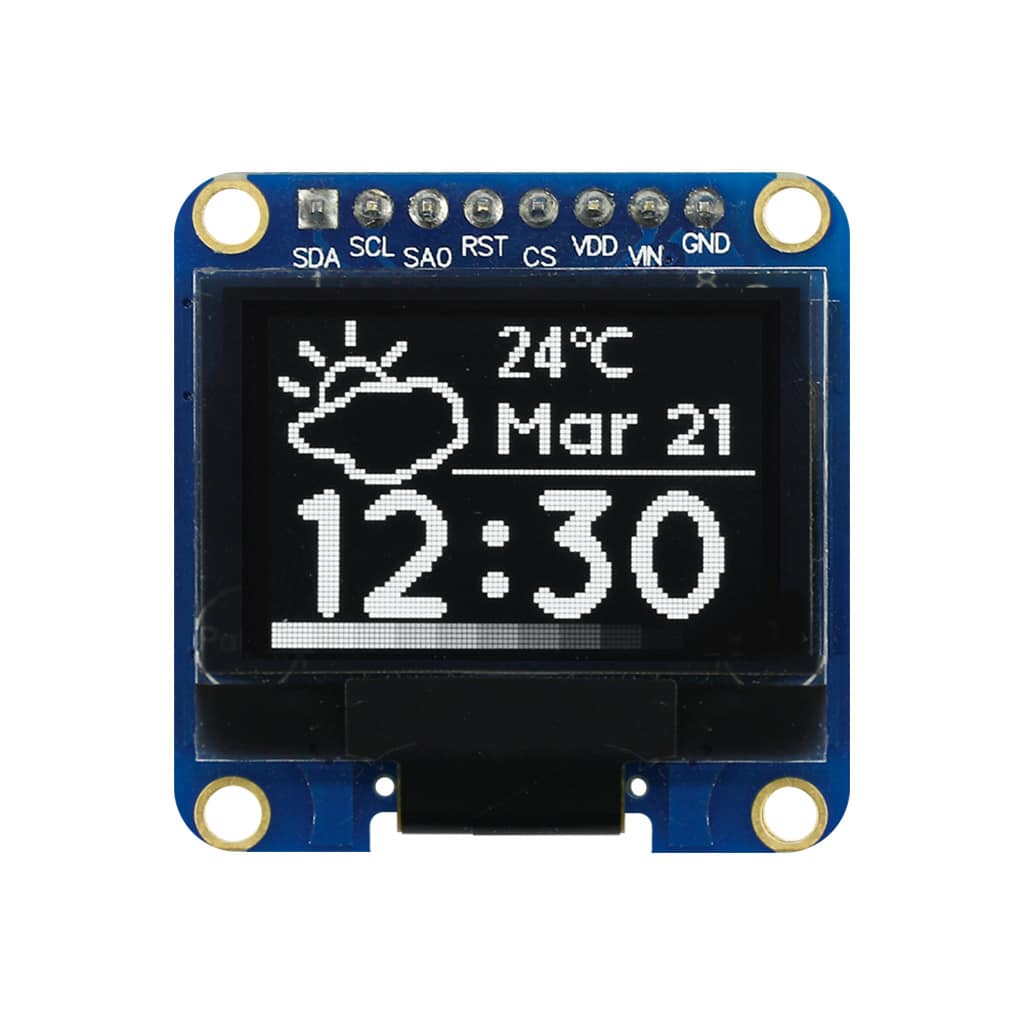

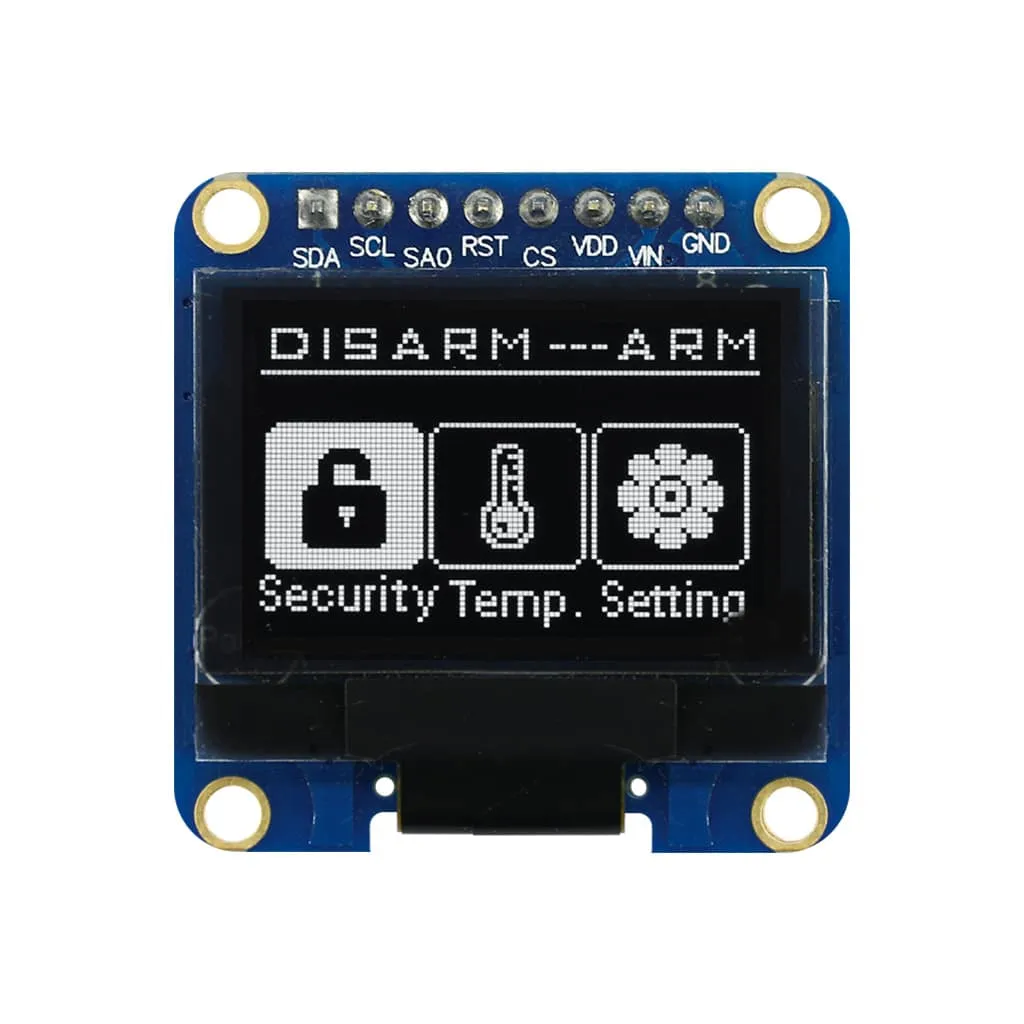

  • Available in White or Yellow
  • Dimensions: 31.5mm x 33.15mm
  • Viewing Area: 24.54mm x 17.02mm
  • Active Area: 22.53mm x 15.01mm
  • Dot Size: 0.205mm x 0.205mm
  • Dot Pitch: 0.235mm x 0.235mm
  • SSD1327 IC on-board
  • Power Supply: 3V
  • Greyscale Supported
  • Standard Operating Temperature of -40°C to +80°C
