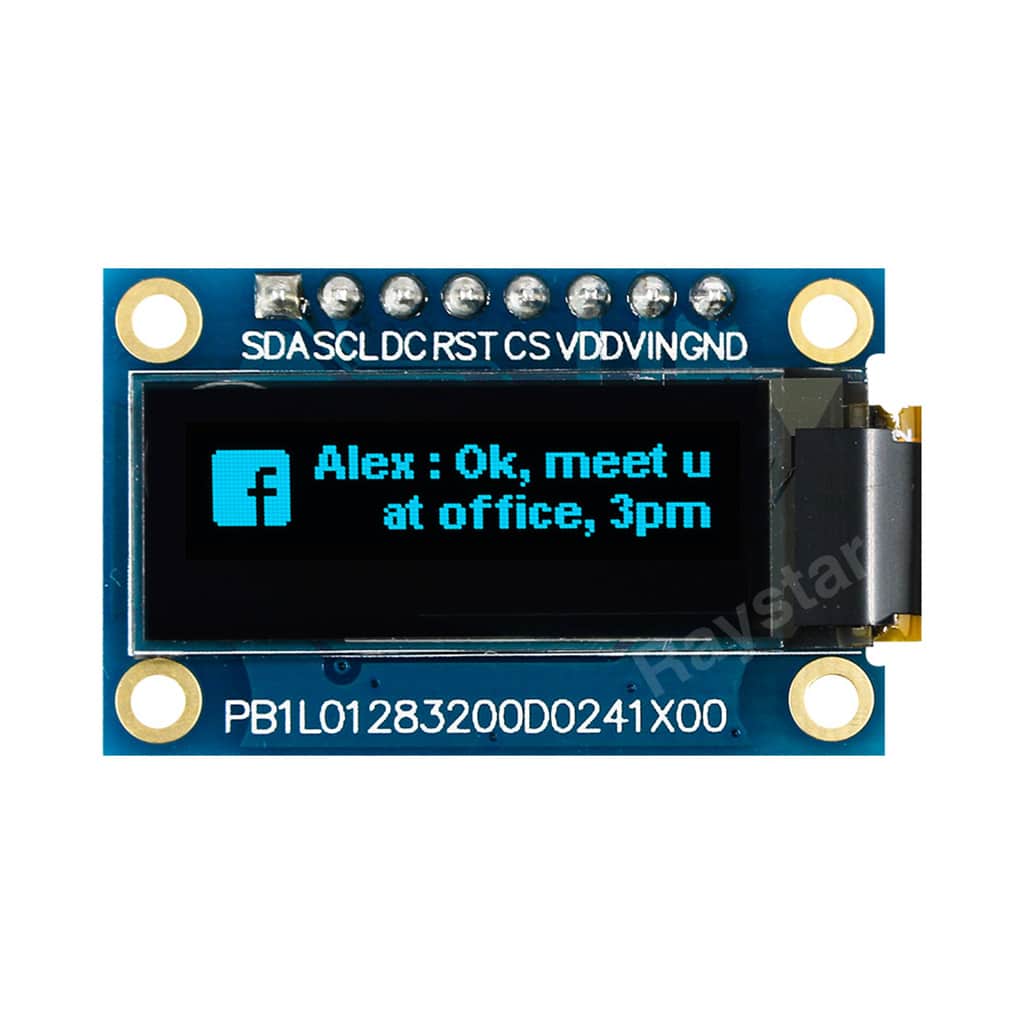

REA012832D series 128x32 SPI COG on PCB micro-OLED (0.91")

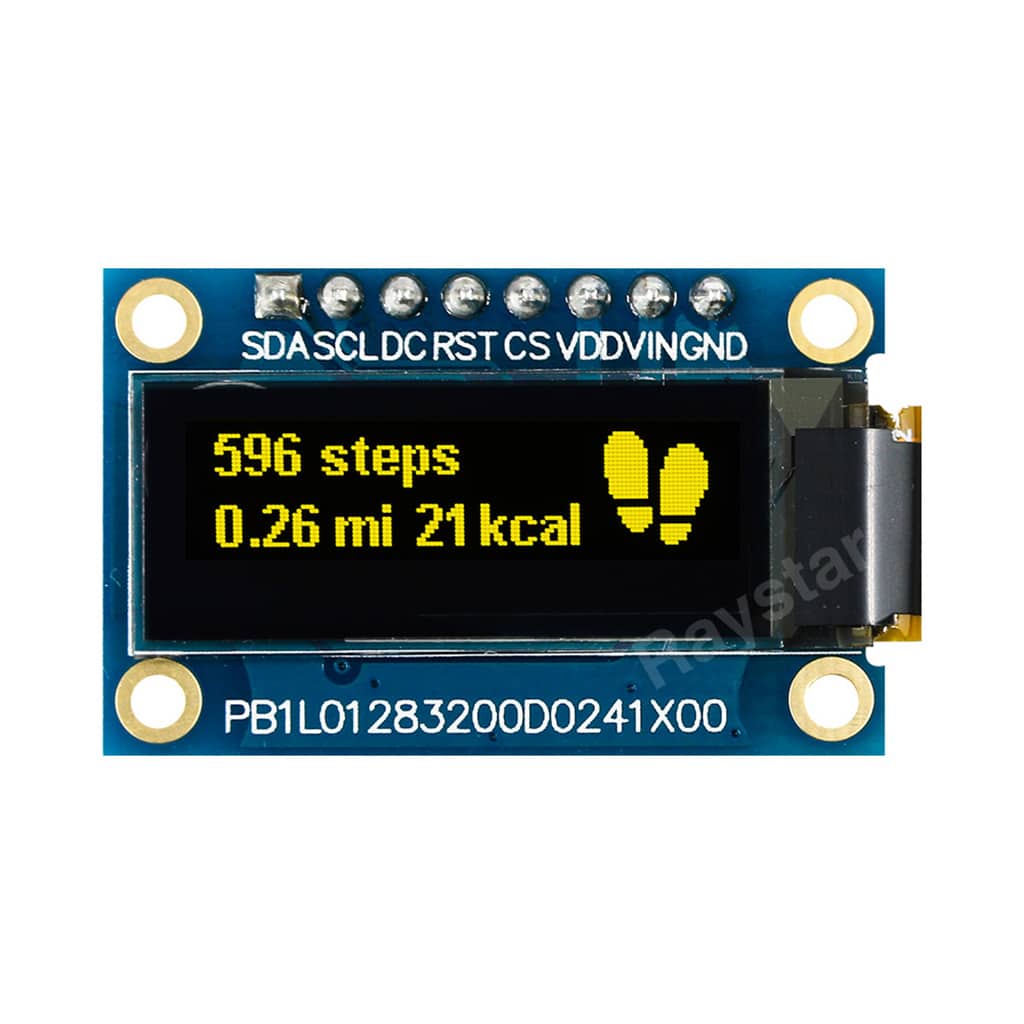

REA012832D series 128x32 SPI COG on PCB micro-OLED (0.91") - Image 2

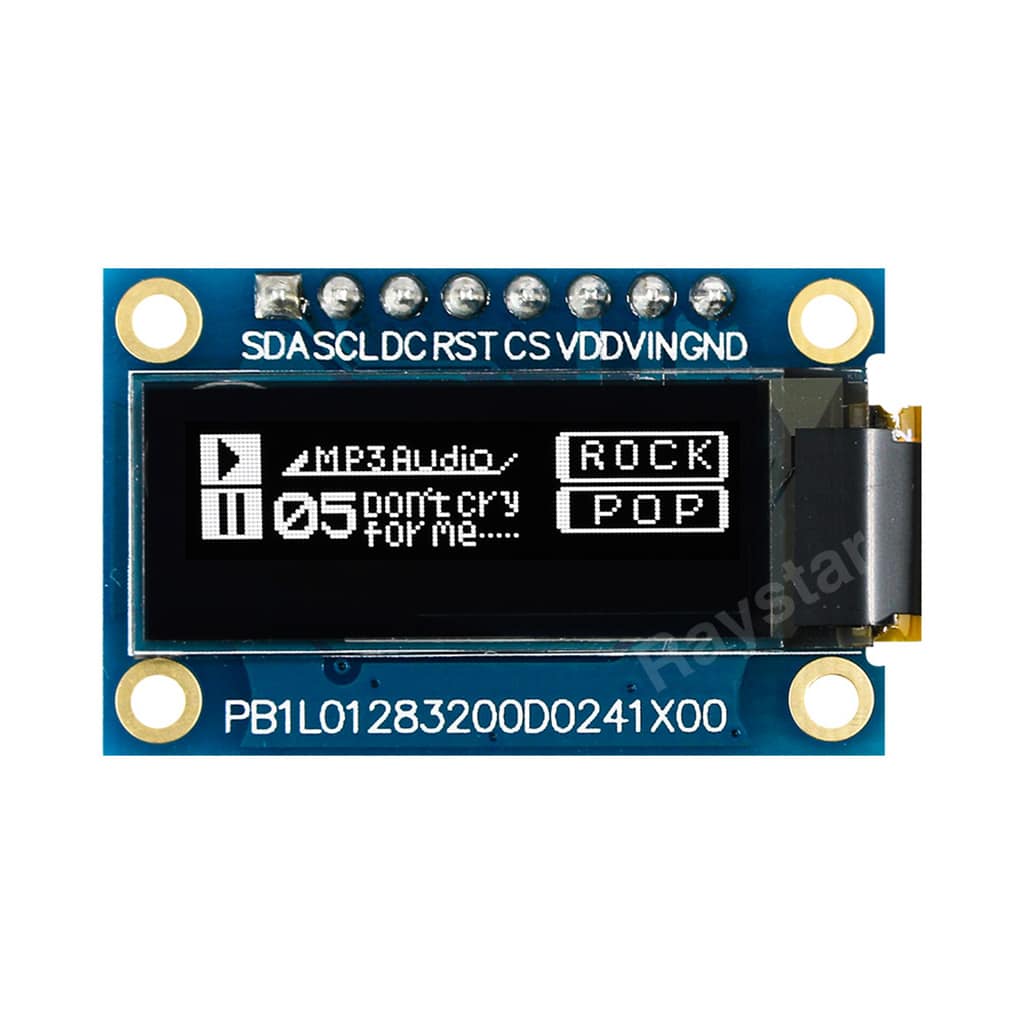

REA012832D series 128x32 SPI COG on PCB micro-OLED (0.91") - Image 3

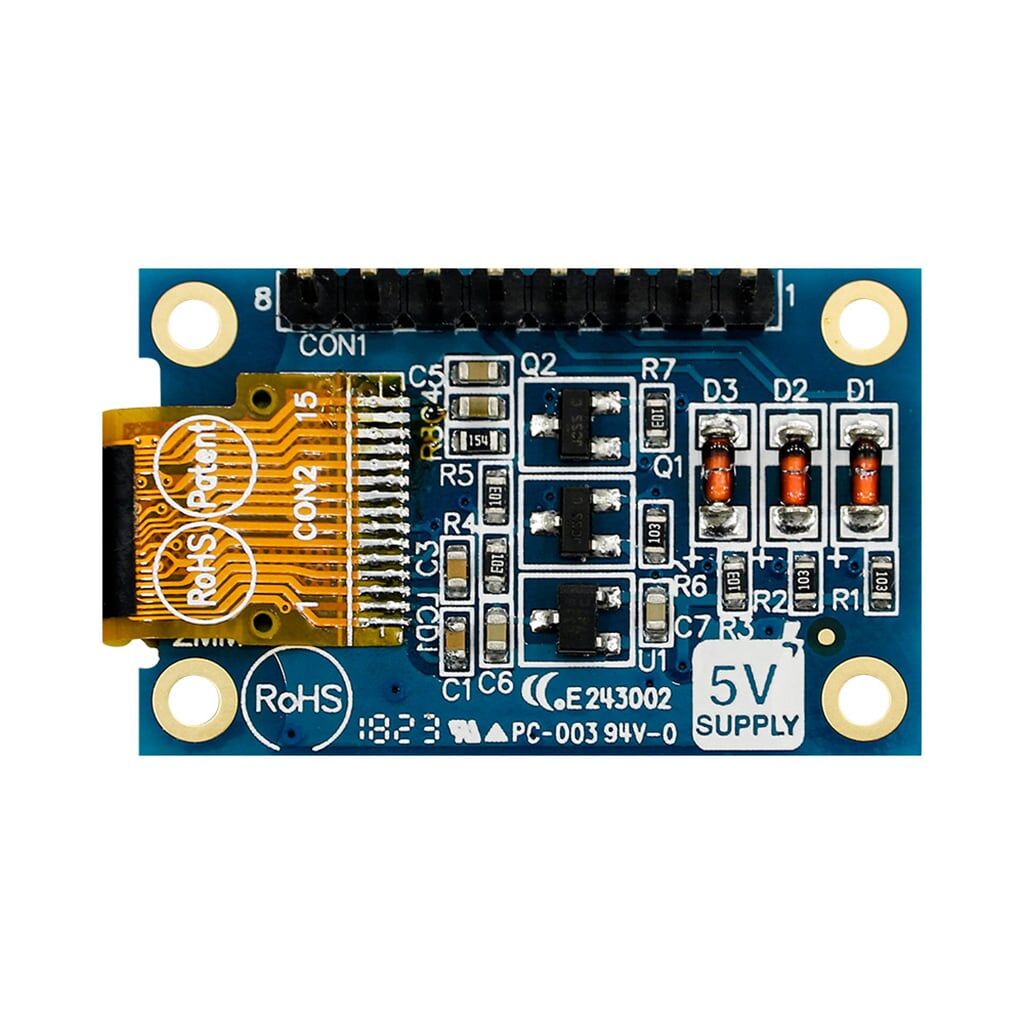

REA012832D series 128x32 SPI COG on PCB micro-OLED (0.91") - Image 4

REA012832D series 128×32 SPI COG on PCB micro-OLED (0.91″)

SKU: REA012832D Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 32.5 × 20.5 mm
Pixels

128×32
Interface

SPI
Construction

COG+PCB

Product Description

The REA012832D series is a 0.91″ Chip-On-Glass on PCB OLED offering 128×32 pixels, with an active area of 22.384mm x 5.584mm within a viewable area of 24.384mm x 7.584mm,  it comes with an integrated SSD1306BZ IC  has an SPI interface, and is available in White or Yellow.

This device is the REX12832D device placed on a PCB for ease of use







  • 128×32 OLED on PCB
  • Available in Blue, White or Yellow
  • Dimensions: 32.5mm x 20.5mm
  • Viewing Area: 24.384mm x 7.584mm
  • Active Area: 22.384mm x 5.584mm
  • Dot Size: 0.152mm x 0.152mm
  • Dot Pitch: 0.175mm x 0.175mm
  • SSD1306BZ IC on-board
  • SPI Interface
  • Power Supply: 3V
  • Standard Operating Temperature of -40°C to +80°C
