REA012832F series 128×32 I2C COG on PCB micro-OLED (0.91″)

SKU: REA012832F Categories: , , Manufacturer:

Product specs

Dimensions 35.8 × 12.0 mm
Pixels

128×32

Interface

I2C

Construction

COG+PCB

Product Description

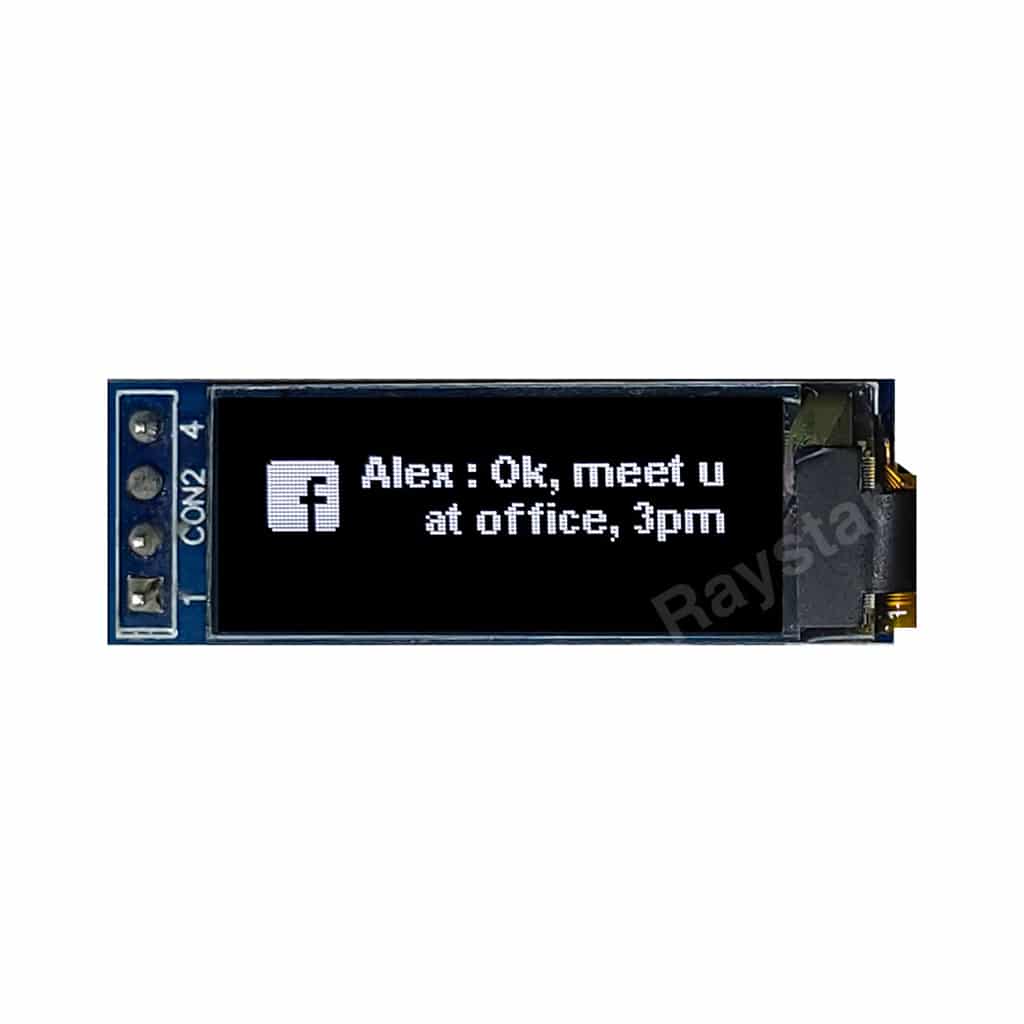

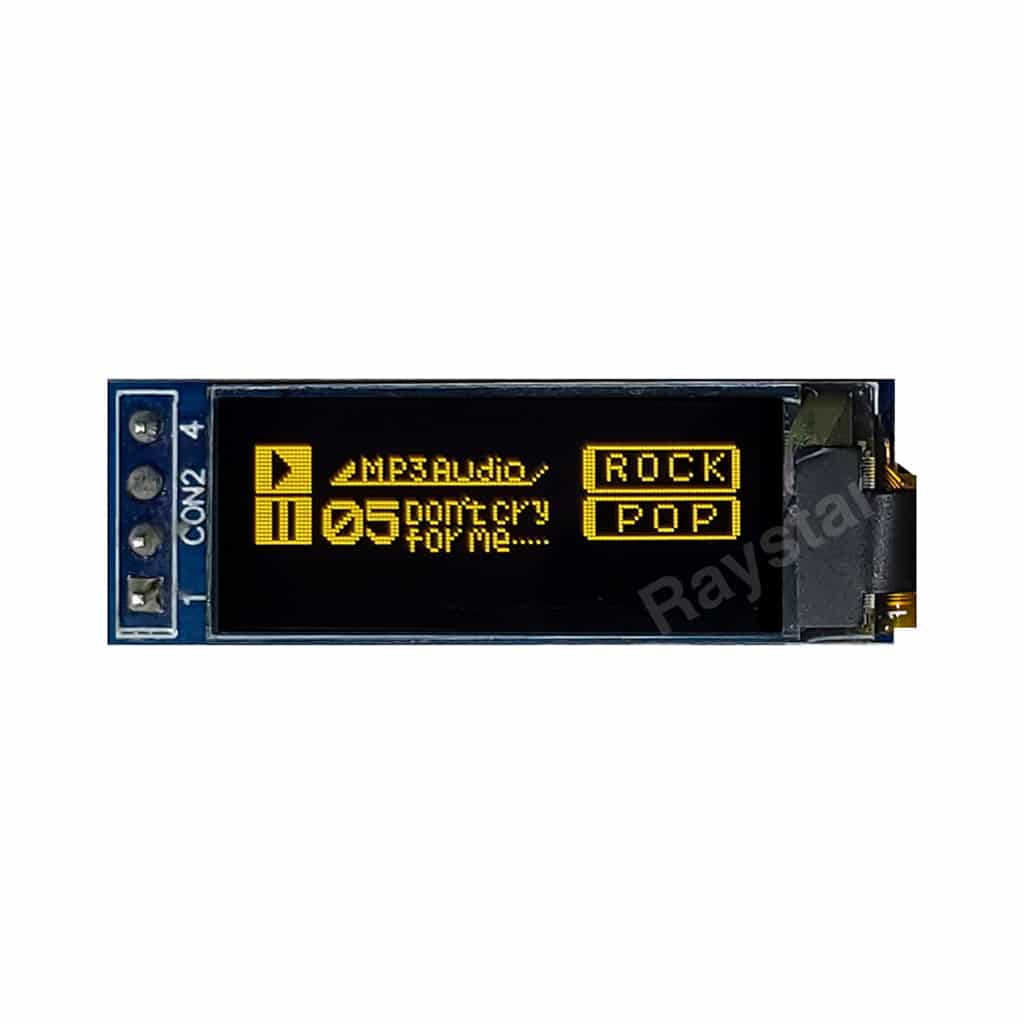

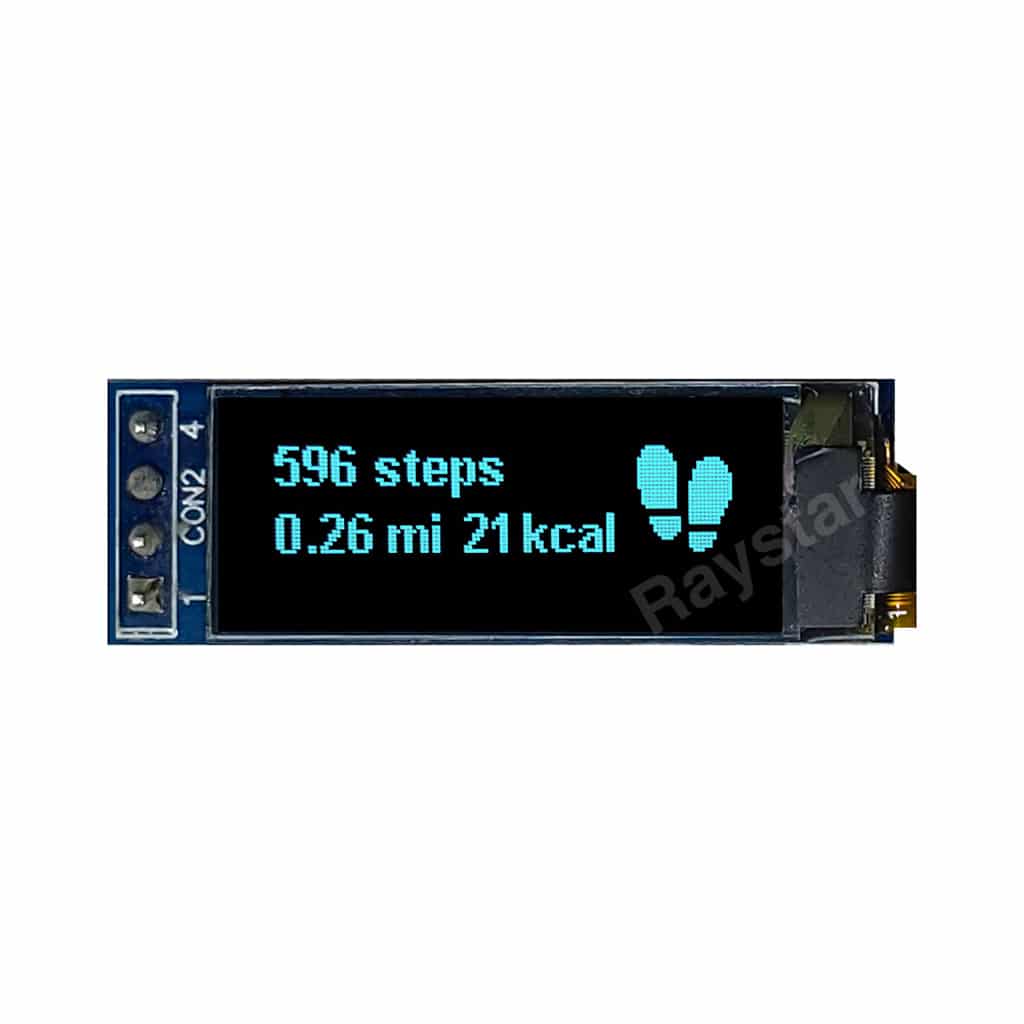

The REA012832F series is a 0.91″ Chip-On-Glass on PCB OLED offering 128×32 pixels, with an active area of 22.384mm x 5.584mm within a viewable area of 24.384mm x 7.584mm,  it comes with an integrated SSD1306 IC  has an I2C interface, and is available in Blue, White or Yellow.

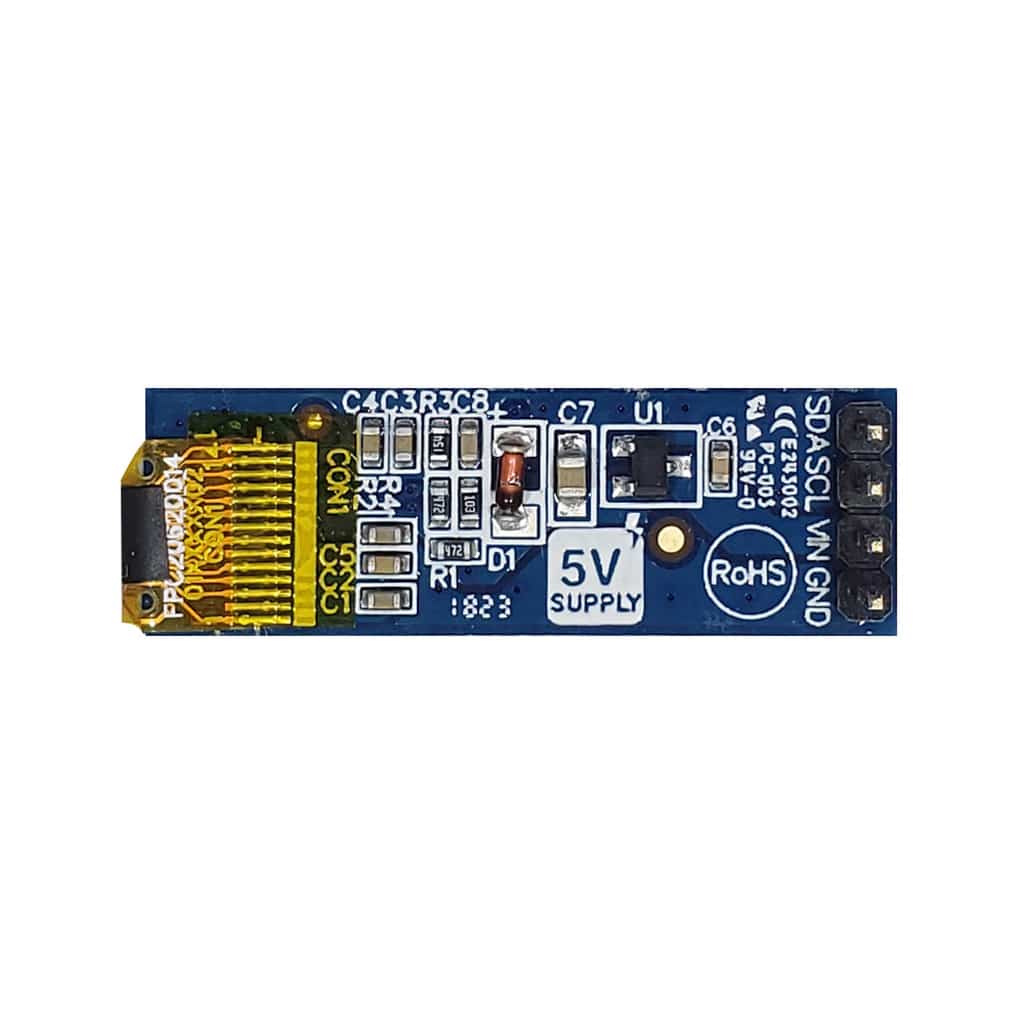

This device is the REX12832F device placed on a PCB for ease of use







  • 128×32 OLED on PCB
  • Available in Blue, White or Yellow
  • Dimensions: 35.8mm x 12.0mm
  • Viewing Area: 24.384mm x 7.584mm
  • Active Area: 22.384mm x 5.584mm
  • Dot Size: 0.152mm x 0.152mm
  • Dot Pitch: 0.175mm x 0.175mm
  • SSD1306BZ IC on-board
  • I2C Interface
  • Power Supply: 3V
  • Standard Operating Temperature of -40°C to +80°C
