REA012864D-03 series 128×64 COG on PCB micro-OLED (0.96″)
Product specs
| Dimensions | 27.3 × 27.3 mm |
|---|---|
| Pixels | 128×64 |
| Interface | I2C |
| Construction | COG+PCB |
Product Description

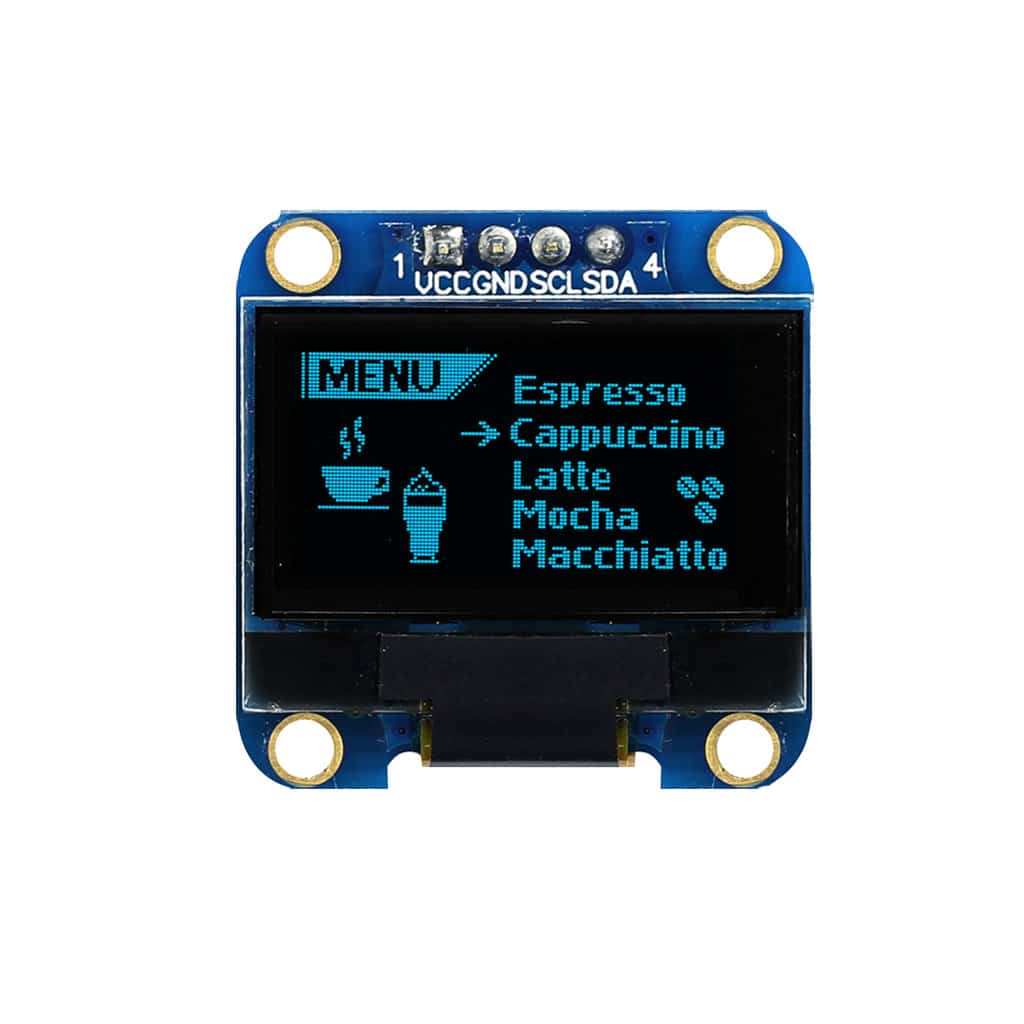

The REA012864D-03 series is a 0.96″ Chip-On-Glass on PCB OLED offering 128×64 pixels, with an active area of 21.74mm x 10.86mm within a viewable area of 23.94mm x 12.06mm, it comes with an integrated SSD1306BZ IC and is available in Blue, White or Yellow.
This device is I2C interface
- 128×64 OLED on PCB

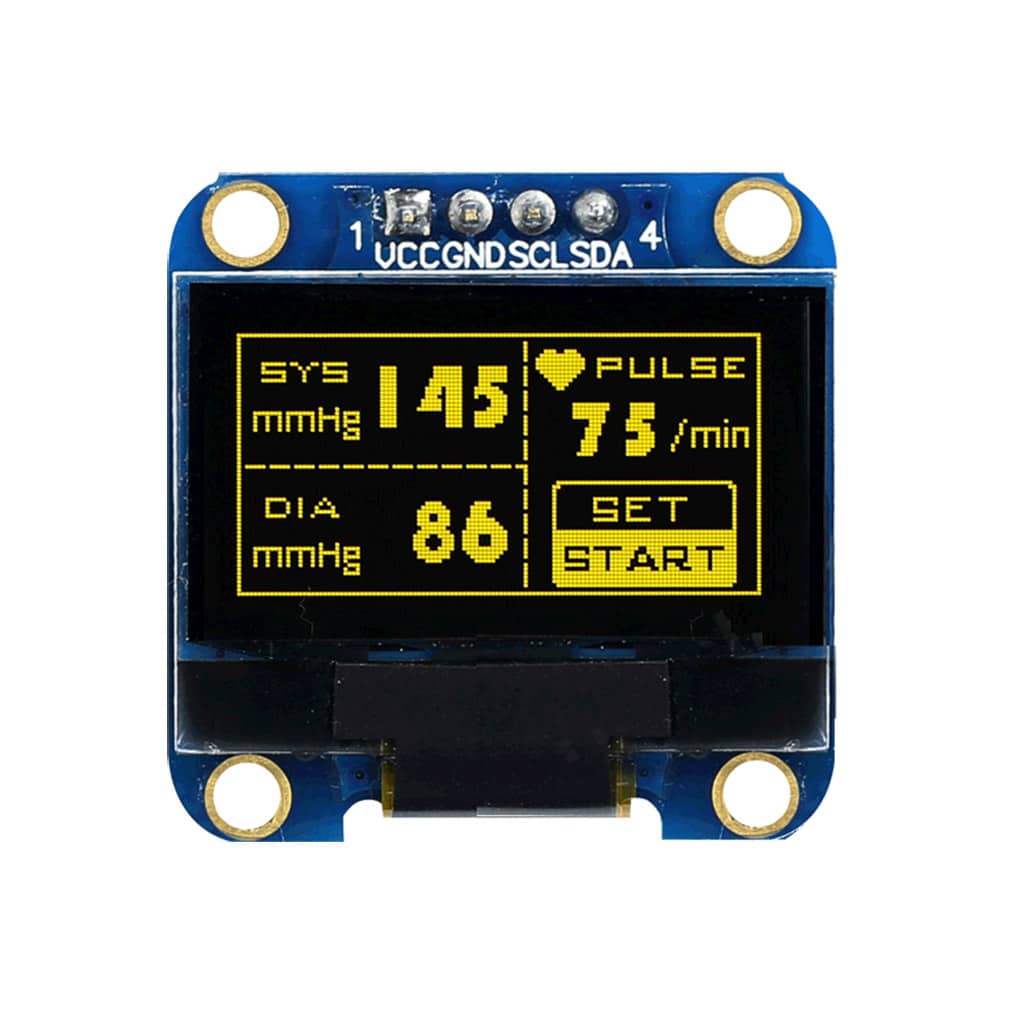

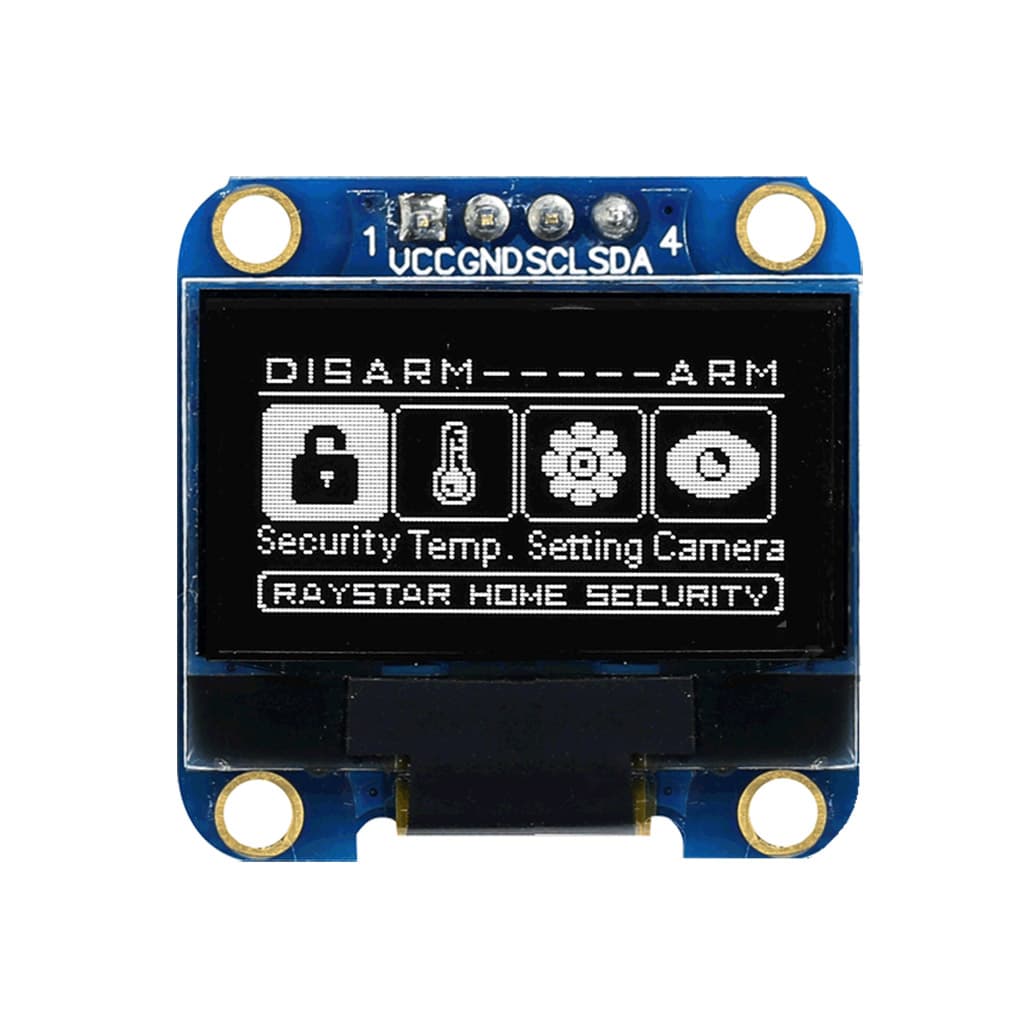

- Available in Blue, White or Yellow

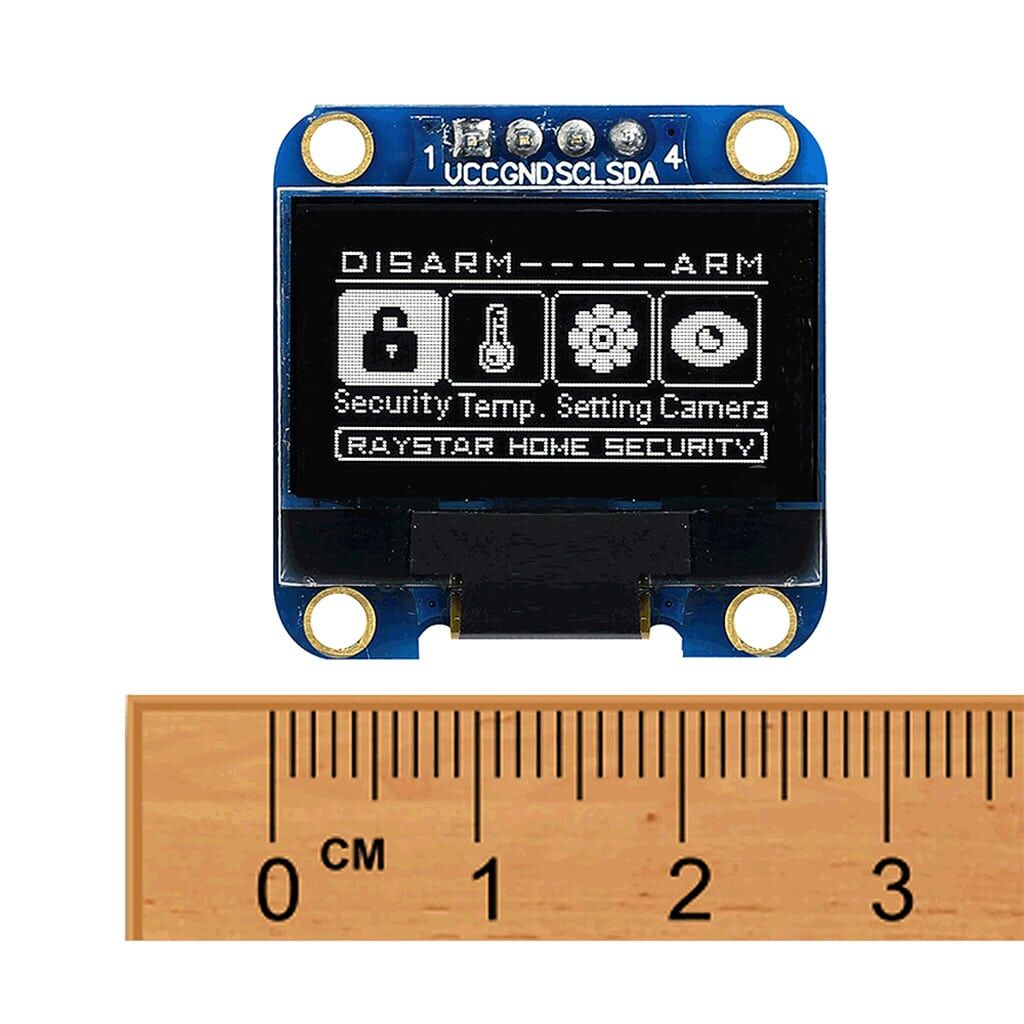

- Dimensions: 27.3mm x 27.3mm
- Viewing Area: 23.94mm x 12.06mm
- Active Area: 21.74mm x 10.86mm
- Dot Size: 0.148mm x 0.148mm
- Dot Pitch: 0.17mm x 0.17mm

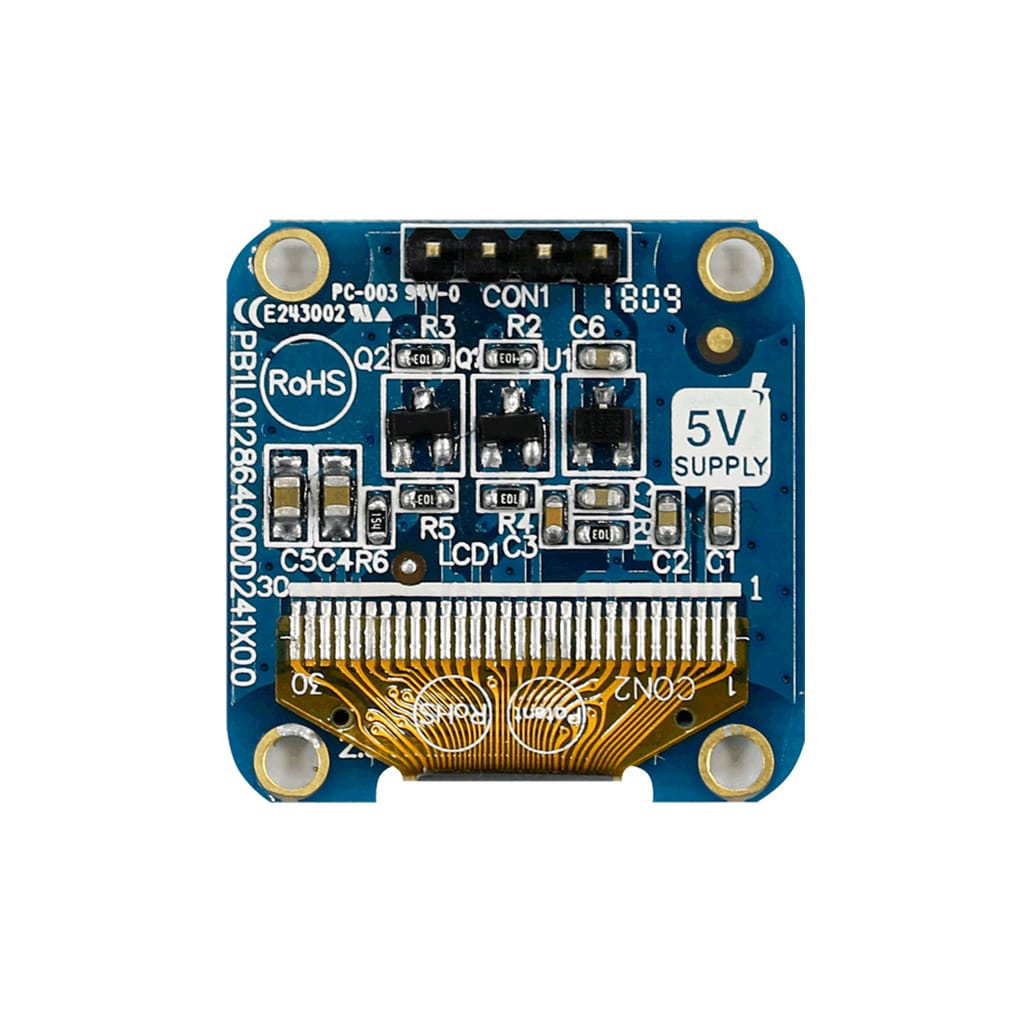

- SSD1306BZ IC on-board
- I2C Interface
- Power Supply: 3V
- Standard Operating Temperature of -40°C to +80°C
