REA012864M 128×64 COG Dual Colour micro-OLED on PCB 27.3mm x 27.3mm (0.96″)

SKU: REA012864M Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 27.3 × 27.3 mm
Pixels

128×64
Interface

I2C, SPI
Construction

COG+PCB

Product Description

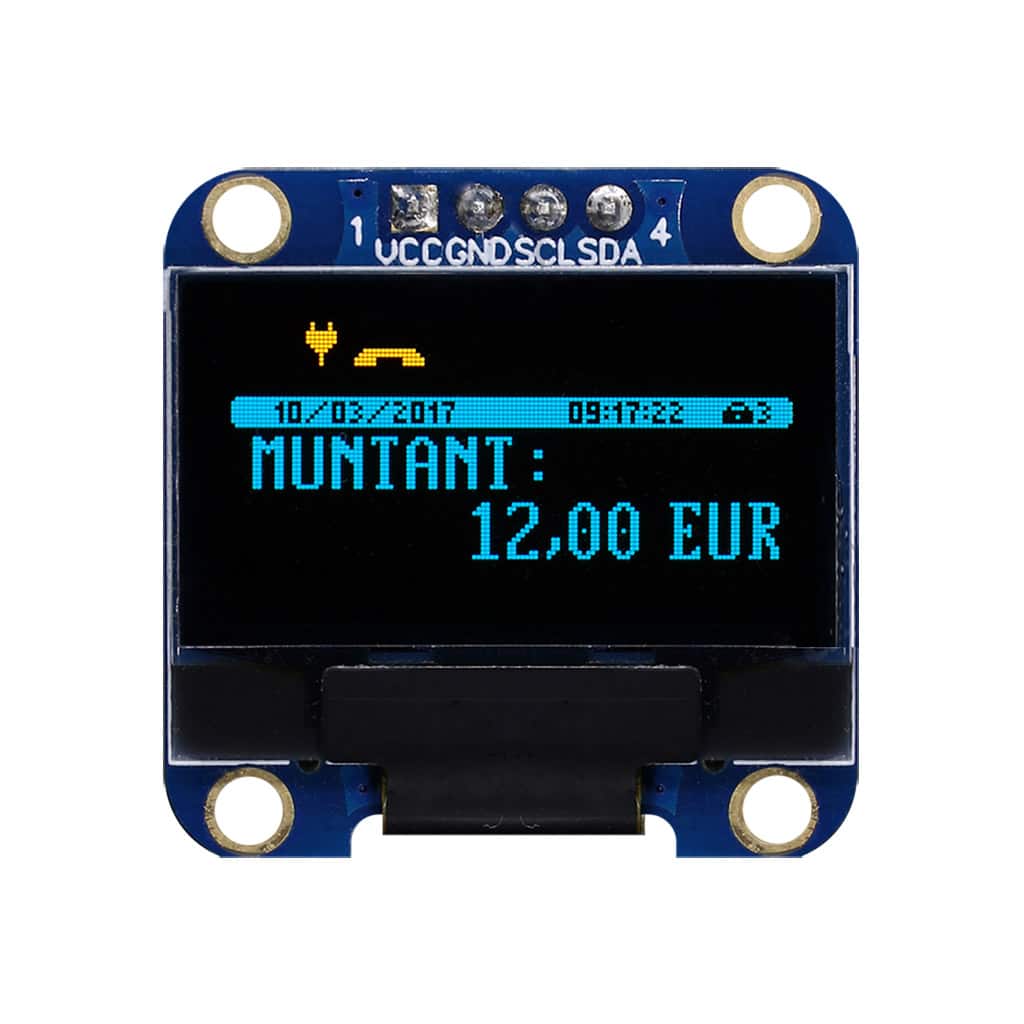

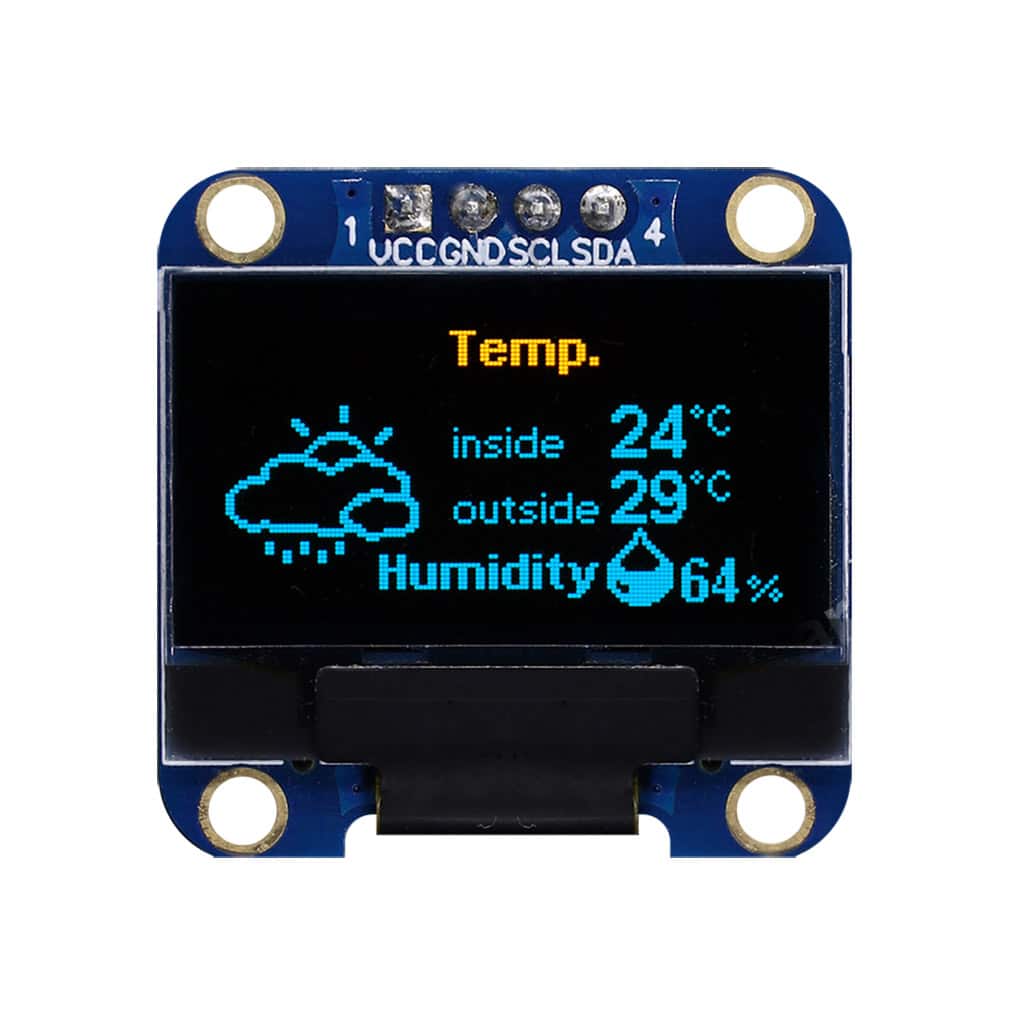

The REA012864MXPP3N00000 is a dual colour 0.96″ Chip-On-Glass PCB mounted OLED  offering 128×64 pixels within a 23.744mm x 13.204mm viewable area, it comes with an integrated SSD1306BZ IC. This device has a choice of SPI or I2C interface.

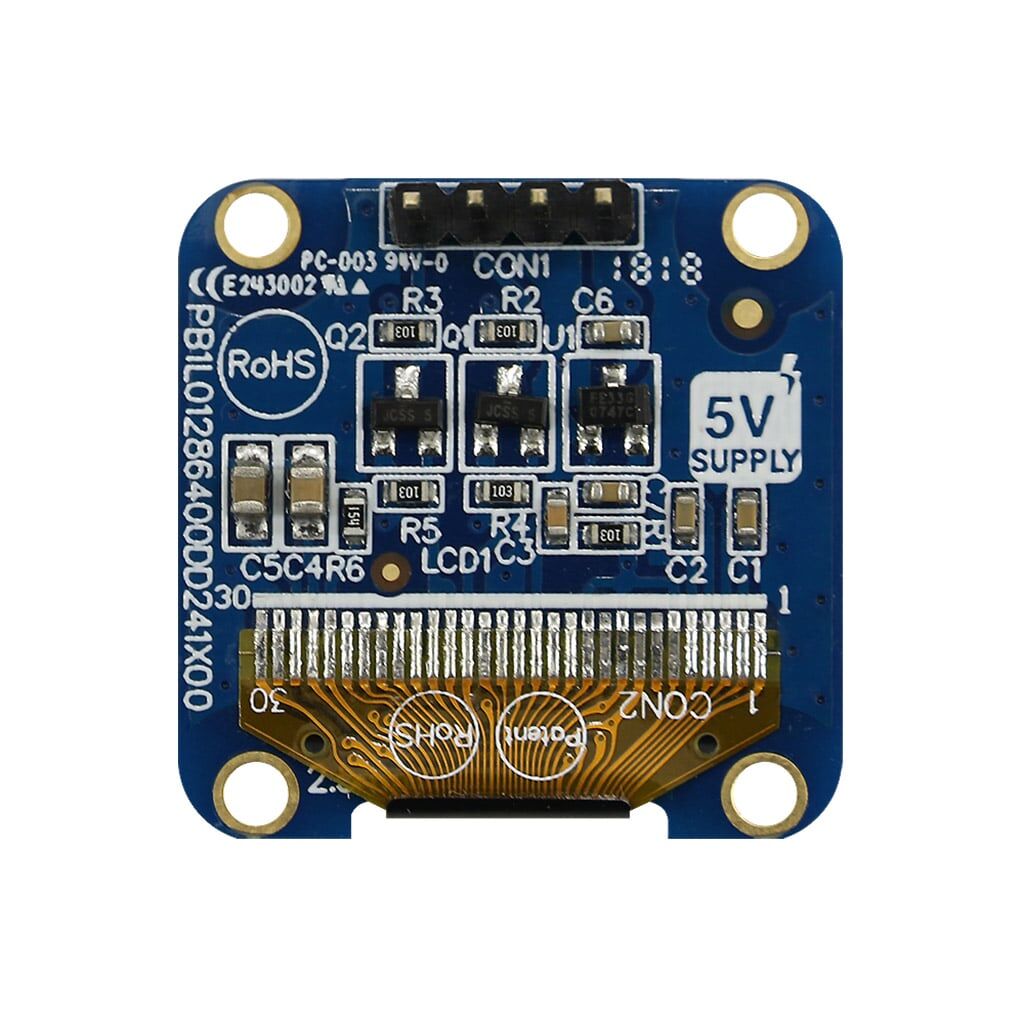

The top section of this OLED (128×16 pixels) is Yellow, with the balance (128×48) being Blue. This device is the REX012964MXPP3N00001 device, mounted onto a PCB







  • 128×64 Graphic OLED on PCB
  • Size: 0.96″
  • Dual Colour: Yellow & Blue
  • Dimensions: 27.3mm x 27.3mm
  • Viewing Area: 23.744mm x 13.204mm
  • Active Area: 21.744mm x 11.204mm
  • Dot Size: 0.148mm x 0.148mm
  • Dot Pitch: 0.17mm x 0.17mm
  • I2C or SPI Interface
  • Power Supply: 3V / 5V
  • IC: SSD1306BZ
  • Standard Operating Temperature of -40°C to +80°C
