REC001202A series 12×2 Character OLED (55.7mm x 32.0mm)

SKU: REC001202A Categories: , , Manufacturer:

Product specs

Dimensions 55.7 × 32 mm


Emitting Colour

Green, Yellow


6800, 8080, SPI



Product Description

The REC001202A series Chip-On-Board Passive Matrix OLED offers 12×2 characters .With an active area of 38.95mm x 11.8mm within a viewable area of 46.0mm x 14.5mm

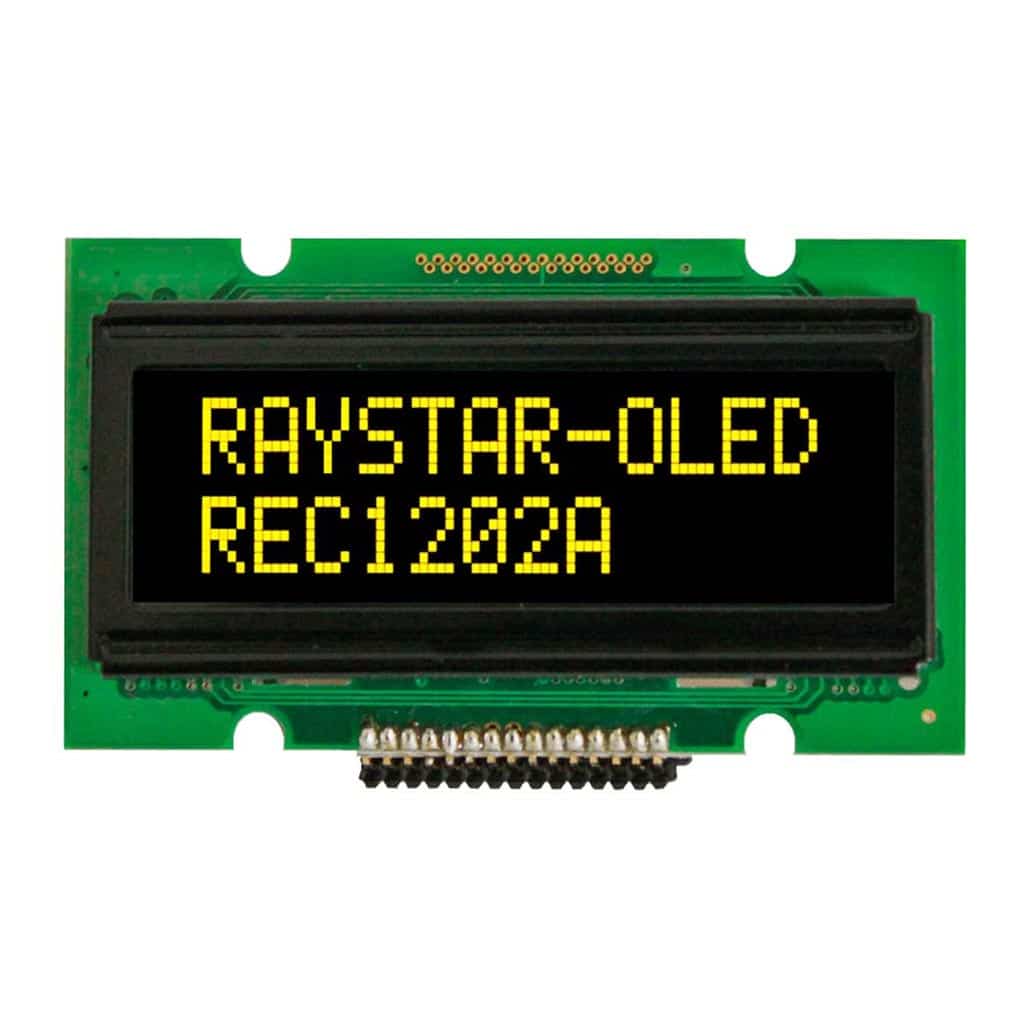

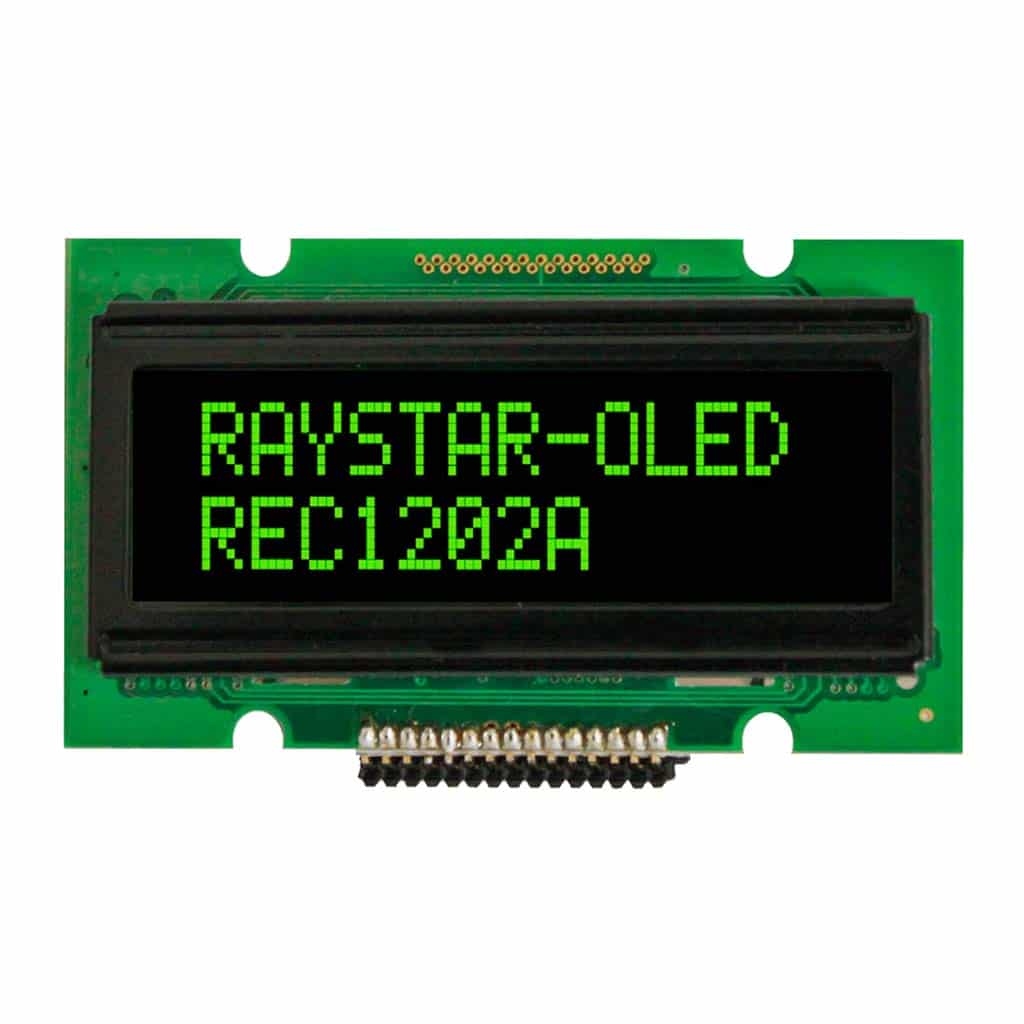

Available in a choice of Yellow or Green

The onboard RS0010 also allows for 4 font sets, these are English/Japanese, West European, Scandinavian European, and Cyrillic




  • 12×2 Chip-On-Board OLED
  • Dimensions: 55.7mm x 32.0mm
  • Viewing Area: 46.0mm x 14.5mm
  • Fast Response Times
  • High Contrast
  • 175° Viewing Angles
  • IC: RS0010 (multiple languages)
  • Standard Operating Temperature of -40°C to +80°C
