REC001602C series 16×2 Character OLED (85.0mm x 36.0mm)

SKU: REC001602C Categories: , , Manufacturer:

Product specs

Dimensions 85 × 36 mm
Characters

16×2

Emitting Colour

Blue, Green, White, Yellow

Interface

6800, 8080, SPI

Construction

COB

Product Description

The REC001602C series Chip-On-Board Passive Matrix OLED offers 16×2 characters .With an active area of 56.95mm x 11.85mm within a viewable area of 66.0mm x 16.0mm

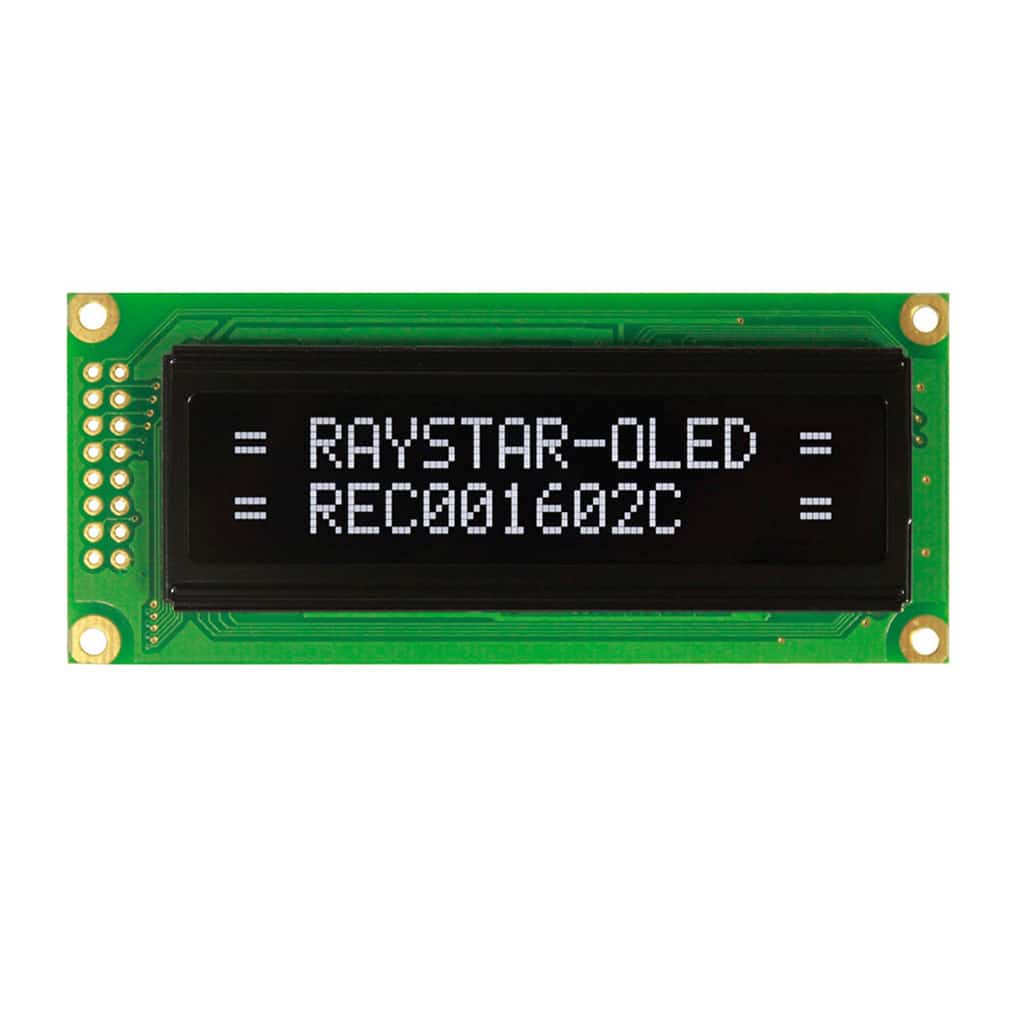

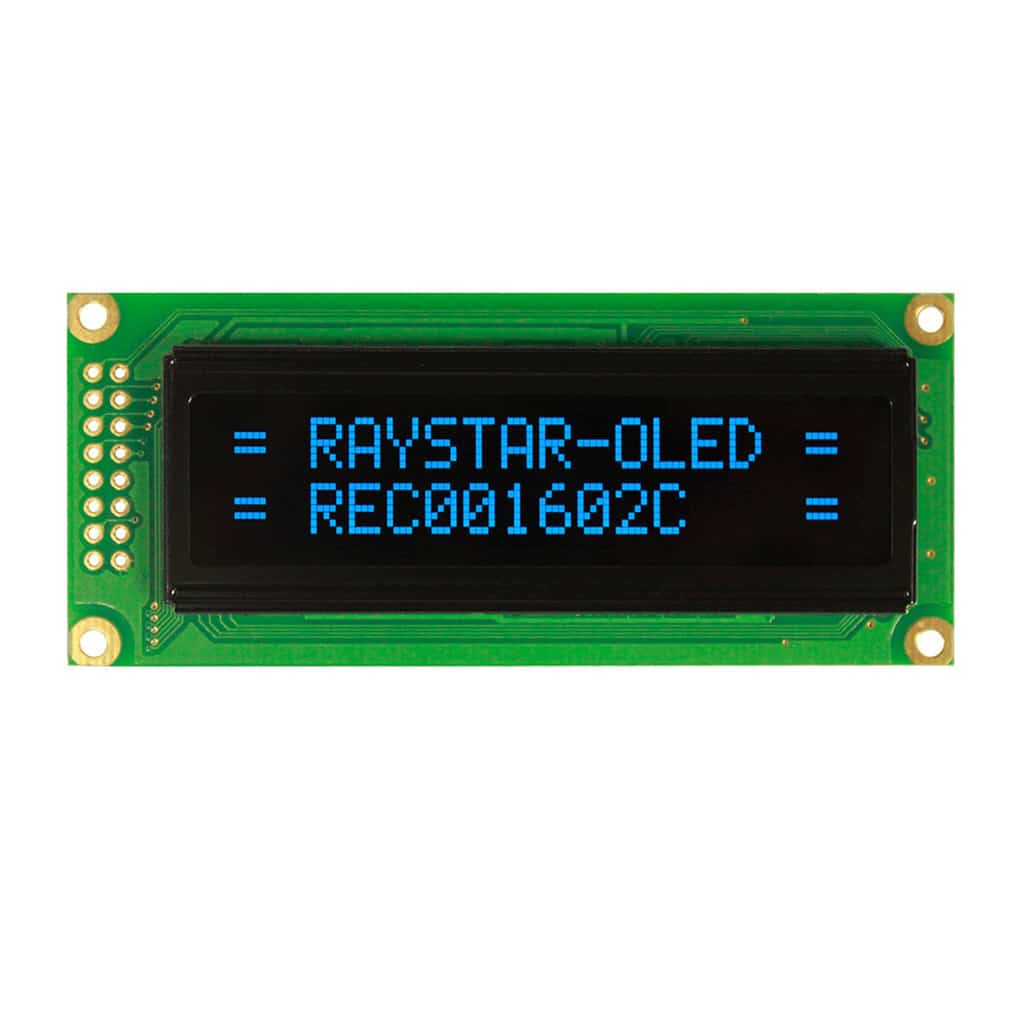

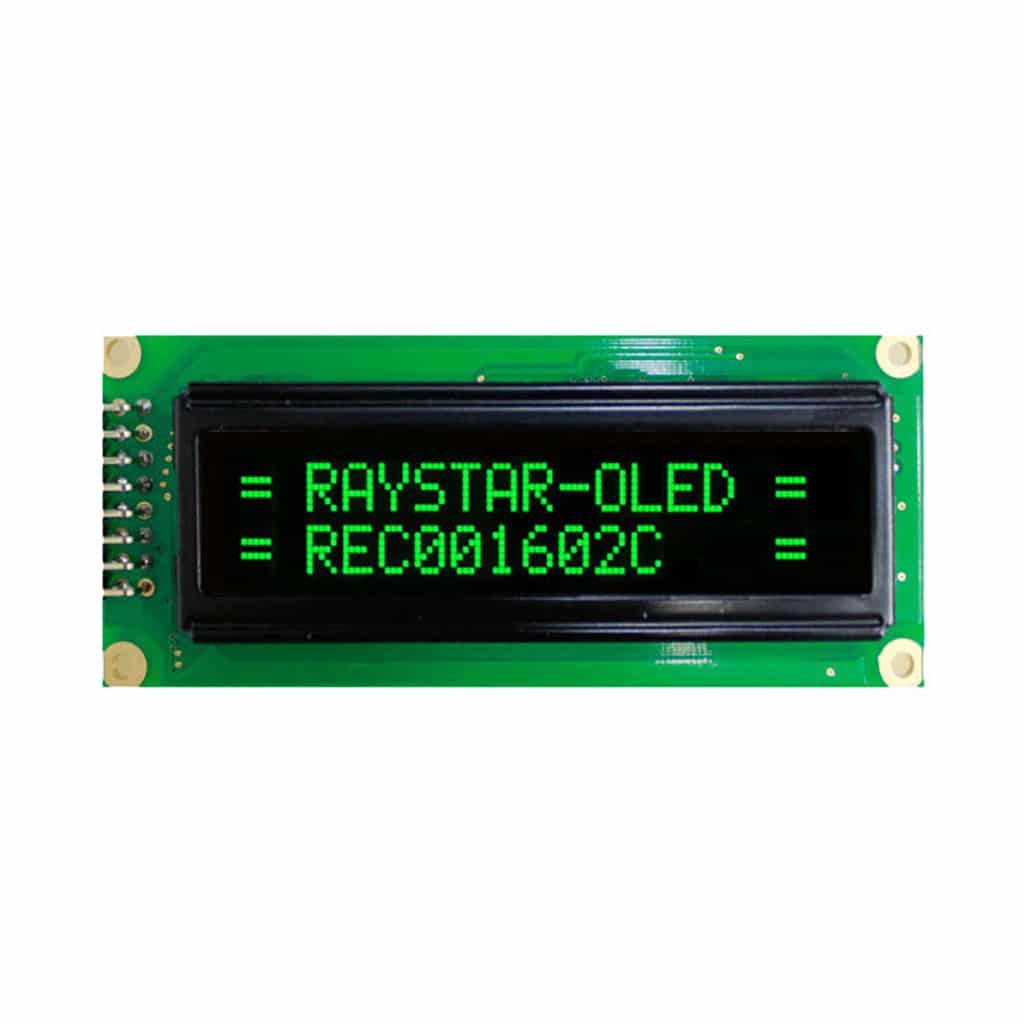

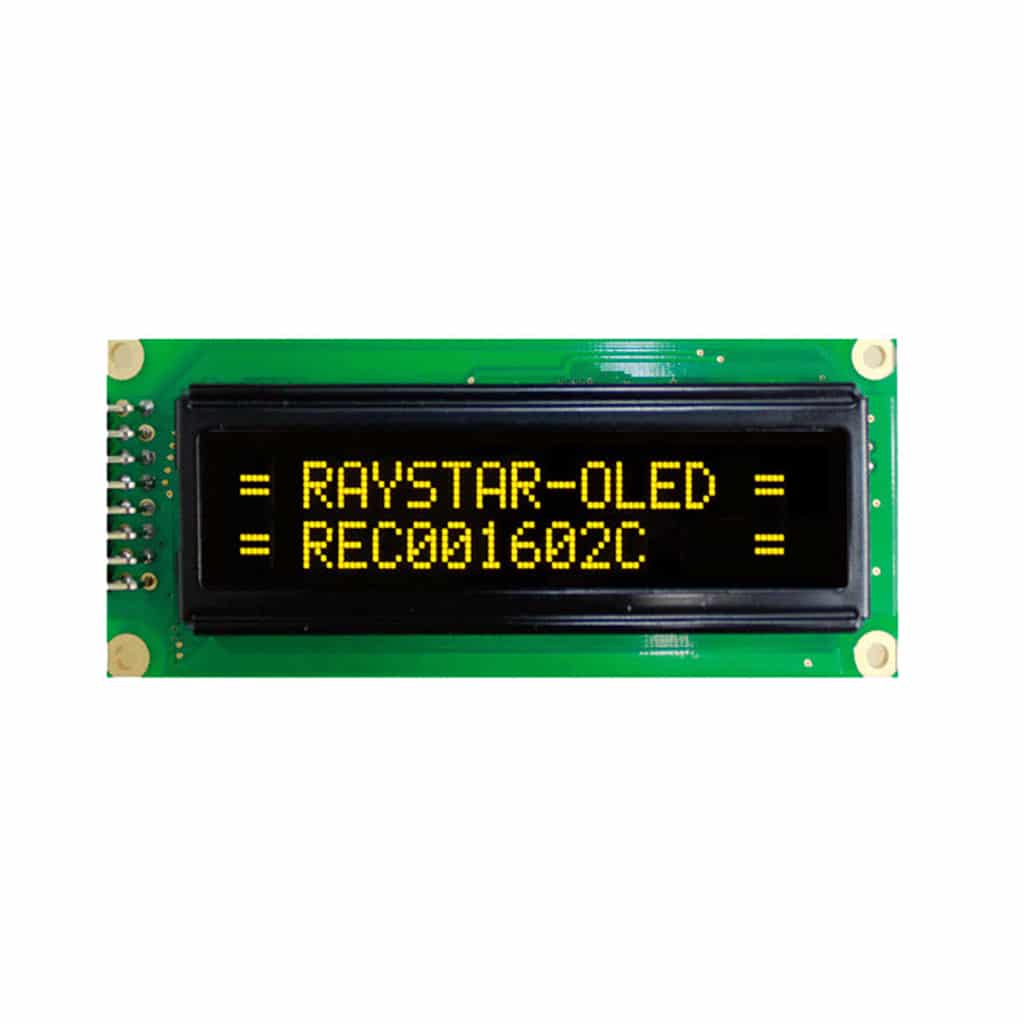

Available in a choice of Blue, Green, White or Yellow

The onboard RS0010 also allows for 4 font sets, these are English/Japanese, West European, Scandinavian European, and Cyrillic







  • 16×2 Chip-On-Board OLED
  • Dimensions: 85.0mm x 36.0mm
  • Viewing Area: 66.0mm x 16.0mm
  • Fast Response Times
  • High Contrast

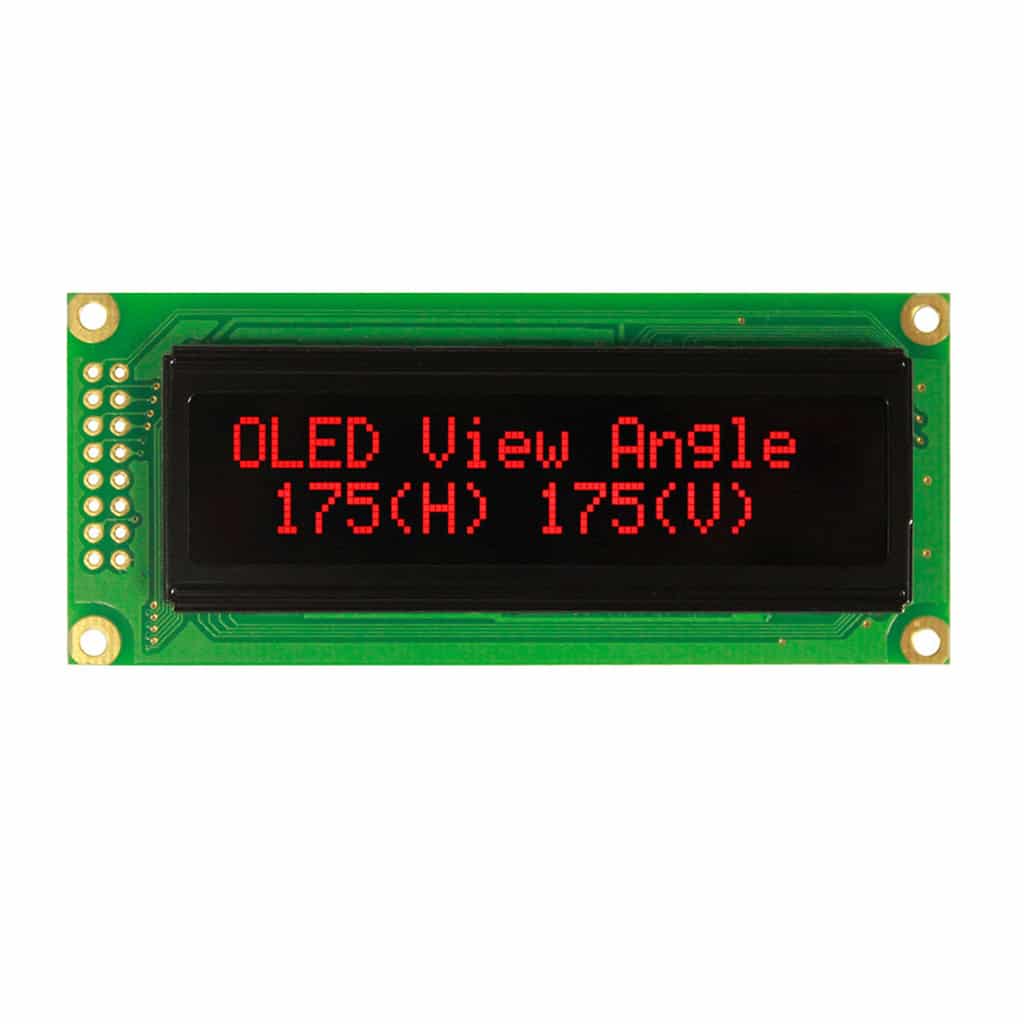

  • 175° Viewing Angles
  • IC: RS0010 (multiple languages)
  • Standard Operating Temperature of -40°C to +80°C
