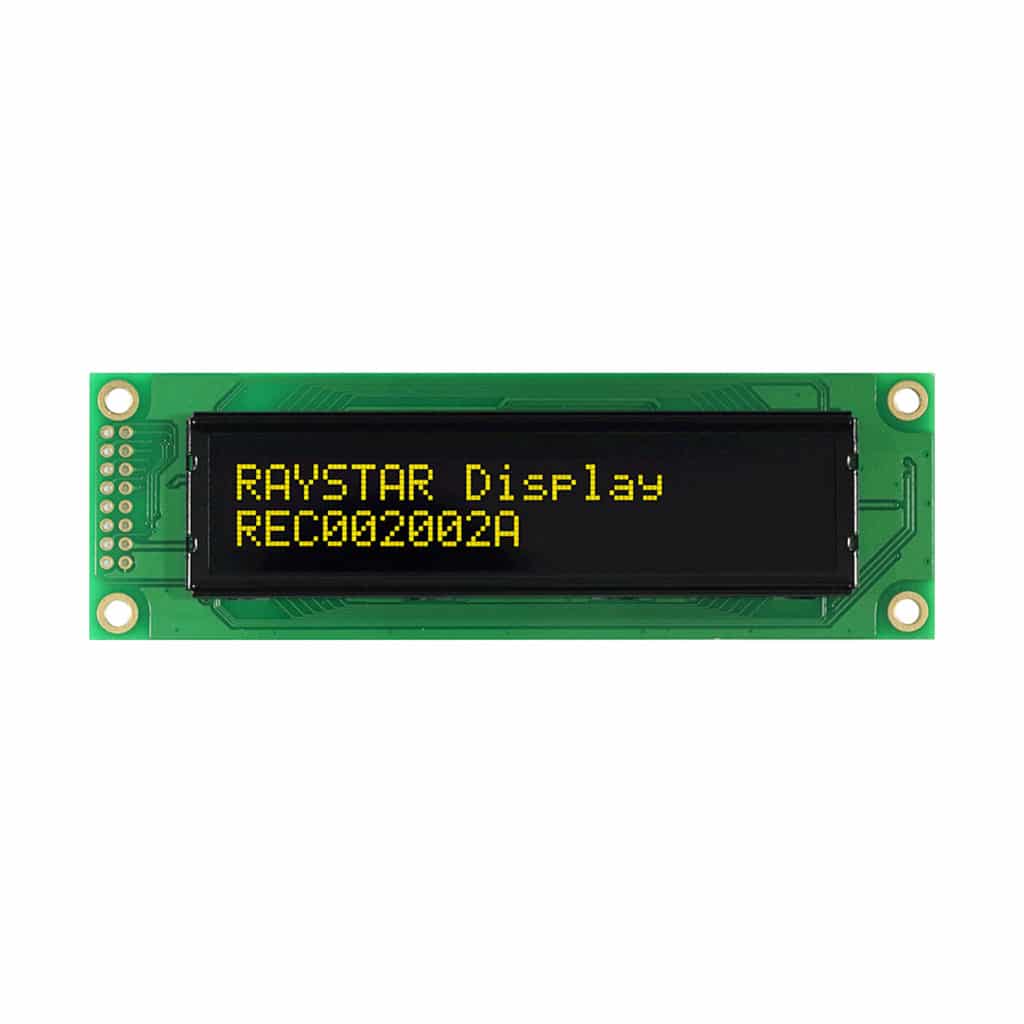

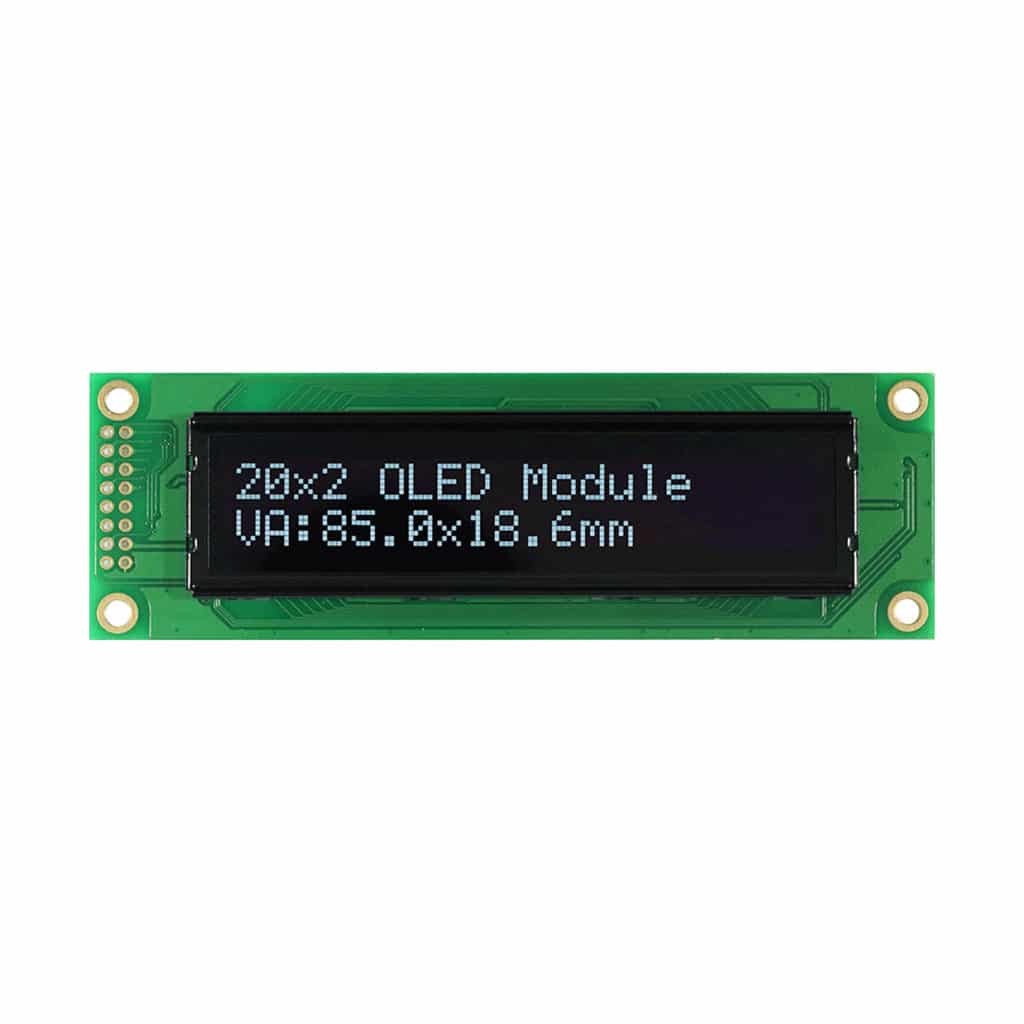

REC002002A series 20×2 Character OLED (116.0mm x 37.0mm)

SKU: REC002002A Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 116 × 37 mm
Characters

20×2
Emitting Colour

Blue, Green, White, Yellow
Interface

6800, 8080, SPI
Construction

COB

Product Description

The REC002002A series Chip-On-Board Passive Matrix OLED offers 20×2 characters .With an active area of 77.3mm x 11.85mm within a viewable area of 85.0mm x 18.6mm

Available in a choice of Blue, Green, White or Yellow

The onboard RS0010 also allows for 4 font sets, these are English/Japanese, West European, Scandinavian European, and Cyrillic







  • 20×2 Chip-On-Board OLED
  • Dimensions: 116.0mm x 37.0mm
  • Viewing Area: 85.0mm x 18.6mm
  • Fast Response Times
  • High Contrast
  • 175° Viewing Angles
  • IC: RS0010 (multiple languages)
  • Standard Operating Temperature of -40°C to +80°C
