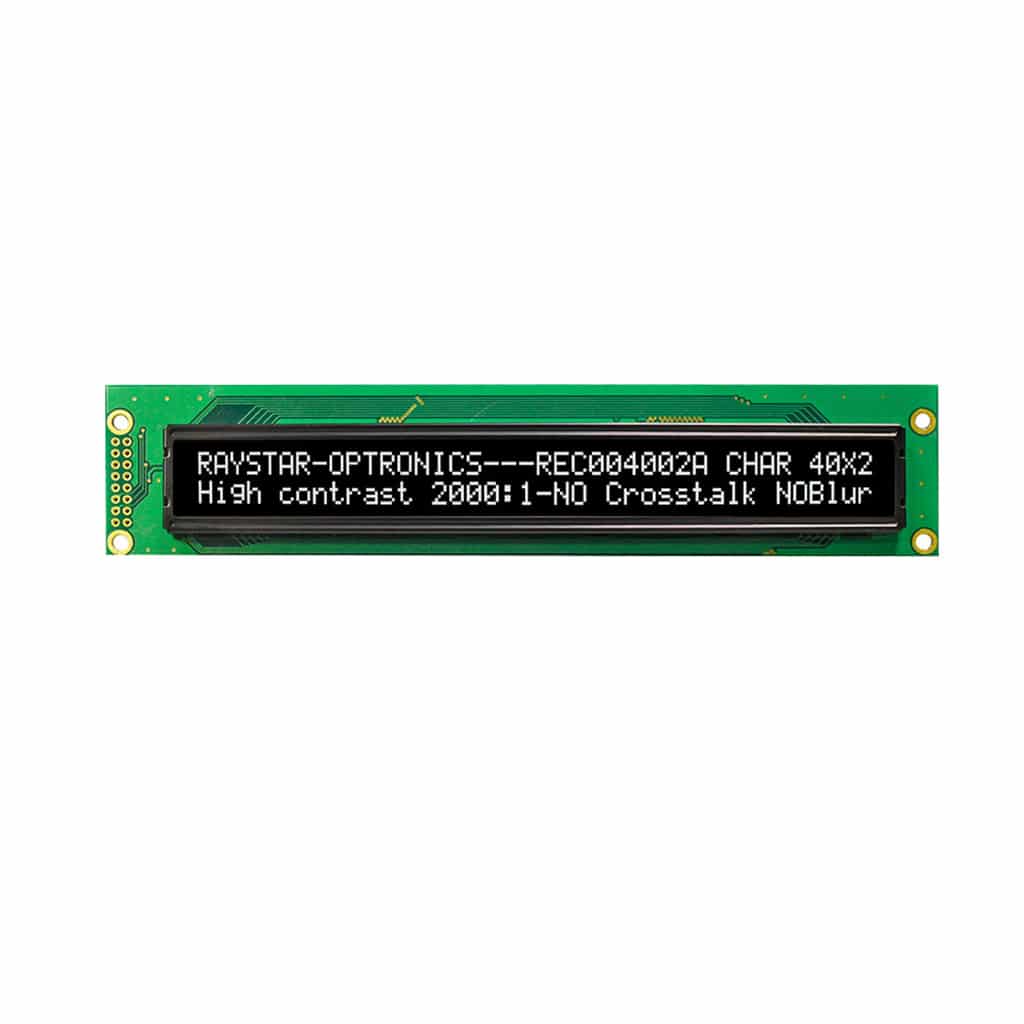

REC004002A series 40×2 Character OLED (182.0mm x 38.5mm)

SKU: REC4002A Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 182 × 38.5 mm
Characters

40×2
Emitting Colour

Blue, White, Yellow
Interface

6800, 8080, SPI
Construction

COB

Product Description

The REC004002A series Chip-On-Board Passive Matrix OLED offers 40×2 characters .With an active area of 148.13mm x 11.85mm within a viewable area of 154.4mm x 16.5mm

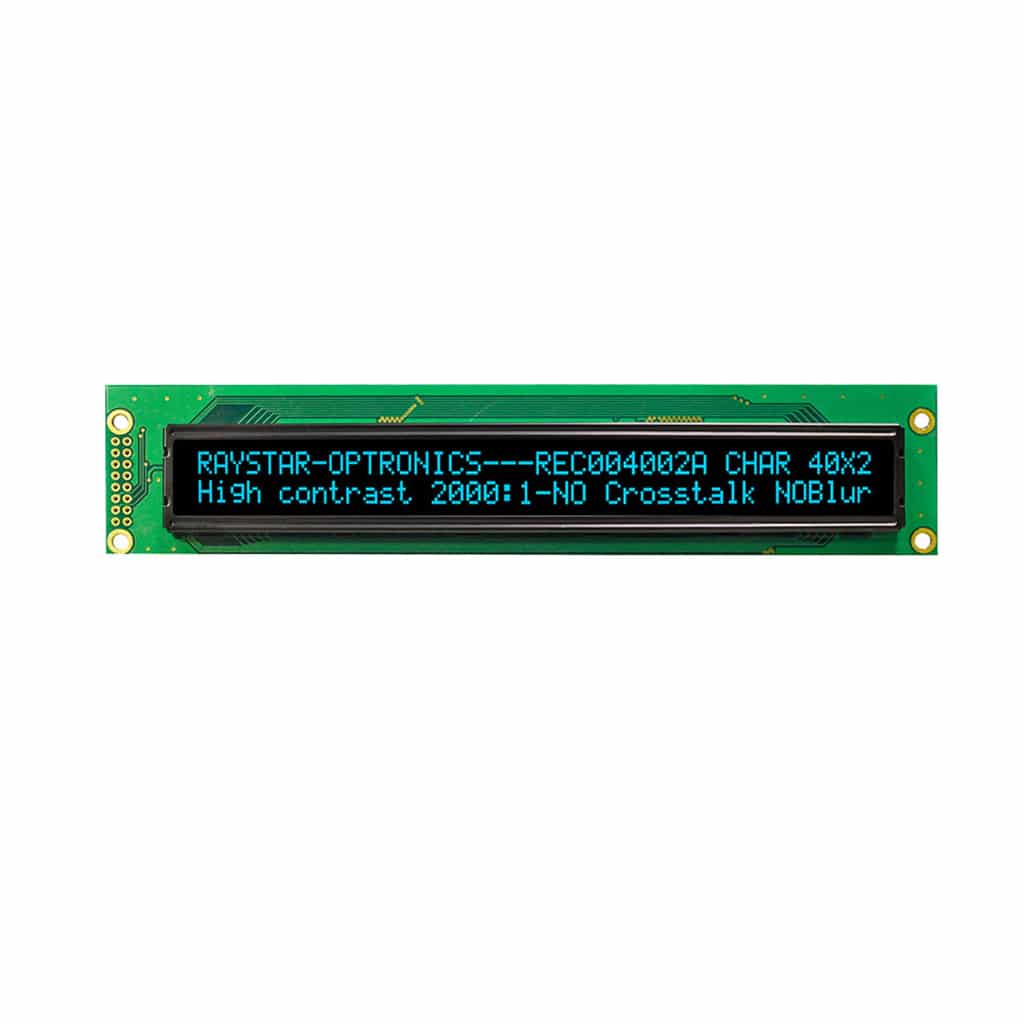

Available in a choice of Blue, White or Yellow

The onboard RS0010 also allows for 4 font sets, these are English/Japanese, West European, Scandinavian European, and Cyrillic







  • 40×2 Chip-On-Board OLED
  • Dimensions: 182.0mm x 38.5mm
  • Viewing Area: 154.4.0mm x 16.5mm
  • Fast Response Times
  • High Contrast
  • 175° Viewing Angles
  • IC: RS0010 (multiple languages)
  • Standard Operating Temperature of -40°C to +80°C
