REG010016A series 100×16 COB OLED (80.0mm x 36.0mm)
Product specs
| Dimensions | 80.0 × 36.0 mm |
|---|---|
| Pixels | 100×16 |
| Interface | 6800, 8080, SPI |
| Construction | COB |
Product Description

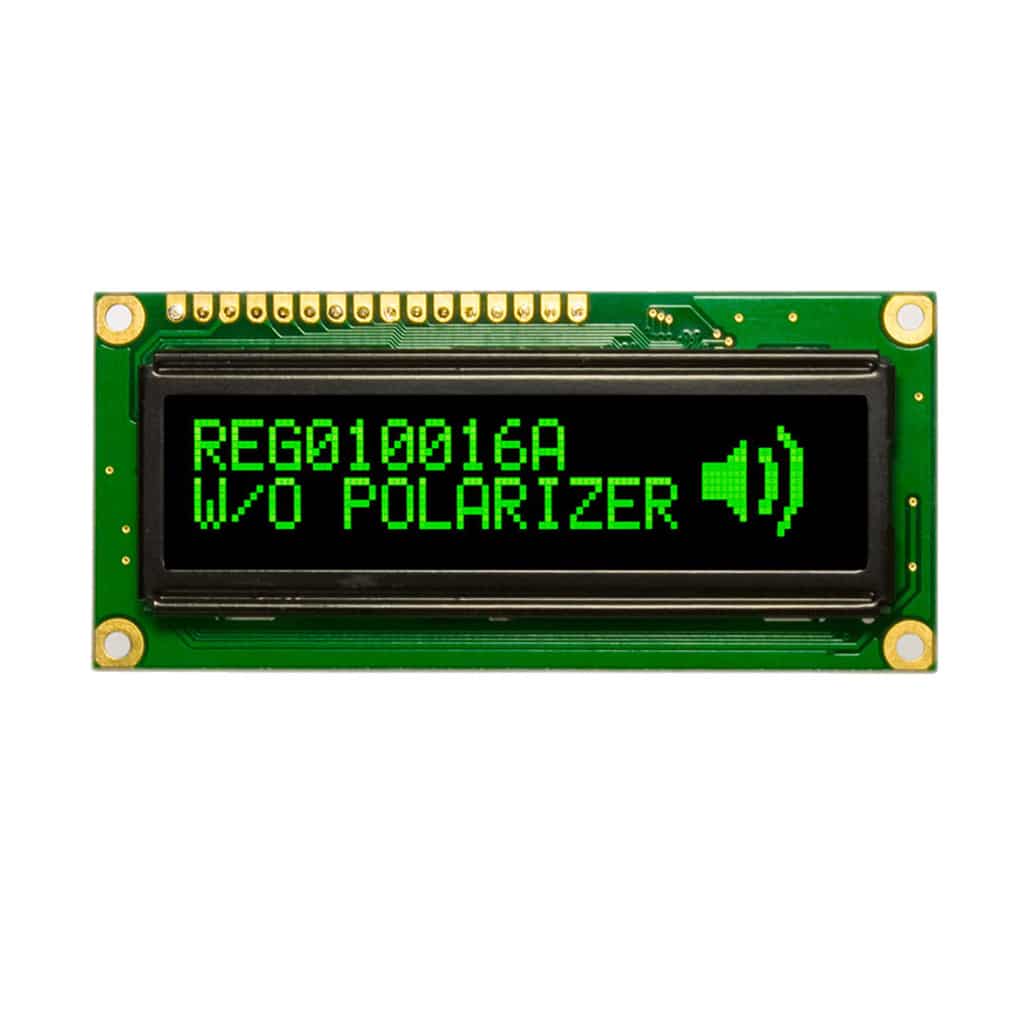

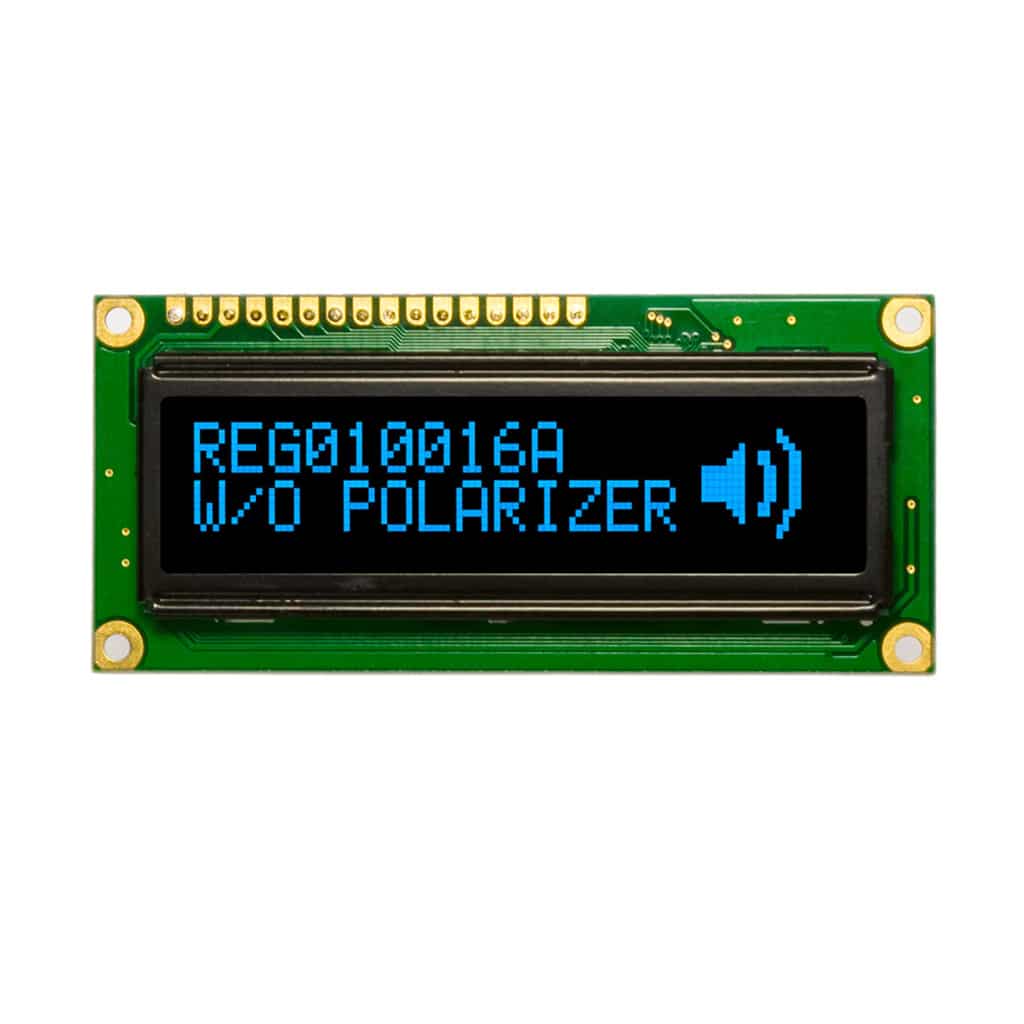

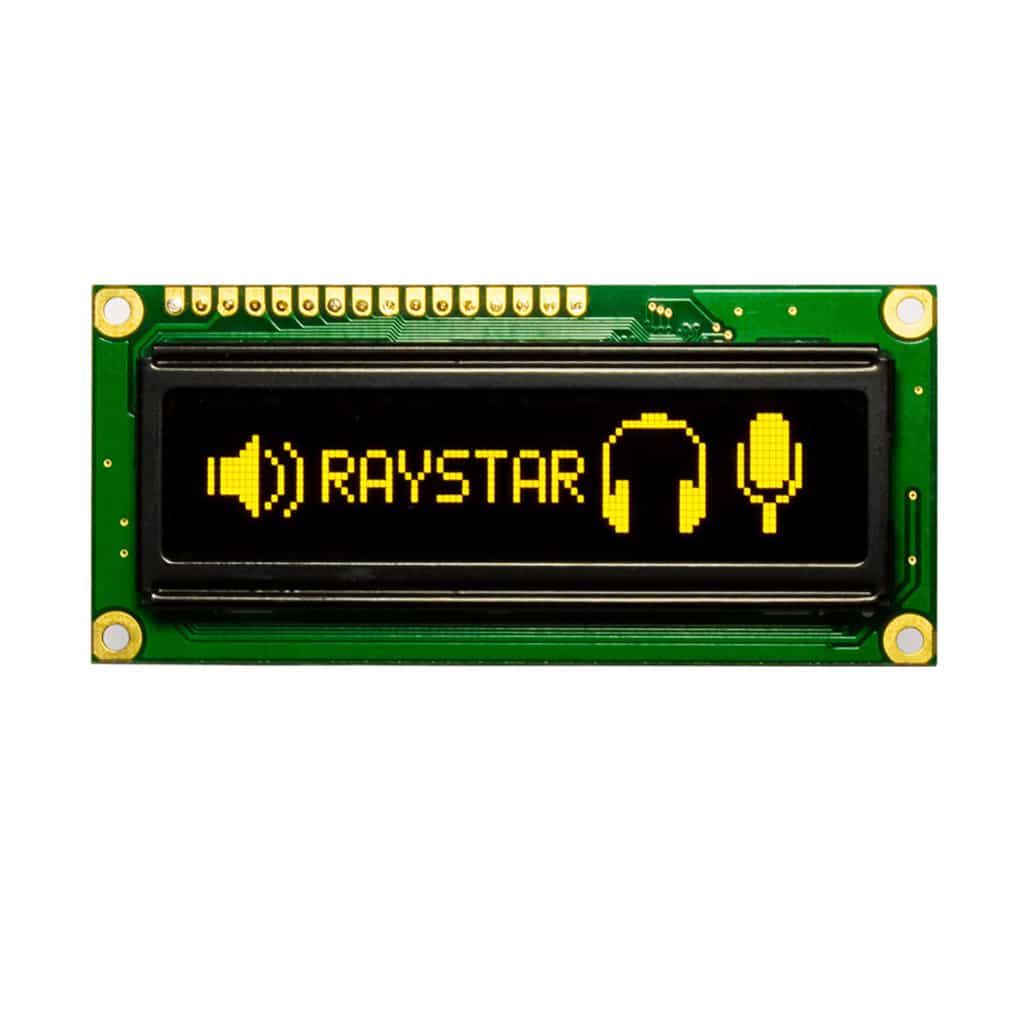

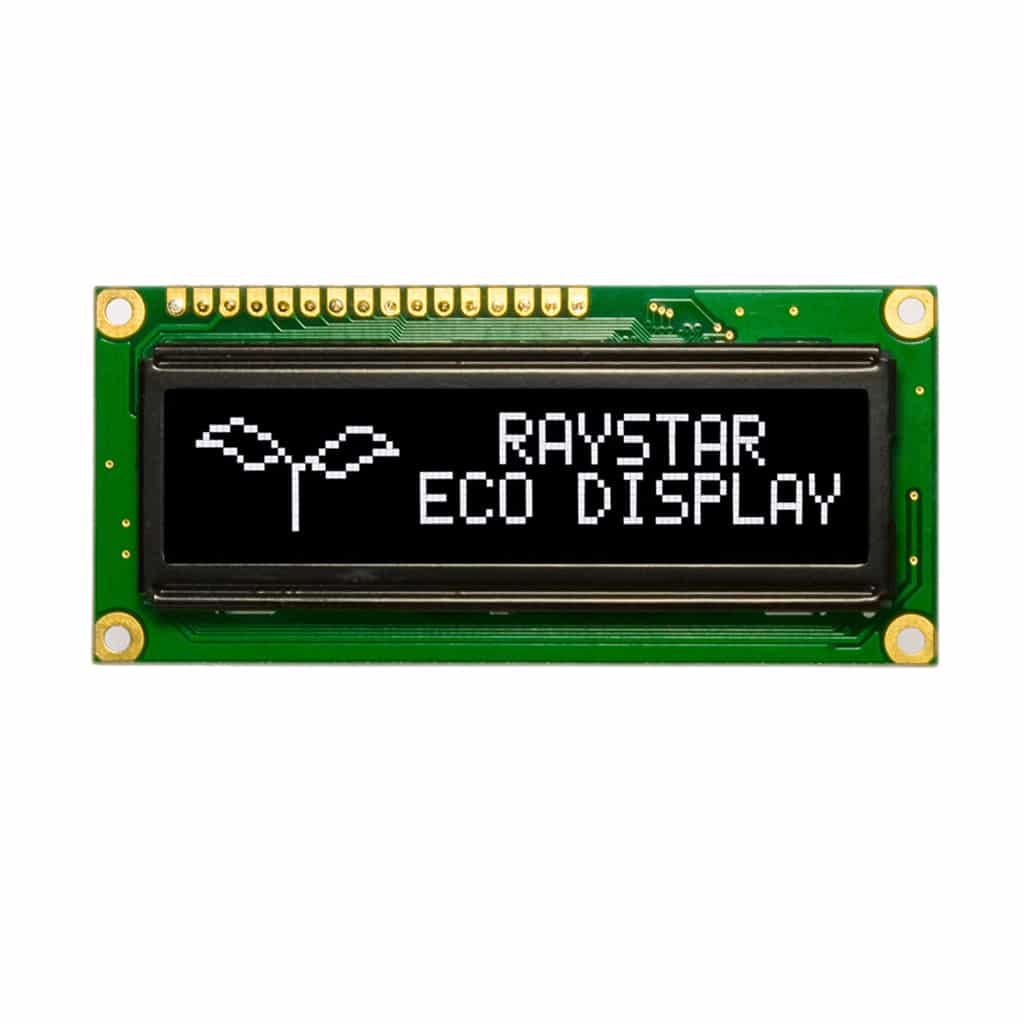

The REG010016A series is a Chip-On-Board OLED offering 100×16 pixels, with an active area of 59.95mm x 11.15mm within a viewable area of 66.0mm x 16.0mm, it comes with an integrated RS0010 IC, and is available in Blue, Green, White or Yellow
This graphic display has the same footprint as the character based REC01601B & REC001602A series (OLED) and also the RC1601A & RC1602B series (LCD)
- 100×16 Graphic OLED
- Available in Blue, Green, White or Yellow
- Dimensions: 80.0mm x 36.0mm
- Viewing Area: 66.0mm x 16.0mm
- RS0010 IC on-board
- Standard Operating Temperature of -40°C to +80°C
