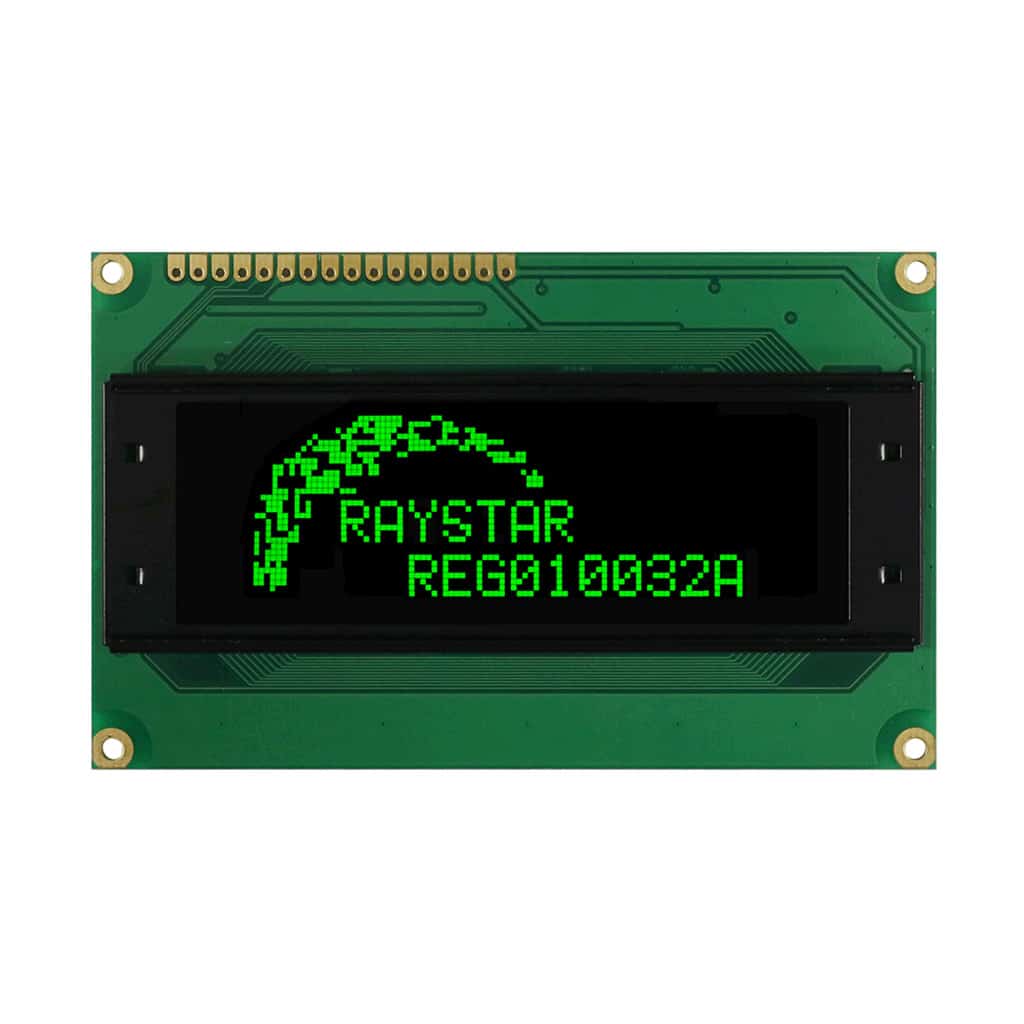

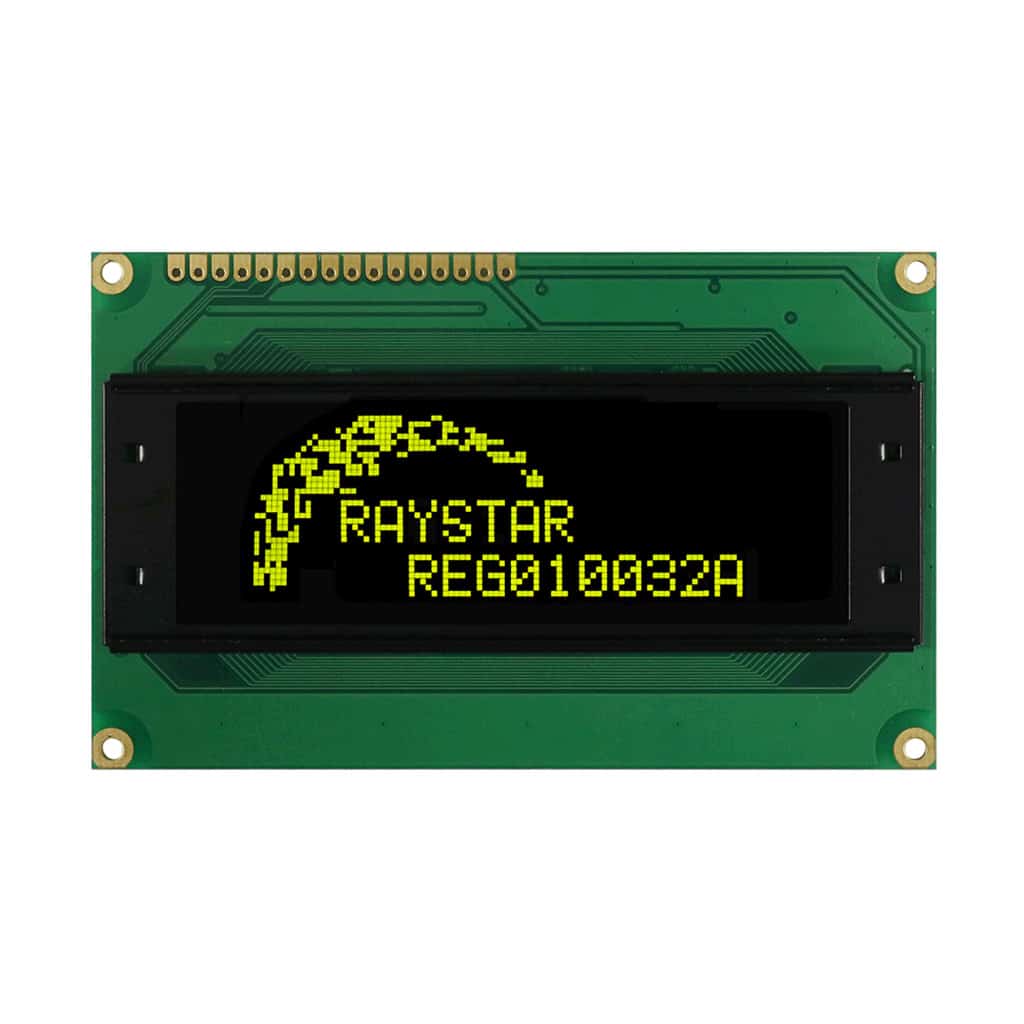

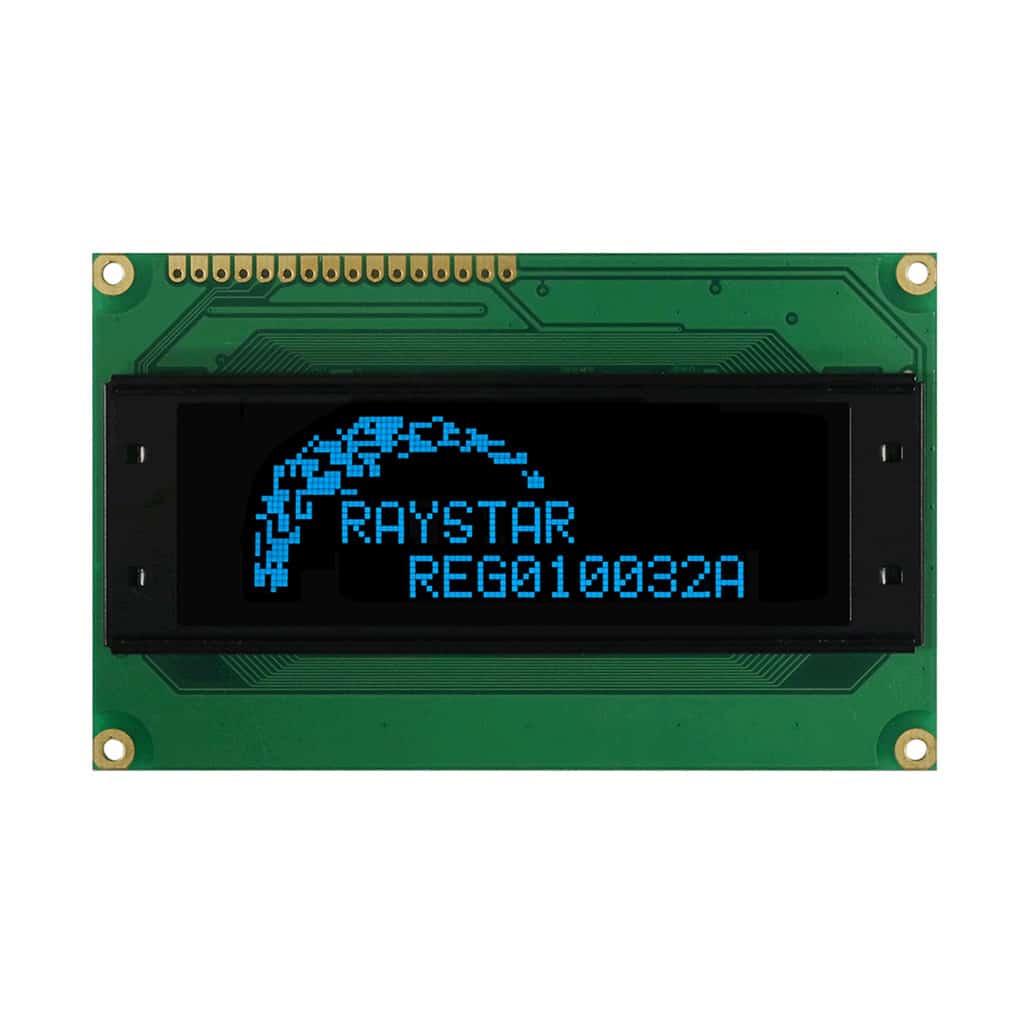

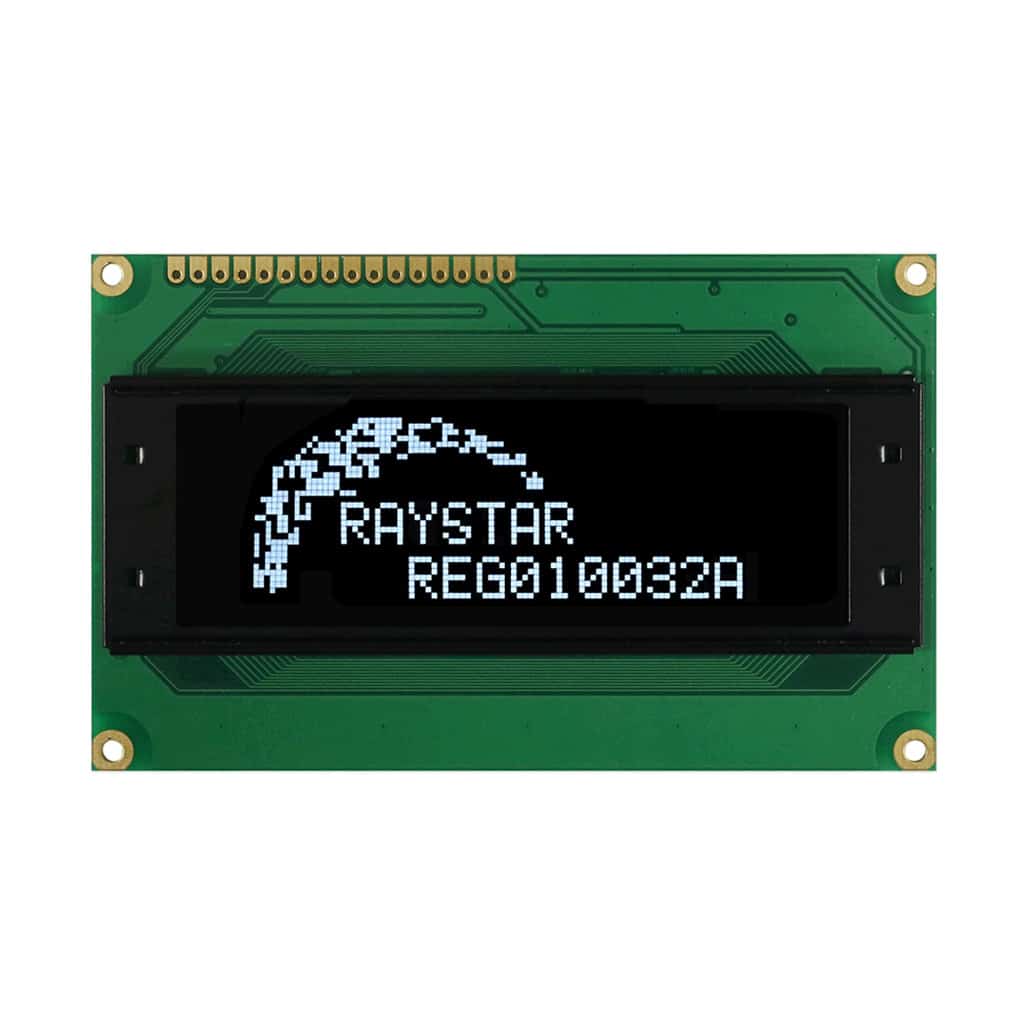

REG010032A series 100×32 COB OLED (98.0mm x 60.0mm)
Product specs
| Dimensions | 98 × 60 mm |
|---|---|
| Pixels | 100×32 |
| Emitting Colour | Blue, Green, White, Yellow |
| Construction | COB |
Product Description
The REG010032A series is a Chip-On-Board OLED offering 100×32 pixels, with an active area of 58.95mm x 19.15mm within a viewable area of 77.0mm x 25.2mm, it comes with an integrated RS0010 IC, and is available in Blue, Green, White or Yellow
This graphic display has the same footprint as the character based REC002004A series (OLED) and also the RC2004A series (LCD)
- 100×32 Graphic OLED
- Available in Blue, Green, White or Yellow
- Dimensions: 98.0mm x 60.0mm
- Viewing Area: 77.0mm x 25.2mm
- RS0010 IC on-board
- Standard Operating Temperature of -40°C to +80°C
