REG020016A series 200×16 COB OLED (182.0mm x 38.5mm)

SKU: REG020016A Categories: , , Manufacturer:

Product specs

Dimensions 182 × 38.5 mm



6800, 8080, SPI



Product Description

The REG020016A series is a Chip-On-Board OLED offering 100×32 pixels, with an active area of 123.95mm x 11.15mm within a viewable area of 154.4mm x 16.5mm, it comes with an integrated RS0010 IC, and is available in Blue, White or Yellow

This graphic display has the same footprint as the character based REC004002A series (OLED) and also the  RC4002AA series (LCD)




  • 200×16 Graphic OLED

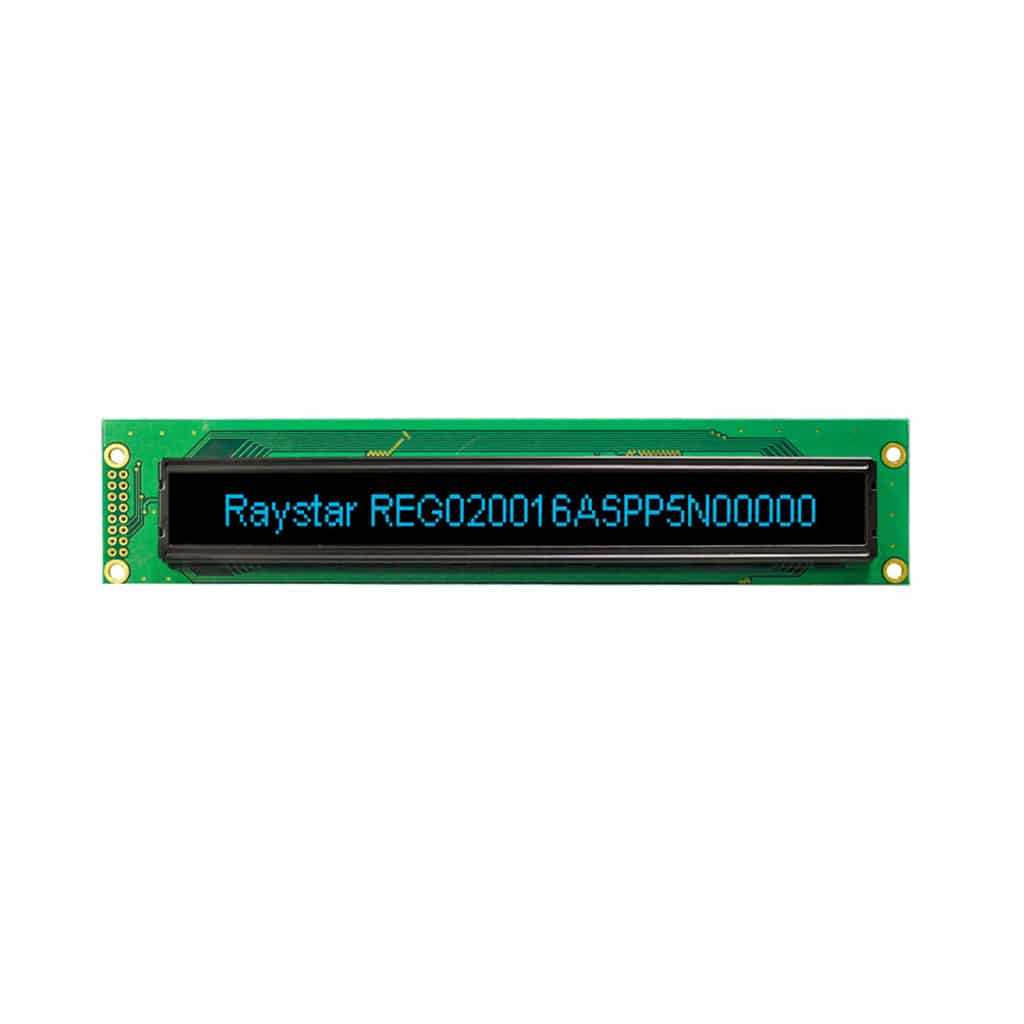

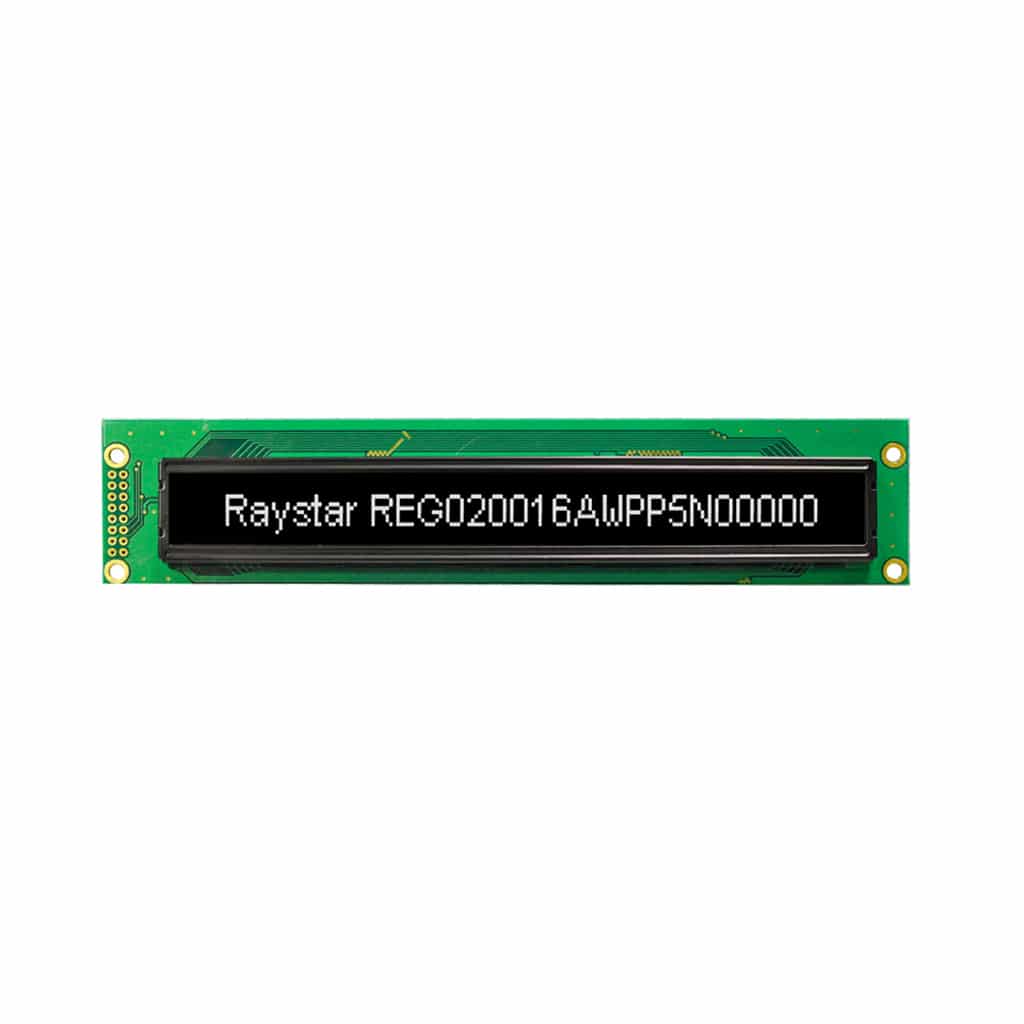

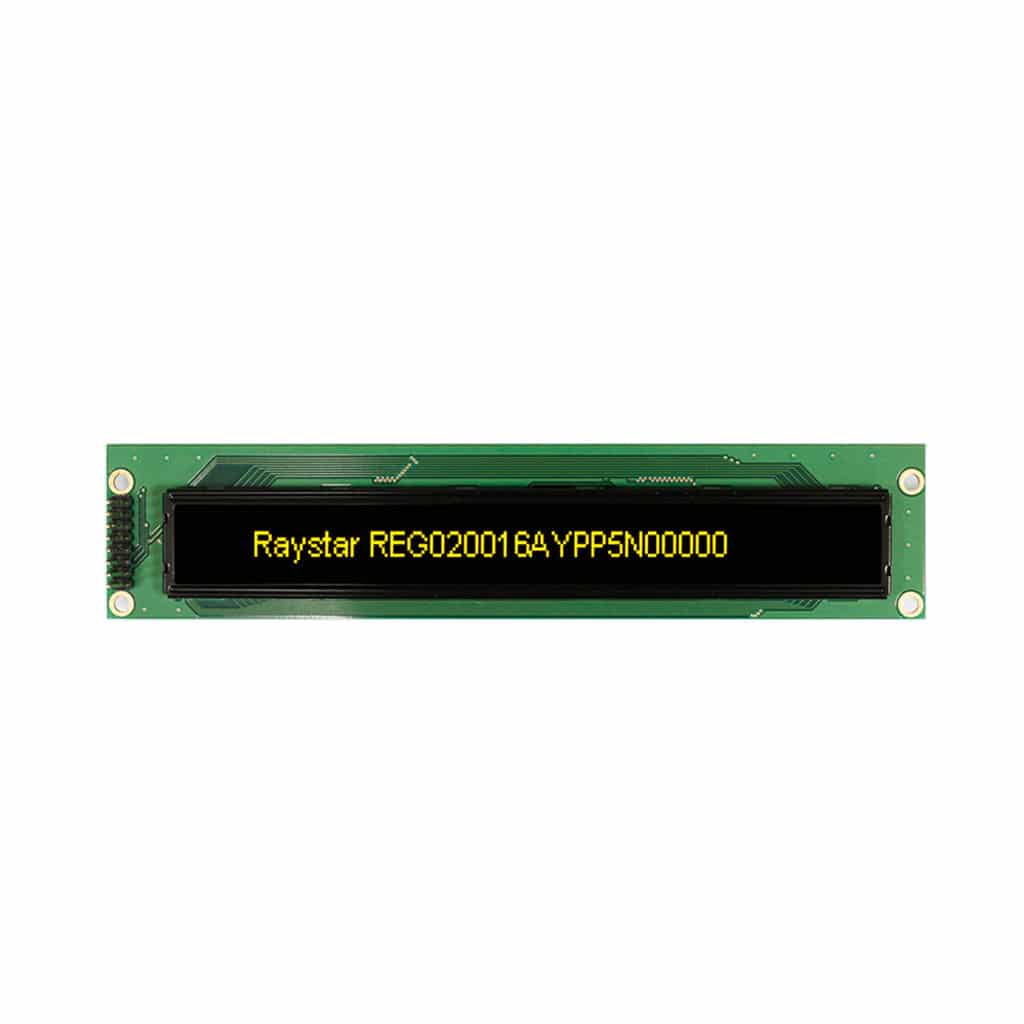

  • Available in Blue, White or Yellow
  • Dimensions: 182.0mm x 38.5mm
  • Viewing Area: 154.4mm x 16.5mm
  • RS0010 IC on-board
  • Standard Operating Temperature of -40°C to +80°C
