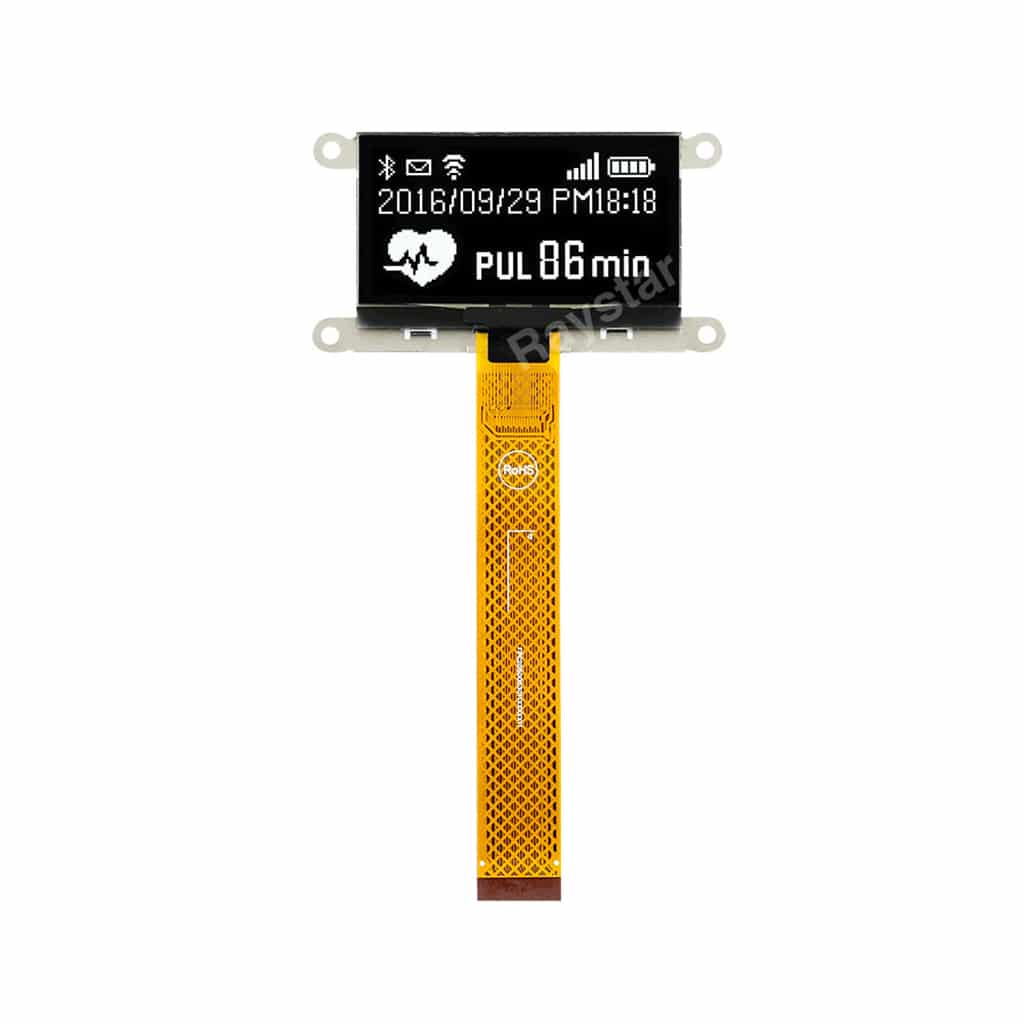

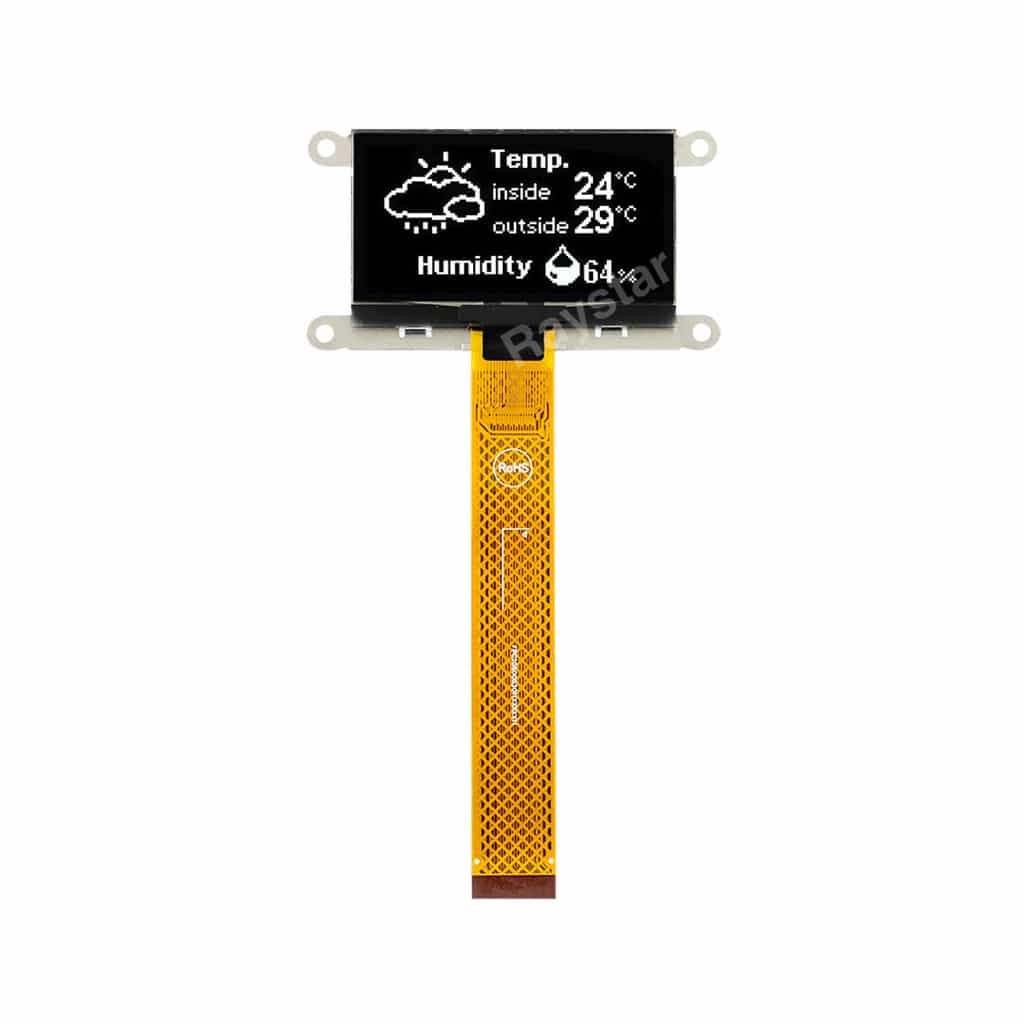

REH012864H series 128×64 COG OLED with a Frame (2.42″)
Product specs
| Dimensions | 77.2 × 42.14 mm |
|---|---|
| Pixels | 128×64 |
| Interface | 6800, 8080, I2C, SPI |
| Construction | COG+FR |
Product Description
The REH012864H is a 2.42″ Chip-On-Glass OLED with a mounting frame. It offers 128×64 pixels, with an active area of 55.01mm x 27.49mm within a viewable area of 57.01mm x 28.91mm, it comes with an integrated SSD1309ZC IC and is available in White
This device is offers multiple interfacing options
- 128×64 COG OLED with Frame
- Available in White
- Dimensions: 77.2mm x 42.14mm
- Viewing Area: 57.01mm x 28.91mm
- Active Area: 55.01mm x 27.49mm
- Dot Size: 0.40mm x 0.40mm
- Dot Pitch: 0.43mm x 0.43mm
- IC on-board: SSD1309ZC
- I2C Interface
- Power Supply: 3V
- Standard Operating Temperature of -40°C to +80°C
