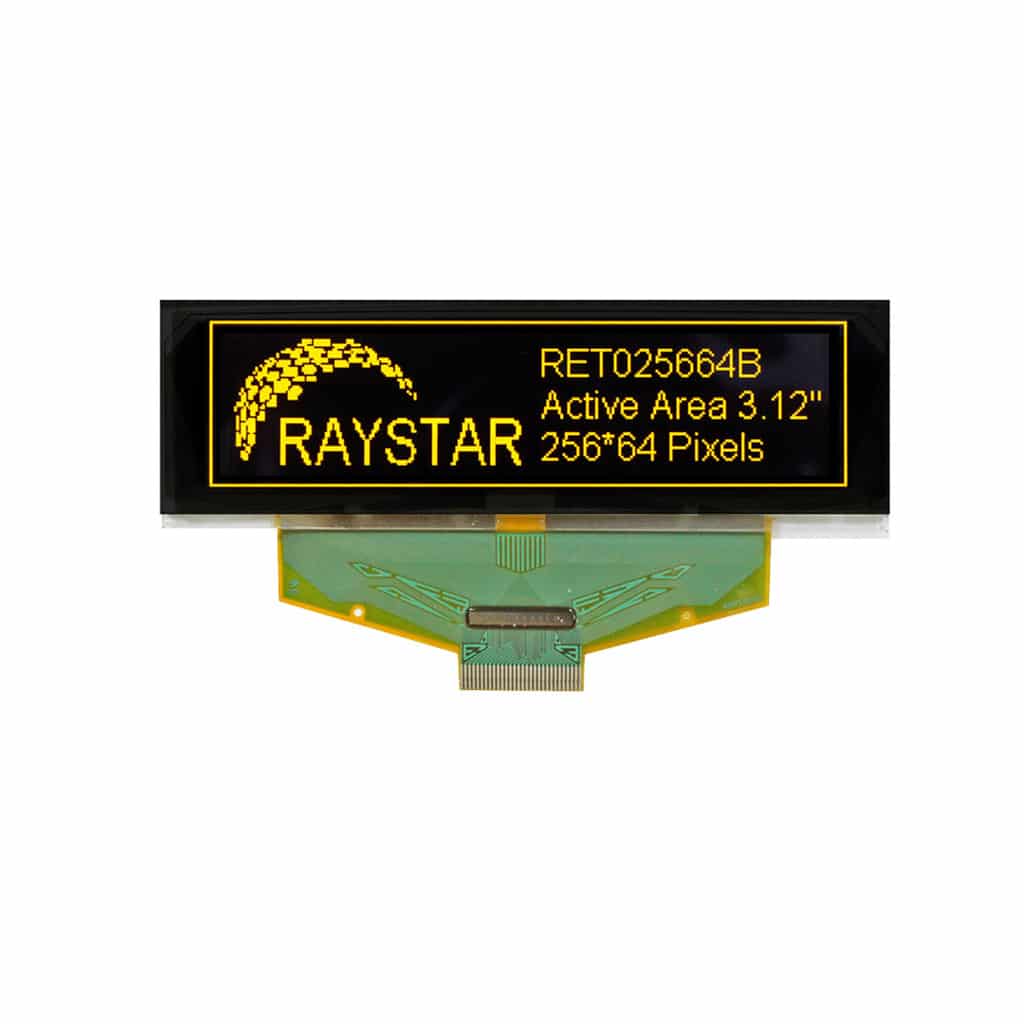

RET025664B series 256×64 COF OLED 88.0mm x 27.8mm (3.12″)

SKU: RET025664B Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 88.0 × 27.8 mm
Pixels

256×64
Interface

6800, 8080, SPI
Construction

COF

Product Description

The RET025664B series is a 3.12″ Chip-On-Flex OLED  offering 256×64 pixels within a 78.78mm x 21.18mm viewable area, it comes with an integrated SSD1322UR1 IC that supports greyscaling, and is available in either Blue, Green, White or Yellow.



We also have a 2.8″ version (RET025664A series) and 5.5″ version (RET025664D series)











  • 256×64 Graphic COF OLED
  • Size: 3.12″
  • Available in Blue, Green, White or Yellow
  • Dimensions: 88.0mm x 27.8mm
  • Viewing Area: 78.0mm x 78.0mm
  • Active Area: 76.778mm x 19.178mm
  • Dot Size: 0.278mm x 0.278mm
  • Dot Pitch: 0.3mm x 0.3mm
  • 6800, 8080 & SPI Interface
  • Power Supply: 3V
  • IC: SSD1322UR1 which supports greyscaling
  • Standard Operating Temperature of -40°C to +80°C
