REX002004C series 20×4 Character Chip-On-Glass OLED (84.5mm x 27.5mm)

SKU: REX002004A Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 84.5 × 27.5 mm
Characters

20×4
Emitting Colour

White, Yellow
Interface

6800, 8080, I2C, SPI
Construction

COG

Product Description

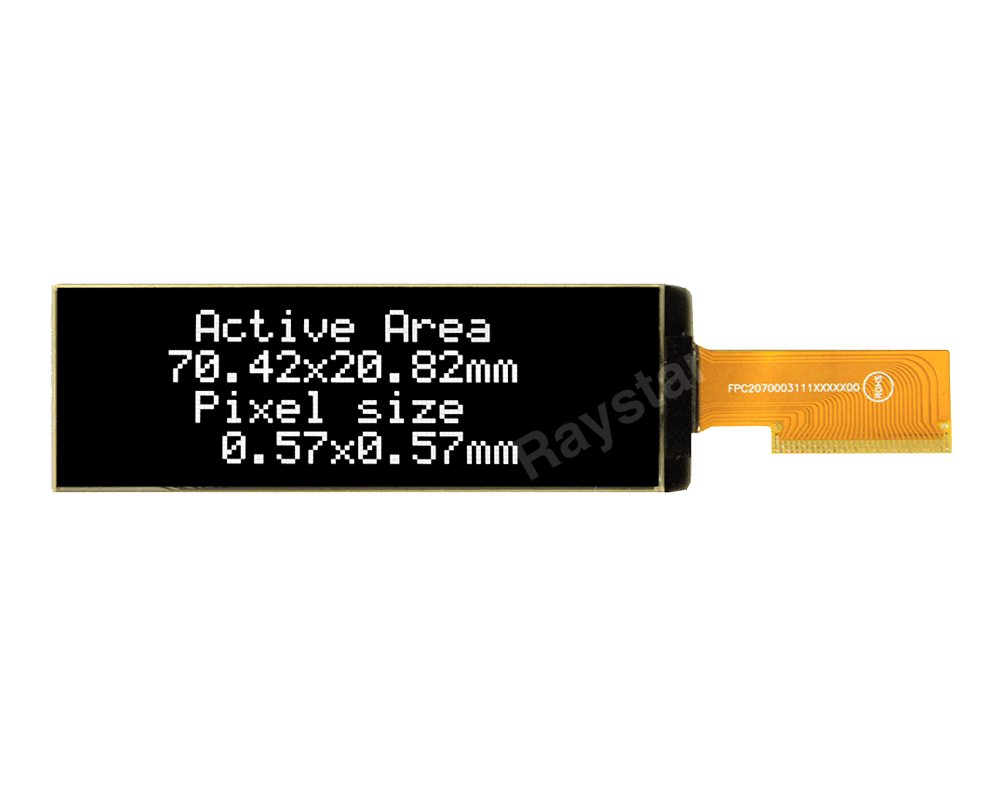

The REX002004C series Chip-On-Glass Passive Matrix OLED offers 20×4 characters .With an active area of 70.42mm x 20.82mm within a viewable area of 752.42mm x 22.82mm

Available in a choice of White or Yellow

Integrated SSD1311 IC









  • 20×4 Chip-On-Glass OLED

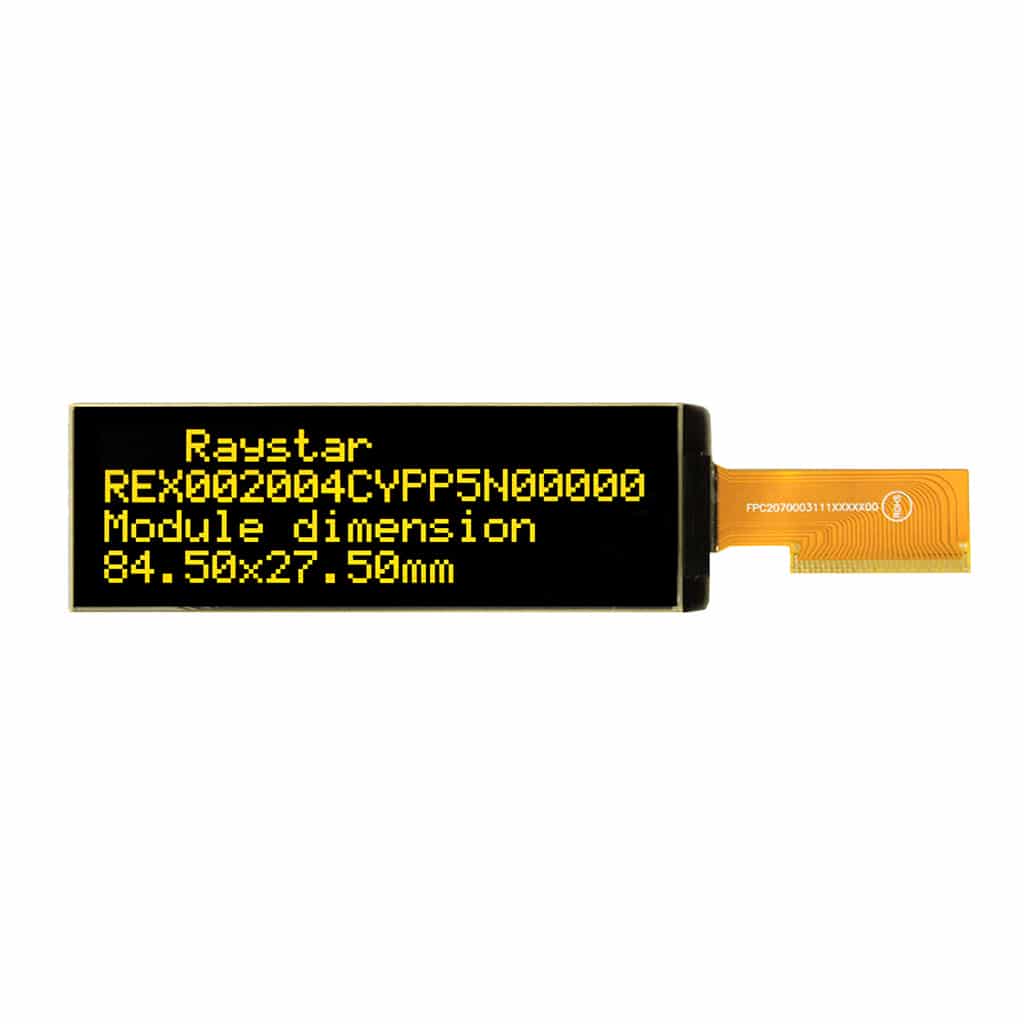

  • Dimensions: 84.5mm x 27.5mm
  • Viewing Area: 72.42mm x 22.82mm
  • Fast Response Times
  • High Contrast
  • 175° Viewing Angles
  • IC: SSD1311
  • Standard Operating Temperature of -40°C to +80°C
