REX006432A series 64×32 COG micro-OLED (0.49″)
Product specs
| Dimensions | 14.5 × 11.6 mm |
|---|---|
| Pixels | 64×32 |
| Interface | I2C |
| Construction | COG |
Product Description

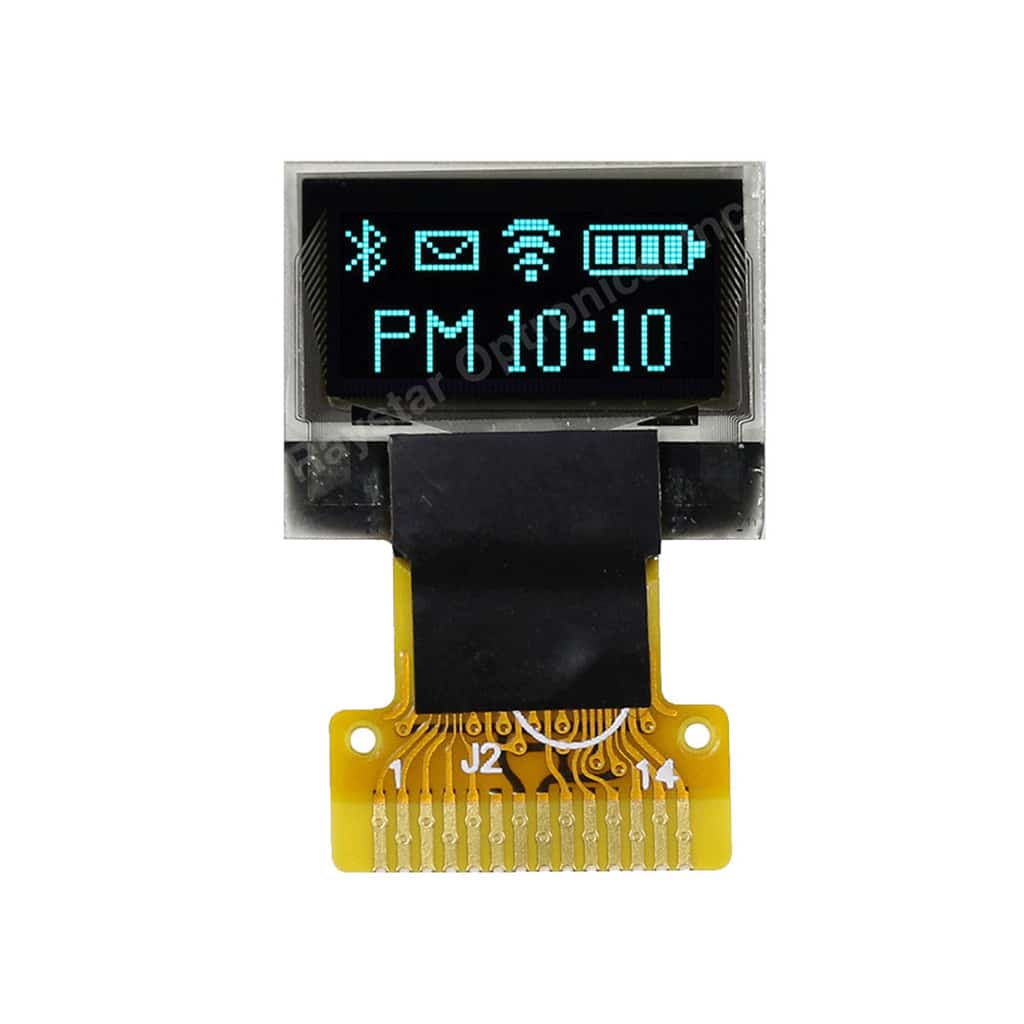

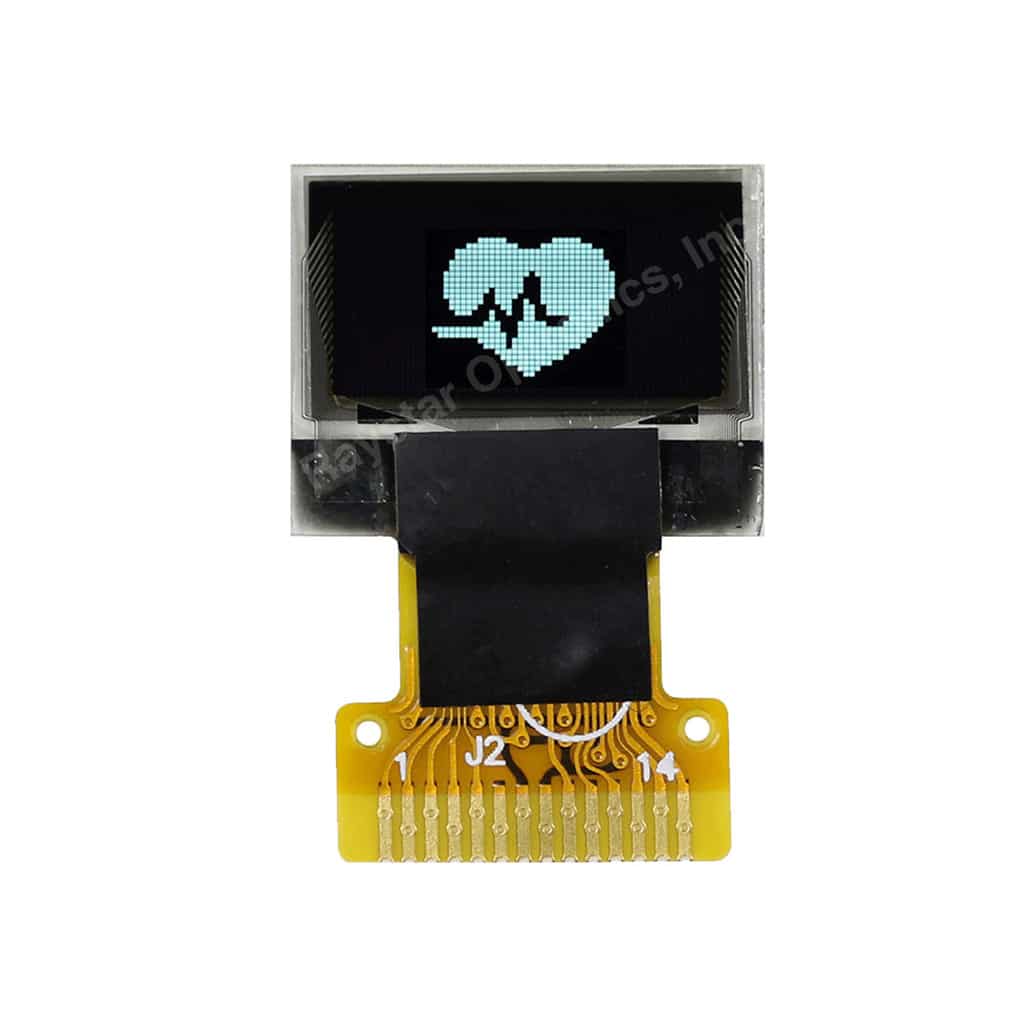

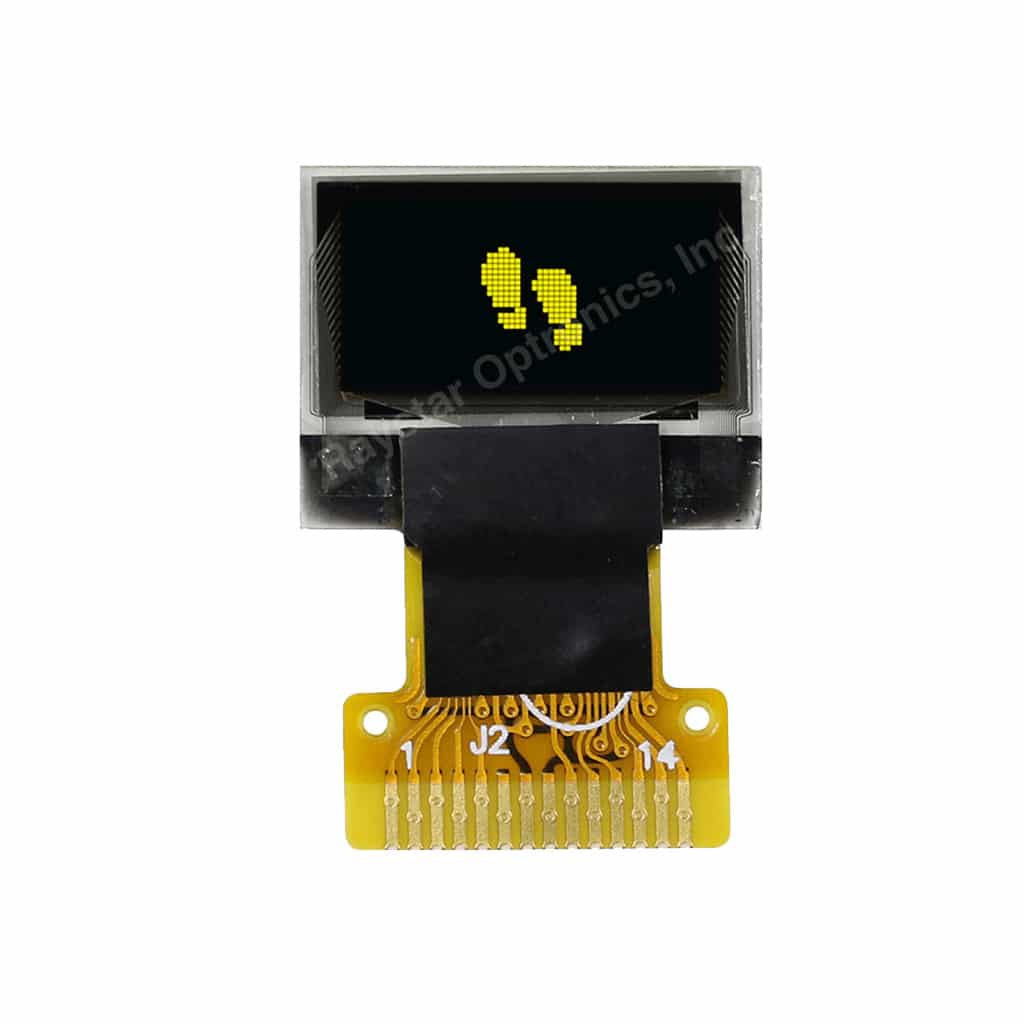

The REX006432A series is a Chip-On-Glass OLED offering 64×32 pixels, with an active area of 11.18mm x 5.58mm within a viewable area of 12.58mm x 6.58mm, it comes with an integrated SSD1306 IC, and is available in Blue, White or Yellow.
This is our smallest standard OLED!!
- 64×32 OLED
- Available in Blue, White or Yellow
- Dimensions: 14.5mm x 11.6mm
- Viewing Area: 12.58mm x 6.58mm
- SSD1306 IC on-board
- Standard Operating Temperature of -40°C to +80°C
