REX009632B-Hotbar series 96×32 COG micro-OLED (0.68″)
Product specs
| Dimensions | 19.8 × 12.32 mm |
|---|---|
| Pixels | 96×32 |
| Interface | 6800, 8080, I2C, SPI |
| Construction | COG |
Product Description

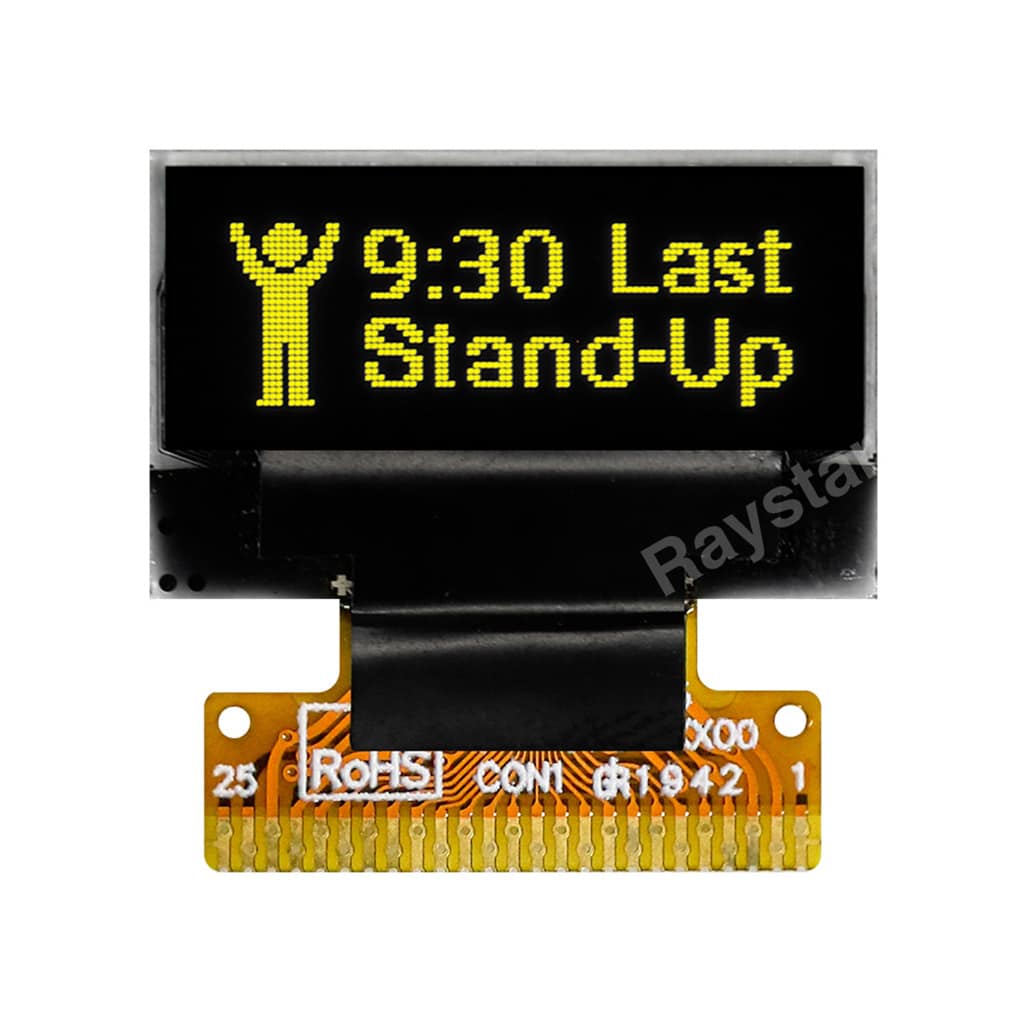

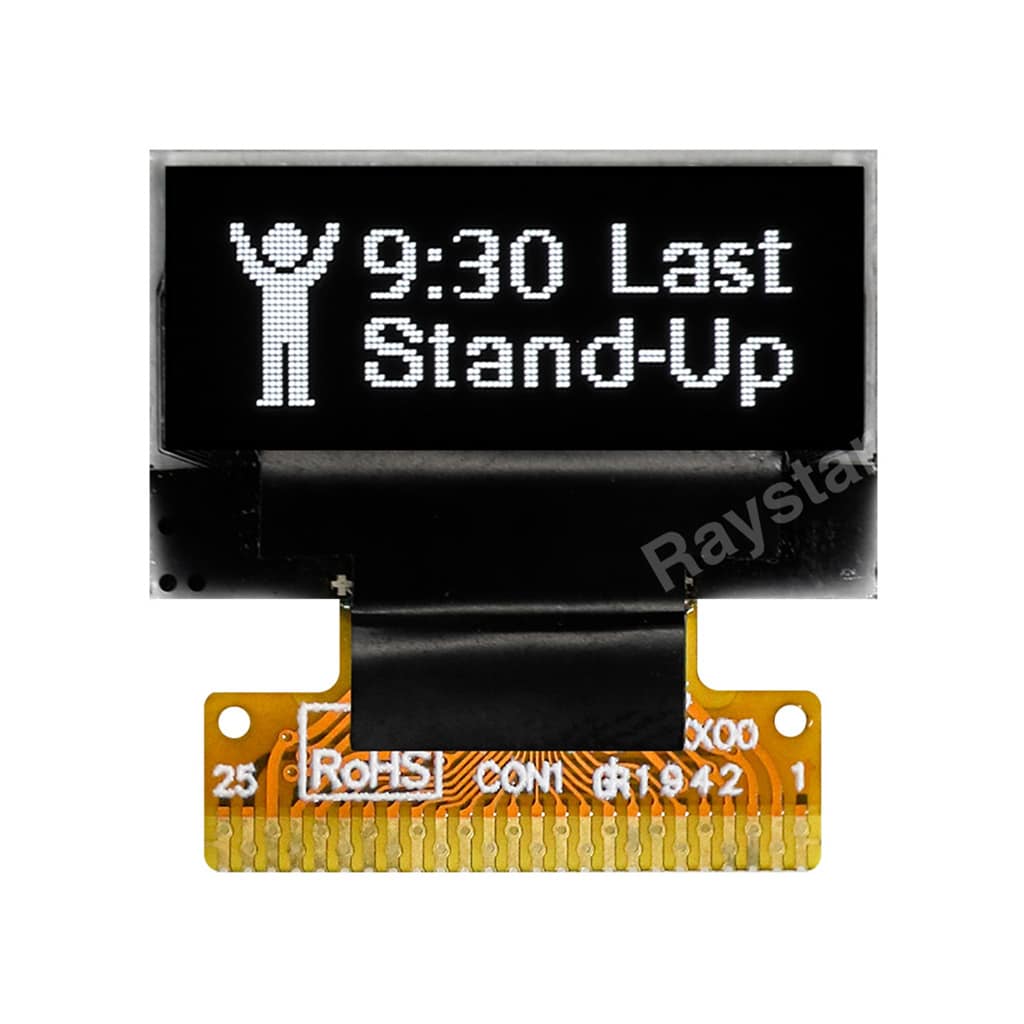

The REX009632B-Hotbar series is a 0.68″ Chip-On-Glass OLED offering 96×32 pixels, with an active area of 16.298mm x 5.418mm within a viewable area of 17.298mm x 6.418mm, it comes with an integrated SSD1305 IC, and is available in White or Yellow.
This device has a “solder straight on” FFC
- 96×32 OLED
- Hotbar / Solder Straight On
- Available in White or Yellow
- Dimensions: 19.8mm x 12.32mm
- Viewing Area: 17.298mm x 6.418mm
- SSD1305 IC on-board
- Standard Operating Temperature of -40°C to +80°C
