REX009664A series 96×64 COG micro-OLED (0.95″)

SKU: REX009664A Categories: , , Manufacturer:

Product specs

Dimensions 24.9 × 22.95 mm
Pixels

96×64

Interface

6800, 8080, I2C, SPI

Construction

COG

Product Description

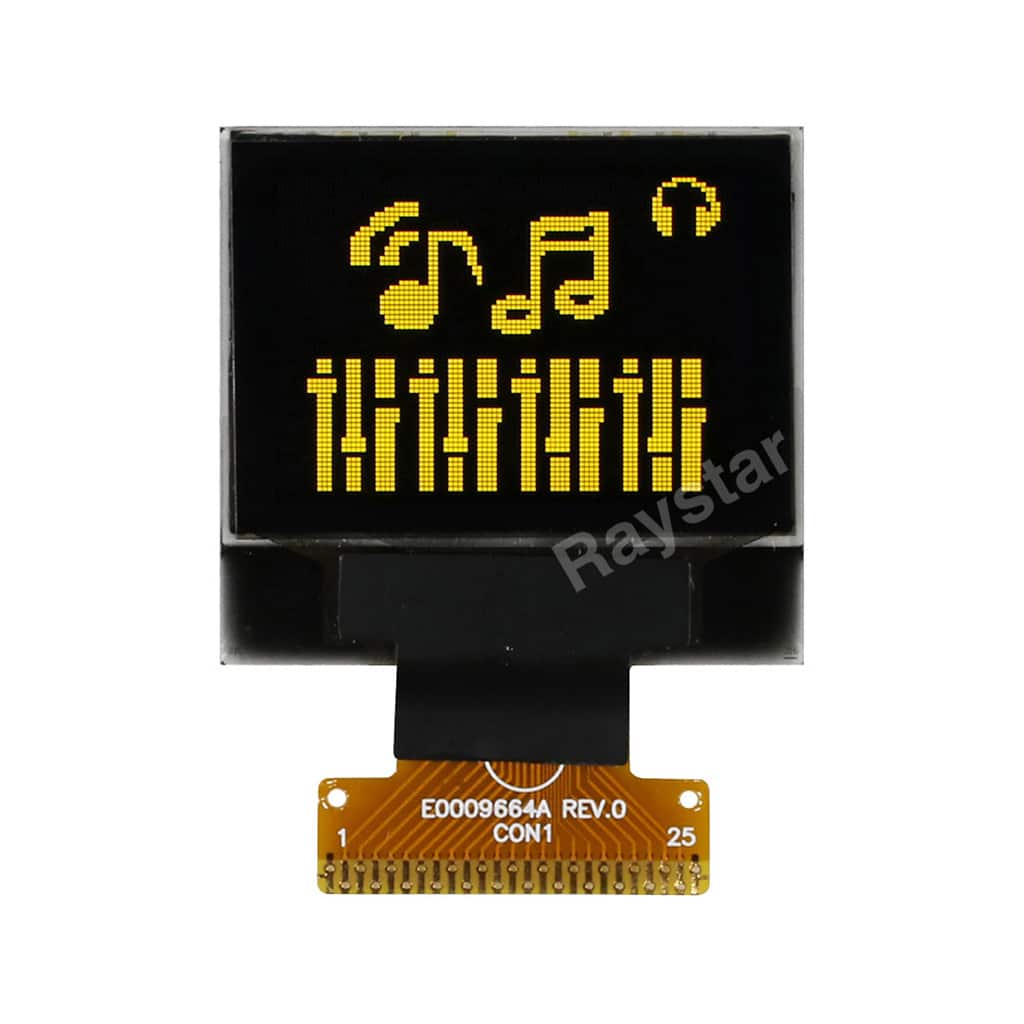

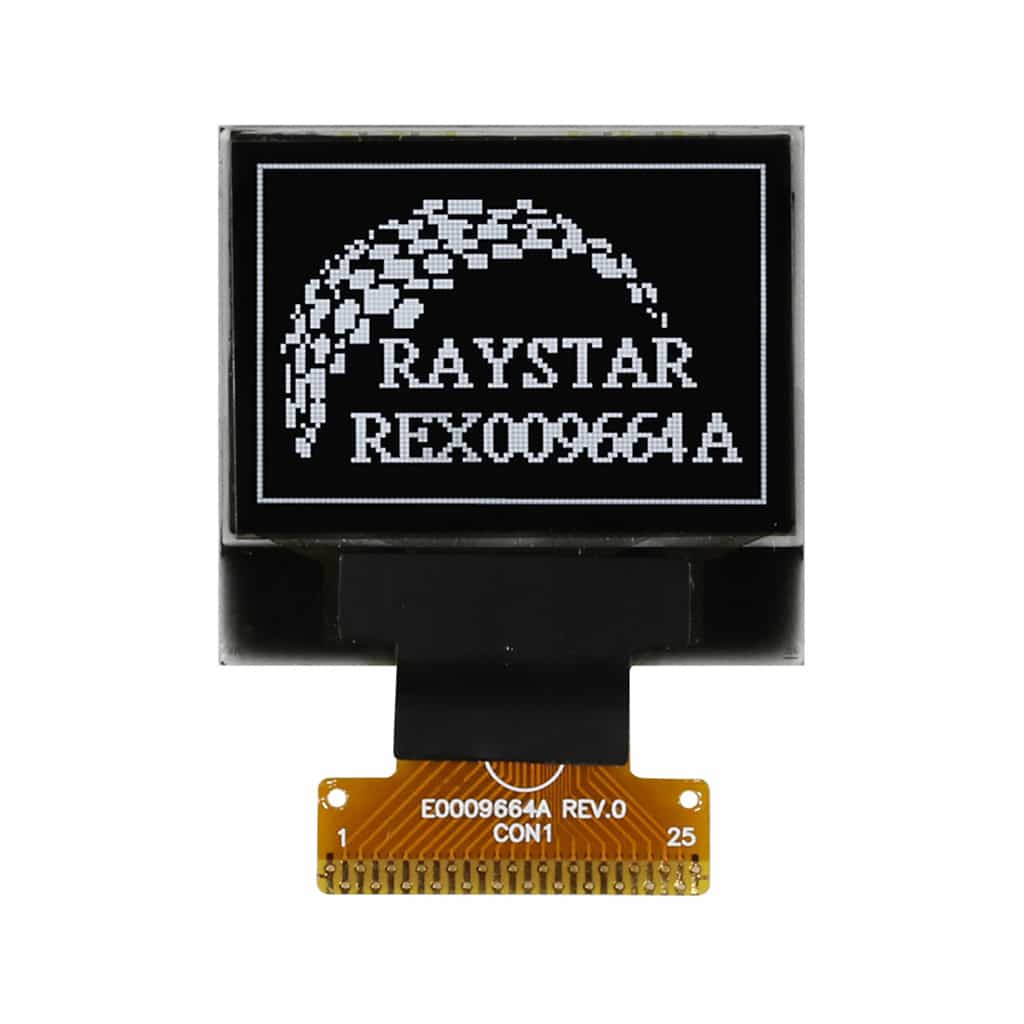

The REX009664A series is a 0.95″ Chip-On-Glass OLED offering 96×64 pixels, with an active area of 19.946mm x 13.418mm within a viewable area of 21.953mm x 15.424mm,  it comes with an integrated SSD13o5 IC, and is available in White or Yellow.









  • 96×64 OLED
  • Available in White or Yellow
  • Dimensions: 24.9mm x 22.95mm
  • Viewing Area: 21.953mm × 15.424mm
  • SSD1305 IC on-board
  • Standard Operating Temperature of -40°C to +80°C
