REX009664B-Hotbar series 96×64 COG micro-OLED (1.1″)
Product specs
| Dimensions | 29 × 22.5 mm |
|---|---|
| Pixels | 96×64 |
| Interface | 6800, 8080, I2C, SPI |
| Construction | COG |
Product Description

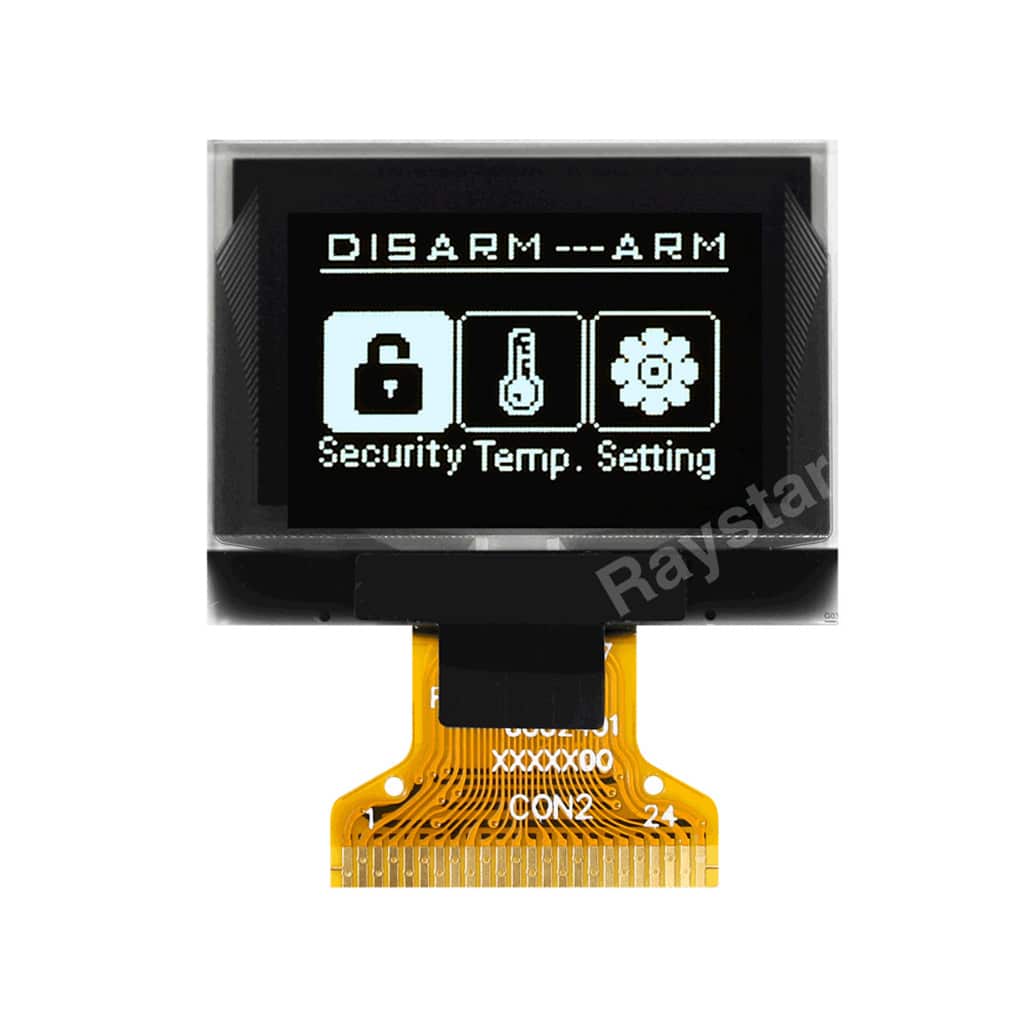

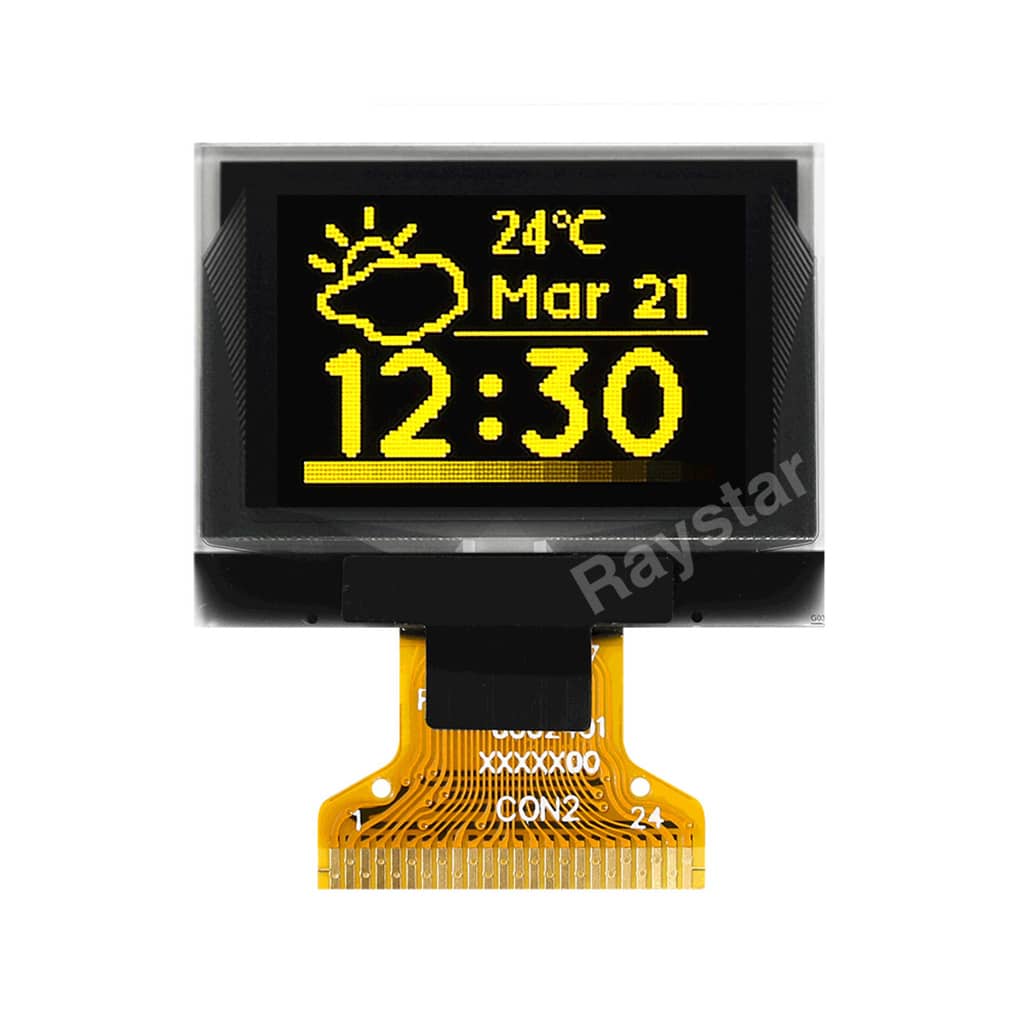

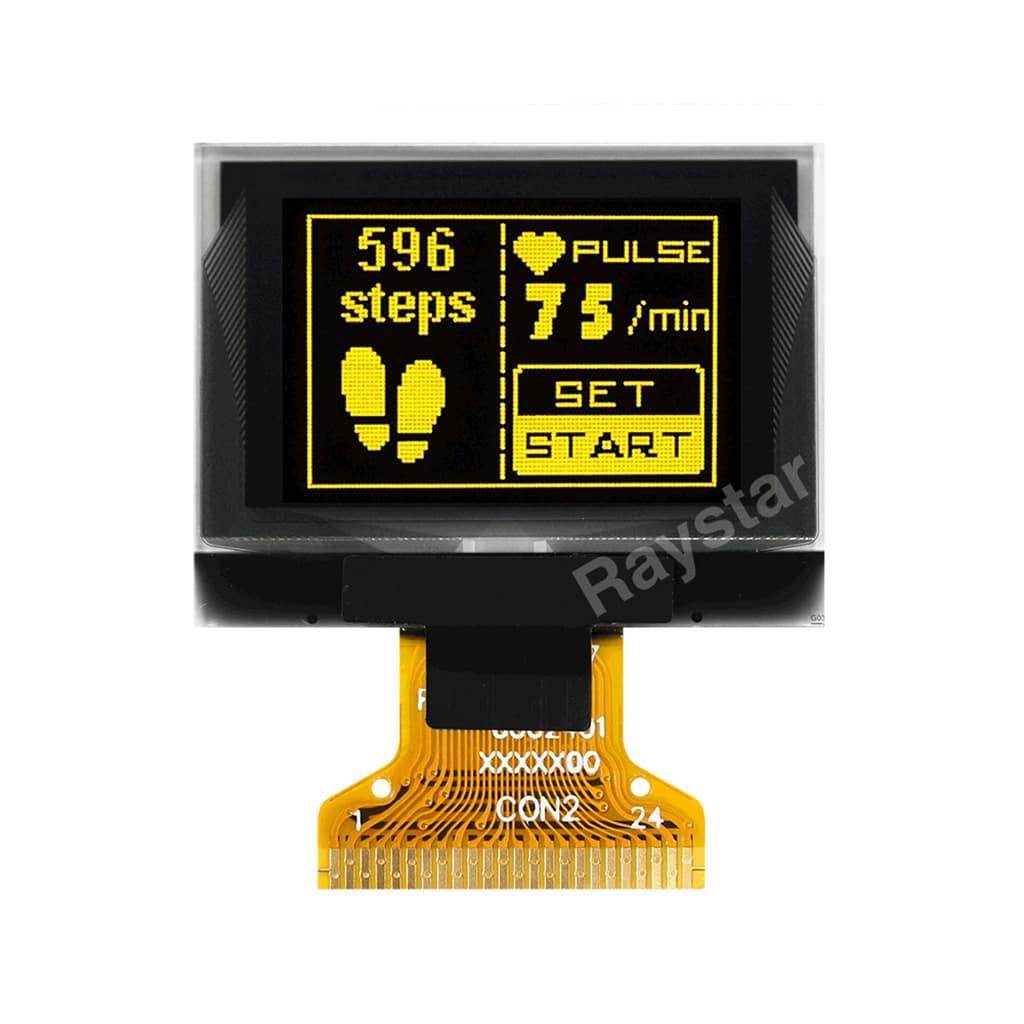

The REX009664B-Hotbar series is a 1.1″ Chip-On-Glass OLED offering 96×64 pixels, with an active area of 22.53mm x 15.01mm within a viewable area of 24.54mm x 17.02mm, it comes with an integrated SSD1327 IC which supports greyscaling, and is available in White or Yellow.
This device has a “solder straight on” FFC
- 96×64 OLED
- Hotbar / Solder Straight On
- Available in White or Yellow
- Dimensions: 29.0mm x 22.5mm
- Viewing Area: 24.54mm x 17.02mm
- SSD1327 IC on-board
- Greyscale Supported
- Standard Operating Temperature of -40°C to +80°C
