REX009664B-ZIF series 96×64 COG micro-OLED (1.1″)

SKU: REX009664B-ZIF Categories: , , Manufacturer:

Product specs

Dimensions 29 × 22.5 mm



6800, 8080, I2C, SPI



Product Description

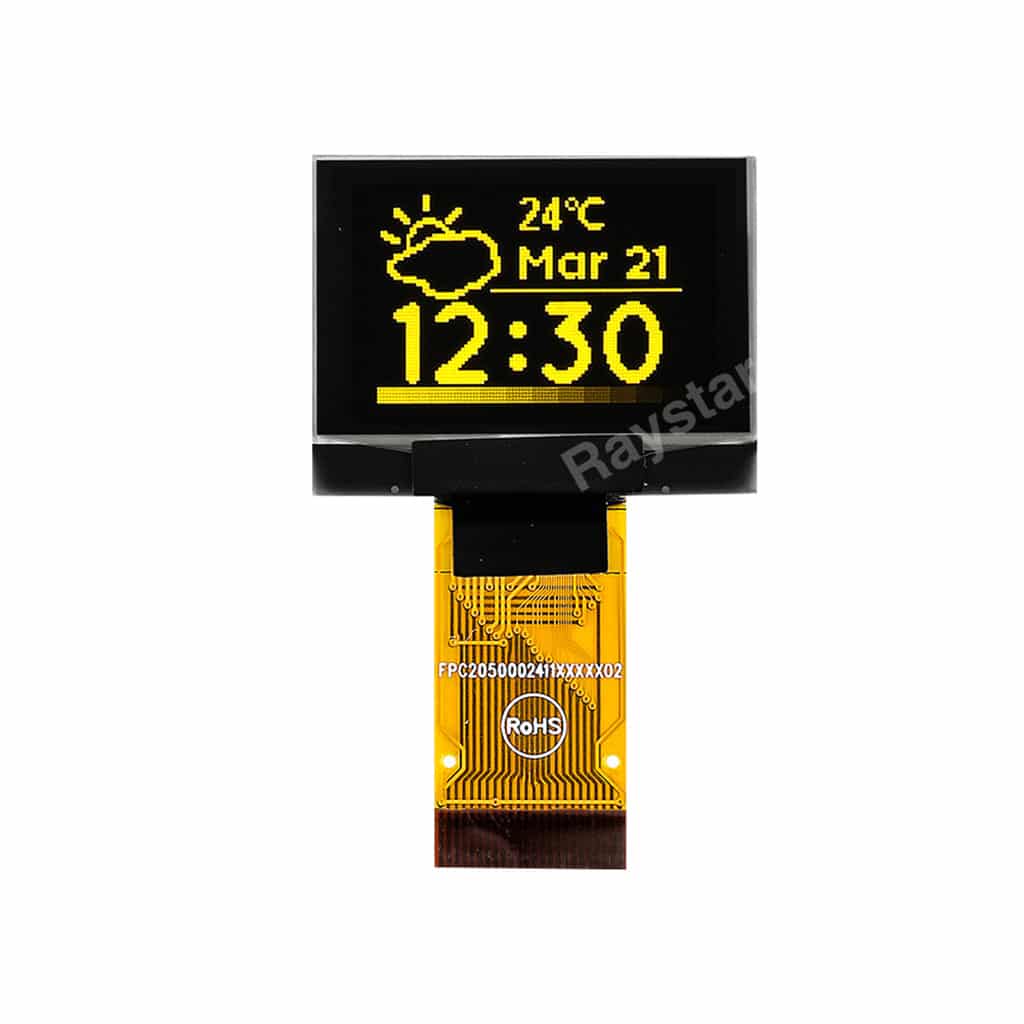

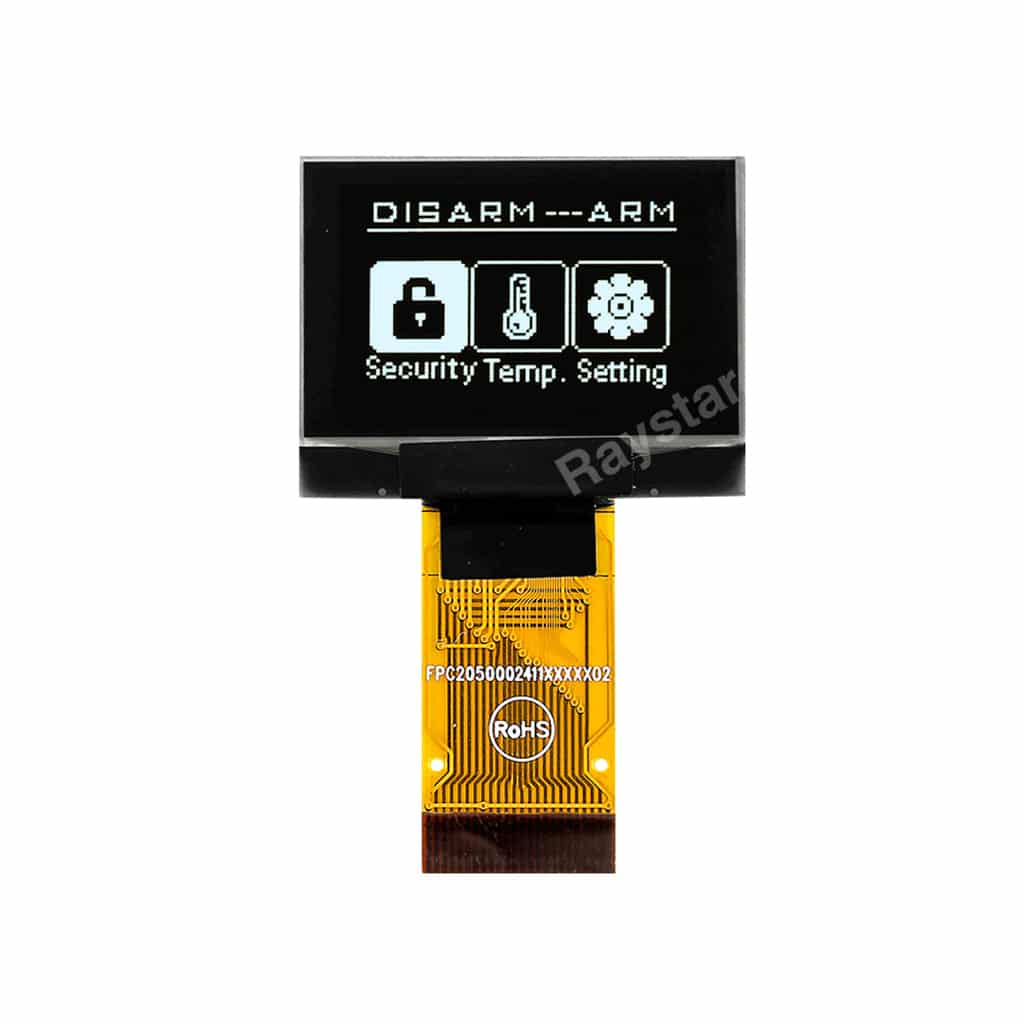

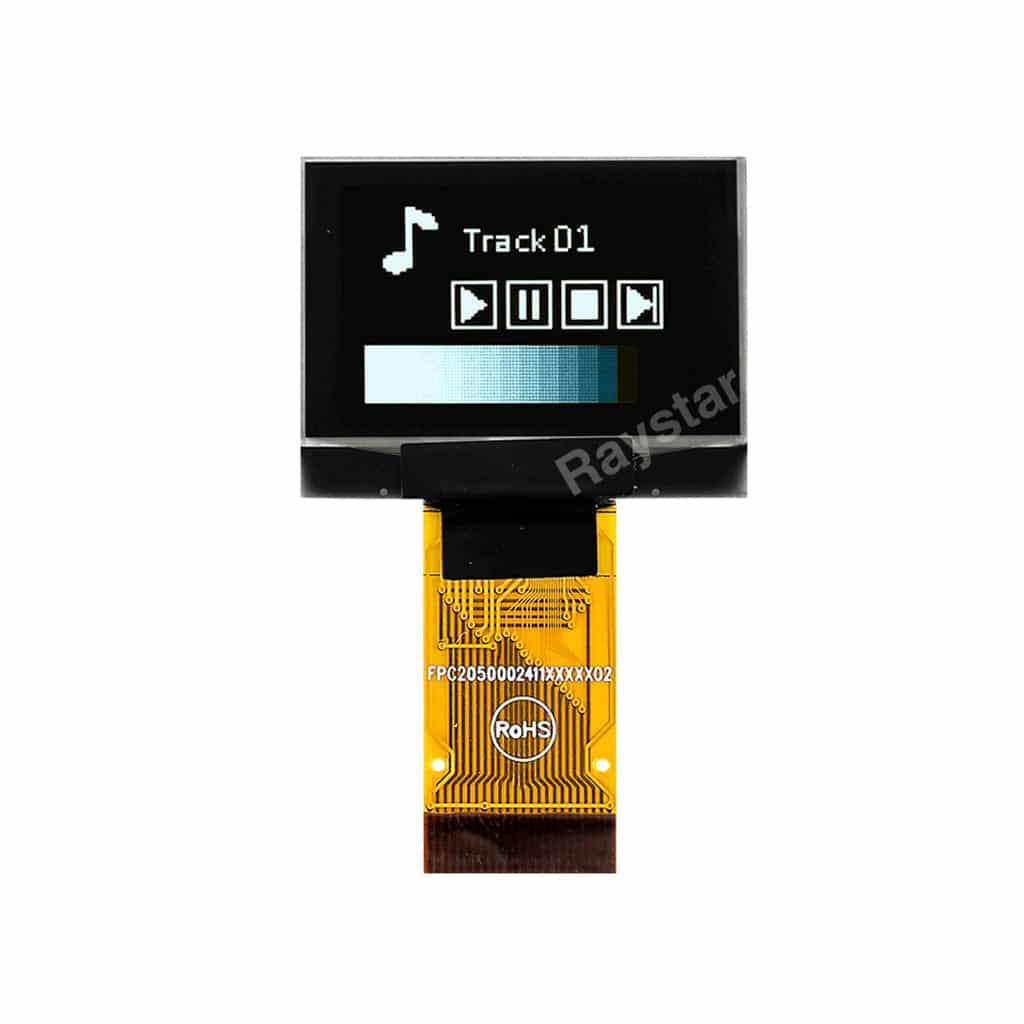

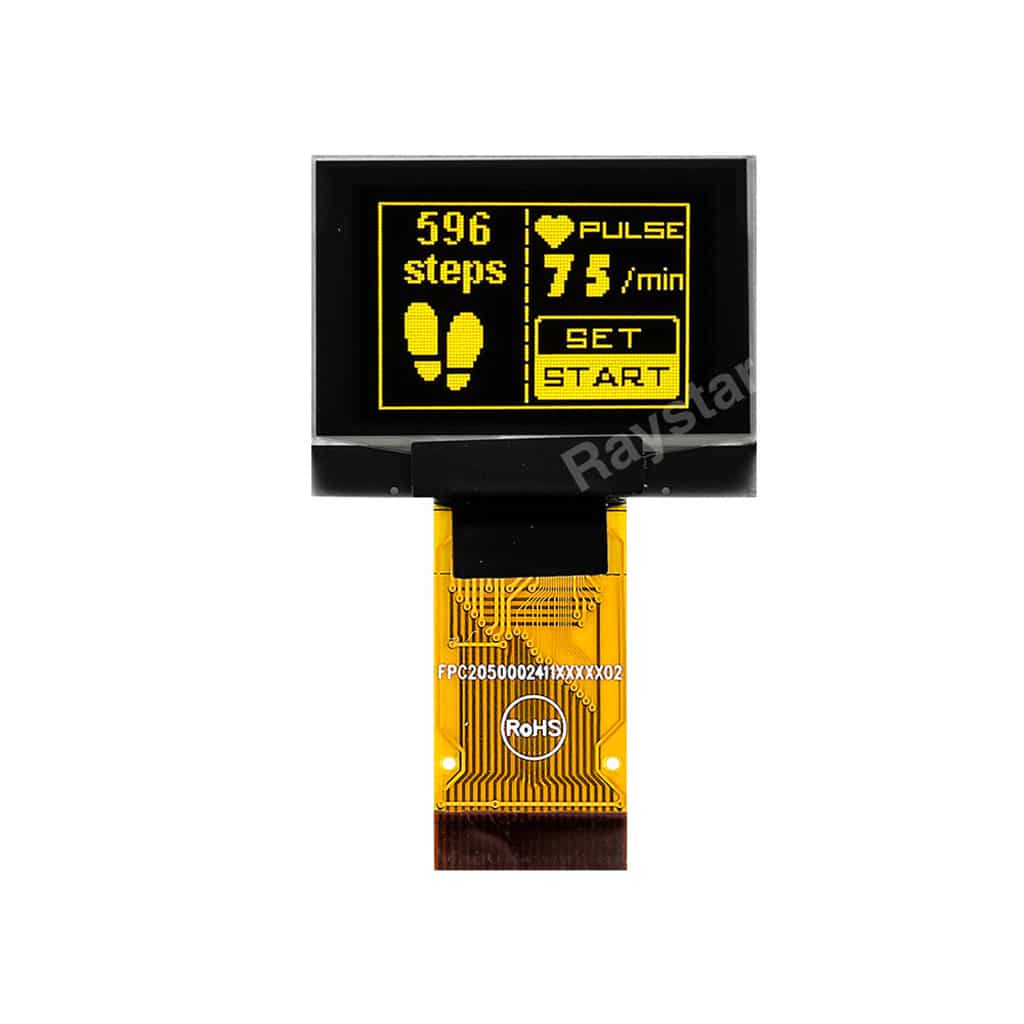

The REX009664B-ZIF series is a 1.1″ Chip-On-Glass OLED offering 96×64 pixels, with an active area of 22.53mm x 15.01mm within a viewable area of 24.54mm x 17.02mm,  it comes with an integrated SSD1327 IC which supports greyscaling, and is available in White or Yellow.

This device has a ZIF friendly FFC




  • 96×64 OLED
  • ZIF friendly FFC
  • Available in White or Yellow
  • Dimensions: 29.0mm x 22.5mm
  • Viewing Area: 24.54mm x 17.02mm
  • SSD1327 IC on-board
  • Greyscale Supported
  • Standard Operating Temperature of -40°C to +80°C
