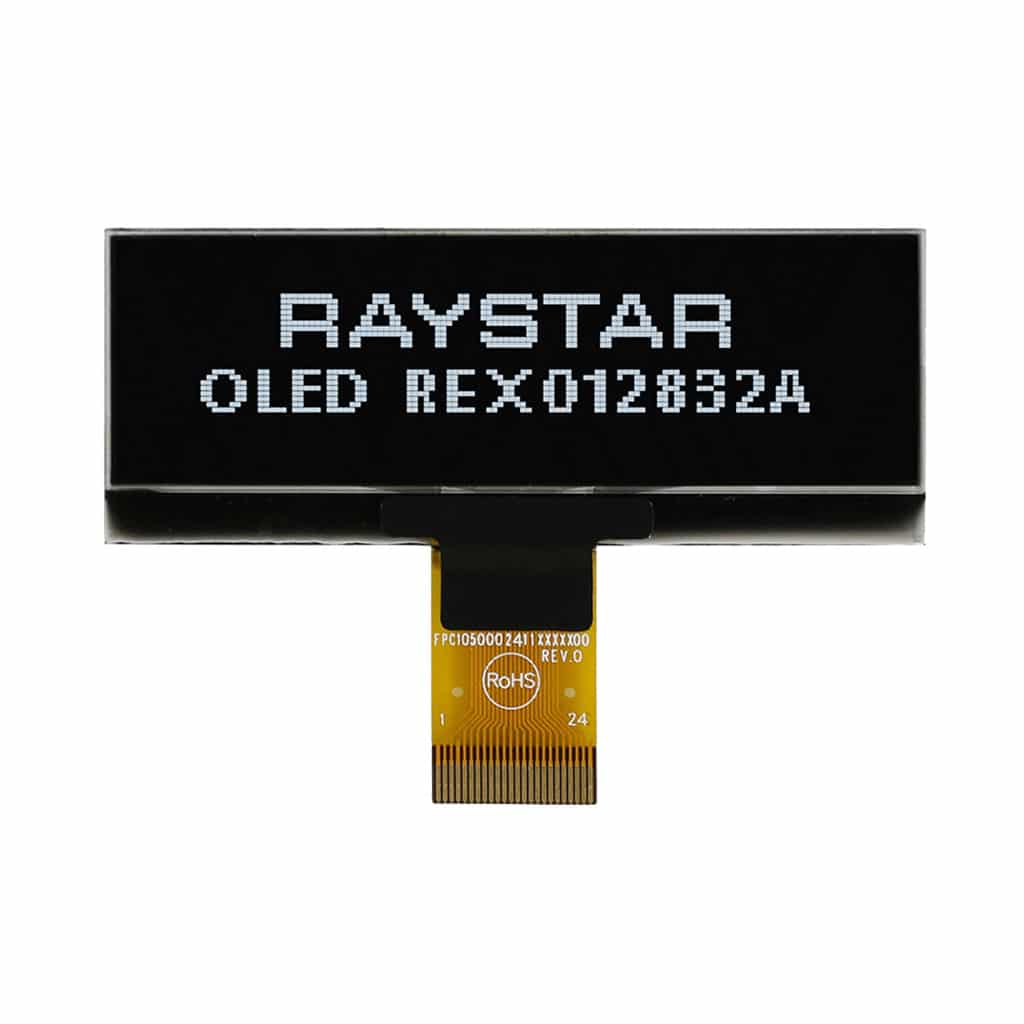

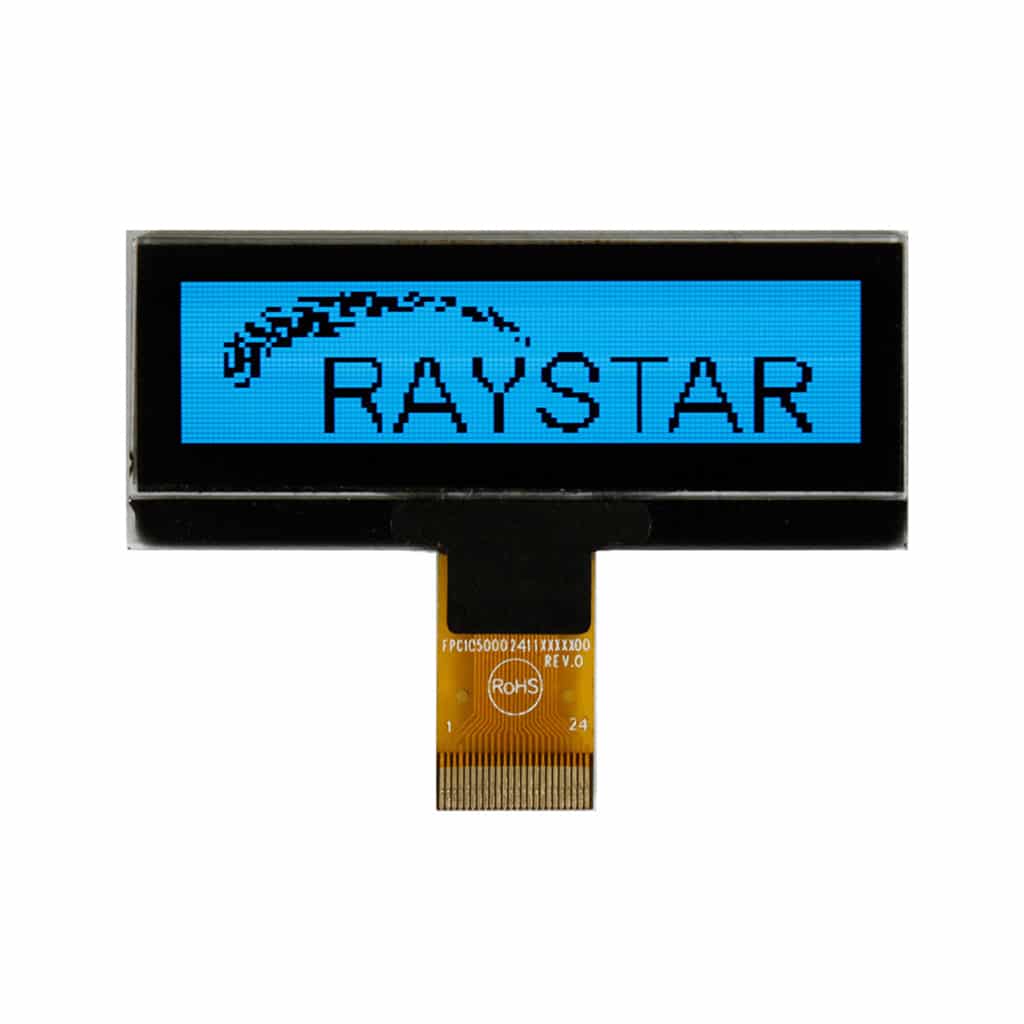

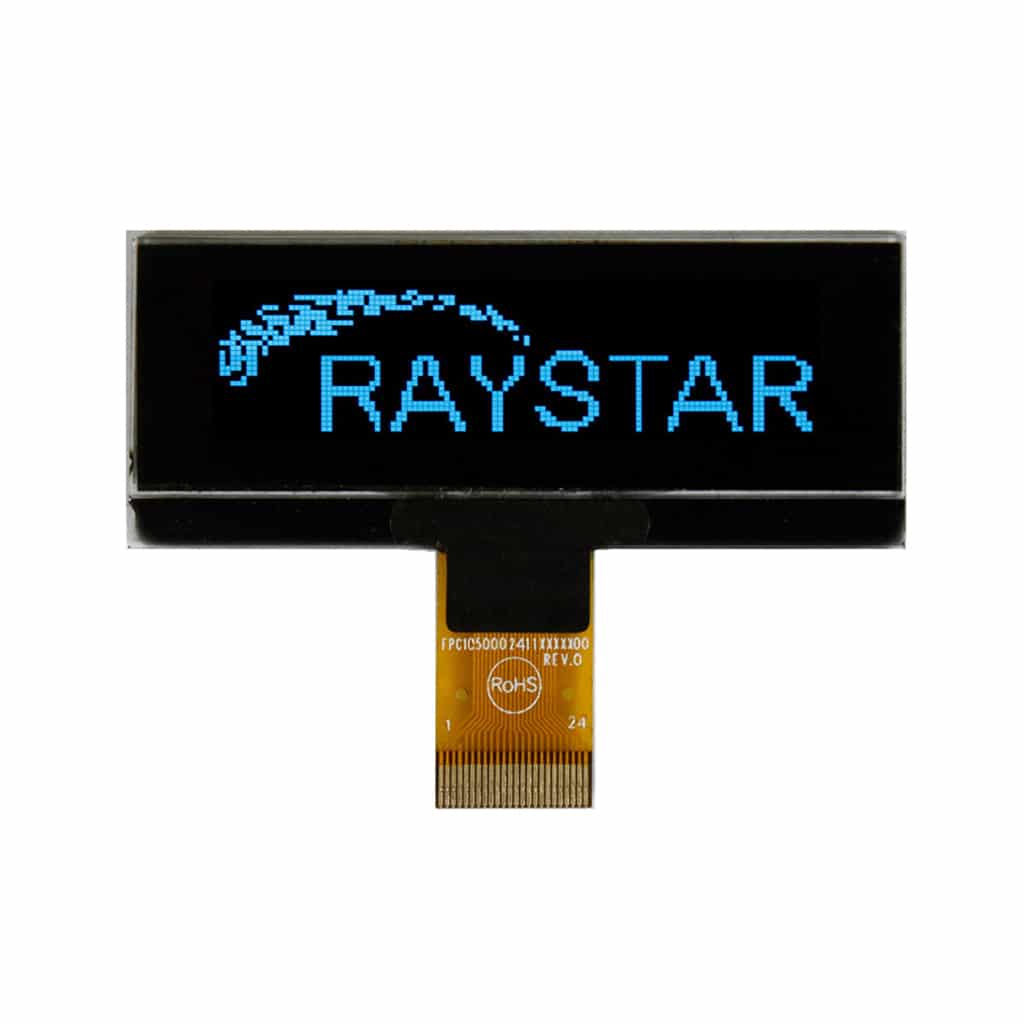

REX012832A series 128×32 COG OLED 62.0mm x 24.0mm (2.22″)

SKU: REX12832A Categories: , , Manufacturer:

Product specs

Dimensions 62.0 × 24.0 mm
Pixels

128×32

Interface

6800, 8080, I2C, SPI

Construction

COG

Product Description

The REX012832A series is a Chip-On-Glass OLED  offering 128×32 pixels within a 57.02mm x 15.1mm viewable area, it comes with an integrated SSD1305Z IC, and is available in Blue, White or Yellow









  • 128×32 Graphic OLED
  • Size: 2.22″
  • Available in Blue, White or Yellow
  • Dimensions: 62.0mm x 24.0mm
  • Viewing Area: 57.02mm x 15.1mm
  • Active Area: 55.018mm x 13.098mm
  • Dot Size: 0.408mm x 0.388mm
  • Dot Pitch: 0.43mm x 0.41mm
  • Power Supply: 3V
  • IC: SSD1305Z
  • Standard Operating Temperature of -40°C to +80°C
