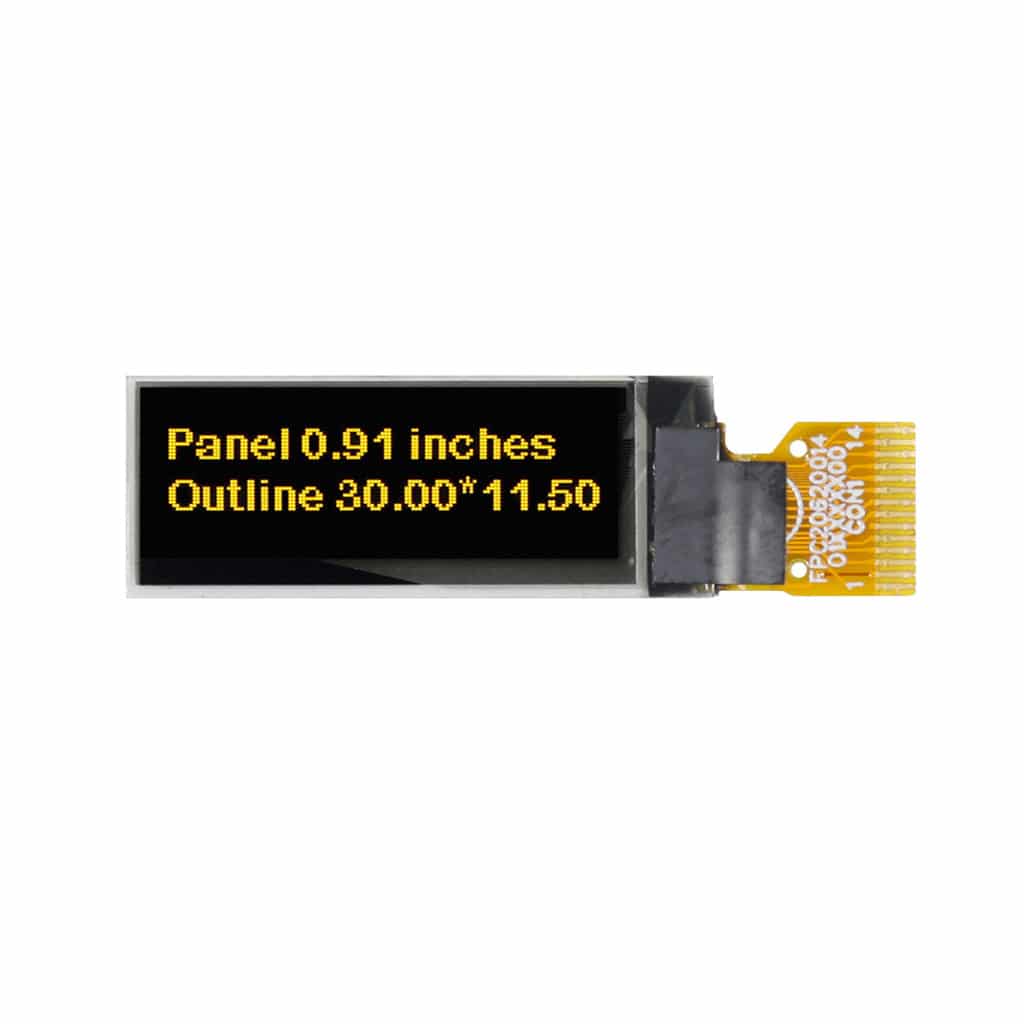

REX012832F series 128x32 I2C COG micro-OLED 30.0mm x 11.5mm (0.91")

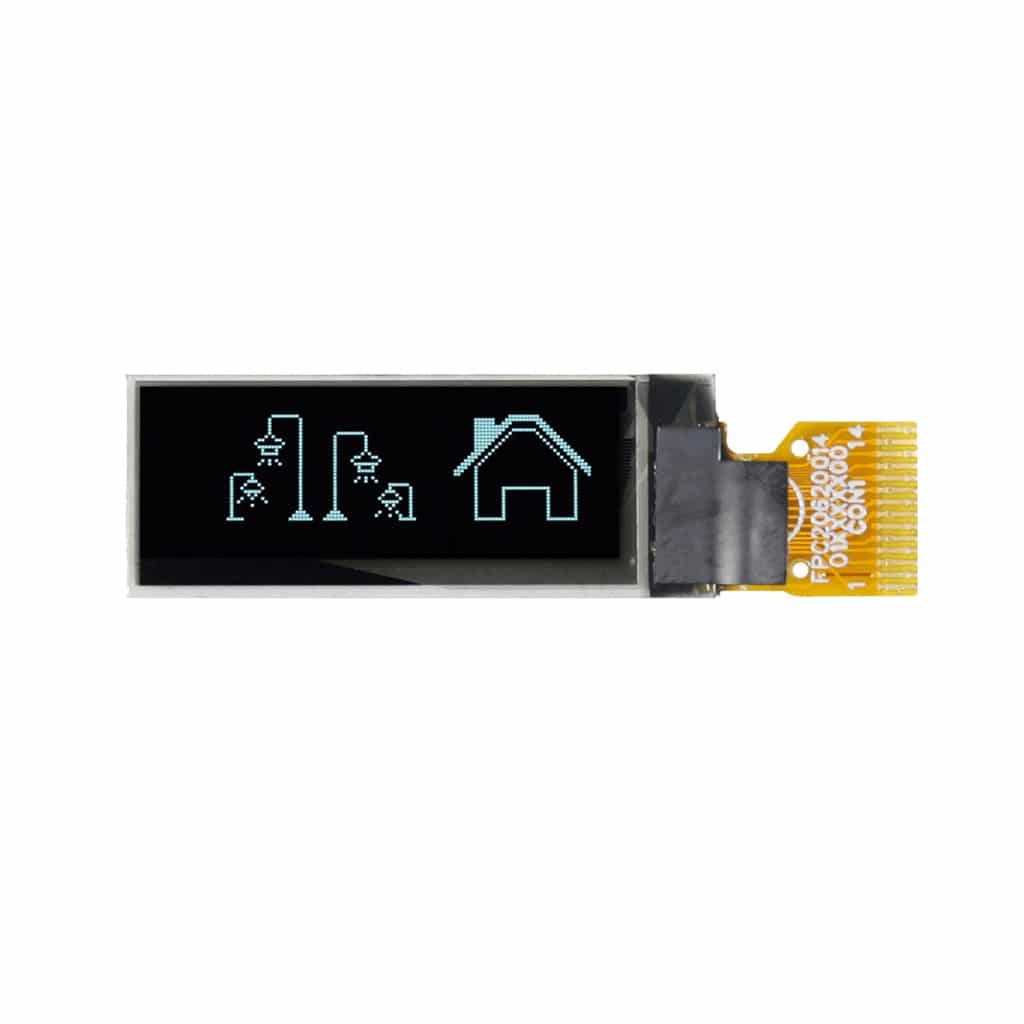

REX012832F series 128x32 I2C COG micro-OLED 30.0mm x 11.5mm (0.91") - Image 2

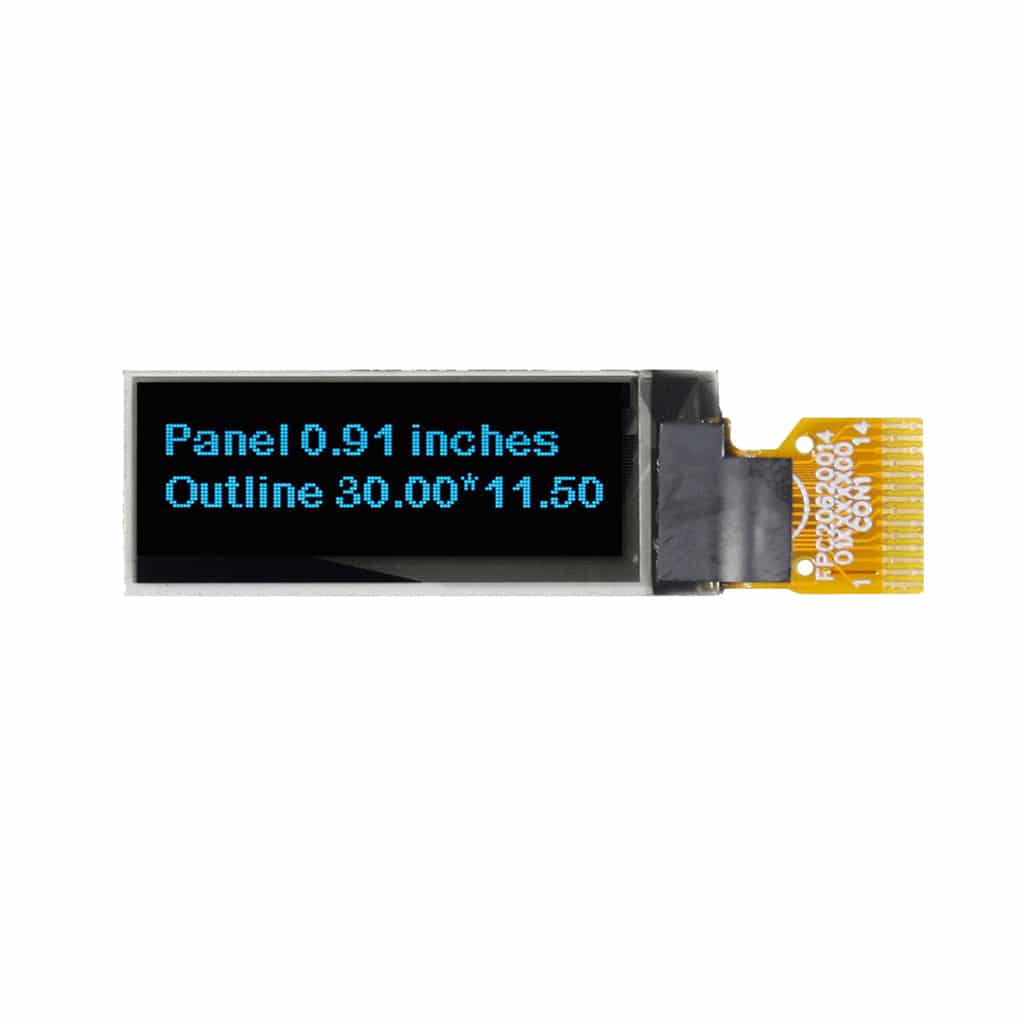

REX012832F series 128x32 I2C COG micro-OLED 30.0mm x 11.5mm (0.91") - Image 3
REX012832F series 128x32 I2C COG micro-OLED 30.0mm x 11.5mm (0.91") - Image 4

REX012832F series 128×32 I2C COG micro-OLED 30.0mm x 11.5mm (0.91″)

SKU: REX012832F Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 30.0 × 11.5 mm
Pixels

128×32
Interface

I2C
Construction

COG

Product Description

The REX012832F series is a Chip-On-Glass OLED  offering 128×32 pixels within a 24.384mm x 7.584mm viewable area, it comes with an integrated SSD1306BZ IC, and is available in Blue, White or Yellow. This device has an I2C interface









  • 128×32 Graphic OLED
  • Size: 0.91″
  • Available in Blue, White or Yellow
  • Dimensions: 30.0mm x 11.5mm
  • Viewing Area: 24.384mm x 7.584mm
  • Active Area: 22.384mm x 5.584mm
  • Dot Size: 0.152mm x 0.152mm
  • Dot Pitch: 0.175mm x 0.175mm
  • I2C Interface
  • Power Supply: 3V
  • IC: SSD1306BZ
  • Standard Operating Temperature of -40°C to +80°C
