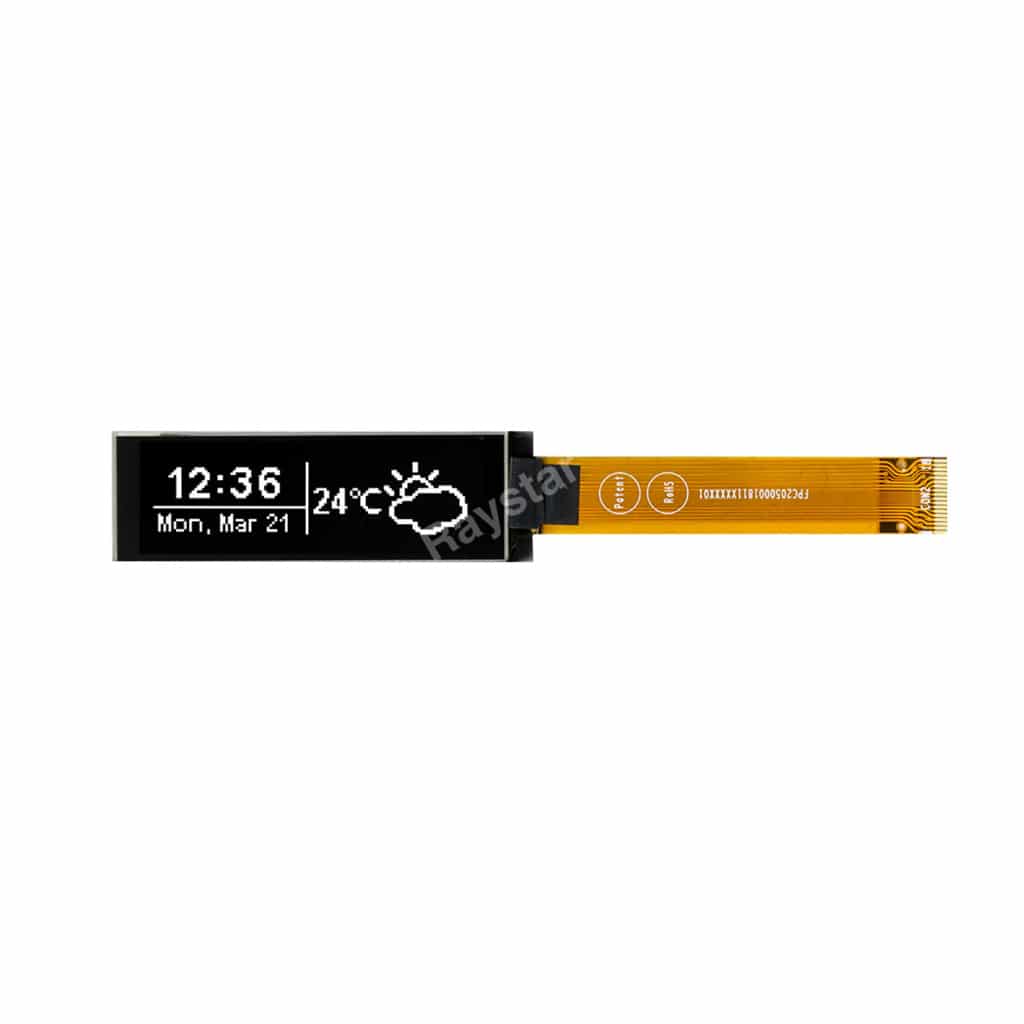

REX012832G series 128x32 COG OLED 50.5mm x 15.75mm (1.71")

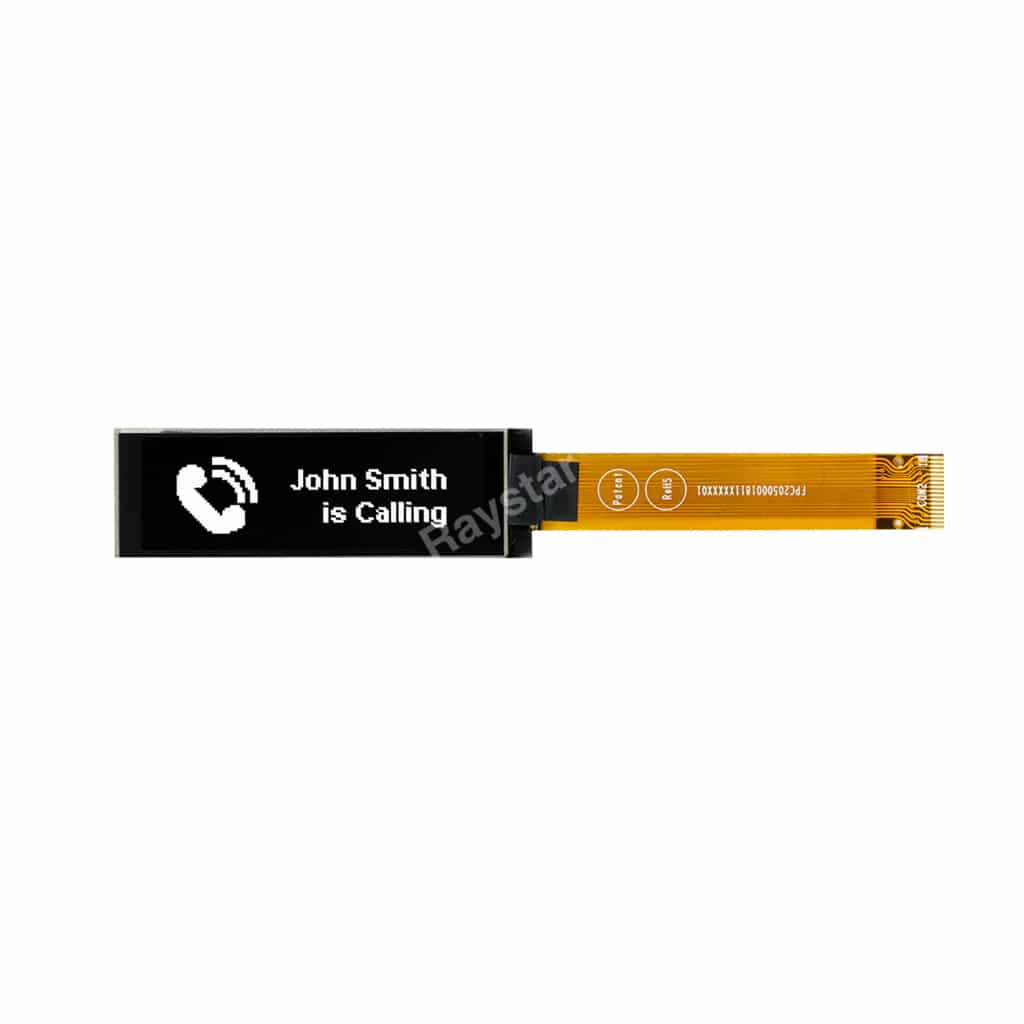

REX012832G series 128x32 COG OLED 50.5mm x 15.75mm (1.71") - Image 2
REX012832G series 128x32 COG OLED 50.5mm x 15.75mm (1.71") - Image 3
REX012832G series 128x32 COG OLED 50.5mm x 15.75mm (1.71") - Image 4

REX012832G series 128×32 COG OLED 50.5mm x 15.75mm (1.71″)

SKU: REX012832G Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 50.5 × 15.75 mm
Pixels

128×32
Interface

I2C, SPI
Construction

COG

Product Description

The REX012832G series is a Chip-On-Glass OLED  offering 128×32 pixels within a 44.22mm x 12.54mm viewable area, it comes with an integrated SSD1307ZD IC, and is available in White or Yellow. This device has a choice of SPI or I2C interface









  • 128×32 Graphic OLED
  • Size: 1.71″
  • Available in White or Yellow
  • Dimensions: 50.5mm x 15.75mm
  • Viewing Area: 44.22mm x 12.54mm
  • Active Area: 42.22mm x 10.54mm
  • Dot Size: 0.308mm x 0.308mm
  • Dot Pitch: 0.33mm x 0.33mm
  • I2C or SPI Interface
  • Power Supply: 3V
  • IC: SSD1307
  • Standard Operating Temperature of -40°C to +80°C
