REX012864D-ZIF series 128×64 COG micro-OLED 26.7mm x 19.26mm (0.96″)

SKU: REX012864D-ZIF Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 26.7 × 19.26 mm
Pixels

128×64
Interface

6800, 8080, I2C, SPI
Construction

COG

Product Description

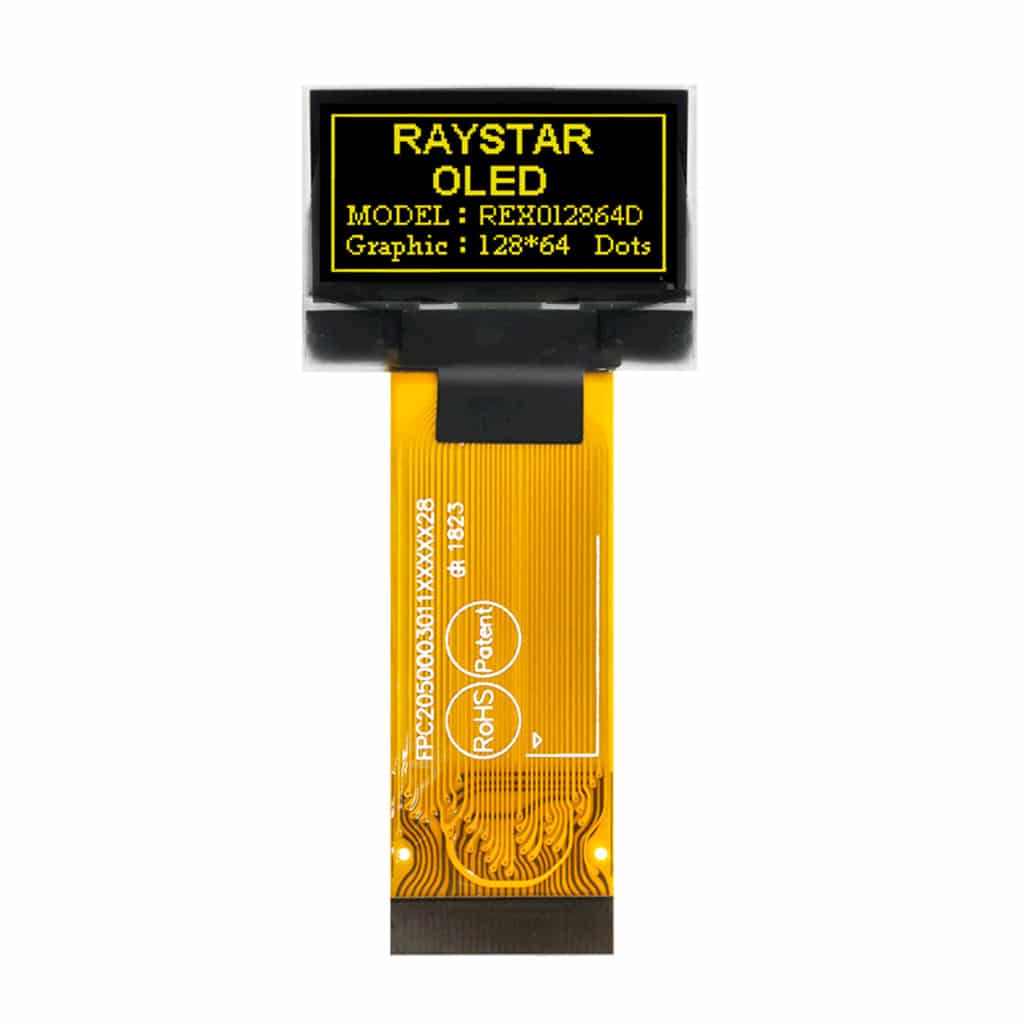

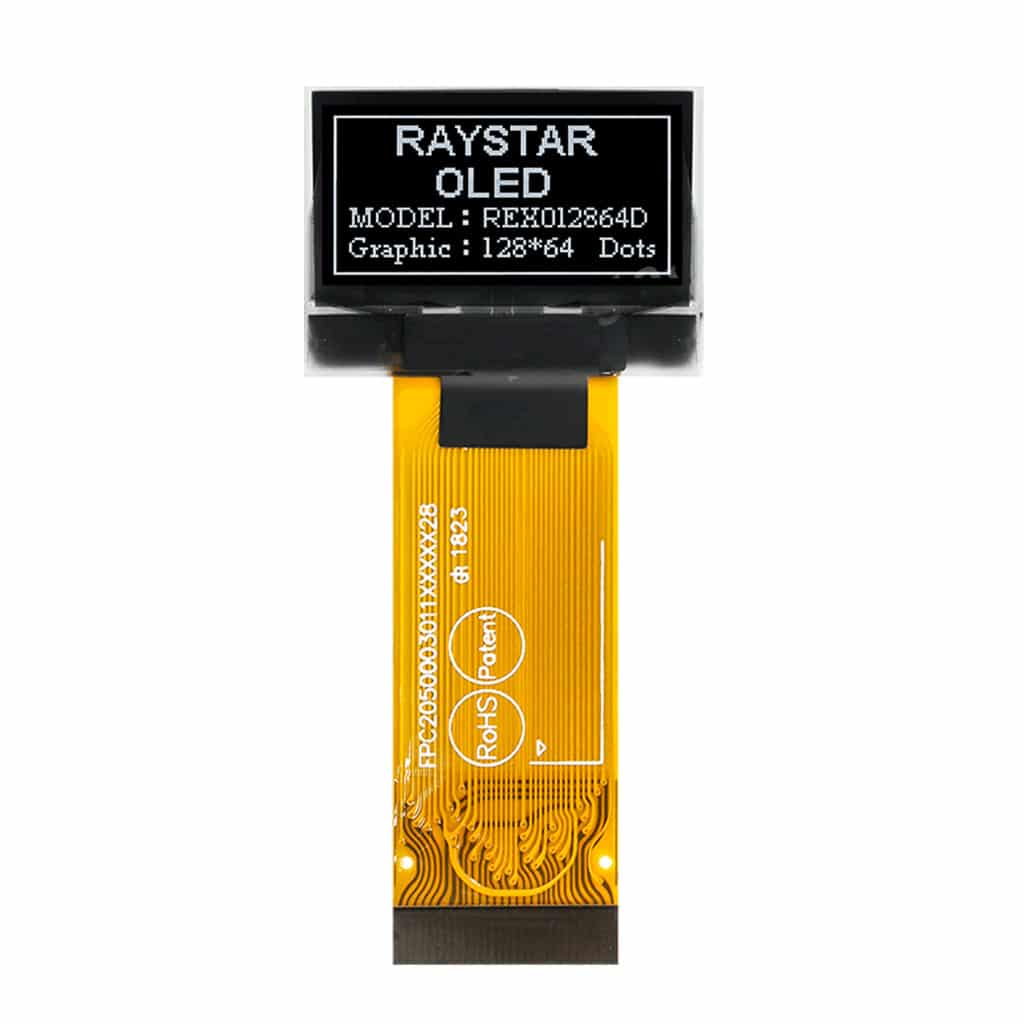

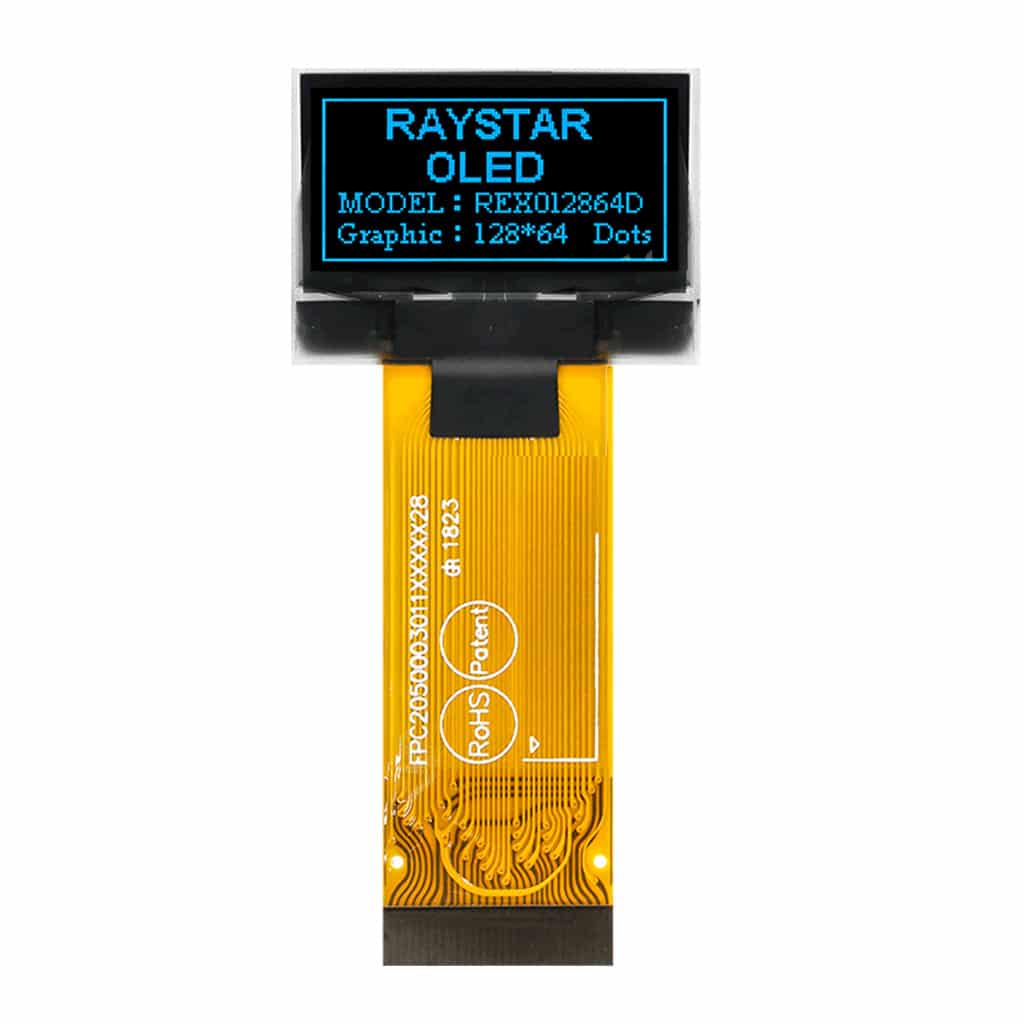

The REX012864D-ZIF series is a 0.96″ Chip-On-Glass OLED  offering 128×64 pixels within a 23.938mm x 12.058mm viewable area, it comes with an integrated SSD1306BZ IC, and is available in Blue, White or Yellow. This device has a choice of 6800, 8080, SPI or I2C interface.

This device has a ZIF friendly FPC – we can also offer the REX012864D-Hotbar series if you require a version that you can solder straight on to your PCB







  • 128×64 Graphic OLED
  • Size: 0.96″
  • Available in Blue, White or Yellow
  • Dimensions: 26.7mm x 19.26mm
  • Viewing Area: 23.938mm x 12.058mm
  • Active Area: 21.738mm x 10.858mm
  • Dot Size: 0.148mm x 0.148mm
  • Dot Pitch: 0.17mm x 0.17mm
  • 6800, 8080, I2C or SPI Interface
  • Power Supply: 3V
  • IC: SSD1306BZ
  • Standard Operating Temperature of -40°C to +80°C
