REX012864G series 128×64 COG OLED 60.5mm x 37.0mm (2.42″)

SKU: REX012864G Categories: , , Manufacturer:

Product specs

Dimensions 60.5 × 37.0 mm
Pixels

128×64

Interface

6800, 8080, I2C, SPI

Construction

COG

Product Description

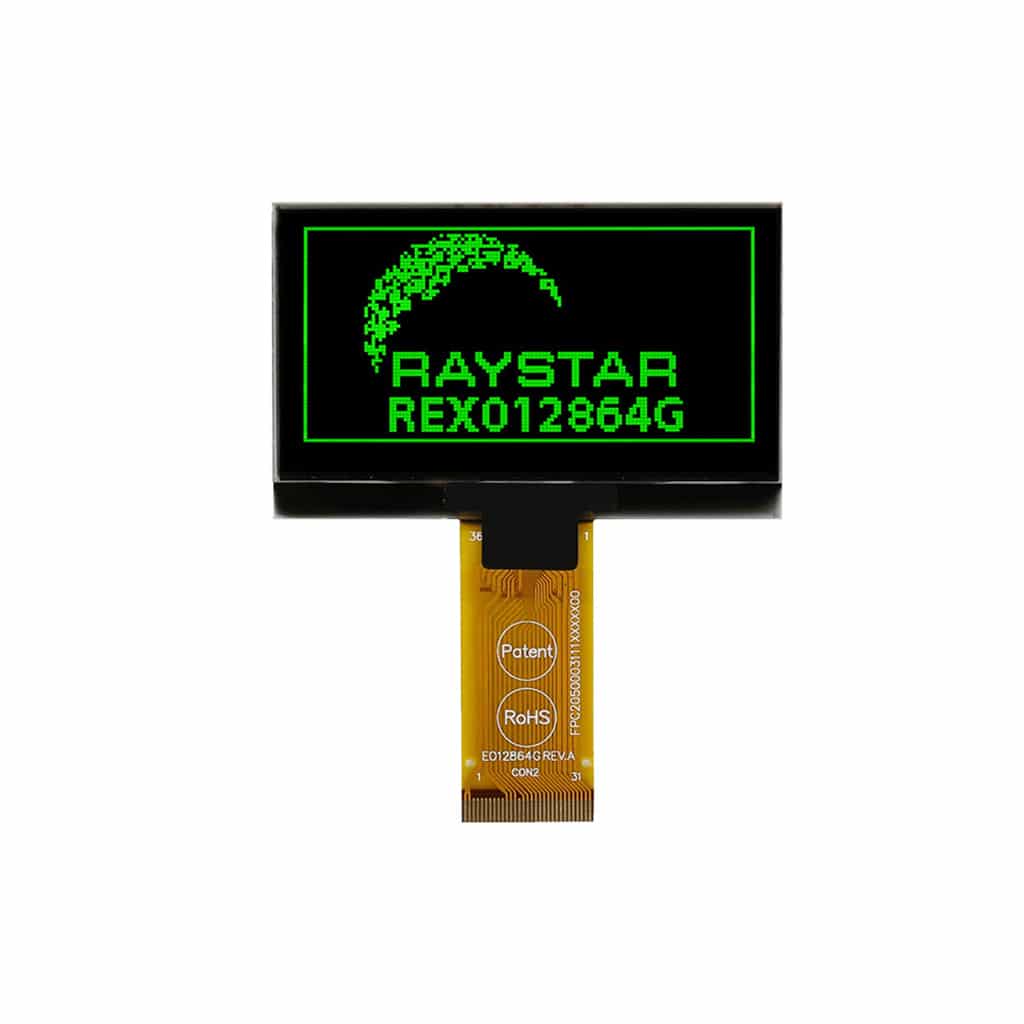

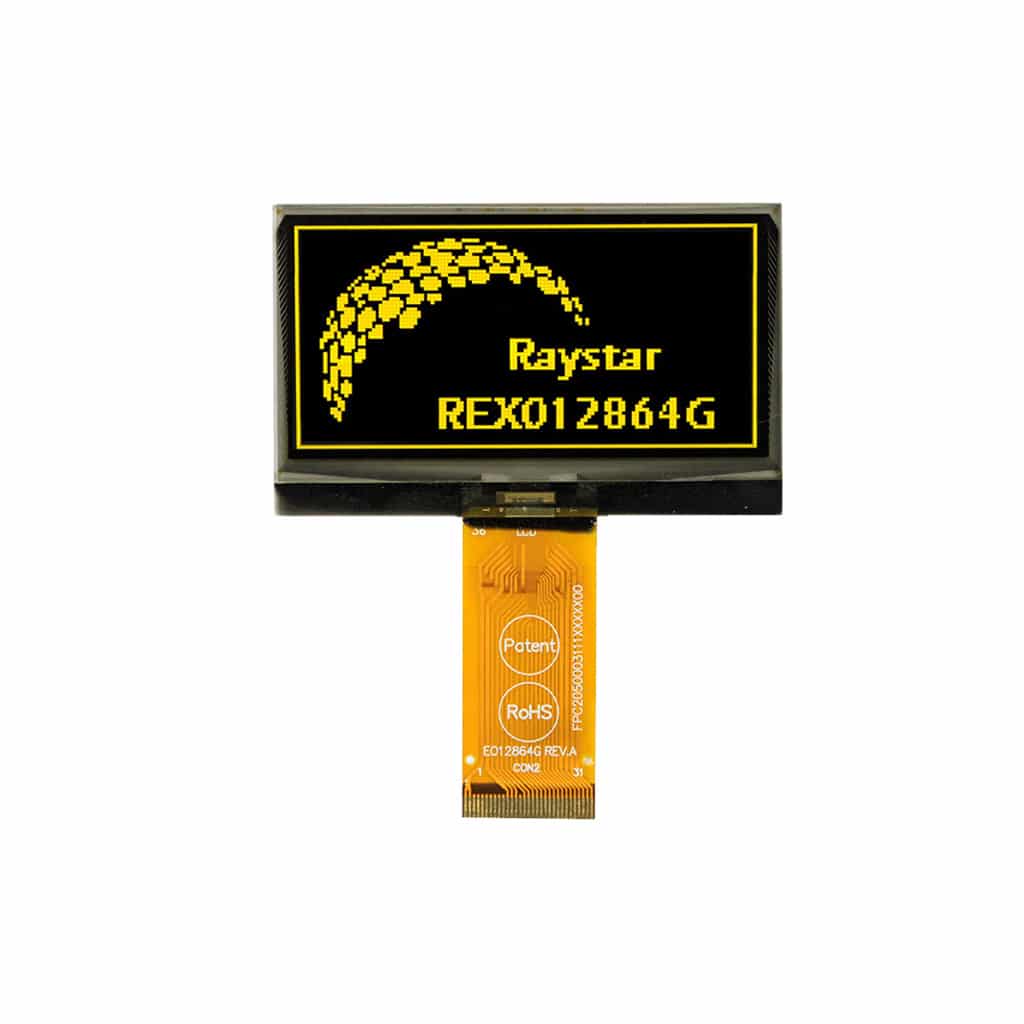

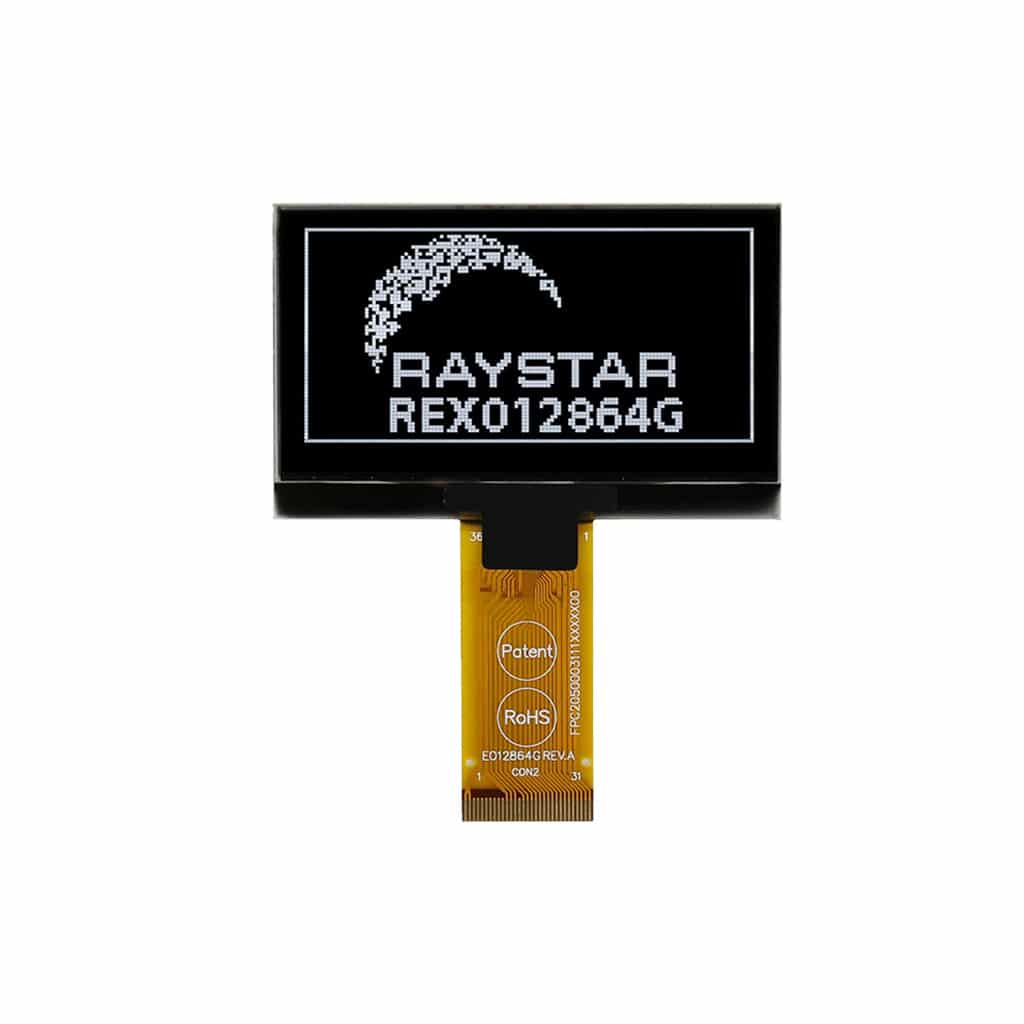

The REX012864G series is a 2.42″ Chip-On-Glass OLED  offering 128×64 pixels within a 57.01mm x 28.91mm viewable area, it comes with an integrated SSD1309ZC IC, and is available in Blue, Green, White or Yellow. This device has a choice of 6800, 8080, SPI or I2C interface

We also have a version with a Capactive Touchscreen available (REX012864G-CTP)









  • 128×64 Graphic OLED
  • Size: 2.42″
  • Available in Blue, Green, White or Yellow
  • Dimensions: 60.5mm x 37.0mm
  • Viewing Area: 57.01mm x 28.91mm
  • Active Area: 55.01mm x 27.49mm
  • Dot Size: 0.40mm x 0.40mm
  • Dot Pitch: 0.43mm x 0.43mm
  • 6800, 8080, I2C or SPI Interface
  • Power Supply: 3V
  • IC: SSD1309ZC
  • Standard Operating Temperature of -40°C to +80°C
