REX012864J-CTP series 128×64 COG on PCB OLED with Cap Touch 75.0mm x 52.7mm (2.42″)

SKU: REX012864J-CTP Categories: , , Manufacturer:

Product specs

Dimensions 75 × 52.7 mm



6800, 8080, I2C, SPI



Product Description

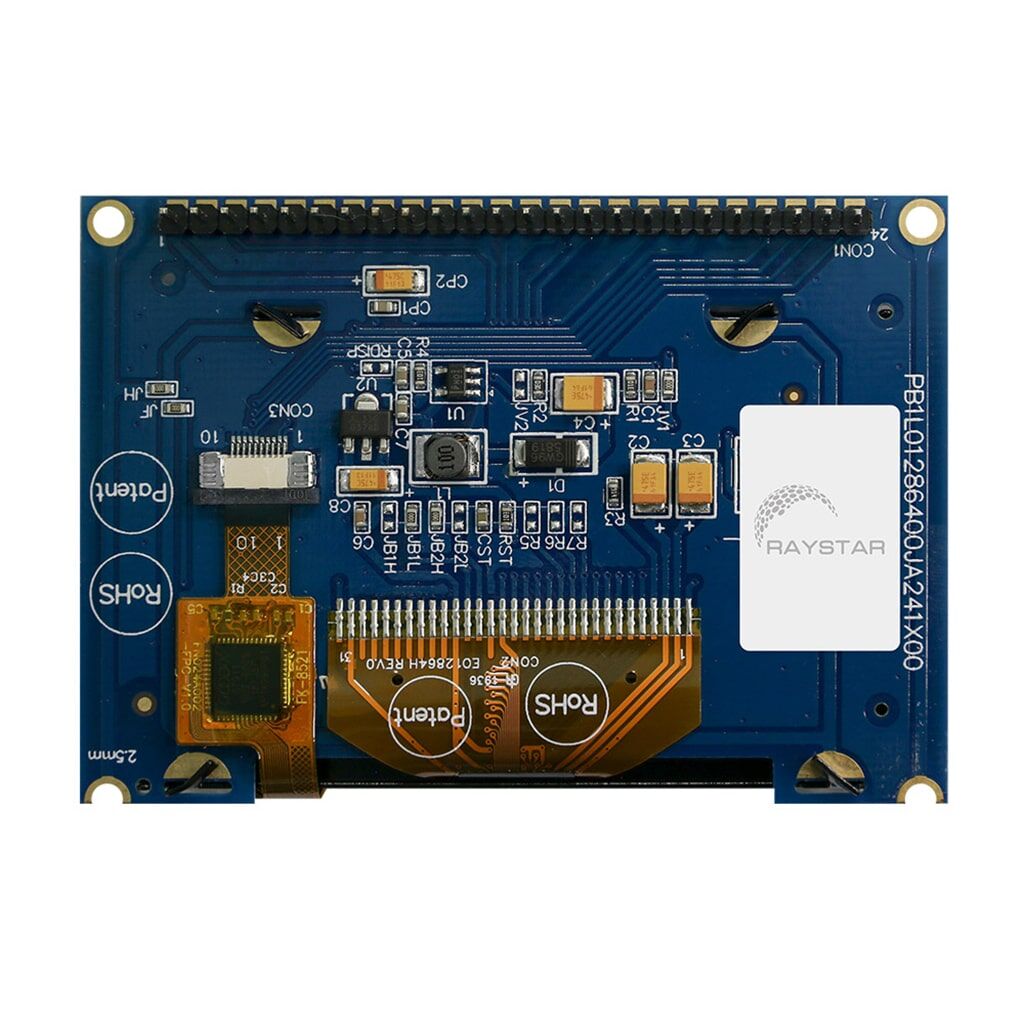

The REX012864J-CTP series is a 2.42″ Chip-On-Glass OLED on a PCB with an integrated Capacitive Touchscreen,  offering 128×64 pixels within a 57.01mm x 29.49mm viewable area, it comes with an integrated SSD1309ZC IC, and is available in Blue, Green, White or Yellow. This device has a choice of 6800, 8080, SPI or I2C interface.

The CTP IC used is the GT911 and is I2C interface





  • 128×64 Graphic OLED with CTP
  • Size: 2.42″

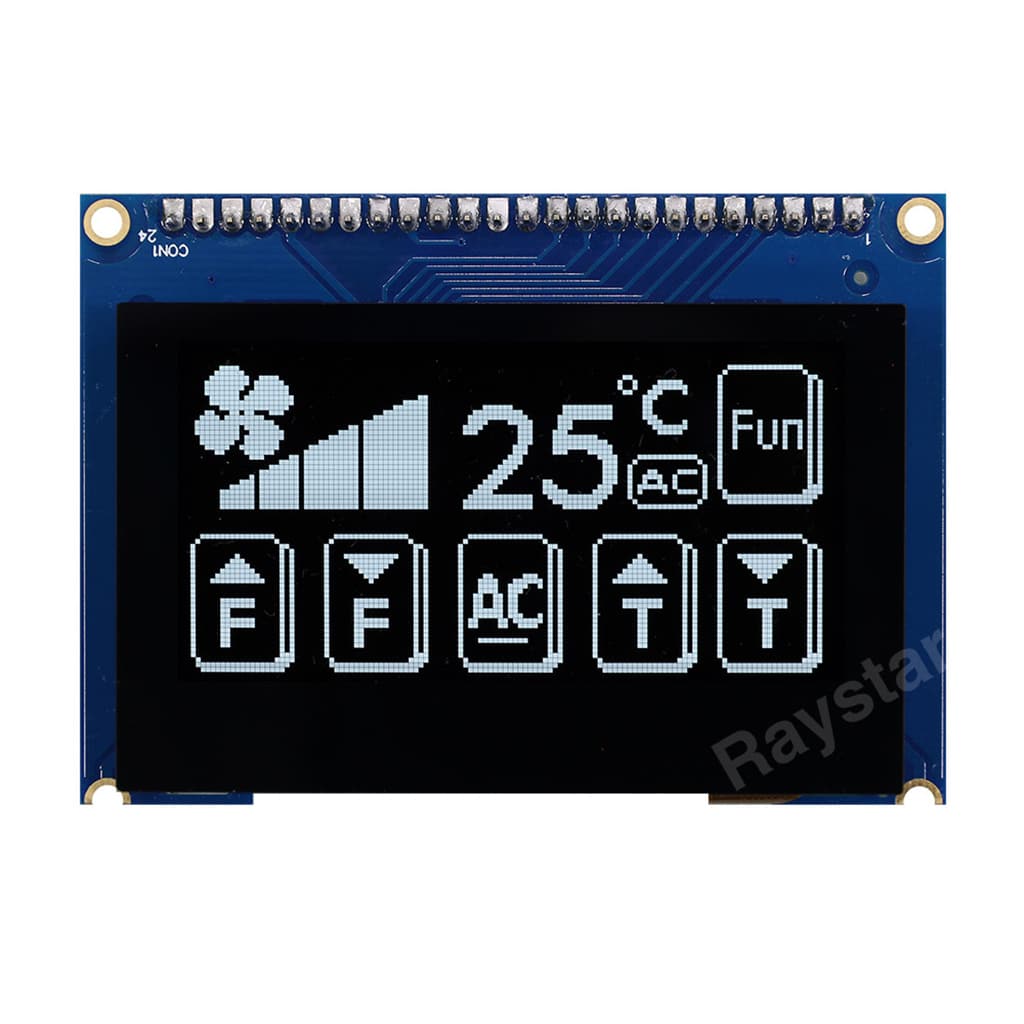

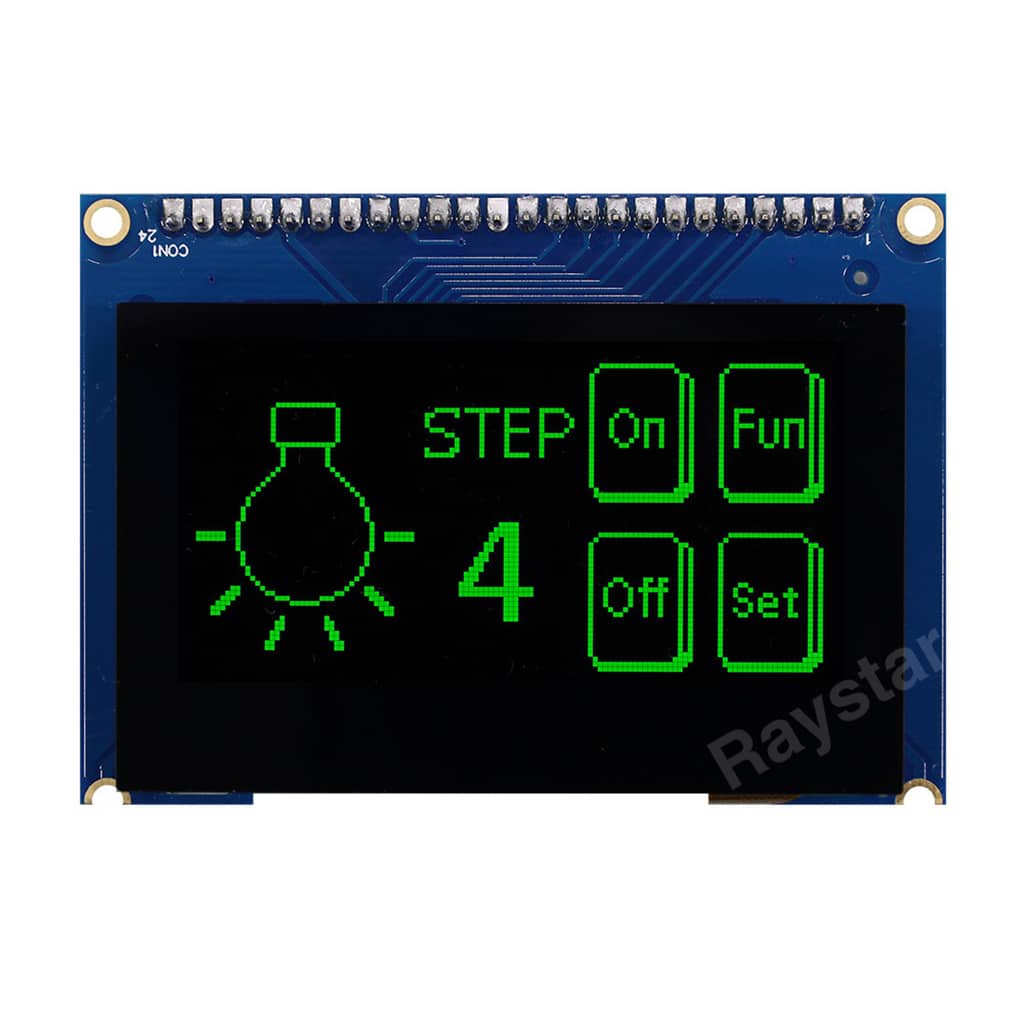

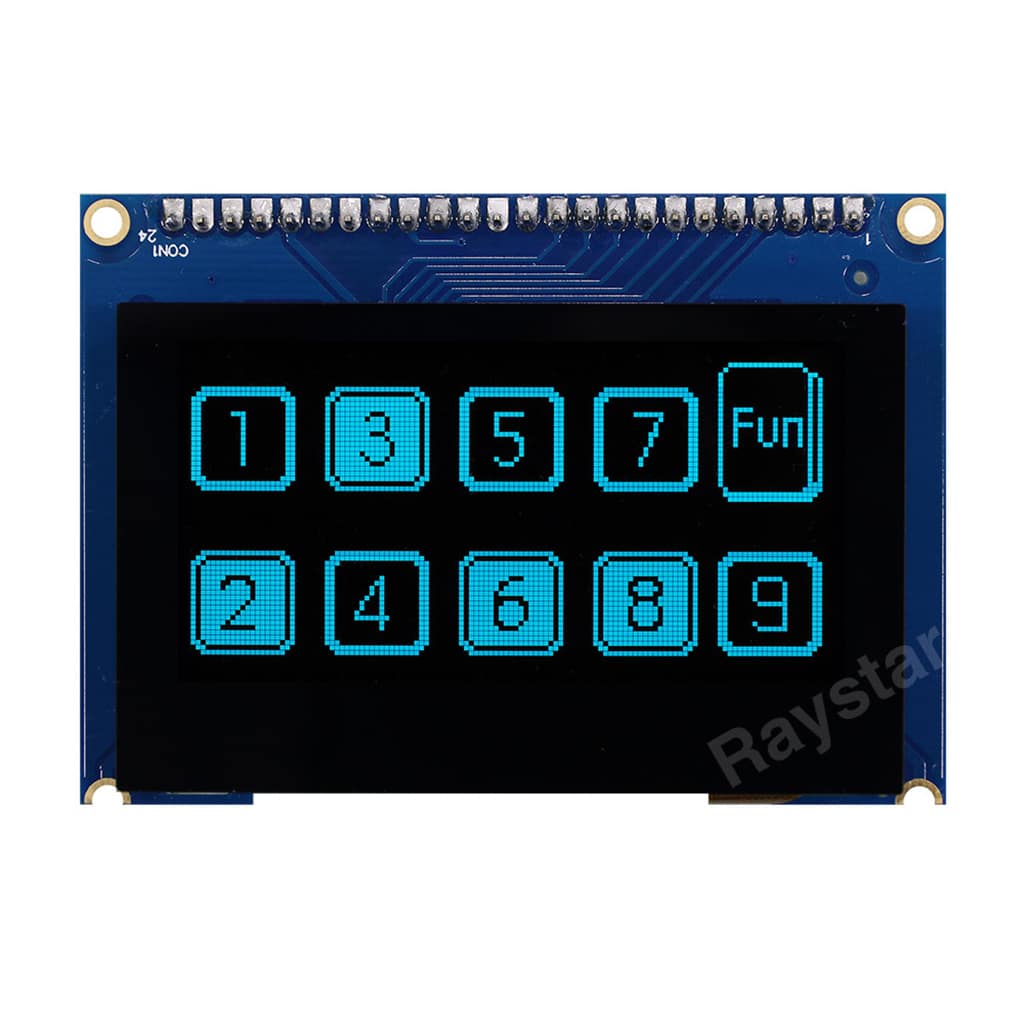

  • Available in Blue, Green, White or Yellow
  • Dimensions: 75.0mm x 52.7mm
  • Viewing Area: 57.01mm x 29.49mm
  • Active Area: 55.01mm x 27.49mm
  • Dot Size: 0.40mm x 0.40mm
  • Dot Pitch: 0.43mm x 0.43mm
  • 6800, 8080, I2C or SPI Interface
  • Power Supply: 3V
  • IC: SSD1309ZC
  • CTP IC: GT911
  • CTP Interface: I2C
  • Standard Operating Temperature of -40°C to +80°C
